YPSDZ CELL CAPACITY TESTER AND AGING 0550

YPSDZ 0550 5V 50A Cell Capacity and Aging Tester

The YPSDZ 0550 is a 5V 50A-class cell capacity and ageing tester for controlled charging and discharging. It supports individual-cell evaluation and approved balance-maintenance tasks, rather than acting as a high-voltage battery pack tester.

For a workshop assessing larger cells, the benefit of a suitable test station is a repeatable procedure with a clearly identified result. Establish what decision the measurement should support: capacity comparison, repeated cycling or adjustment of a cell's charge condition. These tasks use related equipment functions but do not establish the same thing about battery health.

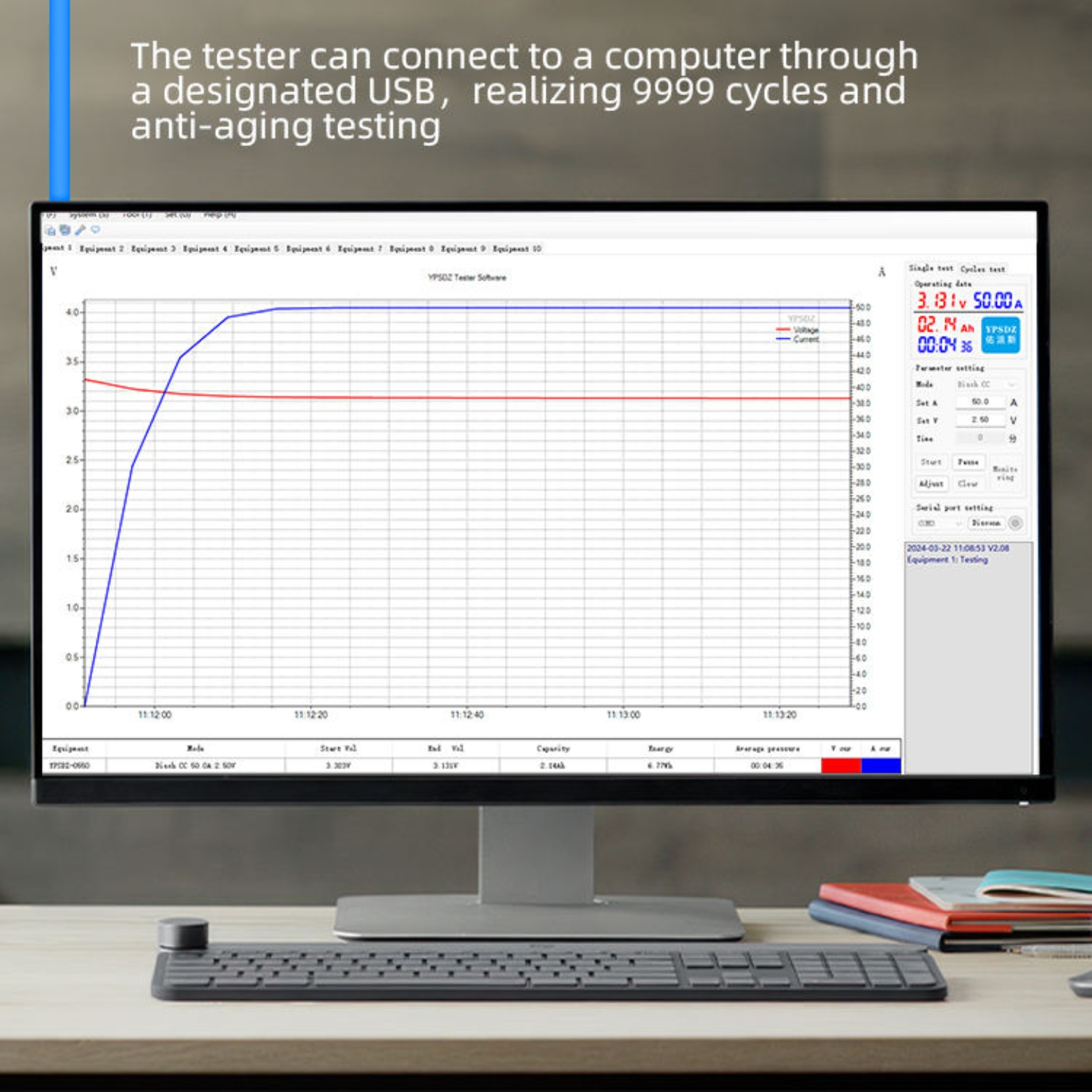

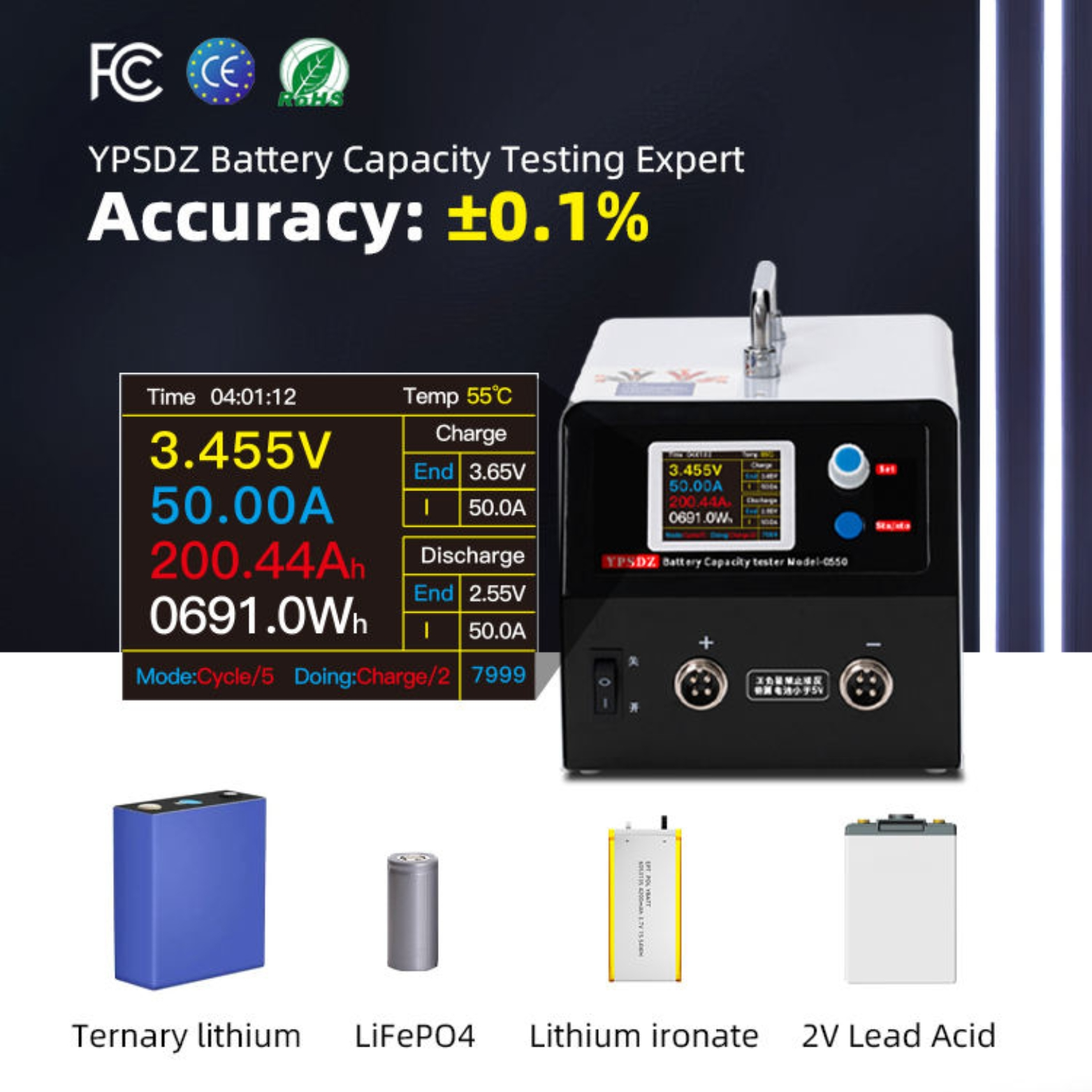

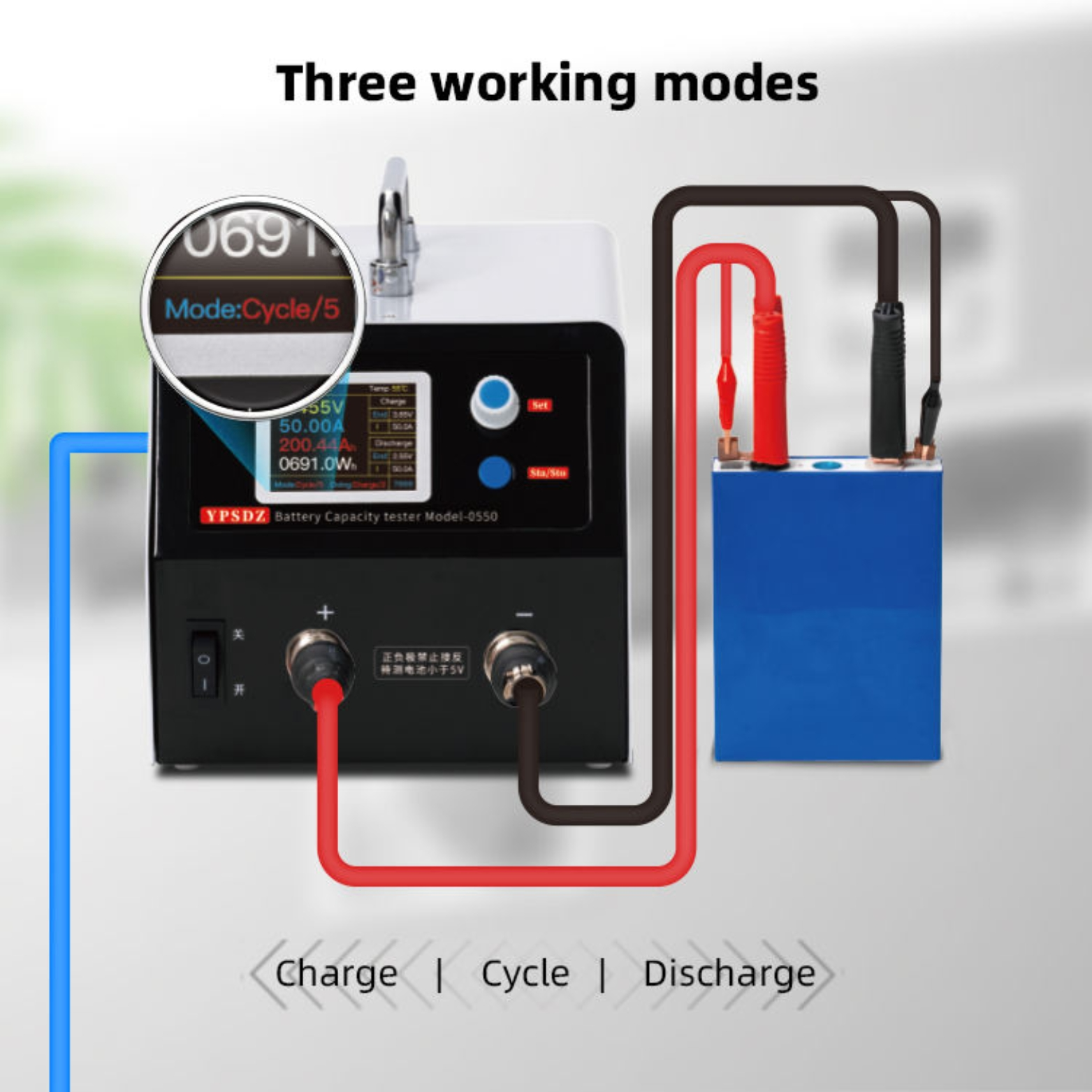

The catalogue gives maximum charge and discharge capability of 5V and 50A, with 250W ratings in each direction. Work steps include charging, discharging, rest and cycling. Local operation and a supported USB computer connection provide options for carrying out and reviewing the test.

The 50A setting is a current limit, not the correct operating point for all cells. Choose current from the cell's specification and use a fixture capable of carrying it continuously. Balancing changes the charge condition of a cell; it does not prove that capacity, self-discharge or physical condition are acceptable. Use the appropriate additional checks before deciding that a maintained cell is suitable for a battery assembly.

Compatibility & Selection Guide

Confirm the cell chemistry, upper charge limit and lower discharge endpoint before configuring the instrument. A 5V equipment ceiling must not be used as a lithium-cell charging target. Verify the minimum settings for the delivered revision when planning low-current or low-voltage tests.

Select leads and contacts for the terminal geometry and intended load, and confirm the mains version when ordering. For in-pack cell work, qualified personnel must assess access and isolation against the complete battery design. Do not connect ordinary thin sensing wires as the test-current path. Keep cell identifiers, approved procedures and test records linked so that an ageing result can be compared with the correct earlier sample measurement.

Applications

• Capacity comparison of suitably rated single cells.

• Charge-discharge ageing under an approved procedure.

• Large-cell development and incoming sample evaluation.

• Controlled cell charge adjustment and balance maintenance.

• Workshop recording of repeatable cell performance tests.

Installation Guide

Install the tester with the correct supply and clear ventilation around its cooling openings. Support the cell securely, protect exposed terminals and verify polarity before enabling a current. Inspect the fixture and current-carrying connections separately from any sensing wires.

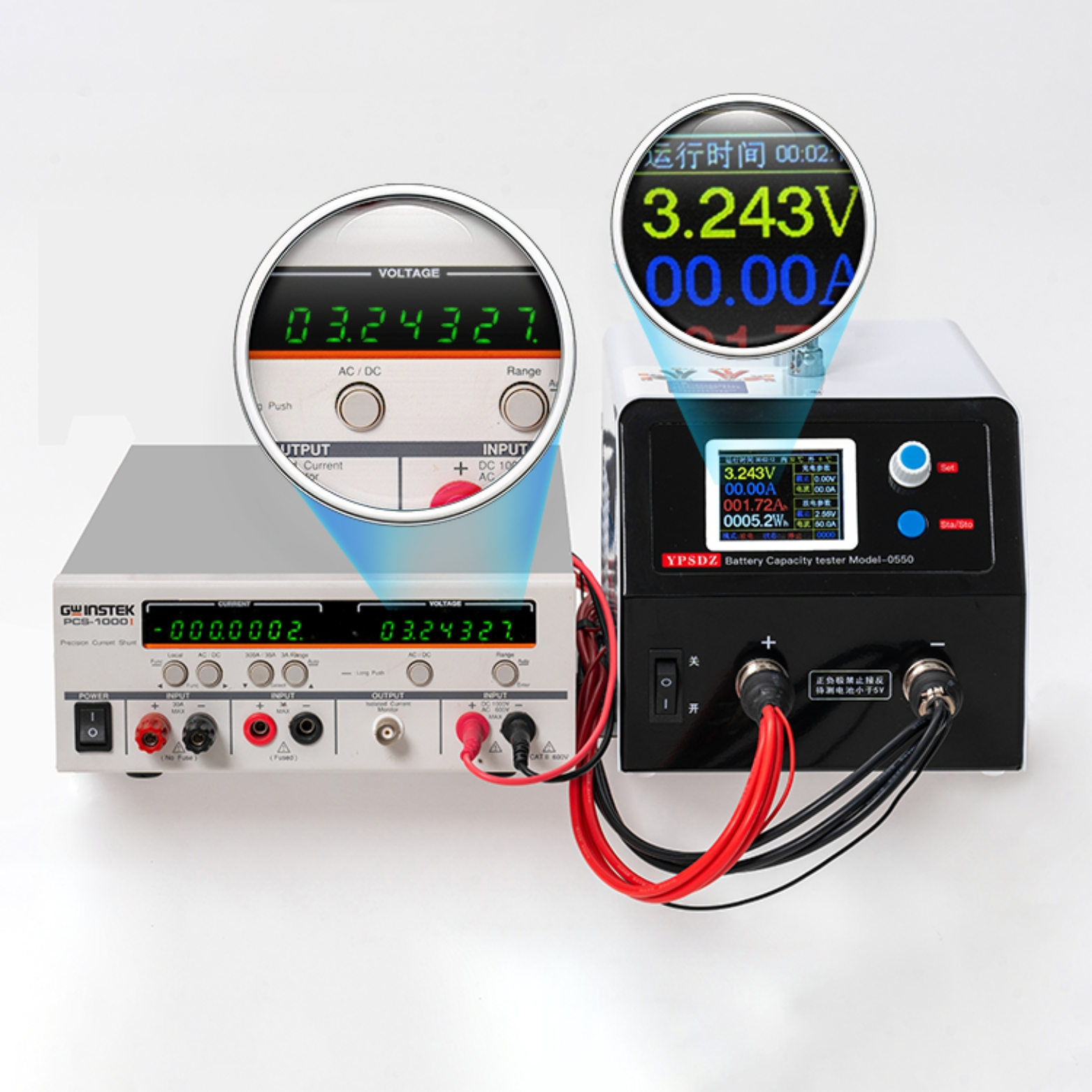

Commission with a reference cell at an appropriate reduced current before running the intended test. Check that the chosen voltage endpoints and rest stages match the battery specification. Observe contact heating and stop if the cell or connection behaves abnormally. Preserve the original result, operating conditions and any retest reason. Inspect fixtures and maintain calibration records regularly; reliable cell comparison depends on the stability of the complete measurement arrangement, not only the instrument display.

Why Choose ARB Accessories?

ARB Accessories offers cell-testing instruments together with battery cells, BMS boards and assembly connections. Include the cell format, capacity and intended current in your YPSDZ 0550 enquiry. This helps Indian pack assemblers and service teams choose suitable fixtures and procedures, while keeping capacity testing, ageing and balancing clearly separated in the equipment's intended role.
