YPSDZ BATTERY CAPACITY TESTER 800-1000

YPSDZ 800-1000 Battery Pack Charge-Discharge Capacity Tester

The YPSDZ 800-1000 combines battery charging with discharge-capacity testing in a manually selected workflow. Its catalogue ratings are 1000W for charging and 800W for discharging; the two numbers must not be reversed when specifying the equipment.

This arrangement suits a workshop that can supervise battery preparation and the transition between modes. It is not the same as an automatic cycling cabinet. Plan the operator's role and the test record before using it for repeated battery comparisons, particularly when several jobs share one bench.

The documented discharge section operates within 2-100V and offers current settings up to 45A, limited by 800W discharge power. As voltage increases, the available current is constrained by that power limit. Maximum current and maximum voltage therefore cannot be promised simultaneously across the full range.

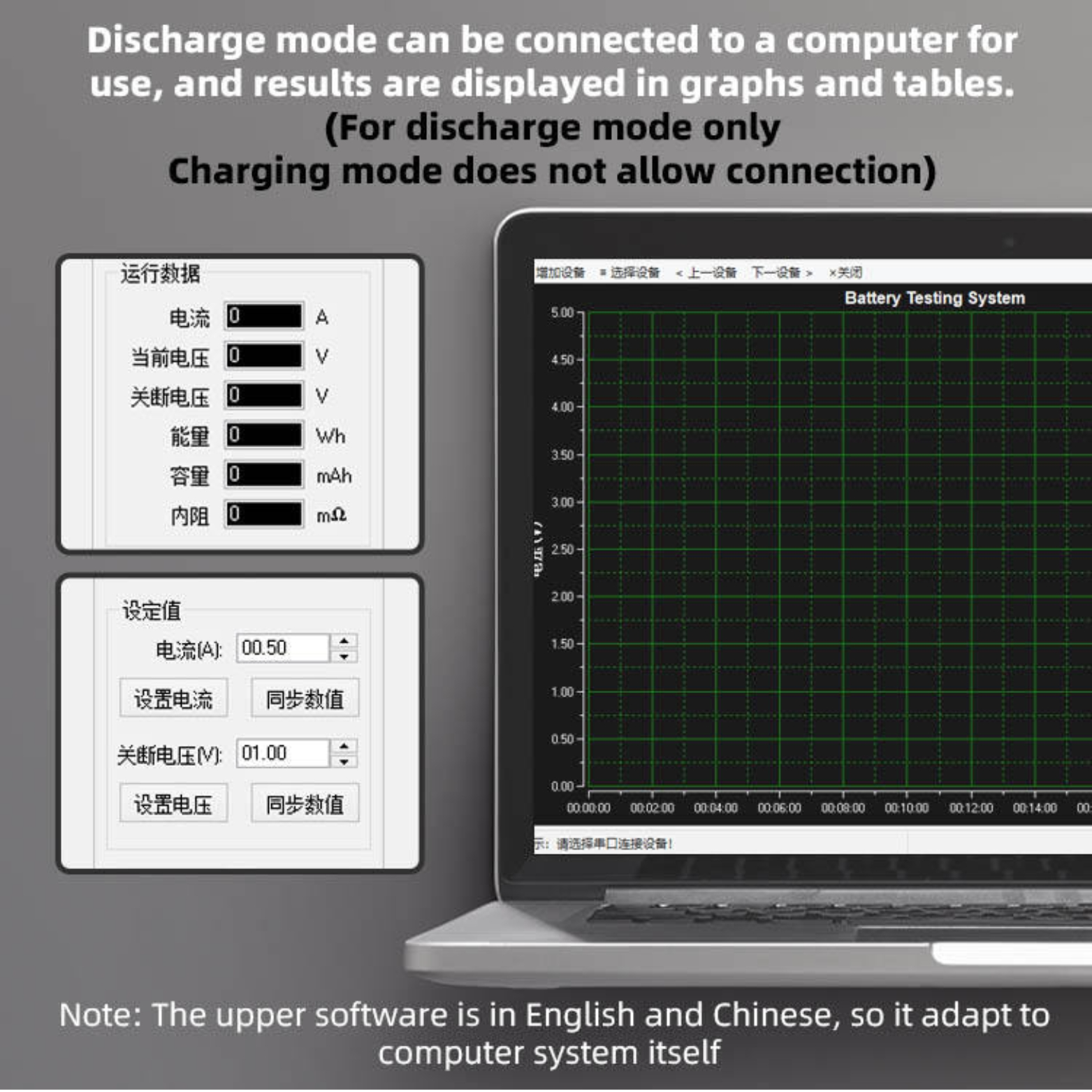

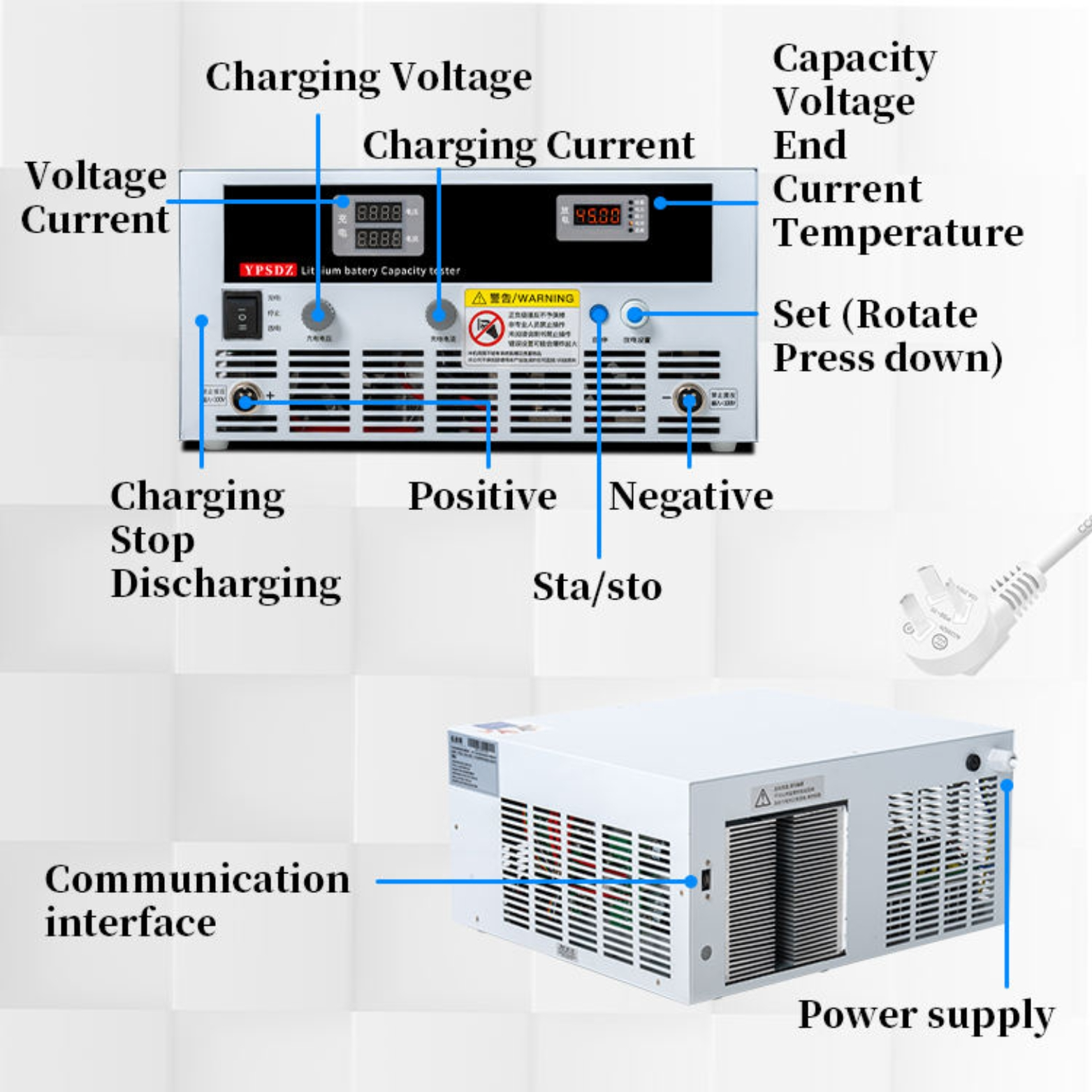

Charging uses a separate controlled profile with up to 10A current in the documented family. Charge and discharge are manually selected. USB computer operation applies to discharge testing, while charging operates offline. A discharge curve can support capacity analysis, but it should be retained with the battery preparation details. Otherwise two apparently similar results may reflect different initial states or different operator transitions rather than a real change in battery performance.

Confirm the exact charging-voltage ceiling for the supplied version and compare it with the battery's maximum charged voltage. Check chemistry, charge-current allowance, BMS behaviour and the chosen discharge endpoint. The instrument's broad voltage class does not establish that every pack can use one common charging profile.

Assess the required load against the 800W discharge limit throughout the voltage range. Specify suitable current leads and terminals, and check the mains version before installation. A production process that requires unattended automatic charge-discharge cycling may need different equipment. For this manually switched model, define who verifies each mode transition and how the battery identity and test settings will be recorded.

Applications

• Supervised battery pack charging and discharge evaluation.

• Workshop capacity comparison of compatible battery packs.

• Controlled load testing within an 800W discharge envelope.

• Discharge-curve recording through supported USB software.

• Investigation of reduced battery runtime under a defined load.

Installation Guide

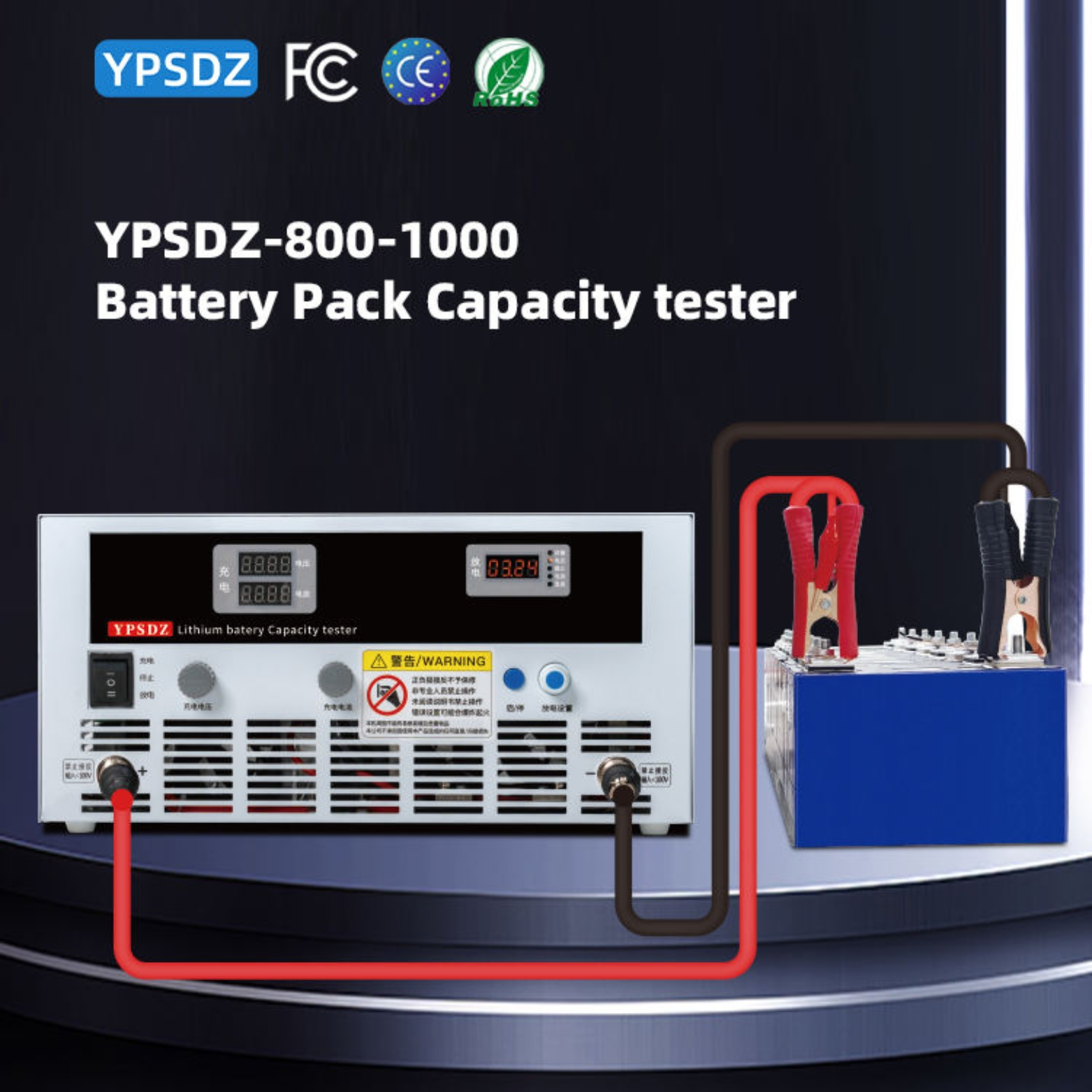

Provide the correct grounded supply and clear ventilation around the instrument. Secure the battery and inspect the test leads, connectors and polarity before starting. Keep the selected operating mode visible to the operator and use only the connection sequence specified for the delivered equipment.

Commission with a reference pack, verifying charging completion and manual transition before discharge. Check the selected current against the power limit and record the actual test conditions. Observe battery and connector temperatures during the initial run. Stop for abnormal behaviour or poor contact rather than changing limits to force completion. Save the discharge record with the charging-preparation details, and return the battery to its required next-use or storage condition.
