YPSDZ BATTERY CAPACITY TESTER 1600-2000

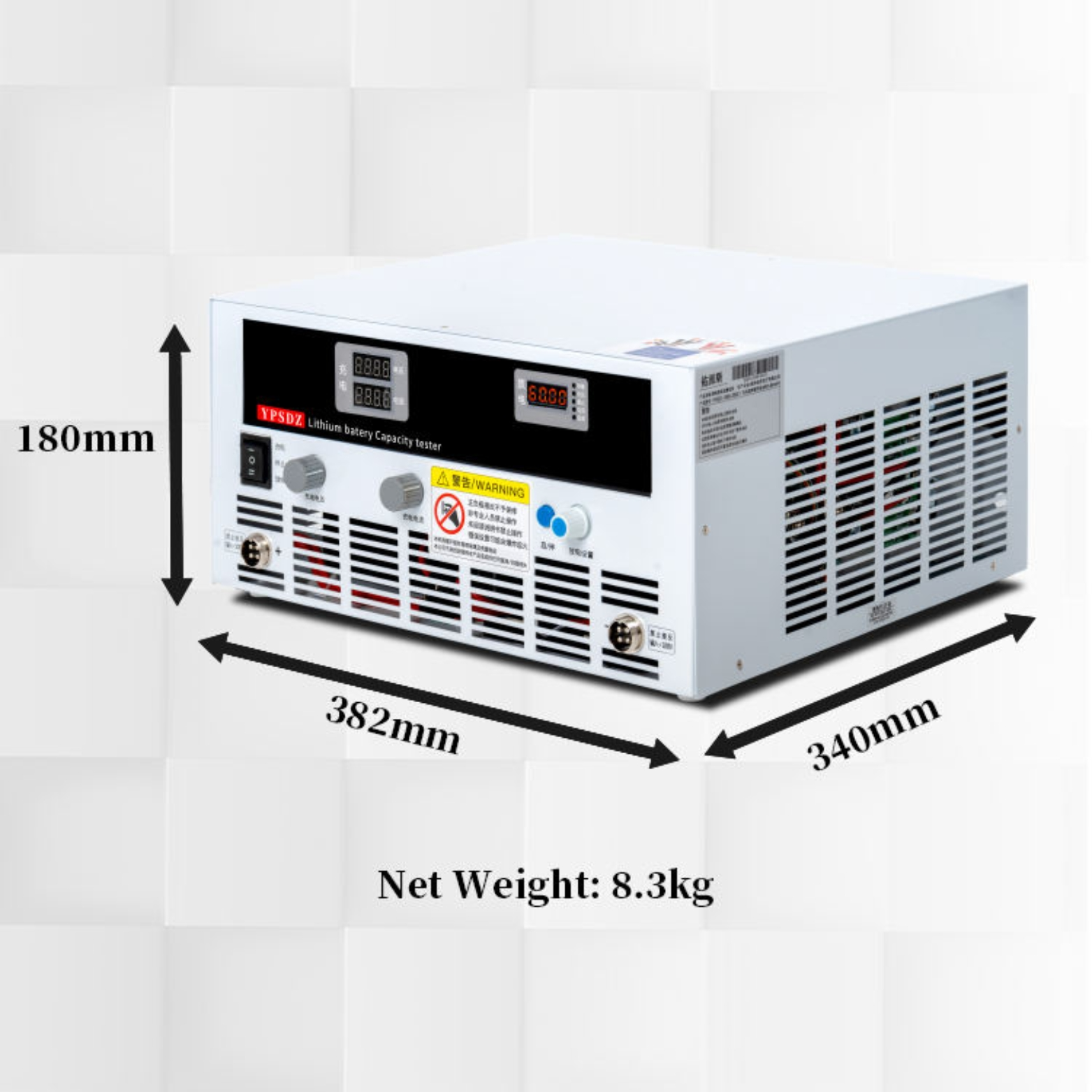

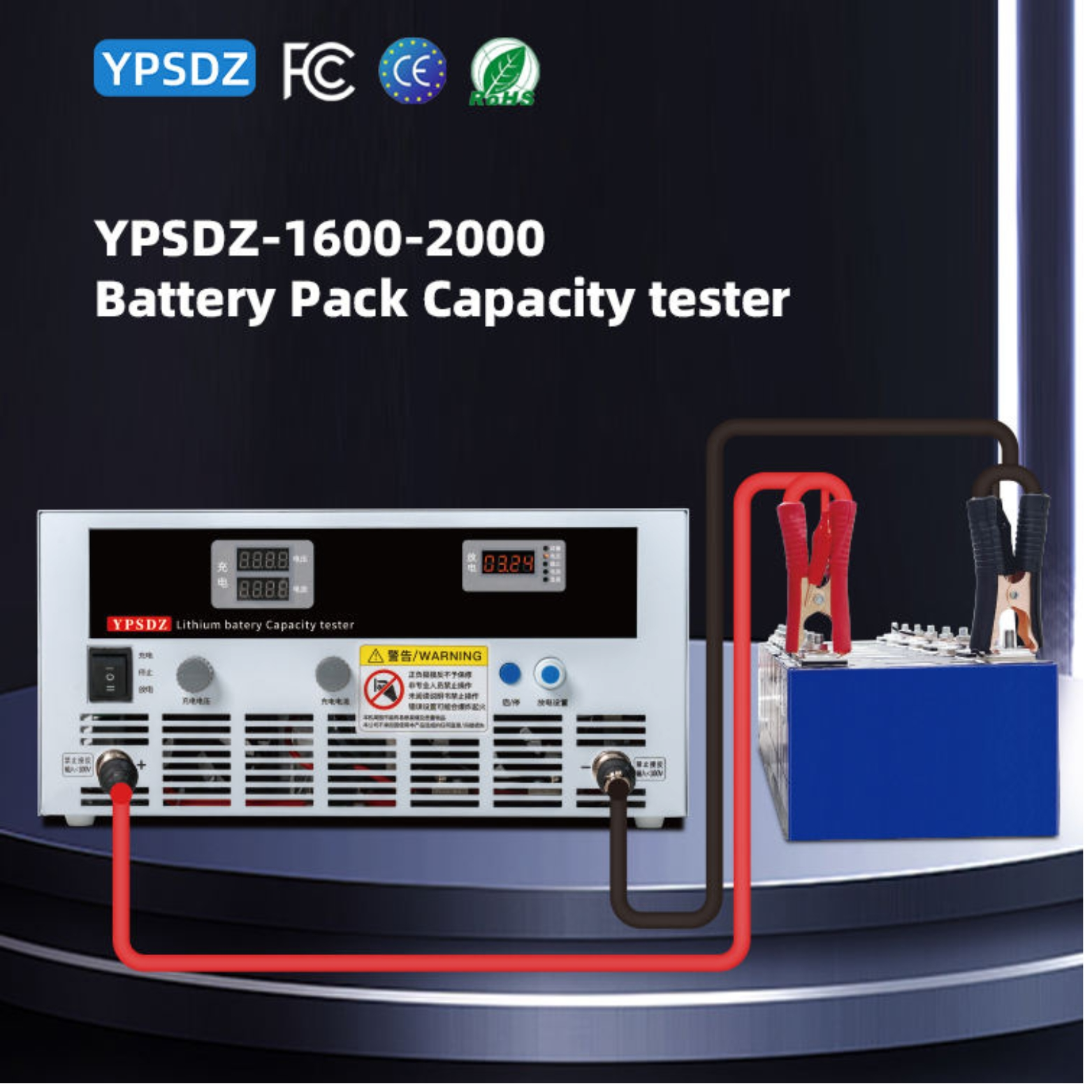

YPSDZ 1600-2000 Battery Pack Charge-Discharge Tester

The YPSDZ 1600-2000 is a battery pack charger and discharge-capacity tester with manual mode switching. Its documented ratings are 2000W charging and 1600W discharging, with a power-limited load rather than unrestricted 60A operation at every voltage.

For a supervised pack-testing station, higher discharge power can support an appropriate load on larger batteries. The useful comparison is the complete voltage-current operating envelope, not the biggest current number in the model description. Establish how the pack will be prepared, tested and identified before choosing the procedure.

The charging section is specified for 1-100V and up to 20A. The discharge section covers 2-100V with settings up to 60A, constrained by 1600W. At higher pack voltages, the available discharge current is therefore lower than the headline maximum. Select the actual load from the power and current limits together.

Charging and discharging are manually switched rather than executed as an automatic cycle sequence. The USB computer connection supports discharge operation, while charging is offline. Keep the charging settings and preparation record alongside the discharge data. A completed capacity test shows the result of one defined procedure; it does not guarantee identical runtime under a changing vehicle or inverter load.

Check the battery's full-charge voltage, chemistry, permissible current and minimum endpoint against the instrument's separate operating ranges. A battery capable of a high discharge current may require a much lower charging rate. The BMS and connector arrangement must support the chosen settings without bypassing their protective role.

Confirm the mains version and installation capacity, along with the current-carrying leads and the required computer workflow. Decide whether manual operation is appropriate for the planned number of tests. A process that depends on repeated unattended charge-discharge transitions requires different functionality. Define clear instructions for operator handover so a battery is not moved between modes or jobs with unverified settings.

Applications

• Supervised capacity evaluation of compatible battery packs.

• Charging preparation before high-power discharge testing.

• Load testing within a 1600W discharge envelope.

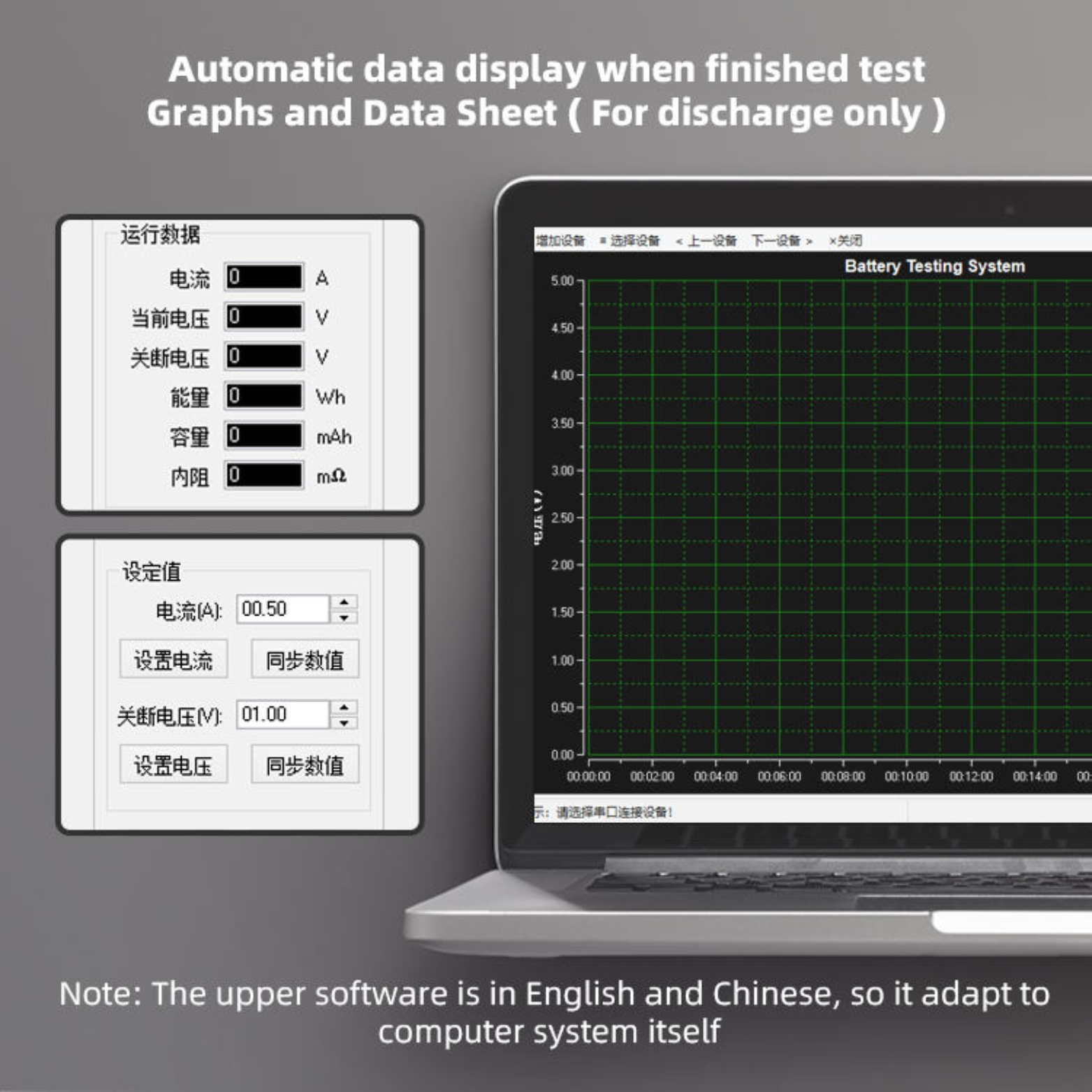

• USB-connected discharge-curve analysis.

• Workshop and development comparisons using controlled conditions.

Installation Guide

Provide the specified grounded electrical supply, secure battery support and unrestricted cooling airflow. Have trained personnel inspect the wiring and establish the approved connection sequence. Verify battery identity, polarity and the selected mode before enabling charging or a discharge load.

Commission the station with a reference pack and check each manual transition under supervision. Confirm that the selected load remains within the power envelope, and monitor the battery and connections for abnormal heating. Record the actual conditions and reason for termination. Stop for unexpected battery behaviour, damaged insulation or contact instability. Retain the original discharge record and charging-preparation details, and follow the approved storage procedure when the battery leaves the station.
