YPSDZ BATTERY CAPACITY TESTER 0550-4

YPSDZ 0550-4 Four-Channel 5V 50A Cell Capacity Tester

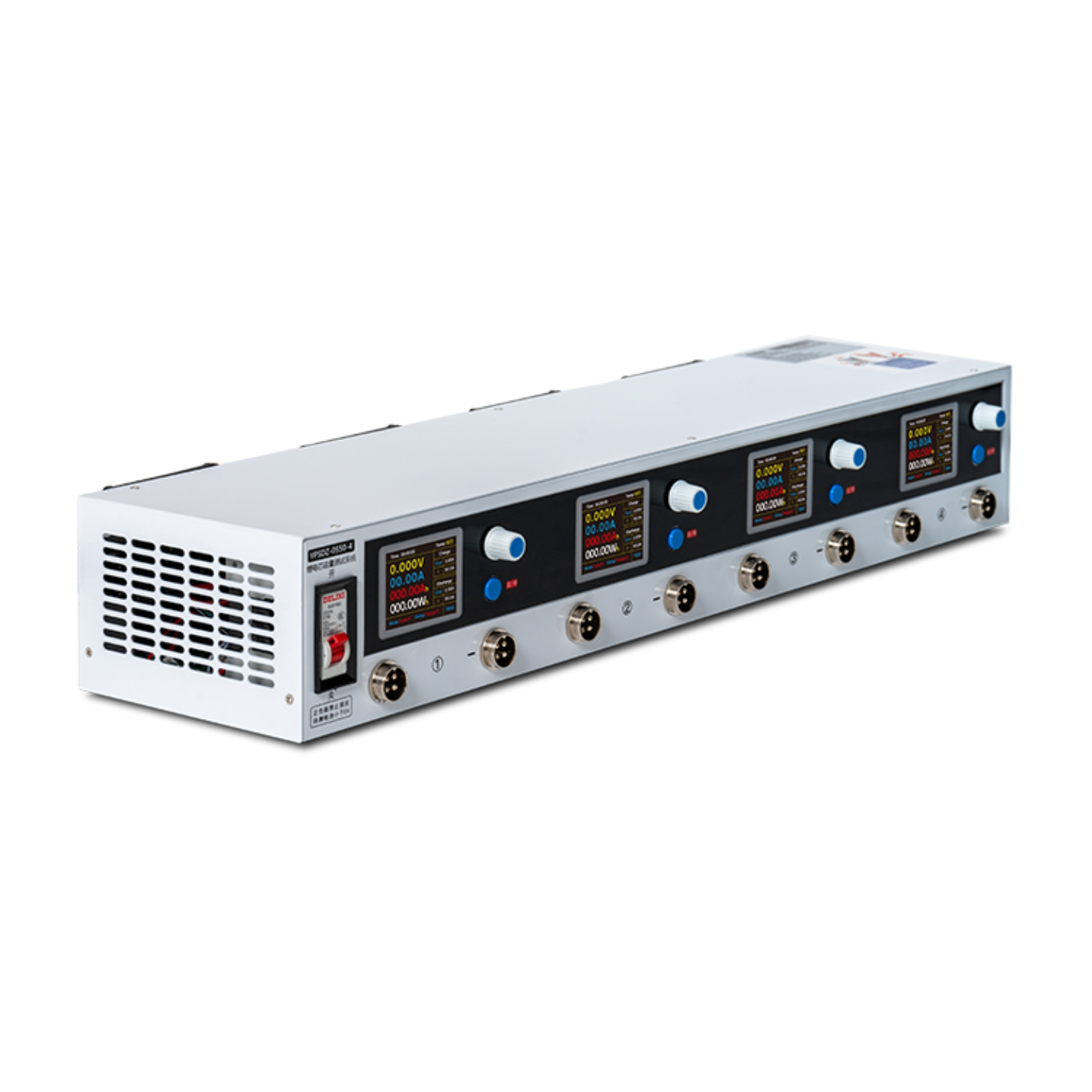

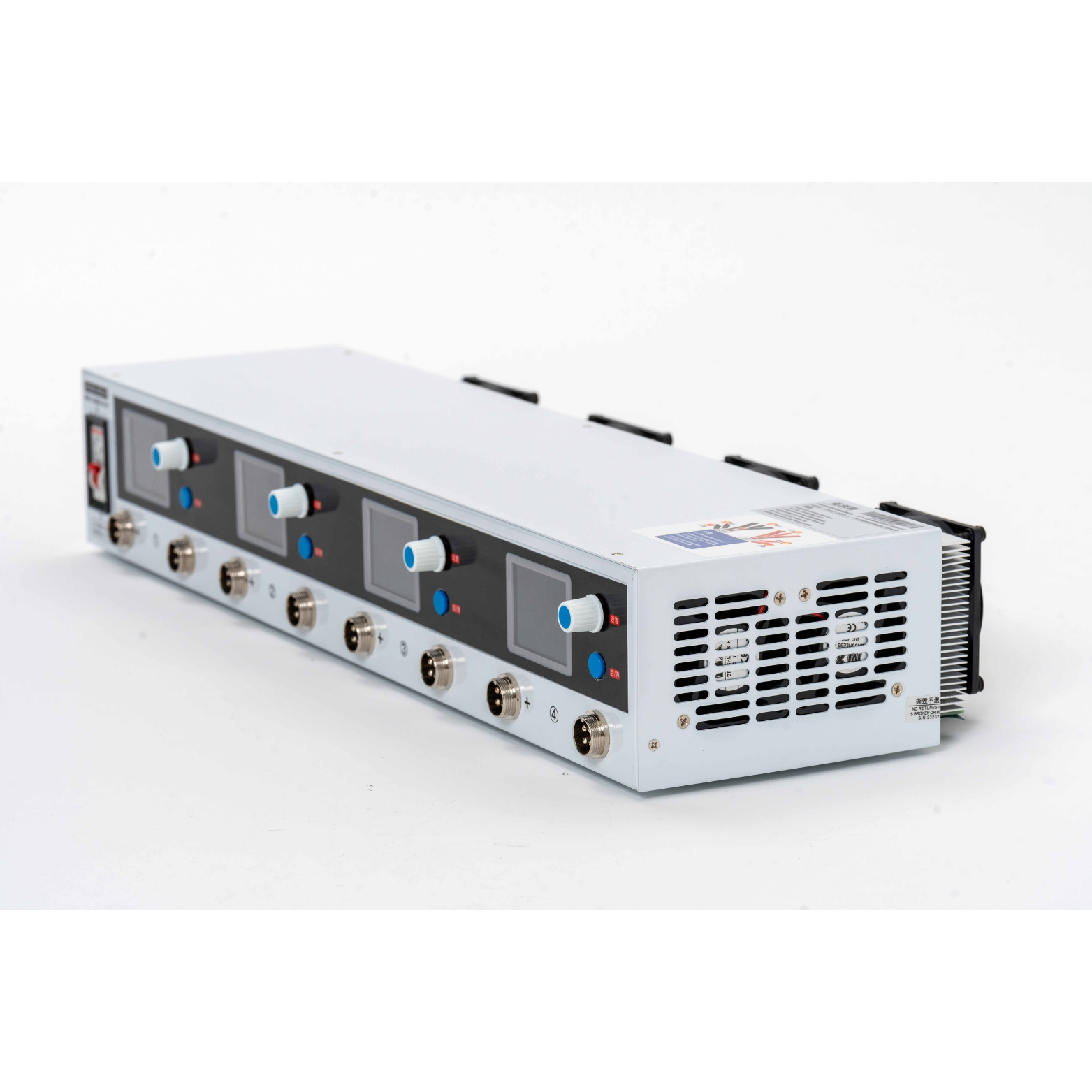

The YPSDZ 0550-4 is a four-channel cell capacity tester with independently controlled, isolated channels. Each documented channel is a 5V 50A-class test position for appropriately matched rechargeable cells, with charging, discharging, rest and cycling functions.

This format can support small batches of cell comparisons while preserving separate results. Identify the cells before loading and define the common test method before reviewing their performance. The aim is to understand differences between samples without confusing them with differences caused by preparation, contact quality or procedure settings.

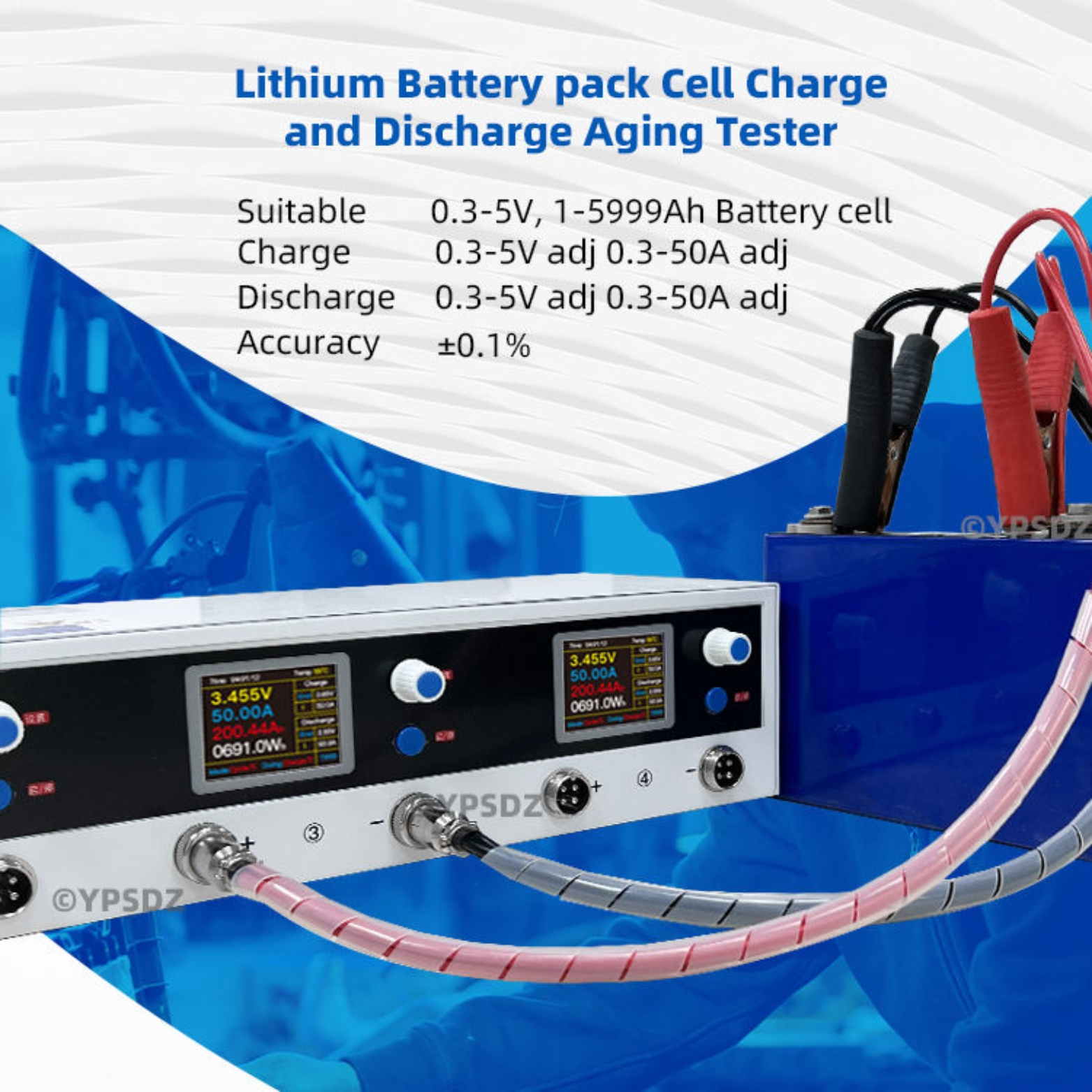

The catalogue gives up to 50A charging and discharging per channel, with 250W ratings in each direction for each position. Local operation and a supported USB computer workflow provide options for running and reviewing the tests. The isolation and independent control are useful architectural distinctions from a single shared-output instrument.

The manufacturer also describes an approved channel-parallel arrangement, but this must not be confused with a 200A rating for each channel. Any combined-current setup requires the specified wiring, matched settings and confirmation of the delivered configuration. For ordinary cell comparisons, keep the channel currents, voltage endpoints and rest conditions consistent. A balancing result describes charge alignment and does not by itself establish that cells are suitable for matching.

Select the cell chemistry and operating limits before defining a procedure. The 5V ceiling is an equipment capability, not a safe universal charge voltage. Confirm minimum settings for the delivered revision when the application requires very small current or low-voltage operation.

Choose fixtures that support the cell securely and carry the intended current at its actual terminals. Channel isolation does not remove the hazards associated with accessing cells inside a battery assembly; only qualified personnel should plan such work under an approved procedure. Confirm the mains version, software support and data-recording arrangement, and decide how samples will be identified after testing and before any grouping decision.

Applications

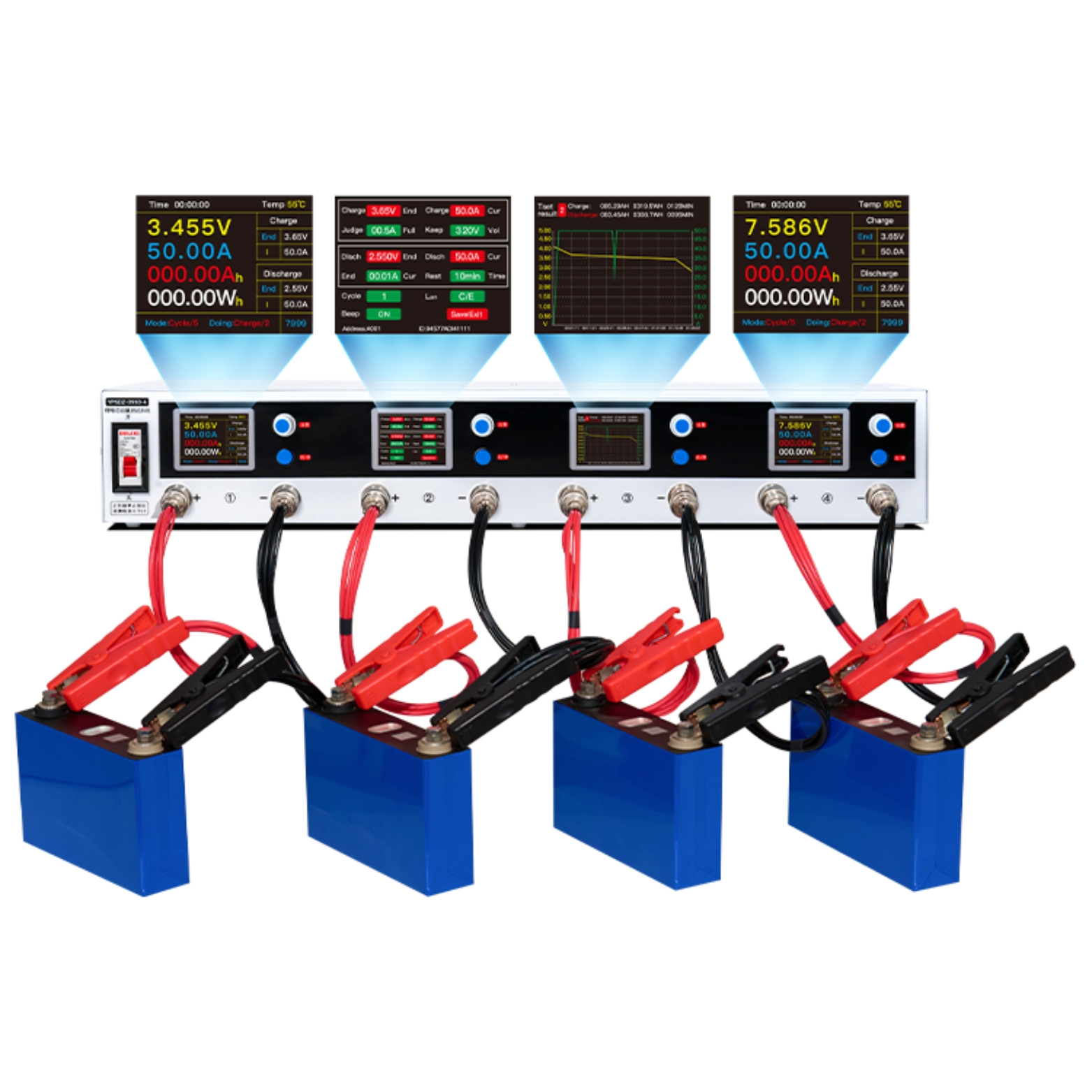

• Four-position cell capacity comparison.

• Small-batch charge-discharge ageing procedures.

• Development evaluation of larger rechargeable cells.

• Controlled cell-level balance maintenance.

• Recording individual results before module assembly decisions.

Installation Guide

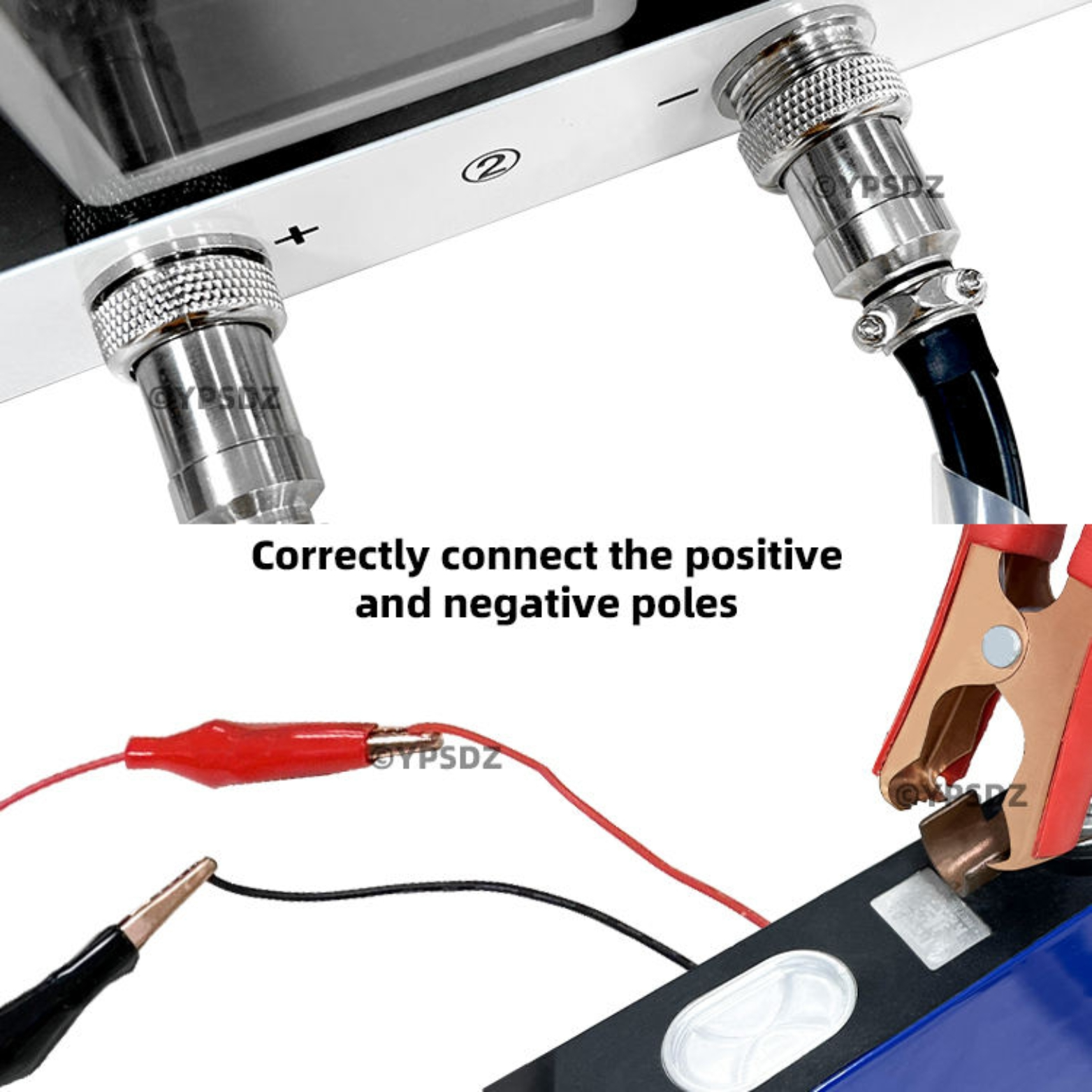

Provide the specified grounded supply, stable support and clear airflow around the tester. Inspect each fixture, current lead and sensing connection. Label channels visibly and verify polarity and the approved settings before enabling any cell test.

Commission the channels with reference cells before processing a full batch. Confirm that each record belongs to the correct physical sample and review abnormal channels for connection problems as well as cell faults. Inspect contacts for heating at the selected current and stop unstable tests. Do not improvise parallel connections to increase current. Keep original results, approved procedure revisions and retest explanations together, and maintain fixture and calibration checks as part of the station's routine quality controls.
