TDT SOC DISPLAY 7 INCH WITH CASE

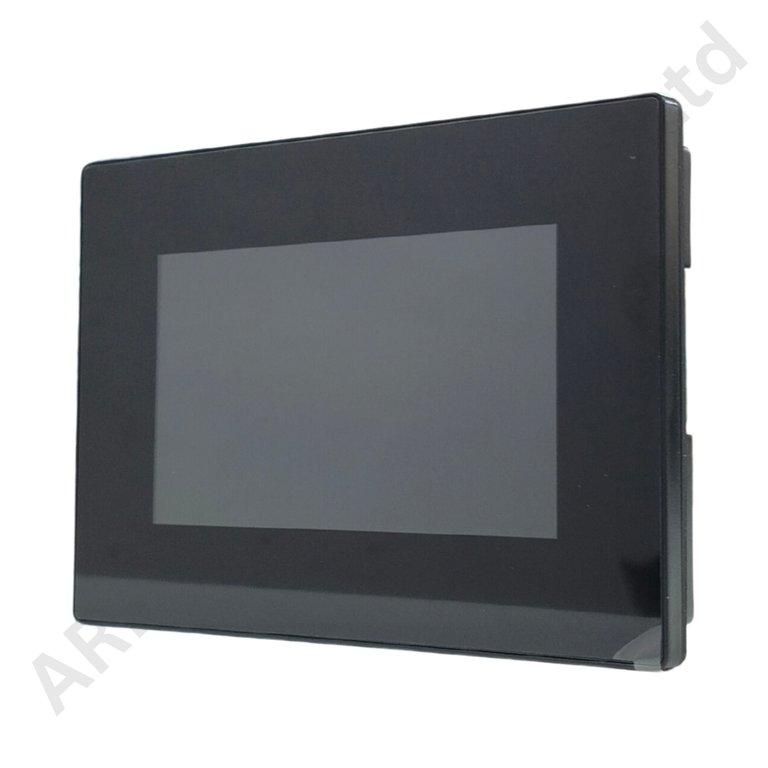

TDT 7-Inch Battery SOC Display with Case

The TDT 7-Inch Battery SOC Display with Case is a larger local battery-status interface for a compatible TDT BMS. It combines the specified seven-inch display format with a case for an appropriately designed equipment installation.

This size can suit a battery cabinet or system panel where a prominent viewing area is part of the operator-interface plan. The full cased assembly, not just the screen diagonal, should be considered when allocating panel space and arranging nearby controls or service access.

Technical Performance & Engineering Details

TDT identifies seven-inch touchscreens among the display options for supported energy-storage management systems. The screen presents the battery information supplied by its approved BMS configuration. Its physical size does not increase measurement accuracy, enable additional battery protection or create support for a larger number of cells.

A larger interface also does not automatically mean that the screen can manage several batteries at once. Any system or individual-unit views must be supported by the connected hardware and configuration. Keep those functional requirements separate from the basic choice of a seven-inch display and the presence of its case.

Match the exact TDT board, screen revision and communication connection before ordering. Confirm the supply arrangement and approved cable independently of the battery's operating voltage. Do not infer universal compatibility from the display brand or from the BMS's list of available communication interfaces.

Check the overall case dimensions, mounting points, cable entry and available rear space against the cabinet drawing. Ensure that the intended panel or bracket can support the complete assembly and that service access remains practical. The case designation does not establish an IP rating, outdoor suitability or a particular material; environmental protection must be specified around the installation conditions.

Applications

• Compatible TDT systems needing a larger local battery interface.

• Battery cabinets with an approved seven-inch display position.

• Equipment panels designed for an enclosed touch display.

• Replacement of the same seven-inch cased screen configuration.

• Energy-storage commissioning and local charge-status checks.

Installation Guide

Mount and connect the display with the battery isolated and exposed power conductors protected. Use the exact model's wiring instructions and provide appropriate strain relief at the case entry. Keep accessory wiring away from sharp edges and arrange enough clearance for normal cabinet-door or panel movement.

After startup, compare the charge indication with the BMS and inspect the pages supported by the approved configuration. Verify touch response, normal updating and restart behaviour. Restrict settings that can affect battery operation to authorised personnel. Keep the screen, case, BMS revision and cable details in the installation record so that any future replacement retains the intended electrical and mechanical configuration.

Why Choose ARB Accessories?

ARB Accessories brings TDT battery-management accessories together with wiring, connectors and other lithium-battery components. Share your BMS model, required screen size and case preference when enquiring. A coordinated specification helps battery assemblers and energy-storage integrators select the display around the electrical system and enclosure, rather than making an assumption from screen size alone.
