TDT BMS NMC 3S 5A

TDT BMS NMC 3S 5A

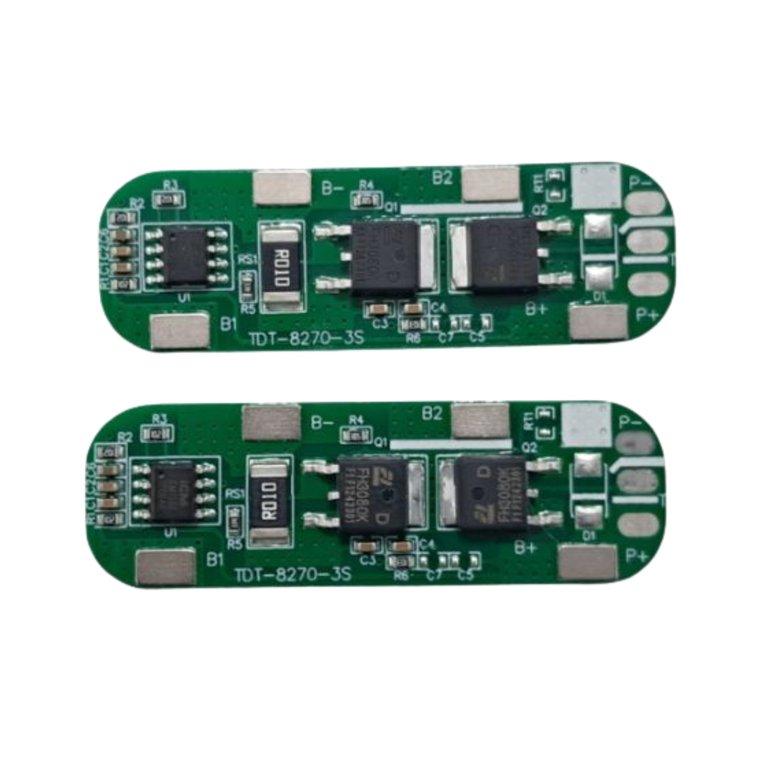

The TDT BMS NMC 3S 5A is a compact battery management/protection board intended for compatible 3-series NMC lithium-ion packs. A 3S battery connects three nominal 3.7V cell groups in series, giving an 11.1V nominal pack class and a typical full-charge voltage around 12.6V when standard 4.2V NMC cells are used. The 5A designation in the product name positions the board for lower-current battery applications where a small PCB and simple protection architecture are appropriate.

Current Indian listings for this item are not fully consistent on current wording: the product is sold as 3S 5A, while some reseller specification tables state a 6A maximum discharge current. Because of that discrepancy, ARB should not silently publish 6A as a continuous rating. The physical board marking or supplier datasheet should decide the final current specification. Reseller listings also attribute overcharge, over-discharge and short-circuit protection to the product family, but exact thresholds and balancing behavior should be verified on the specific TDT board before being treated as fixed technical values. For pack design, the BMS current is only one limit; cells, nickel strip, wire and connectors must also be sized for the load.

Choose this board only for 3S NMC/lithium-ion chemistry. Do not use it on a 3S LiFePO4 pack because LFP cells use different nominal and charge voltages. Confirm whether the application needs a common or separate charge port, whether cell balancing is included, and whether the charge current is lower than the discharge current. If the pack will power a motor, tool or device with startup surge, verify that the BMS over-current trip behavior is compatible with that surge.

Applications

1. 3S NMC lithium-ion battery packs

2. Portable electronics and compact power packs

3. Small tools and robotics batteries

4. Battery repair and replacement

5. Prototype and educational battery projects

6. Low-power custom 11.1V lithium systems

Installation Guide

Wire the three cell groups in the correct series order and confirm each cell-tap voltage with a multimeter. Connect the balance/sense harness only after polarity and sequence are verified. Use conductors appropriate for the actual current and provide insulation beneath the PCB if mounted near metal. During first testing, use a current-limited supply or controlled load where practical and monitor BMS temperature. Do not repeatedly reset a board that trips until the root cause of the over-current, short-circuit or cell-voltage fault is identified.
