SUNKKO SPOT WELDING MACHINE 719M

SUNKKO SPOT WELDING MACHINE 719M

The SUNKKO 719M is a battery spot welding machine developed for lithium-battery assembly, repair and workshop testing. The 719M platform combines pulse spot-welding capability with additional battery-workbench functions, making it suitable for technicians who need a versatile setup for pack building and service work. The machine is intended for resistance spot welding of suitable battery interconnect materials, where short high-current pulses create a joint between the metal strip and cell terminal.

For battery pack assembly, spot welding is generally preferred over applying prolonged soldering heat directly to cylindrical cell terminals. Correctly selected welding energy creates a localized joint while limiting the amount of heat transferred into the cell. The operator still needs to qualify pulse settings for the strip material, thickness, cell surface and electrode condition.

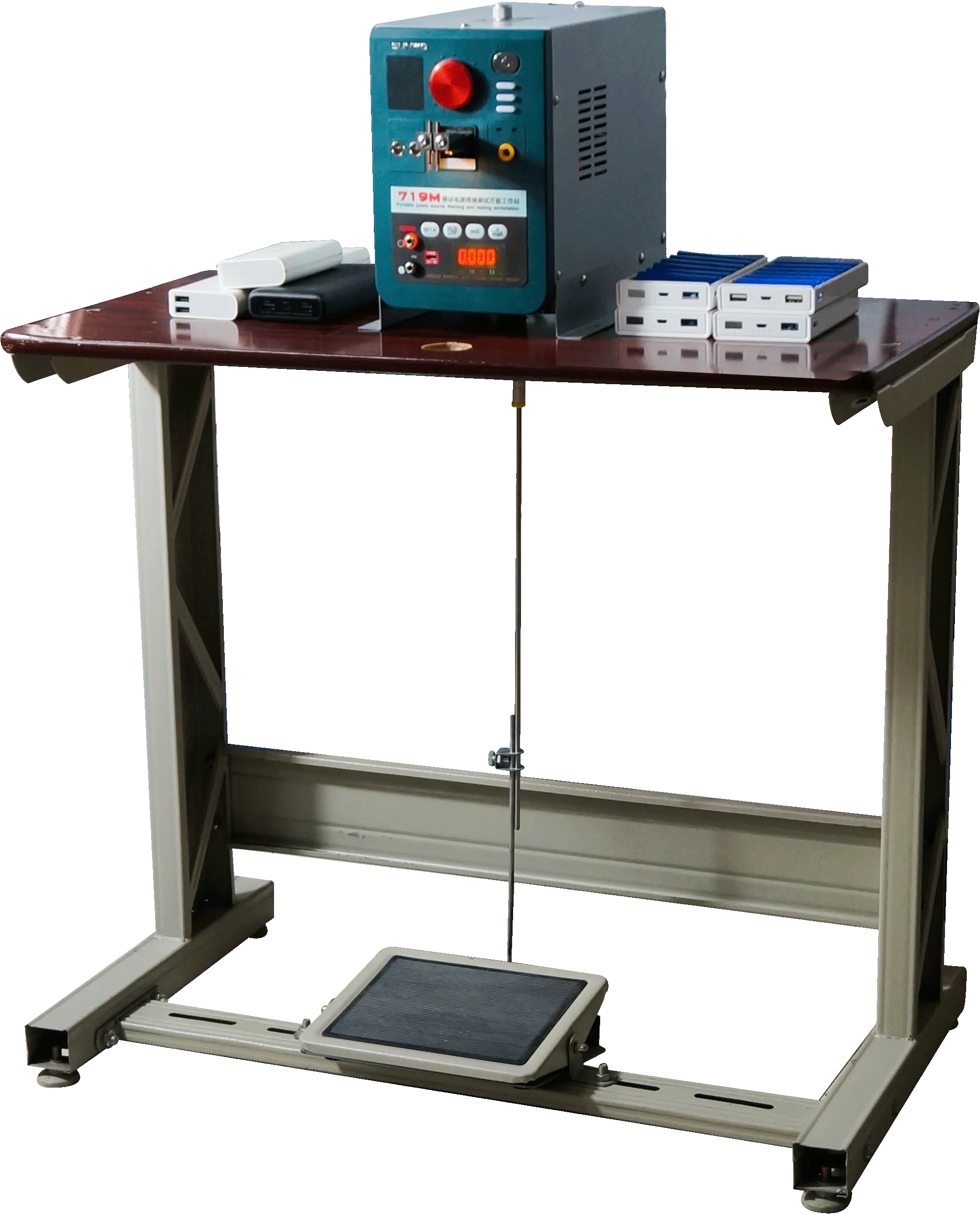

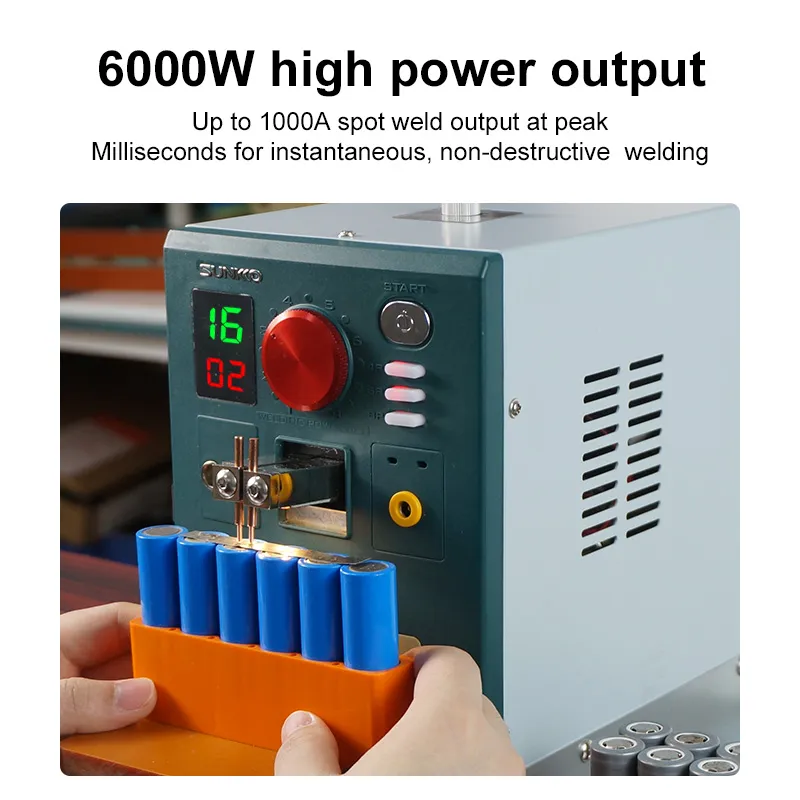

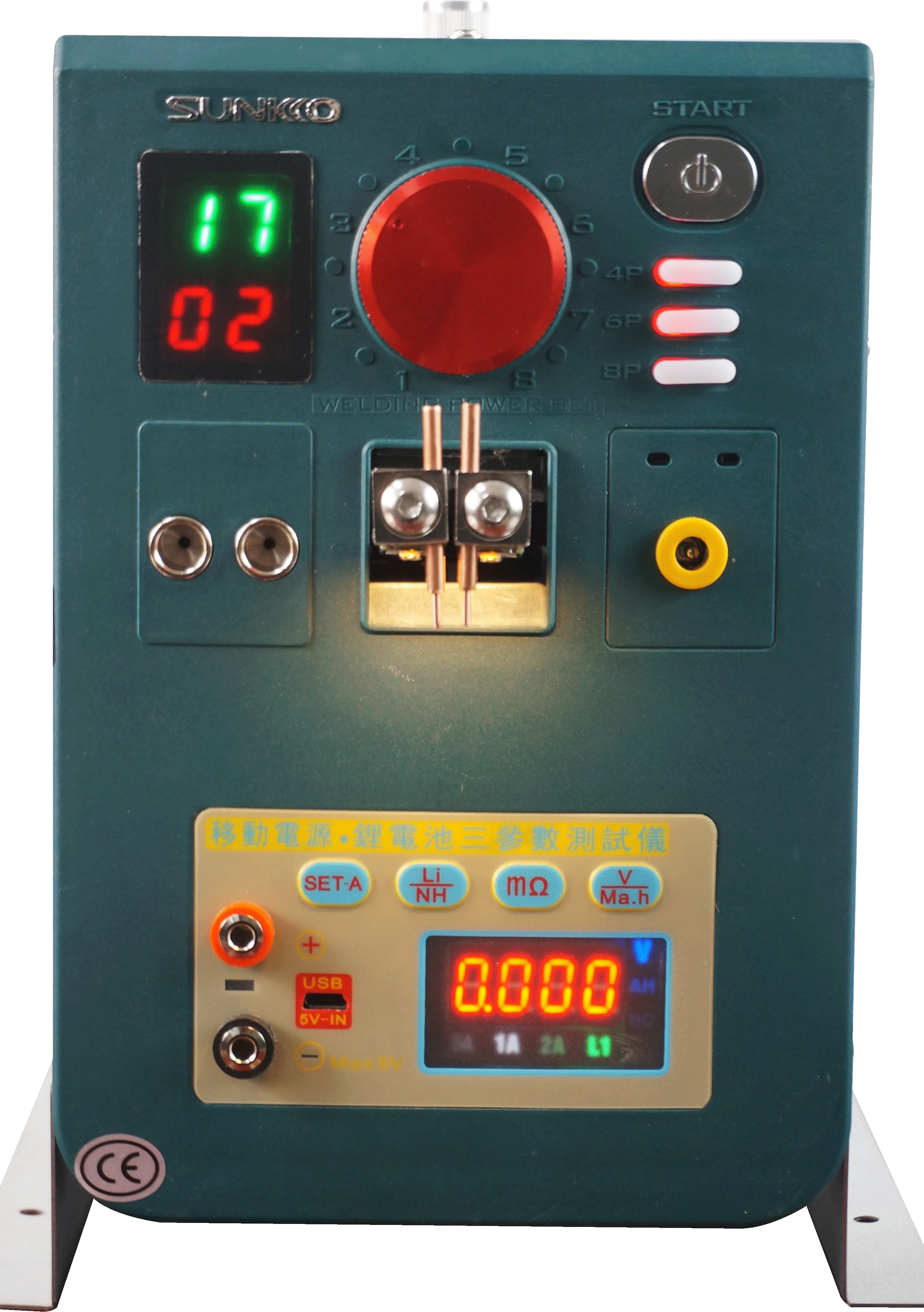

The SUNKKO 719M platform is designed for pulse spot welding in battery-pack assembly and service work. Published specifications for the 719M include AC 110/220V, 50/60Hz input, peak pulse power up to 15kW, a 0-99T energy-grade setting, pulse timing up to 30ms and both foot-triggered and automatic welding modes. The machine also combines spot-welding operation with additional workshop functions associated with the 719M platform.

Consistent weld quality depends on the complete welding setup rather than the control setting alone. Nickel purity, strip thickness, plated-steel versus pure-nickel material, electrode pressure, electrode-tip condition, cell-terminal cleanliness and mains supply all influence the weld result. Good process control starts with test welds on representative material so the operator can establish a secure nugget without puncturing the strip or applying unnecessary heat to the cell terminal.

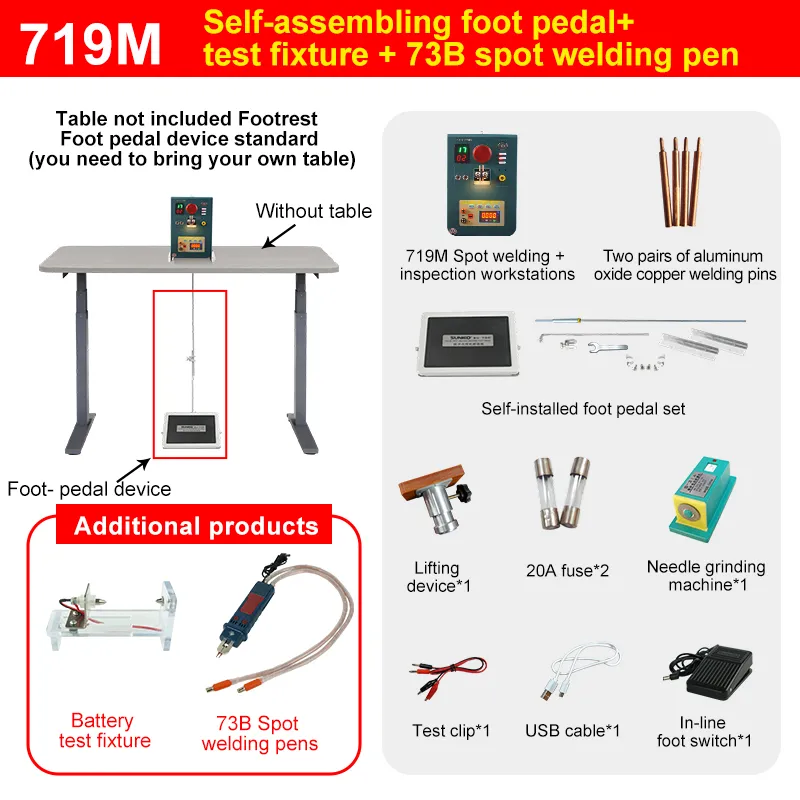

Use the 719M for battery-tab materials and cell formats that fall within the machine's verified capability. Do not assume it can weld copper or aluminium simply because it is a high-power spot welder. If the production process involves thick copper busbars, prismatic-cell laser welding or heavy structural welding, a different machine type is normally required. Confirm whether the package includes a mobile welding pen, fixed electrodes, soldering iron or test leads before promising those accessories.

Applications

1. 18650 and 21700 battery pack assembly

2. Lithium battery repair and rebuilding

3. Nickel strip welding to cylindrical cells

4. Battery R&D and prototyping

5. Small production-line battery welding

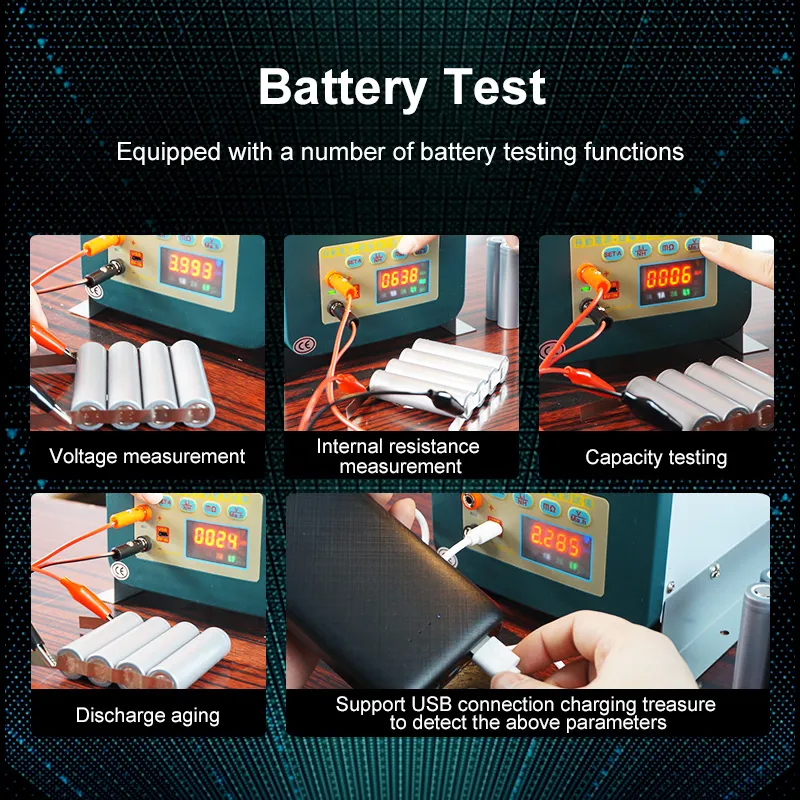

6. Workshop battery testing where the supplied 719M functions support it

Installation Guide

Connect the machine to a properly grounded electrical supply that matches the input selector. Keep welding tips clean and correctly aligned, and establish settings on test pieces before welding a production pack. Avoid repeated pulses on the same cell terminal without allowing heat to dissipate. Inspect finished welds mechanically and visually, and replace worn electrodes when the contact point becomes inconsistent. Keep flammable materials away from the welding area and use appropriate eye and hand protection.
