SUNKKO SPOT WELDING MACHINE 709AD+ WITH 70BN

SUNKKO SPOT WELDING MACHINE 709AD+ WITH 70BN

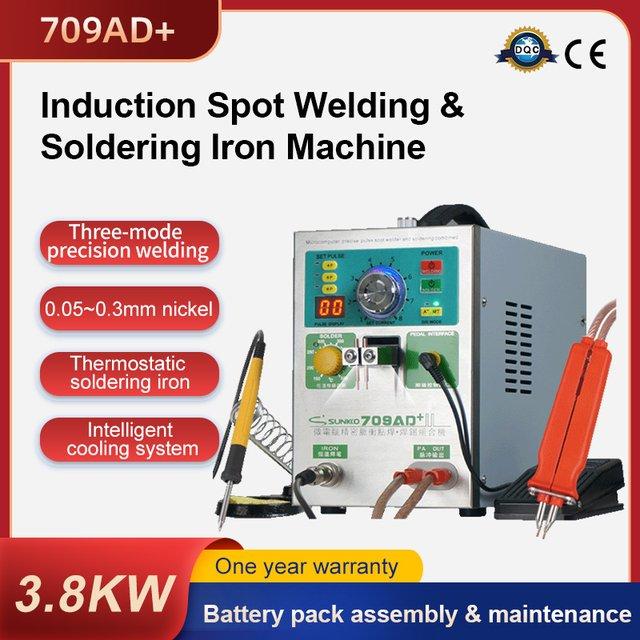

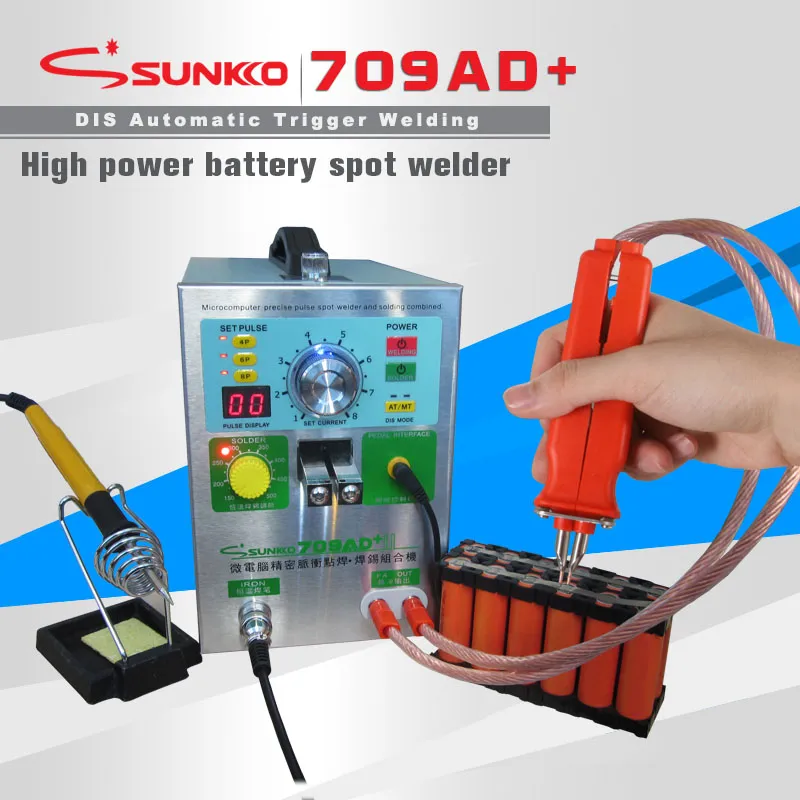

The SUNKKO SPOT WELDING MACHINE 709AD+ WITH 70BN is a SUNKKO precision pulse spot-welding machine intended for lithium battery-pack production, repair and metal-tab welding. The highlighted configuration is model 709AD+ supplied with 70BN welding pen. It is designed for controlled resistance spot welding of nickel or nickel-plated interconnect material and related battery-pack fabrication work. Buyers comparing battery spot welders should evaluate welding current, pulse control, supported material thickness, electrode geometry, cooling, power-supply requirement and the type of fixed or hand-held welding head included with the exact package.

Resistance spot welding creates a localized joint by passing a short, high-current pulse through the contact area. Successful battery welding depends on more than the machine's maximum current: electrode pressure, surface cleanliness, strip material, thickness, pulse duration, cell-terminal condition and mains supply stability all influence the result. A strong weld should be validated with destructive sample tests before production rather than by visual appearance alone.

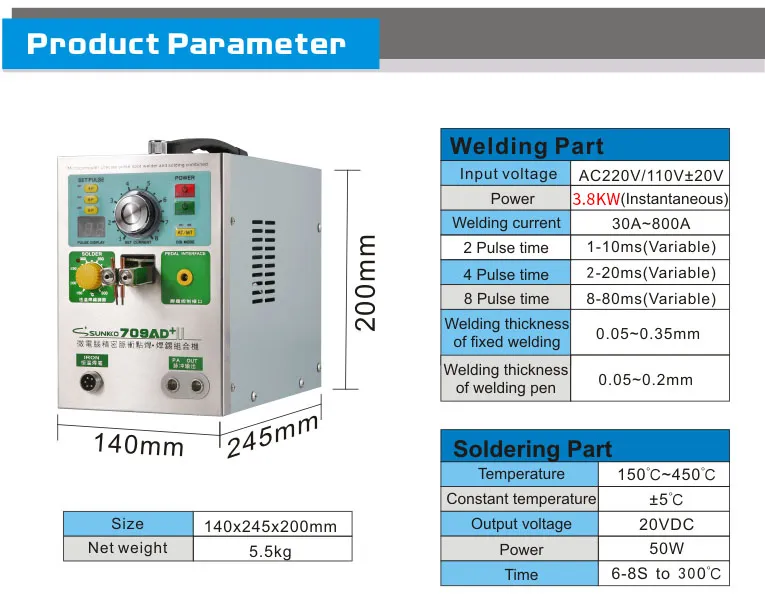

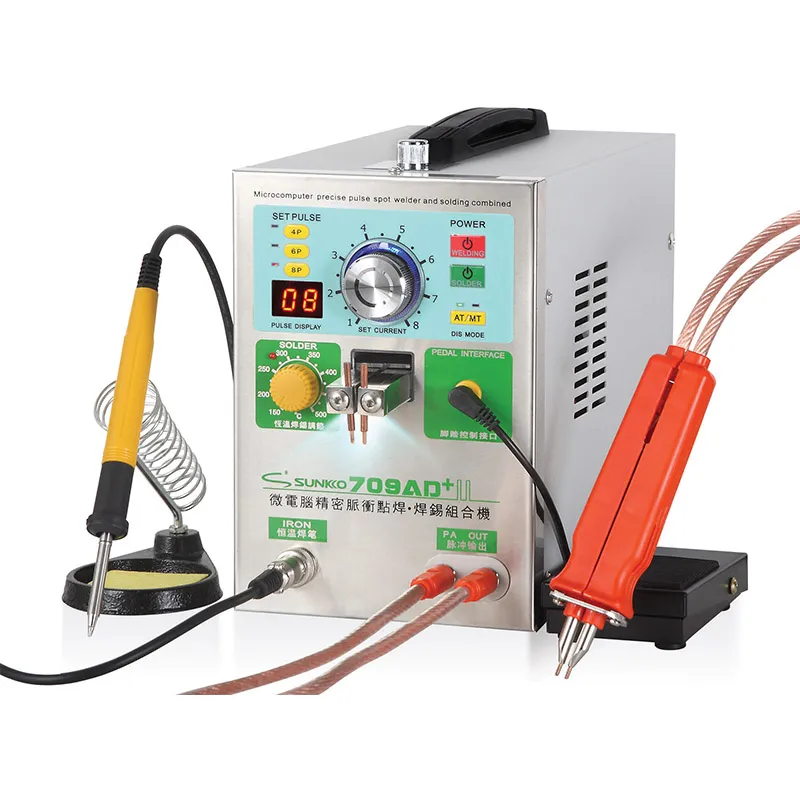

Current ARB/Glannu documentation lists AC 110V/220V input, approximately 3.2kW instantaneous power, welding current up to 800A, adjustable pulse timing, fixed-head welding references around 0.03-0.3mm and welding-pen references around 0.03-0.2mm. The listed machine also includes a 50W temperature-controlled soldering section. These published figures should be treated as configuration references and checked against the rating plate on the stocked machine because SUNKKO model packages can be supplied with different pens, input-voltage versions or accessory combinations. The welding machine should be connected to a stable mains circuit of the correct voltage and adequate capacity. Extension boards, undersized wiring and loose sockets can cause voltage drop and inconsistent weld energy.

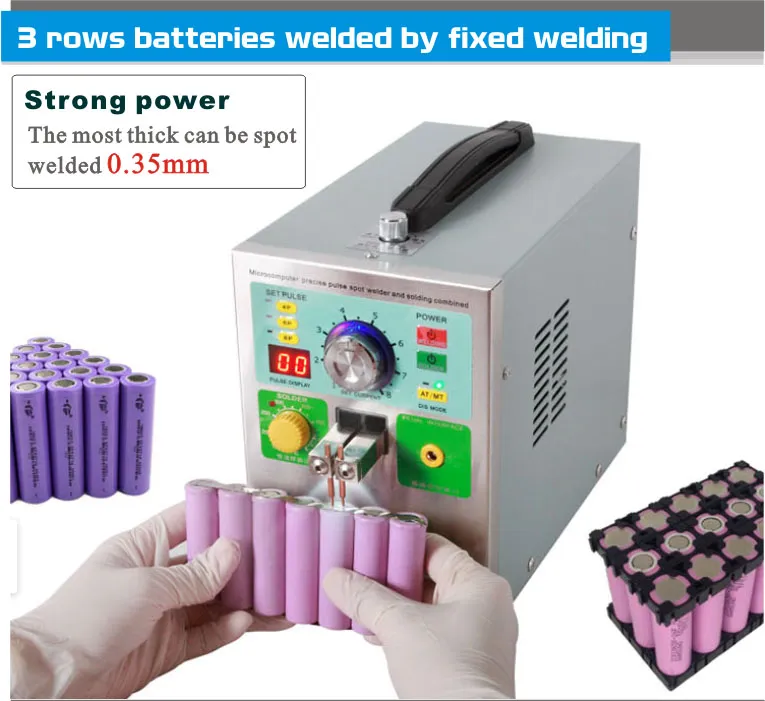

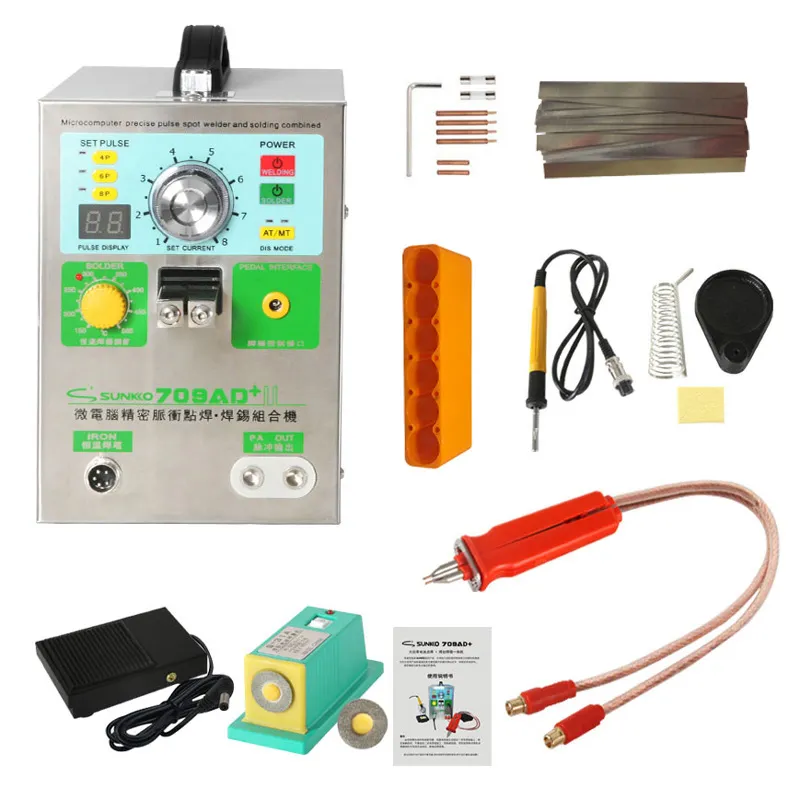

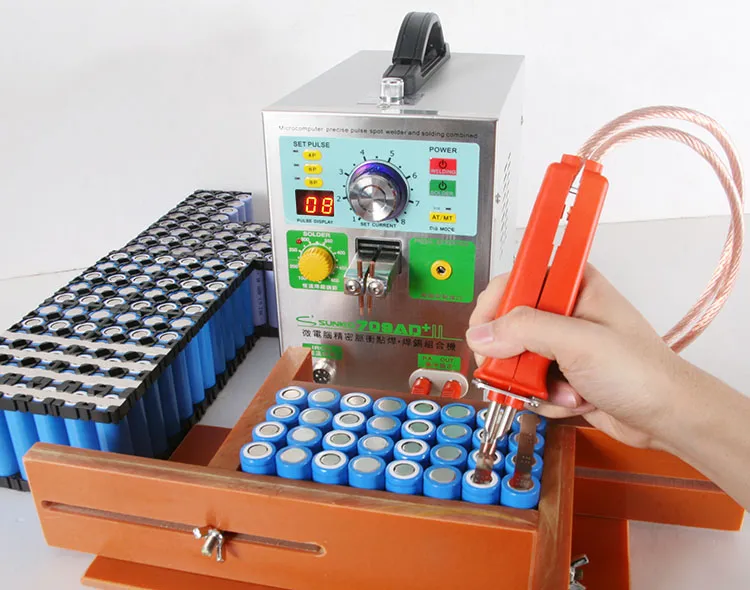

For cylindrical cell assembly, the workpiece should be clean and flat, and electrode tips should be maintained in good condition. Oxidized or mushroomed welding pins increase contact resistance and can cause weak or inconsistent joints. Nickel thickness should be matched to both the cell current requirement and the welder's proven capability. If a portable welding pen is included, its cable, connector and electrode spacing should be checked before use, while the fixed head should be adjusted so pressure is repeatable without crushing or deforming the cell terminal.

Choose this SUNKKO model according to the material and thickness you need to weld, the required reach of the fixed head or hand pen, available mains power, production duty cycle and any auxiliary functions included with the exact variant. For battery workshops, it is good practice to keep test coupons of the same nickel and cell-terminal material and establish repeatable settings before welding finished packs. If the machine is used with pure nickel, nickel-plated steel or other metals, confirm appropriate pulse settings separately because the electrical resistance differs.

Applications

• 18650, 21700, 26650 and other cylindrical lithium battery pack assembly where the weld specification is compatible.

• Nickel and nickel-plated strip welding for battery interconnections.

• Battery repair, module rebuilding and prototype pack development.

• Workshop production of power-tool, e-bike, scooter, ESS and portable-power battery packs.

• Controlled resistance welding of compatible thin metal tabs and small hardware components.

Installation Guide

Place the welder on a stable, ventilated bench and connect it only to the specified AC supply. Inspect electrodes, cables and connectors before every shift. Set current and pulse conservatively, make sample welds and perform peel or pull tests before production. Keep cell terminals free from contamination and do not weld directly over damaged insulation. Allow the machine to cool according to its duty cycle and stop if cables, connectors or the enclosure become abnormally hot. Disconnect mains power before changing electrodes or servicing the welding head.
