SUNKKO SPOT WELDING MACHINE 709A

SUNKKO SPOT WELDING MACHINE 709A

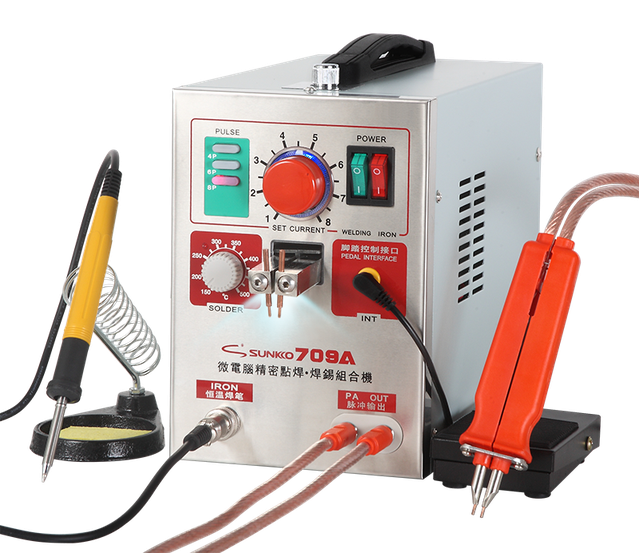

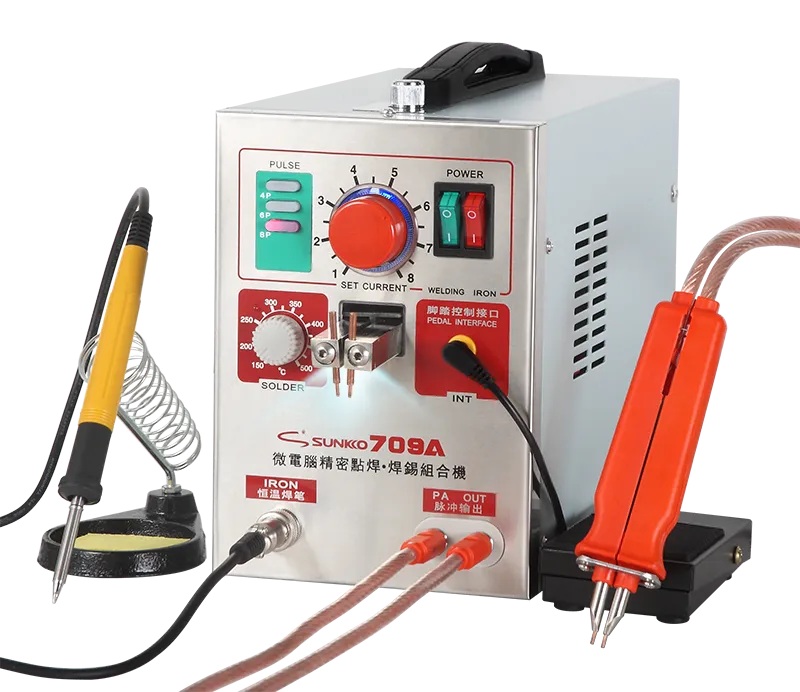

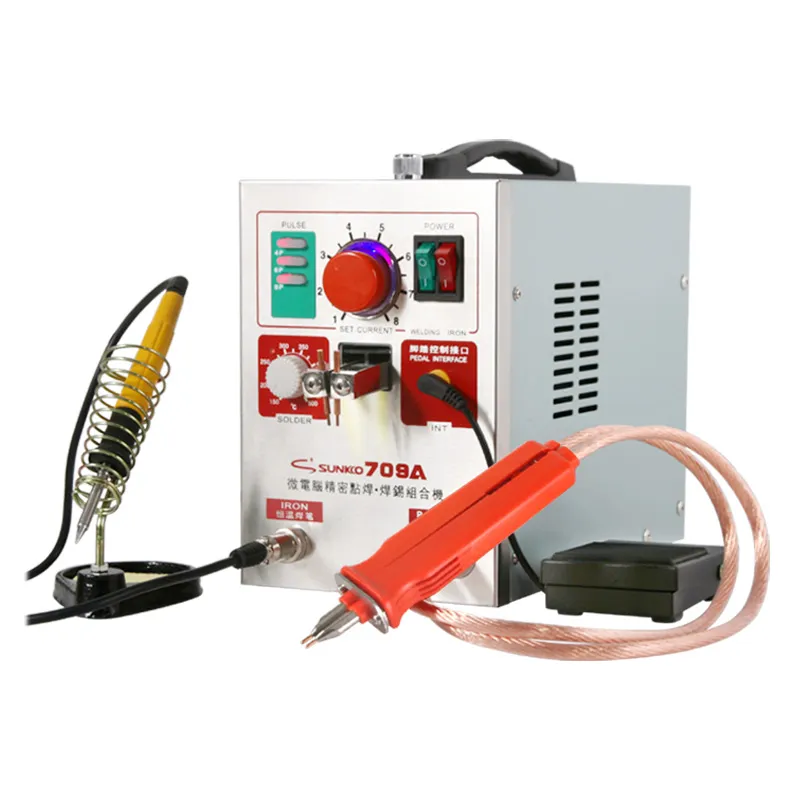

The SUNKKO SPOT WELDING MACHINE 709A is a battery-pack workshop machine that combines fixed spot welding, a mobile welding pen and a soldering section in one platform. It is aimed at lithium-battery assembly and repair work where nickel strip must be attached to cylindrical or prismatic-cell interconnections with repeatable pulse control. The 709A is commonly searched as a battery spot welder, nickel strip welding machine, cell pack welding machine and SUNKKO battery welder.

SUNKKO's 709A manual specifies AC 110V or 220V input versions with +/-10% tolerance, an adjustable welding-current range of 50-800A, a 5 ms single-pulse time, up to 18 pulses and instantaneous output up to 3.2 kW. For the fixed welding head, the manual lists approximately 0.05-0.30 mm nickel-plated steel and 0.05-0.25 mm pure nickel; the mobile welding pen is rated for thinner material, approximately 0.05-0.20 mm nickel-plated steel and 0.05-0.15 mm pure nickel. The integrated soldering section is specified at 150-500°C with 50W power. Welding quality still depends on strip material, surface cleanliness, electrode pressure, pulse/current settings and adequate mains supply. The manual specifically warns that the machine is not intended to spot-weld copper or aluminium and recommends allowing time between welds to reduce component stress.

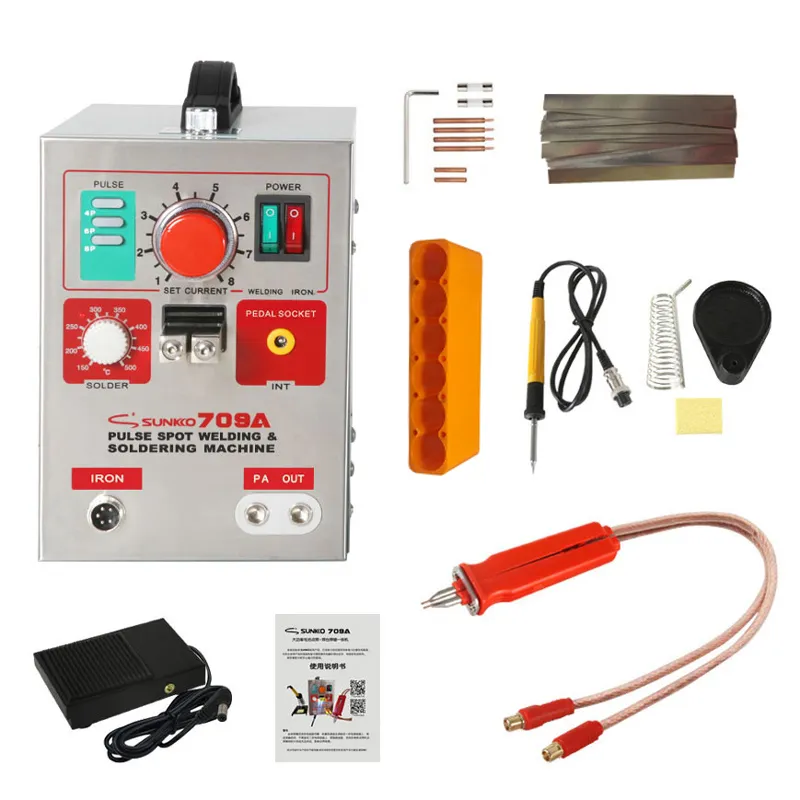

Choose the 709A when the workshop needs both bench and mobile spot-welding capability and the material thickness falls within the machine's documented range. Confirm the local mains voltage version, breaker capacity, plug type, workspace ventilation and the exact accessory kit. Battery pack design should use nickel thickness and width that match the required electrical current without exceeding the welder's capability. For high-volume production, validate weld pull strength and consistency on sample strips before releasing a production process.

For procurement and production use, compare the physical item with the approved sample before standardising the bill of materials. Check dimensions, connector or mounting geometry, supplied accessories and any markings that identify the exact variant. Where the application has a safety-critical electrical, thermal or mechanical requirement, use the manufacturer datasheet for the stocked part rather than a visually similar market product. Recording the approved item code and revision helps prevent a replacement part with the same generic name but different construction from entering the assembly process.

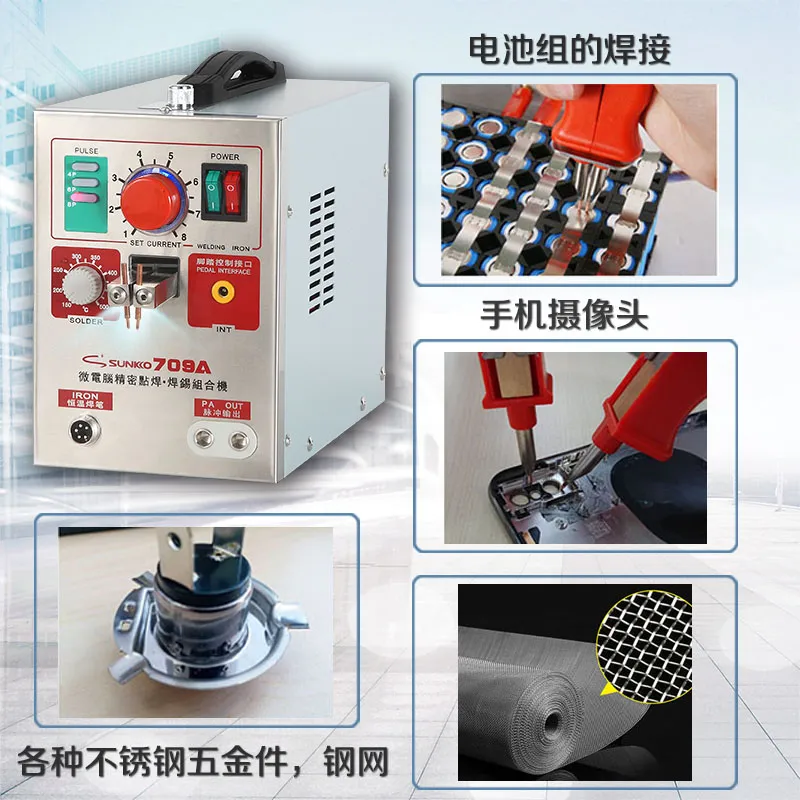

Applications

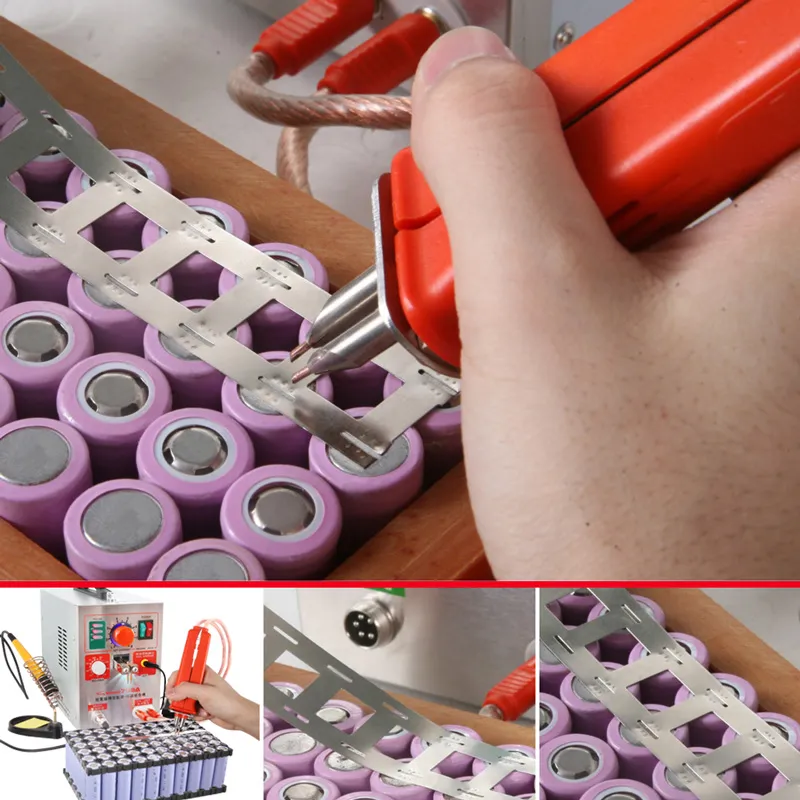

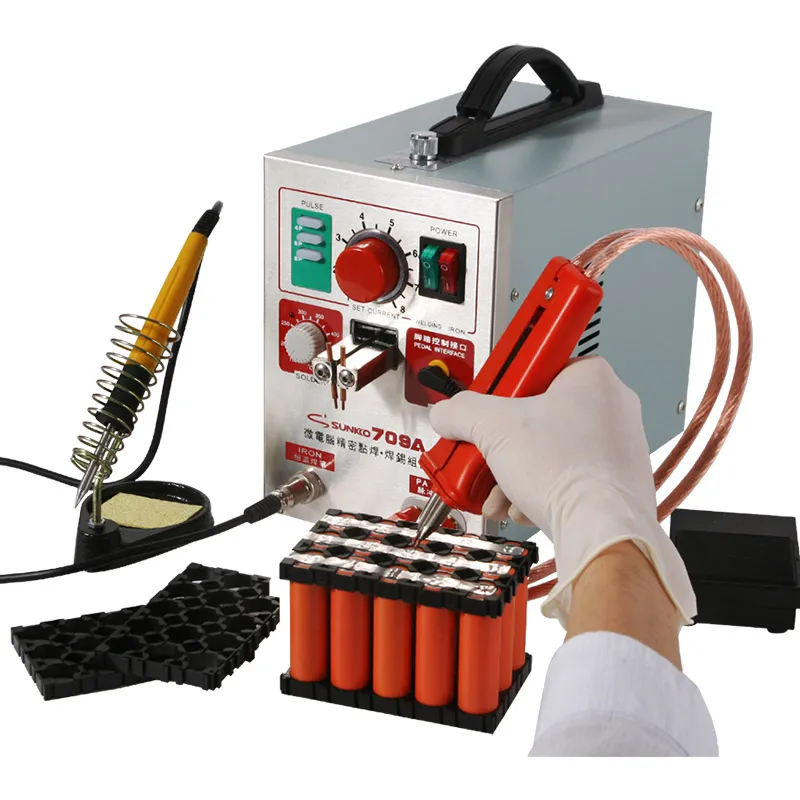

• Lithium battery pack assembly using nickel or nickel-plated interconnect strip.

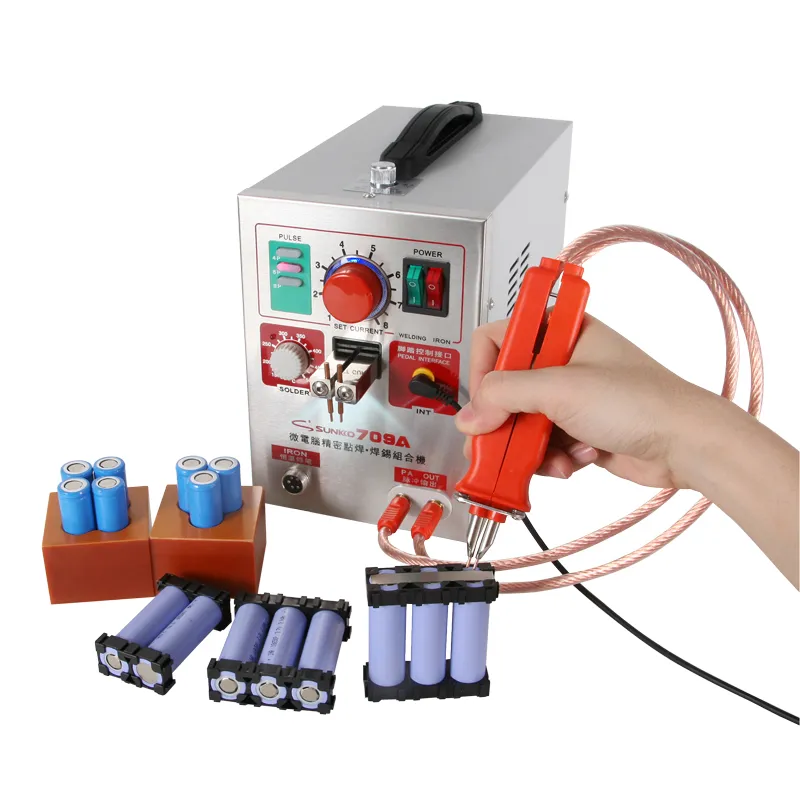

• 18650, 21700 and other cylindrical-cell welding workflows where the fixture is compatible.

• Battery repair and rebuild workshops requiring fixed and mobile welding.

• Prototype pack development and process validation.

• Soldering tasks within the integrated station capability.

Installation Guide

Place the machine on a stable, dry bench with adequate ventilation and a power circuit sized for the input demand. Fit the welding electrodes before power-up, keep hands clear of the welding points, and use eye/hand protection because sparks can occur. Start with conservative current and pulse settings on scrap material, then increase only until the weld is secure without burning through the strip. Keep electrode tips clean and aligned, use appropriate pressure, and avoid rapid continuous welding. Unplug the machine before maintenance or changing internal components.
