SUNKKO BATTERY CAPACITY TESTER T-688 84V

SUNKKO BATTERY CAPACITY TESTER T-688 84V

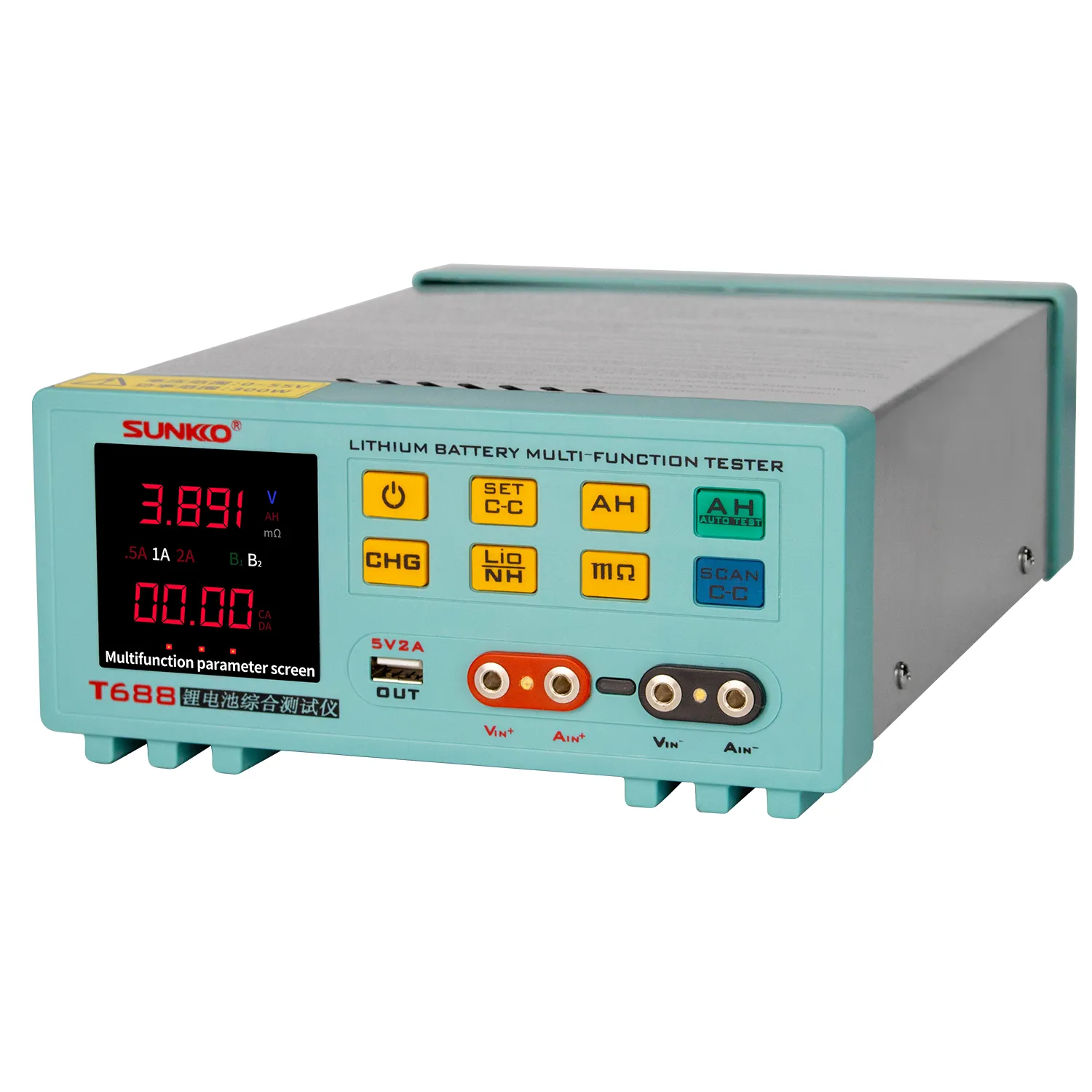

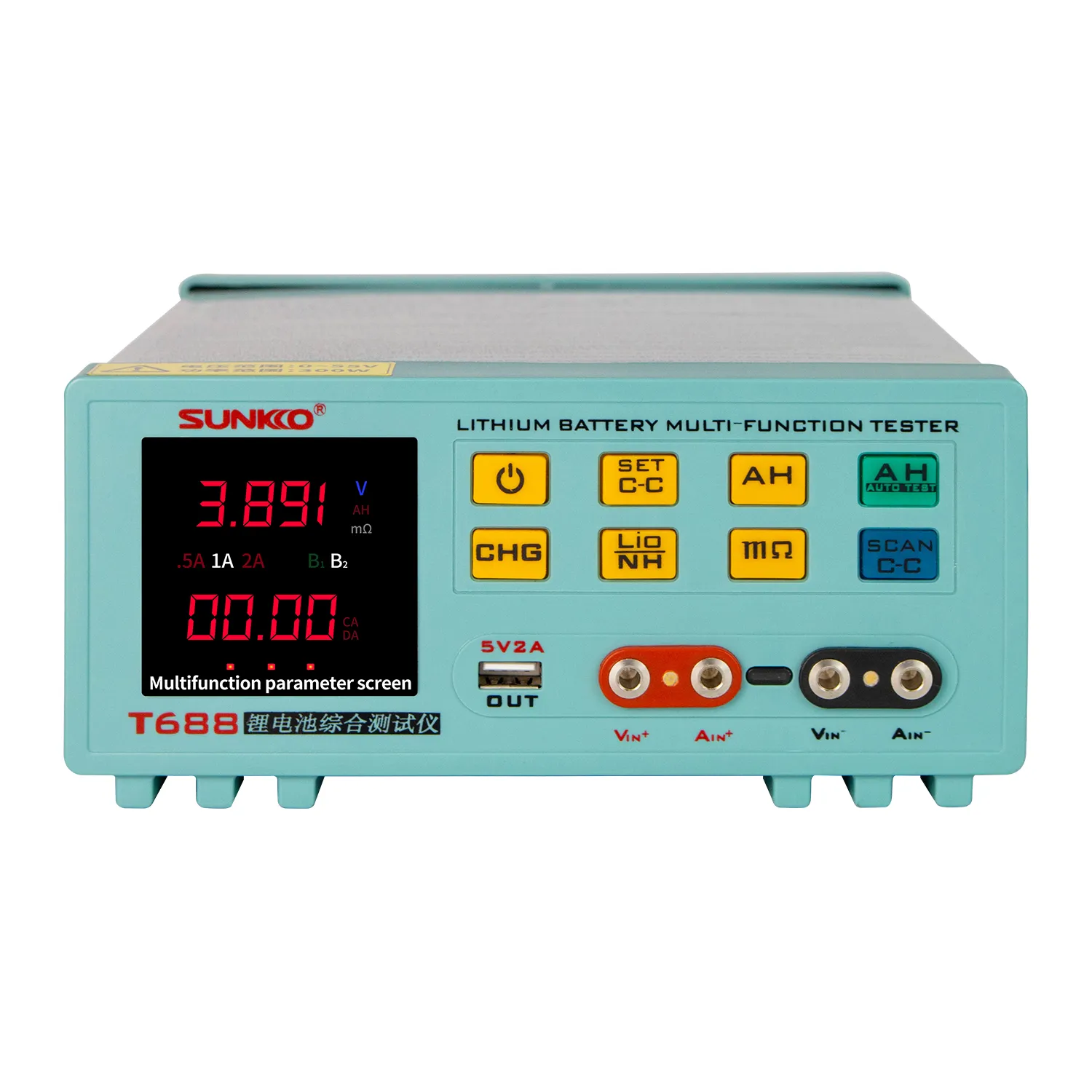

The SUNKKO T-688 84V Battery Capacity Tester is a multi-function battery diagnostic instrument for measuring and evaluating rechargeable cells and battery packs. This SKU uses the high-voltage version of the T688 family, with SUNKKO offering test-voltage variants up to approximately 84-85V. The tester is designed to bring several common battery workshop measurements into one unit, including voltage, internal resistance and charge/discharge capacity testing.

For battery pack builders, a capacity tester provides information that a simple voltmeter cannot. Two batteries can show the same resting voltage but deliver different usable amp-hour capacity because of cell condition, BMS cutoff behavior or internal resistance. The T-688 can be used to put the battery through a controlled test and observe measured capacity and electrical behavior.

The SUNKKO T-688 high-voltage version is designed for controlled battery-capacity and diagnostic testing up to the 84/85V class. It provides selectable discharge currents of 0.5A, 1A, 2A and 5A, charging-current settings of 0.5A, 1A and 2A, an internal-resistance measurement range up to 2000mΩ and capacity display up to 99.99Ah. These functions allow the tester to evaluate battery packs under repeatable workshop conditions rather than relying only on open-circuit voltage.

The T-688 is intended for diagnostic and capacity-checking work, not full-power traction load simulation. A high-capacity EV battery can be tested at a controlled lower current to compare usable capacity, voltage behaviour and internal resistance. Repeatable results depend on secure connections, correct voltage limits and consistent test conditions. The built-in current options make the unit suitable for a broad range of battery-service tasks while keeping the test process easy to reproduce.

Choose the 84V version when the maximum battery voltage falls within the tester's supported range. Confirm chemistry, full-charge voltage and expected cutoff behavior before selecting charge parameters. SUNKKO lists compatibility with lithium-ion and LiFePO4 battery technologies, while some manual variants also discuss Ni-MH testing modes. For high-voltage packs, always compare the battery's fully charged voltage, not only its nominal rating, with the tester's maximum input.

Applications

1. Battery pack capacity measurement

2. Lithium battery repair and diagnostics

3. Internal-resistance checking

4. EV and e-bike battery quality control

5. Battery production and incoming inspection

6. Cell and pack comparison during refurbishment

Installation Guide

Connect the tester using the supplied or correctly rated leads, verify polarity and select the appropriate battery/test mode before starting. Begin with a current appropriate to the battery capacity and thermal condition. Keep the tester ventilation clear during discharge because the equipment must dissipate energy as heat. Record the initial battery voltage, test current, cutoff settings and measured amp-hour result so repeated tests can be compared under the same conditions. Stop testing if the battery becomes abnormally hot, swells or shows unstable voltage behavior.
