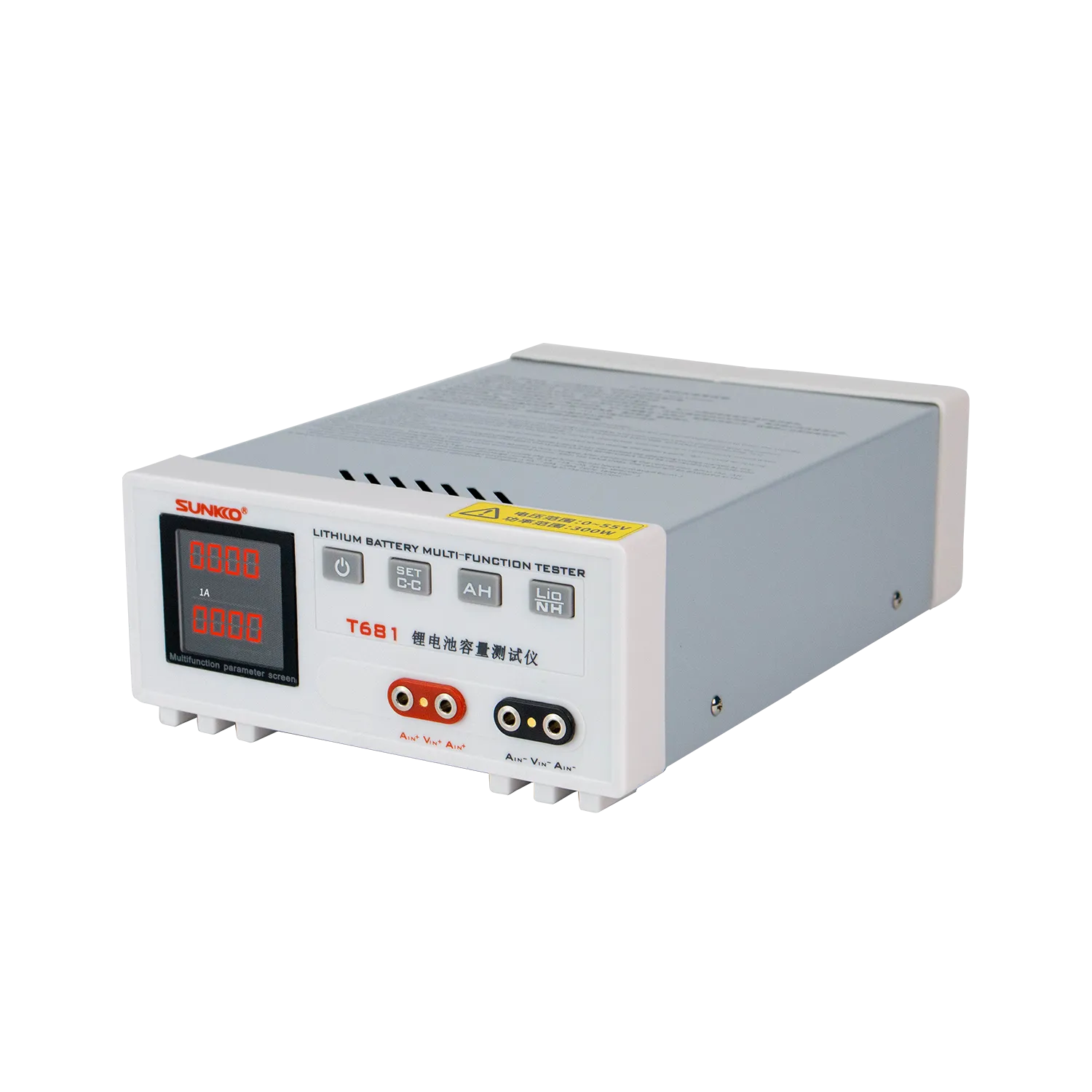

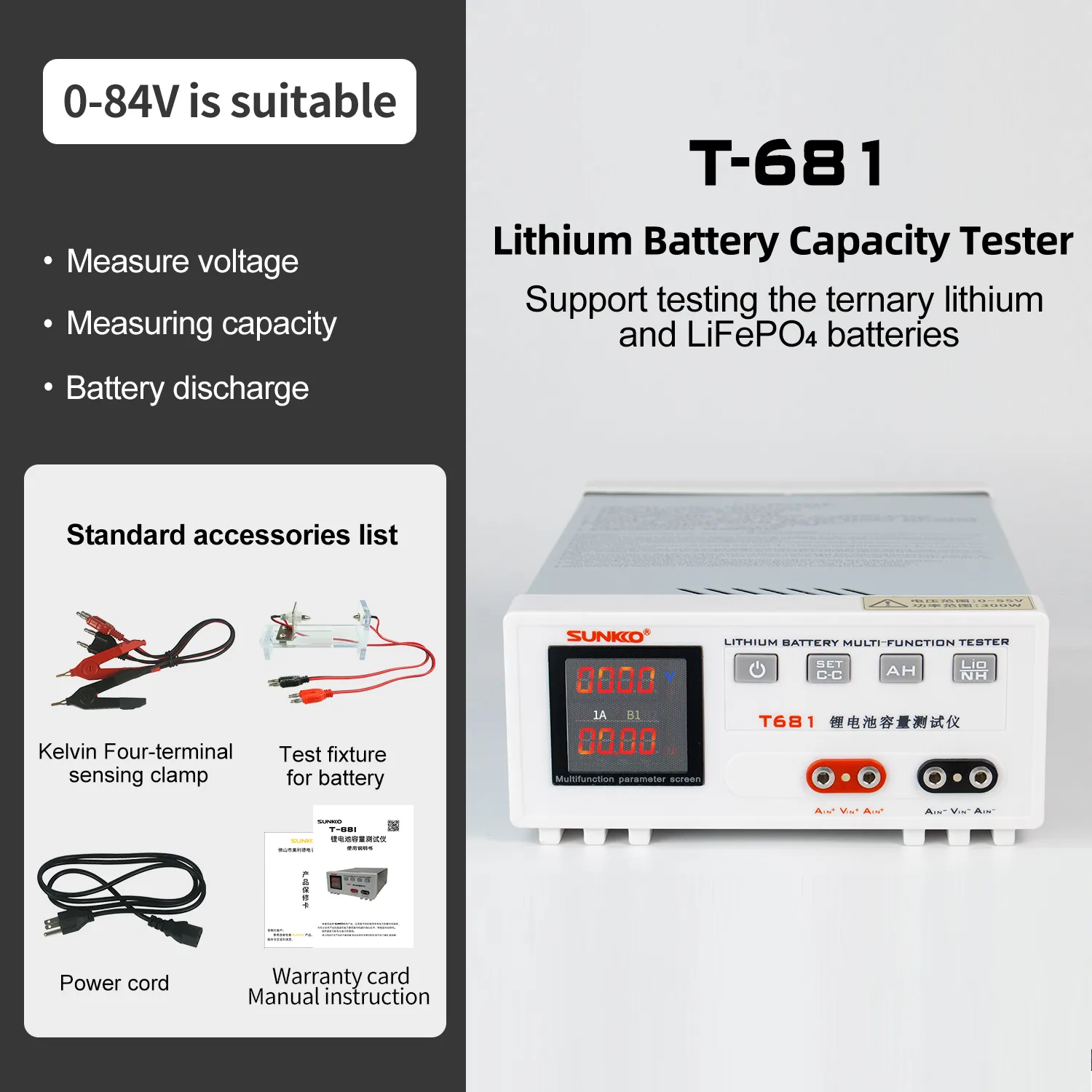

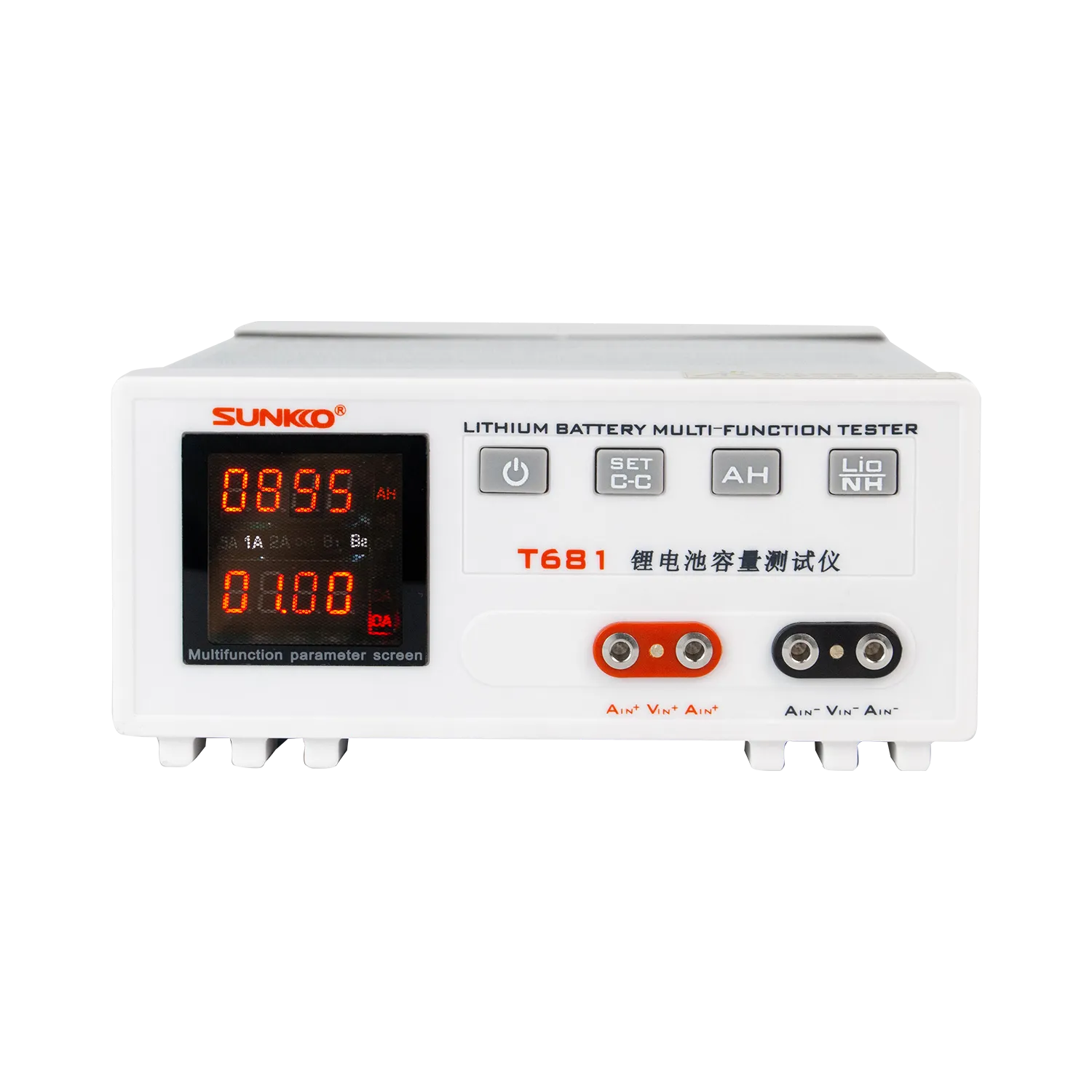

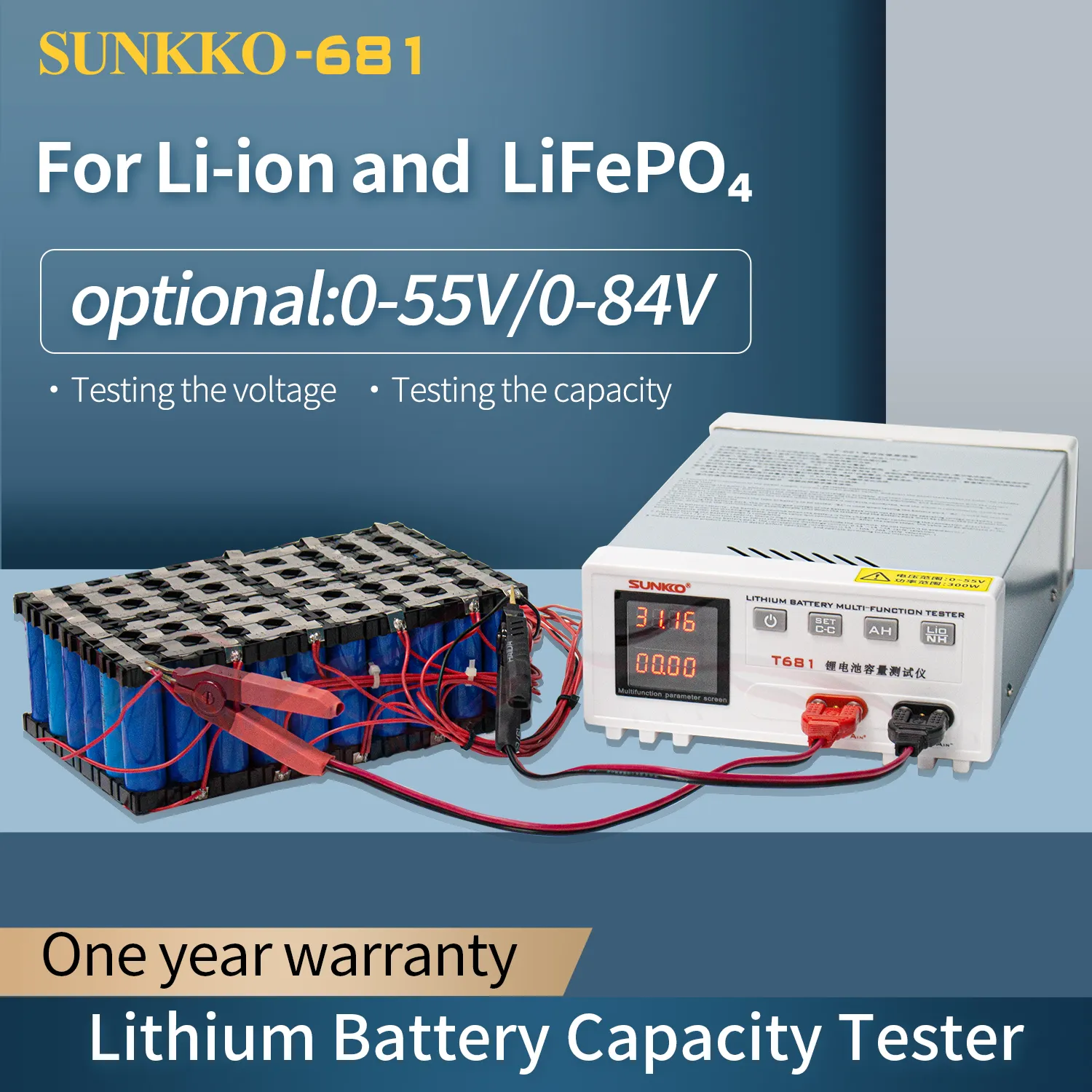

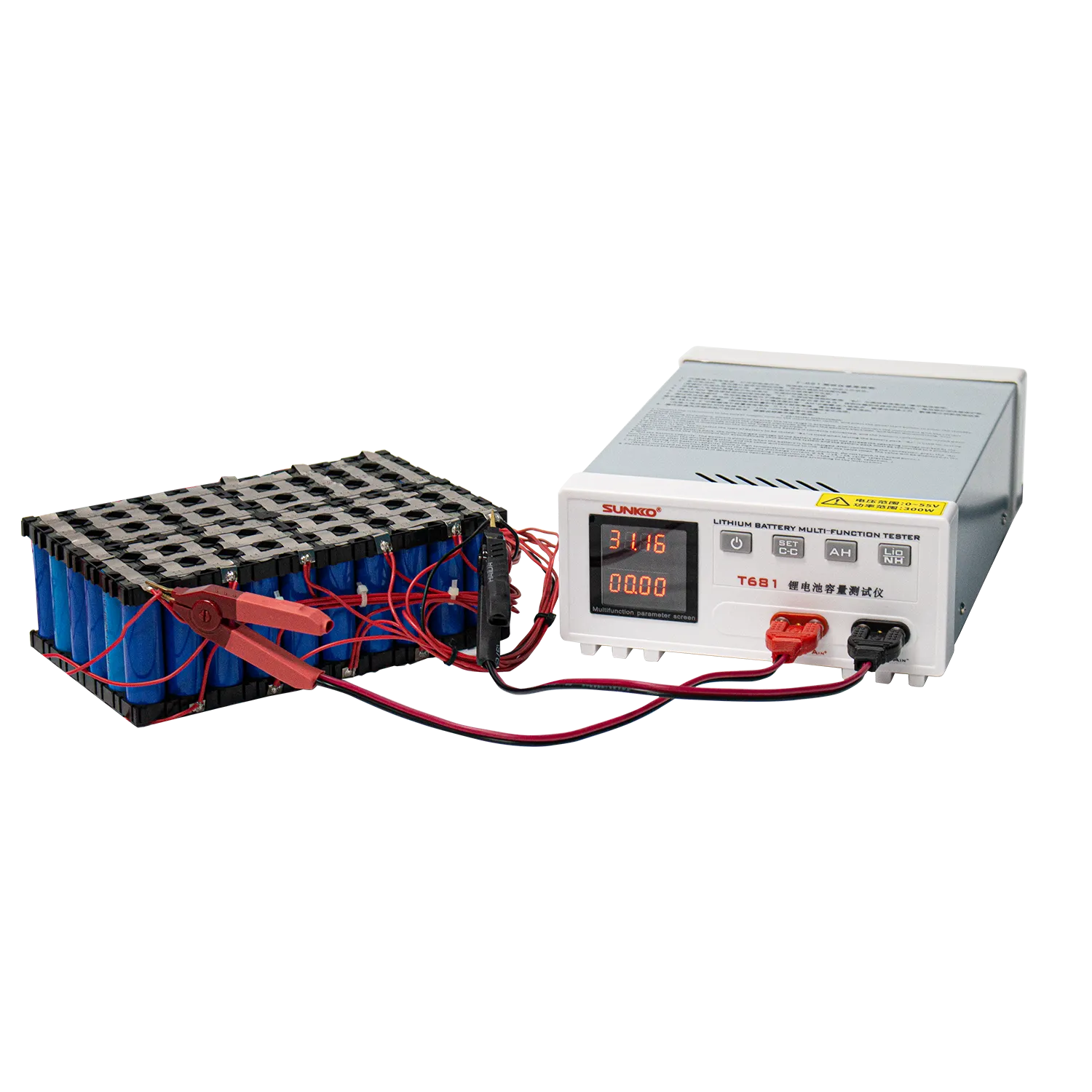

SUNKKO BATTERY CAPACITY TESTER T-681 84V

SUNKKO T-681 84V Battery Discharge Capacity Tester

The SUNKKO T-681 84V is a battery discharge capacity tester for evaluating compatible batteries under a controlled load. Select this catalogue variant by its actual voltage rating and the test conditions required by the battery being assessed.

For a battery service counter or assembly workshop, a capacity test helps answer a practical question: how much charge can the battery deliver before the approved endpoint is reached? This is different from measuring its open-circuit voltage. A battery can appear charged yet deliver less usable capacity than expected during a properly defined test.

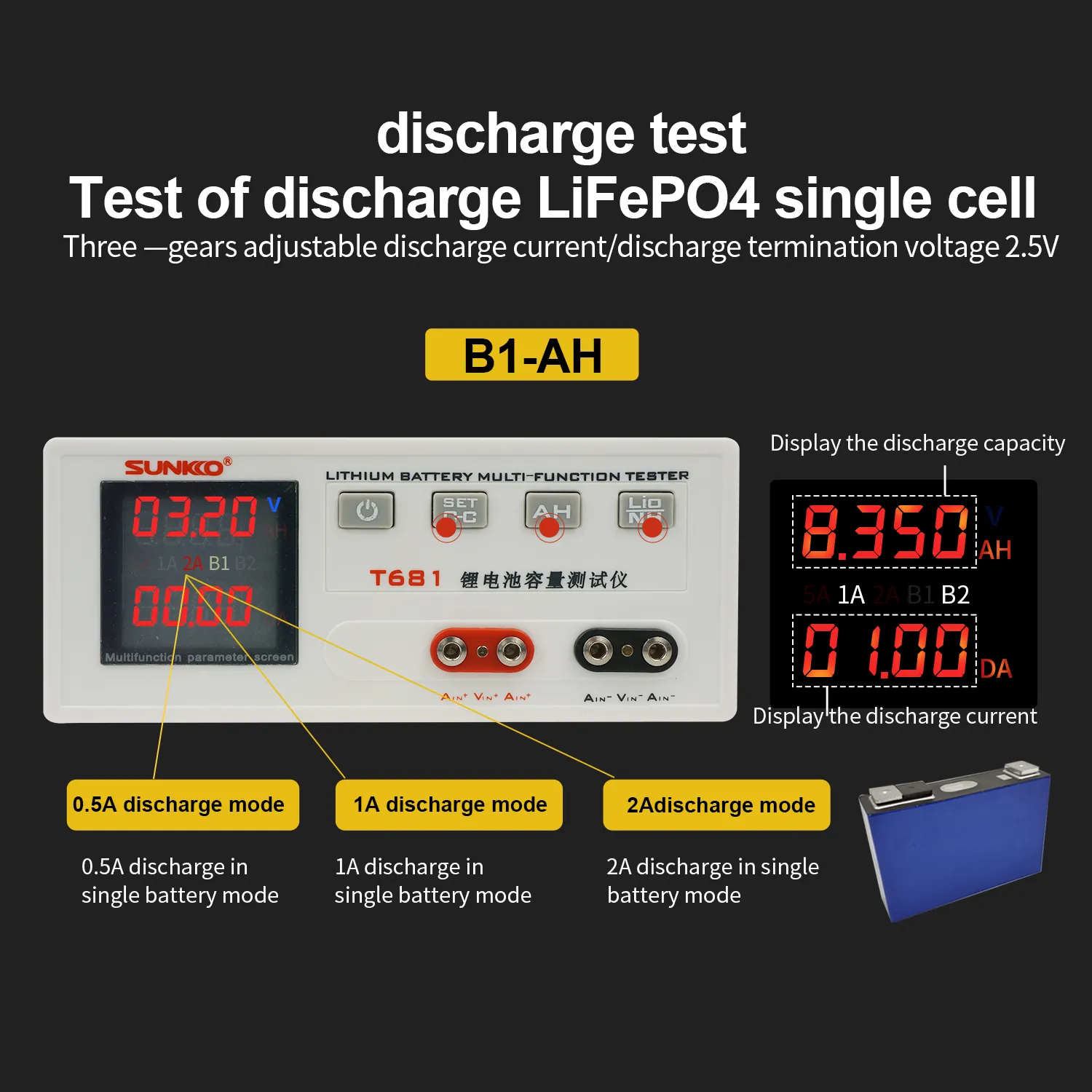

The purpose of a discharge test is to apply a selected load and evaluate the battery's response over time. The test current, starting condition and cutoff must be specified together. An 84V-class designation is an equipment limit, not a charging setpoint or permission to test every battery sold under a lower nominal-voltage label.

Choose a load that matches the intended comparison and remains within the delivered tester's current and thermal limits. Higher current is not automatically a better test: it produces a different operating condition and may bring the battery to its endpoint sooner. Record current, initial voltage, elapsed time and the final result in the workshop record. Investigate unexpected interruption before treating a shortened test as a confirmed capacity failure.

Check the battery's maximum charged voltage, chemistry, series count and BMS behaviour against the exact tester configuration. The maximum pack voltage can be considerably different from the nominal value printed in a product name. Confirm the supplied instrument label and current settings before defining your standard test procedure.

Plan how the battery will be charged before testing and returned to an appropriate state afterwards. Do not assume an instrument described as a capacity tester includes an internal charger or a computer interface. Also verify that the available leads, connectors and working area are suitable for the battery terminals and the duration of the discharge.

Applications

• Workshop capacity checks on matched battery packs.

• Incoming battery comparison using a common method.

• After-sales investigation of reduced operating time.

• Small-batch battery assembly quality checks.

• Training in controlled discharge and result recording.

Installation Guide

Place the instrument in a dry, ventilated area with the battery supported securely. Have trained personnel verify polarity, insulation and the connection arrangement. Protect the work area from accidental short circuits and keep the battery's protective functions active throughout the approved test.

Start with a known reference battery and confirm the selected stop condition before handling customer batteries. Observe the initial run, allow clear airflow around the tester and stop for abnormal temperature or battery behaviour. Maintain a test log that identifies the battery, procedure and outcome. Repeat a test only after understanding why it was interrupted, and follow the battery manufacturer's storage instructions when the evaluation is finished.

Why Choose ARB Accessories?

ARB Accessories offers testing instruments alongside BMS boards, chargers, connectors and wiring for Indian battery businesses. Share the complete pack voltage range and intended discharge current when discussing the T-681. Specifying the test requirement first makes it easier to select the correct instrument variant, arrange suitable connections and establish a capacity-check procedure that staff can repeat consistently.
