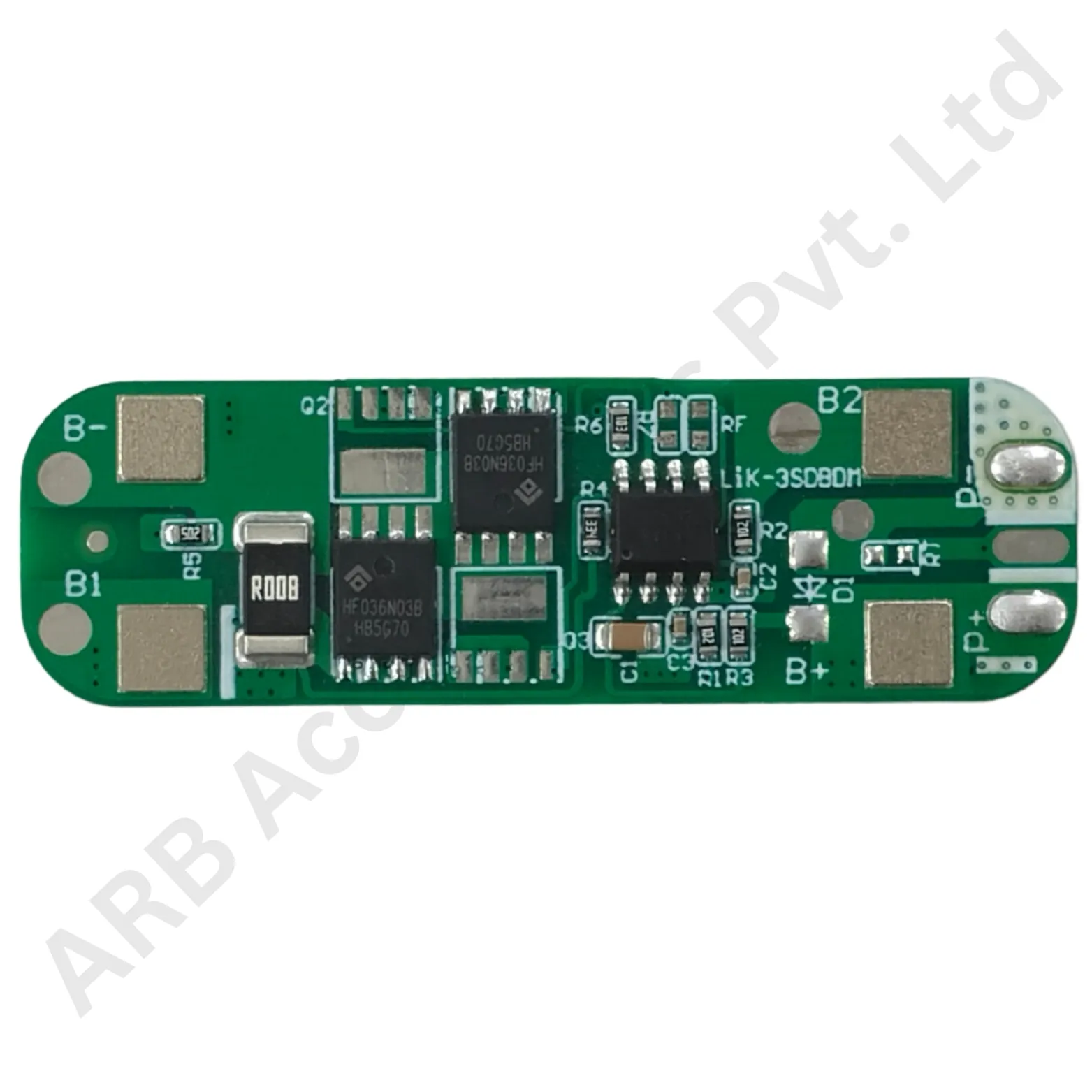

SLCT BMS NMC 3S 6A WITH NKL AND BAL

SLCT BMS NMC 3S 6A WITH NKL AND BAL

The SLCT BMS NMC 3S 6A WITH NKL AND BAL is a hardware battery-management system for 3S NMC / Li-ion lithium battery packs. Model bbca variant reference identifies the hardware family where supplied. It is intended for battery builders, EV service teams, inverter and energy-storage integrators, and repair workshops that need a protection board matched to the correct chemistry, series count and load requirement. Buyers commonly search for SLCT 3S 6A NMC / Li-ion BMS, lithium battery protection board, 3S battery BMS and EV battery management system; the first selection check should always be chemistry and series configuration rather than physical size alone.

A BMS supervises individual cell-group voltages and the main charge/discharge path so the battery pack can be isolated when operating limits are exceeded. It is one part of the safety architecture: correct cell matching, charger selection, conductor sizing, fuse protection, insulation and mechanical assembly remain equally important. A BMS with the right current label cannot compensate for undersized wiring, loose terminals or a charger intended for another lithium chemistry.

Technical Details

The supplied variant name and current market references identify a 3S, 6A NMC hardware BMS with nickel connection tabs and balancing included. A 3S NMC pack uses a 12.6V CC/CV full-charge profile when standard 4.2V-class cells are used. The 6A current designation must be evaluated against the real continuous load, startup surge, cable size, connector resistance and cooling conditions of the complete pack. The highlighted item is specifically the version with balancing and nickel connection hardware, so it should not be substituted with the more common 3S 6A SLCT version sold without balance. The sense harness must follow the cell-group sequence in the correct order so the board reads each series section accurately. Before the harness is connected, measure the voltage between adjacent sense points and confirm that polarity progresses in the expected direction from pack negative to pack positive.

This is a compact hardware protection module and should not be treated as a smart BMS with Bluetooth or digital communication unless such an interface is physically present on the supplied board. Heat generation in a battery pack is influenced by MOSFET losses, conductor resistance, crimp quality, busbar or nickel-strip sizing and enclosure ventilation. Mount the BMS so that its heat-dissipating surfaces are not buried under insulating foam unless the manufacturer specifically allows it. Keep the board protected from conductive debris and from mechanical pressure that could damage components or the enclosure.

Choose this SLCT BMS by matching battery chemistry (NMC / Li-ion), exact series count (3S), continuous and peak current demand, charge/discharge port arrangement, connector layout and any required communication interface. For replacement work, compare the model code, balance-harness pinout, cable orientation and mounting space with the existing unit. The charger must use the correct voltage profile for the complete 3S NMC / Li-ion pack, and the motor controller, inverter or DC load should remain within the verified operating envelope of the BMS and wiring.

Applications

• 3S NMC / Li-ion lithium battery pack assembly and replacement.

• Electric scooter, e-bike and light-EV battery systems when voltage and current requirements match.

• Solar, UPS and energy-storage battery modules using the same battery chemistry.

• Industrial battery packs, robotics and portable power systems.

• Battery repair, testing and workshop projects requiring a compatible BMS.

Installation Guide

Isolate the battery pack from the charger and load before installation. Confirm every series-group voltage and the total pack voltage before inserting the sense connector. Connect power leads with the correct polarity, use suitably sized insulated conductors, and secure crimped or bolted joints so vibration cannot loosen them. Never allow tools, loose nickel or exposed cable ends to bridge adjacent cell groups. After wiring, commission the pack with a controlled charge and a moderate load first; monitor cell voltages, BMS response and temperature before applying the intended operating current.
