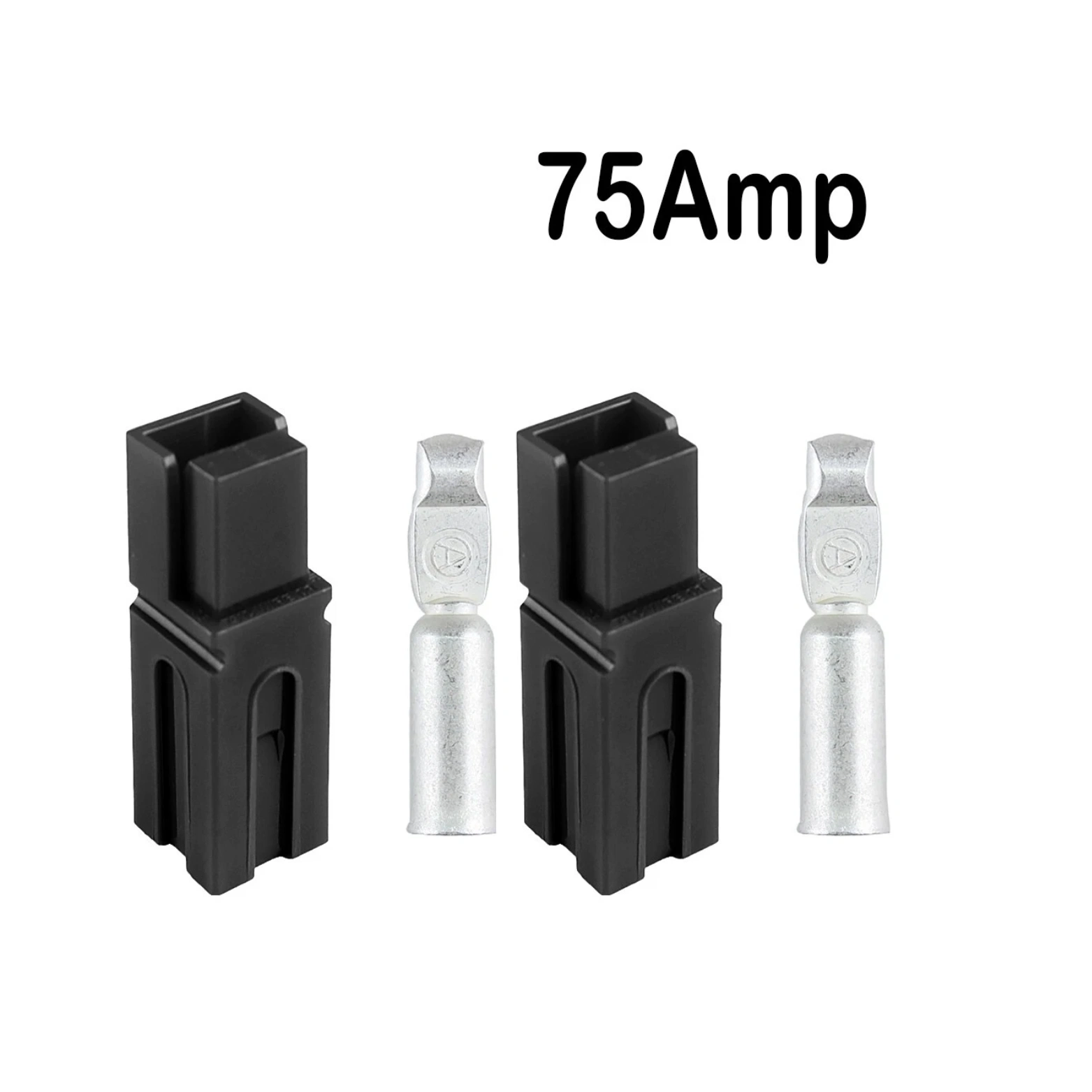

SINGLE POLE 75A CONNECTOR BLK

Single Pole 75A Connector – Black

The Single Pole 75A Connector Black is a modular high-current power connector designed for compatible battery and DC systems requiring a single-pole 75A-class connection. ARB identifies this item as an SP75A power connector, making it suitable for applications where one conductor needs a removable, serviceable connection and where separate single-pole housings are preferred over a fixed multi-pole connector.

The black housing provides quick visual identification in battery, charger, UPS, solar, and industrial wiring. In many DC systems black is used for negative or return conductors, although the actual polarity must always follow the equipment wiring diagram rather than relying on housing color alone.

Technical Details

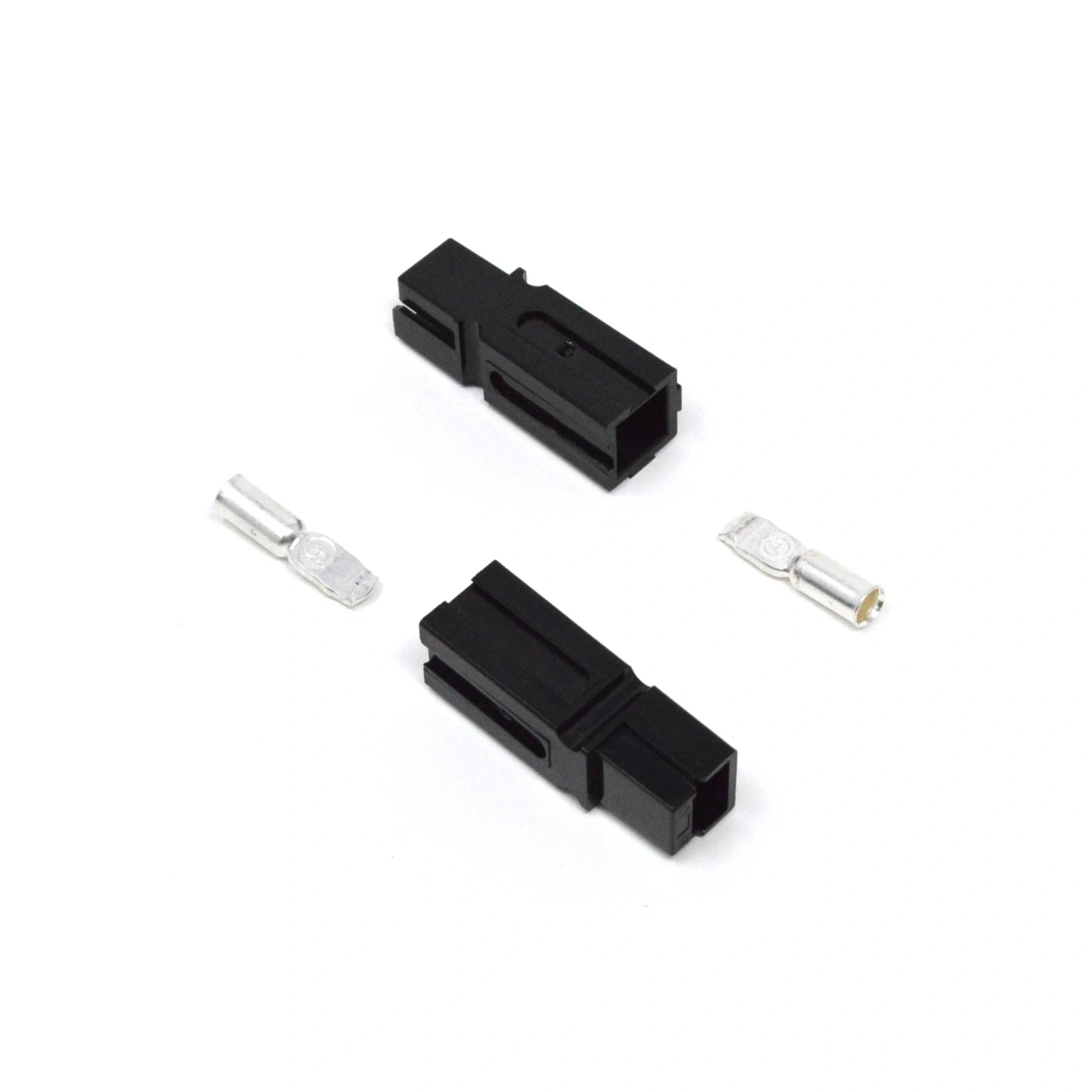

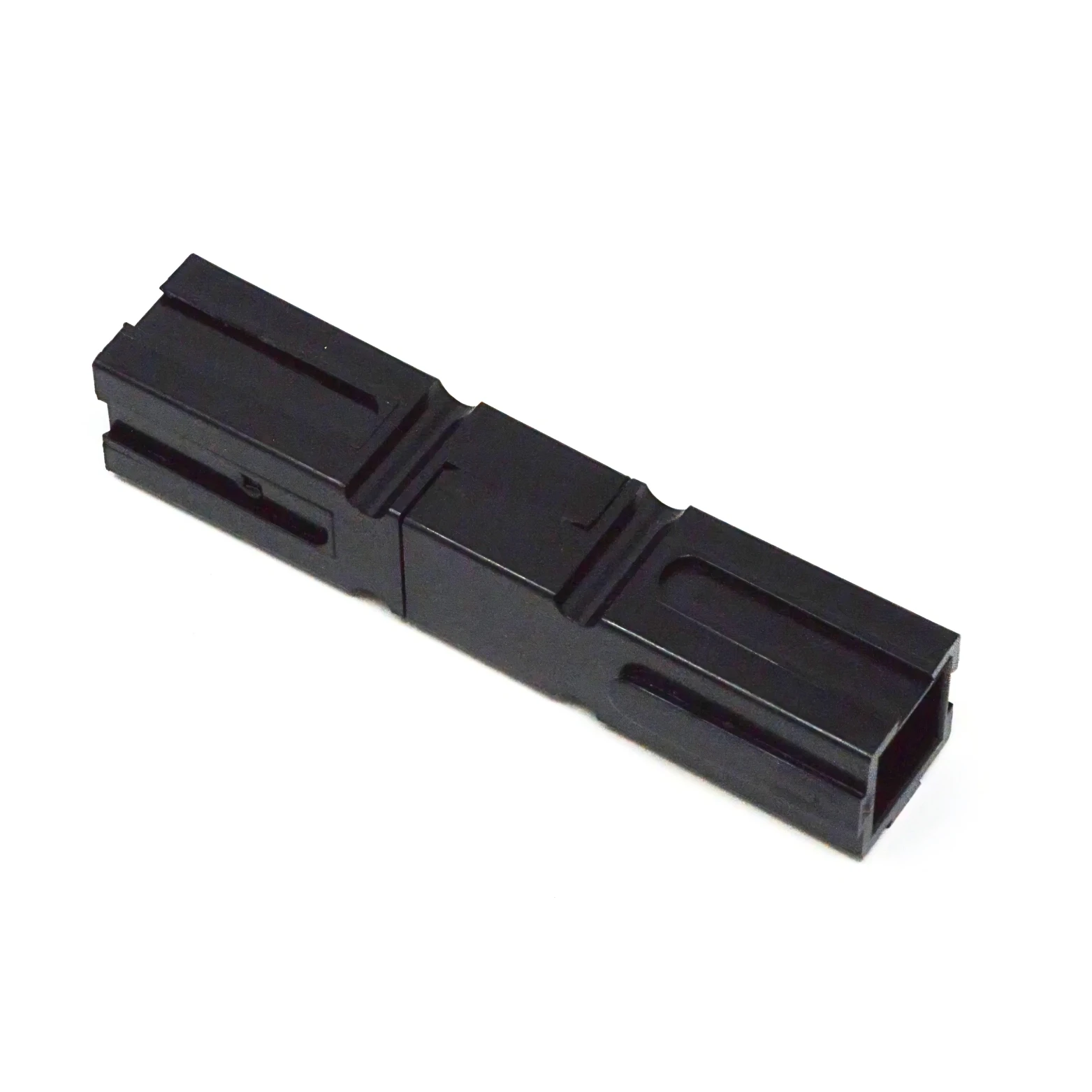

A compatible high-current contact is terminated onto the conductor and locked into the single-pole housing. The connector is then mated with its corresponding compatible housing/contact. Because each connector represents only one pole, two or more single-pole units may be used together to create the required DC circuit while keeping each conductor mechanically independent.

This modular arrangement can be useful in battery systems where conductors are routed separately, where color coding is important, or where individual poles may need to be replaced or serviced without replacing a complete multi-pole housing.

The 75A designation is an important connector specification, but the safe operating current of the finished circuit is determined by more than the housing alone. Cable cross-section, contact selection, crimp quality, connector temperature, mating condition, duty cycle, ventilation, and installation environment all influence the practical current capability.

For this reason, use a conductor and terminal that are specifically suitable for the required current and for the SP75A connector system. Never reduce cable size simply because the connector is physically capable of accepting a smaller conductor.

Select the 75A single-pole connector with the matching mating housing, contact and conductor size. The 75A marking is a connector current class, not a guarantee that every assembled cable will safely carry 75A under every condition. Cable cross-section, crimp quality, contact resistance, ambient temperature, duty cycle and enclosure ventilation all influence the finished connection. Black housings are often used for negative or return circuits, but the actual polarity must be verified from the wiring diagram before energizing the system.

Applications

When the complete installation is properly rated, the Single Pole 75A Connector can be used in:

• LiFePO4 and lithium-ion battery packs

• EV and e-mobility power wiring

• Solar and energy-storage systems

• UPS and backup power equipment

• Battery chargers

• Telecom backup systems

• Industrial DC power systems

• Battery banks

• Forklift or material-handling electrical systems

• Test and service equipment

Installation Guide

Strip the conductor to the correct length and use the proper contact and crimping method. After crimping, inspect the joint for complete compression and perform a mechanical pull check. Insert the contact fully into the connector housing until it is retained correctly.

Before energizing the system, confirm polarity and continuity. In mobile and industrial installations, provide strain relief so cable weight or vibration is not transferred directly to the contact. Keep the mating surfaces clean and replace contacts or housings that show overheating, looseness, damage, or heavy contamination.
