SINGLE POLE 75A CONNECTOR RED

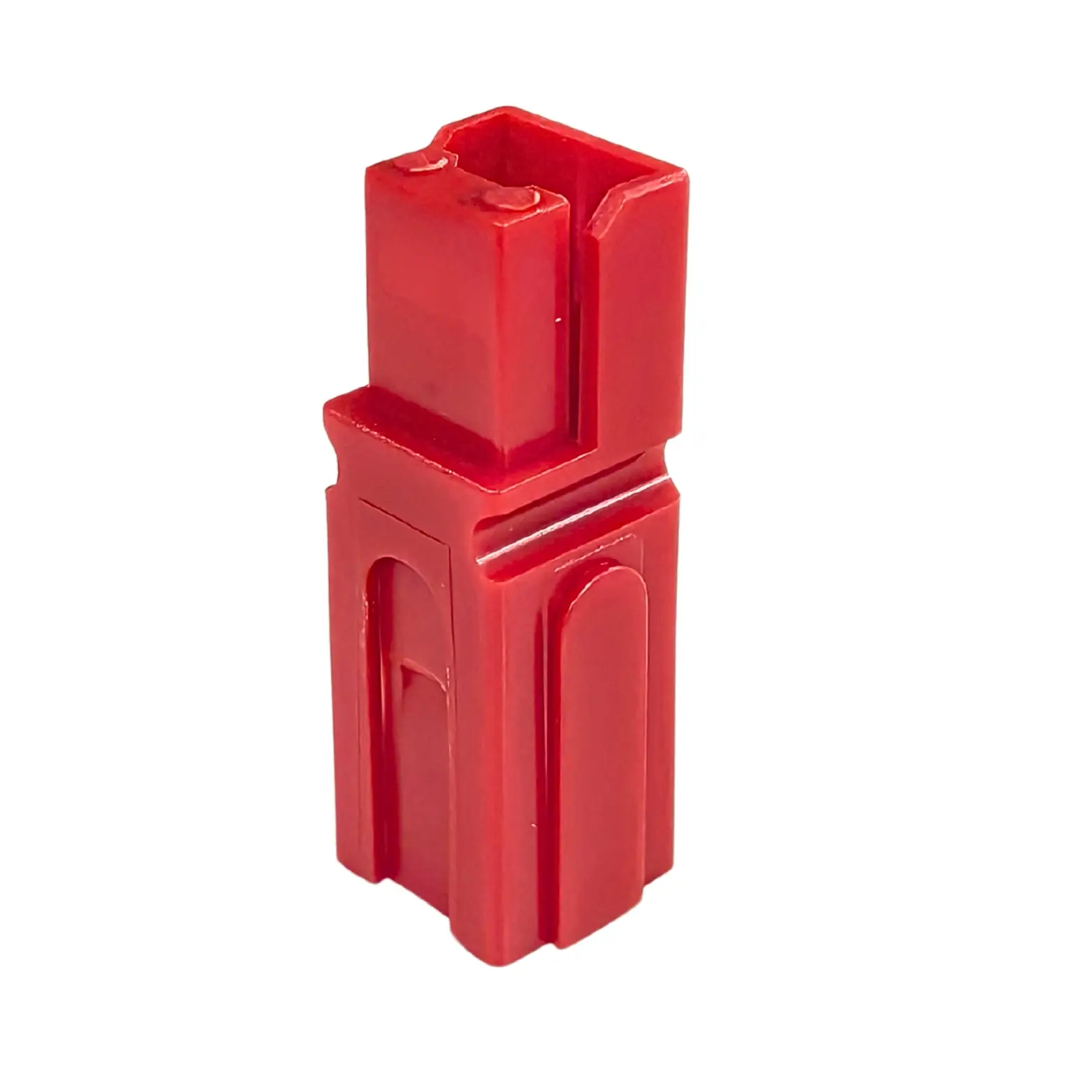

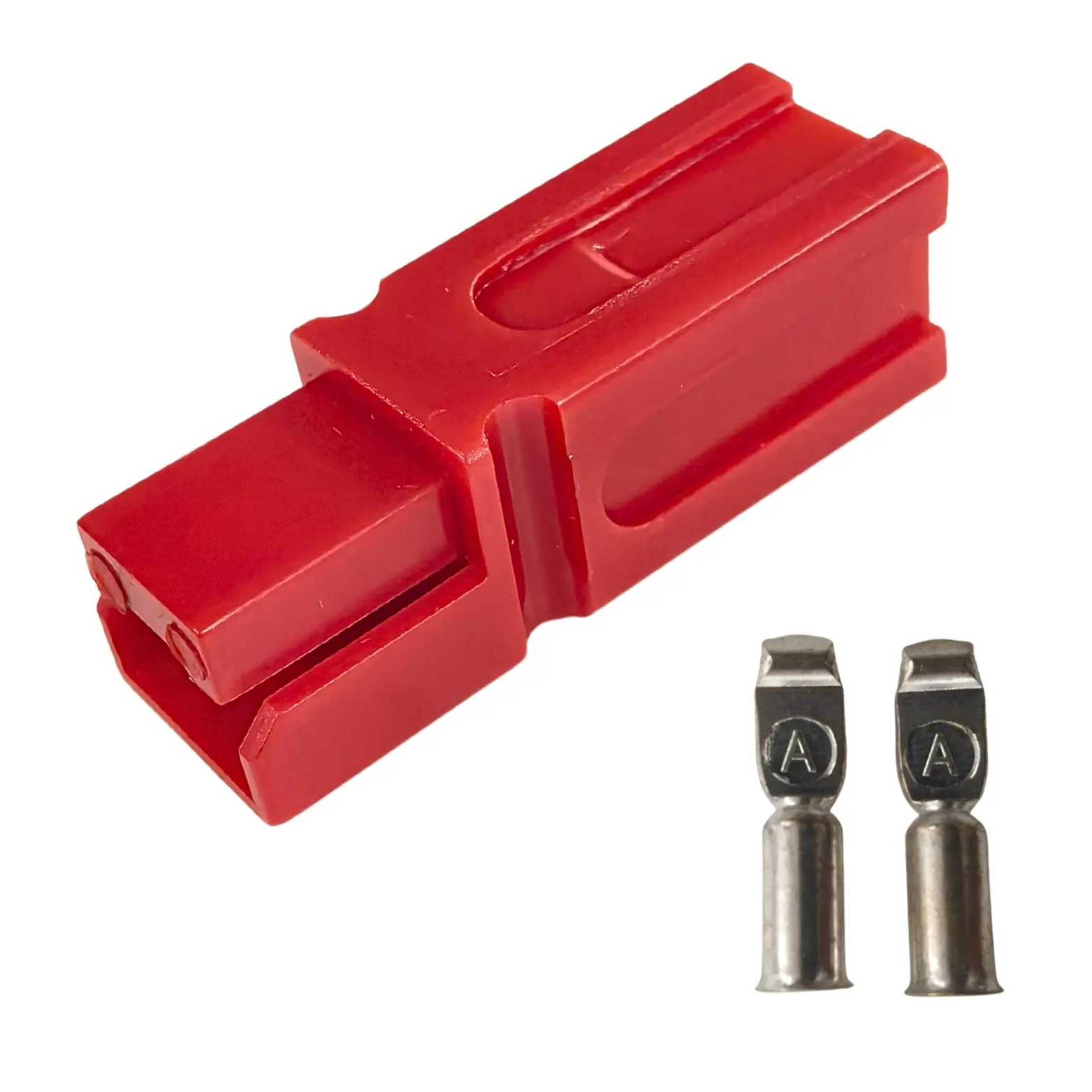

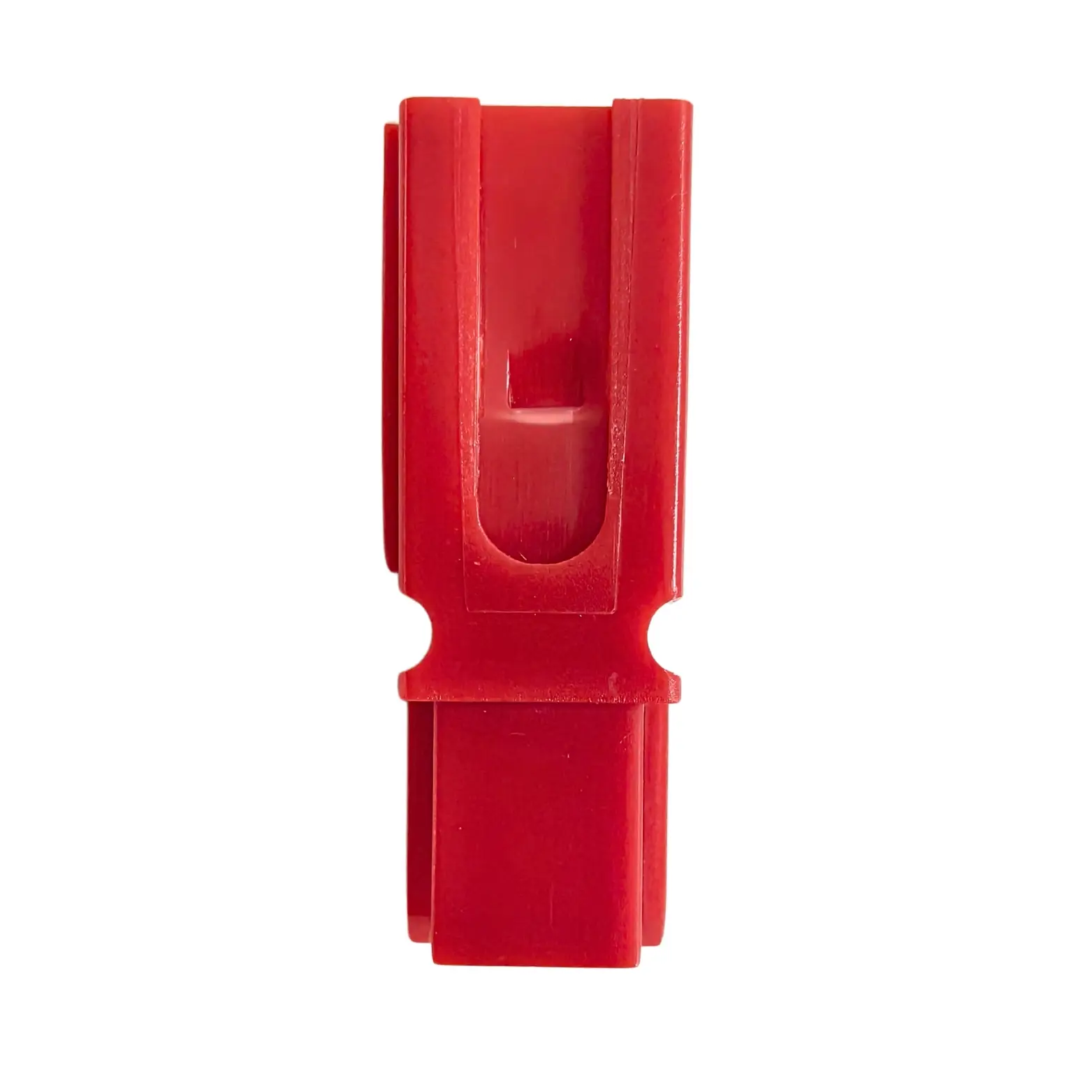

Single Pole 75A Connector Red

The Single Pole 75A Connector Red is a high-current DC power connector intended for modular battery, EV, solar, energy-storage and industrial wiring systems. Its single-pole format allows one power conductor to be connected through each housing, making it useful where positive and negative circuits are arranged as separate modular poles. The red housing provides an immediate visual cue for polarity or circuit identification and is commonly assigned to the positive side of a DC installation.

The 75A designation identifies the connector current class, but a finished electrical connection should always be engineered as a complete path. Contact type, cable cross-section, crimp quality, connector engagement, ambient temperature, duty cycle and mating compatibility all affect real-world temperature rise and voltage drop. A connector should therefore not be selected by current label or housing color alone.

High-current connectors work by minimizing resistance across the removable contact interface. Even a small increase in contact resistance can produce heat when current is sustained, so clean contacts, correct crimping and full connector engagement are important. The cable must be mechanically supported so its weight or vibration is not transferred directly into the contact.

Single-pole modular connectors are useful in serviceable battery systems because individual conductors can be disconnected without permanently removing a cable from the equipment. This can simplify battery replacement, charger connections and power-distribution layouts. However, the mating connector and contact must be from a compatible family. Similar-looking housings can use different contact sizes, keying features or retention geometry, and forcing mismatched parts together can create a poor electrical joint.

Match this red 75A-class connector to the exact mating housing and contact system used in the equipment. Confirm the selected cable gauge is supported by the contact and that the crimp tool produces a secure, low-resistance termination. The system voltage rating should be checked against the exact connector family before use; a current class does not automatically establish voltage suitability.

Use red as a visual polarity identifier only after the circuit design has been confirmed. In multi-pole or modular assemblies, maintain consistent color coding throughout the battery, fuse, disconnect and equipment side so servicing remains intuitive. For outdoor or harsh environments, verify sealing and environmental ratings separately because not all modular high-current connectors are waterproof.

Applications

• Lithium battery pack charge and discharge connections.

• Energy-storage and solar DC power links.

• Electric vehicle and e-rickshaw battery systems.

• Battery banks, service disconnects and modular power distribution.

• Industrial equipment requiring a removable high-current DC connection.

Installation Guide

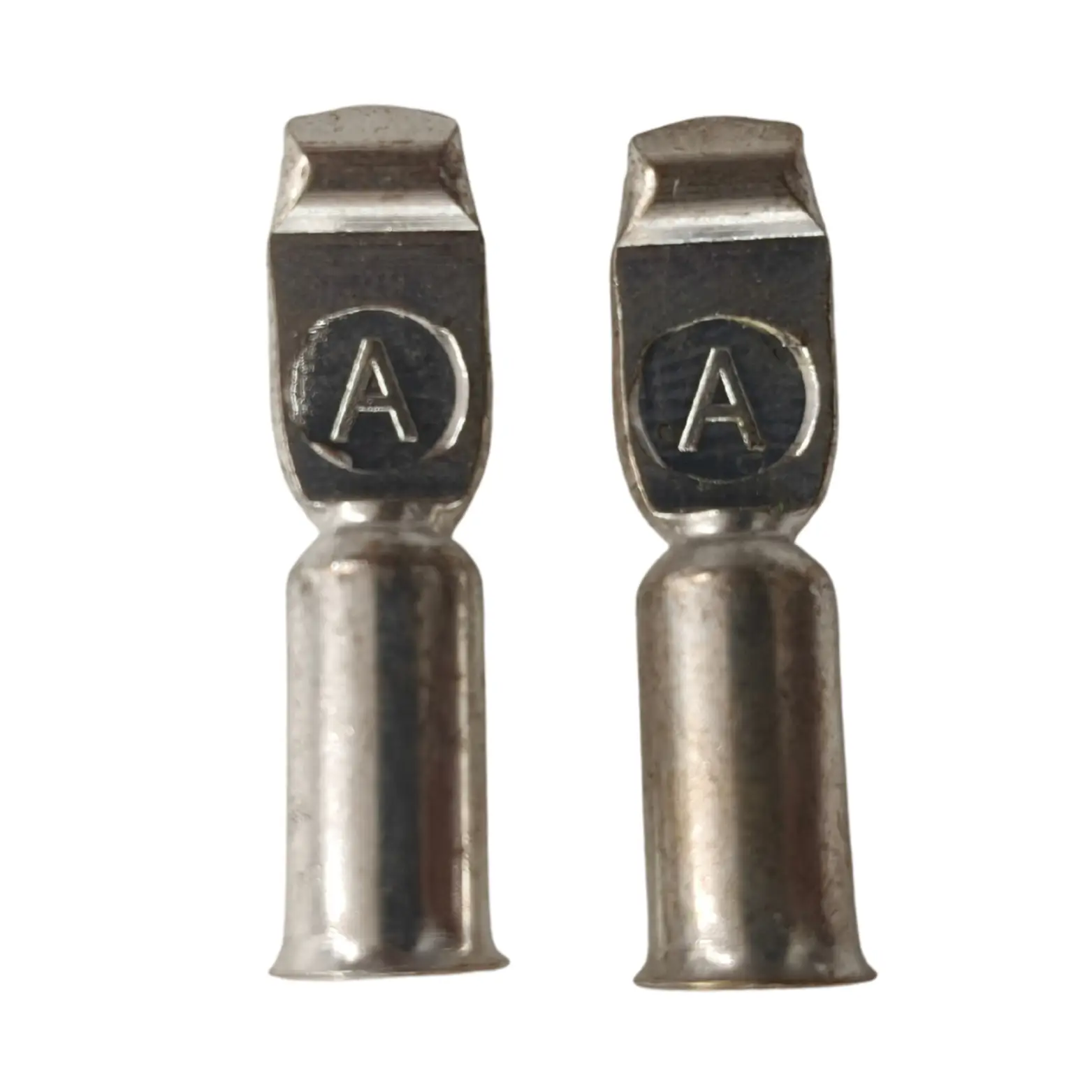

Crimp the correct contact onto a properly stripped conductor using a suitable crimp tool and inspect the joint for full conductor capture. Insert the contact into the housing until the retention feature locks. Before connecting to a live battery, verify polarity with a meter and confirm that the mating housing is fully compatible. Support the cable close to the connector, avoid sharp bends at the housing, and keep contacts clean. During initial operation, inspect the connection for looseness or abnormal heating under a controlled load.
