SB50 T-HANDLE CONNECTOR

SB50 T-HANDLE CONNECTOR

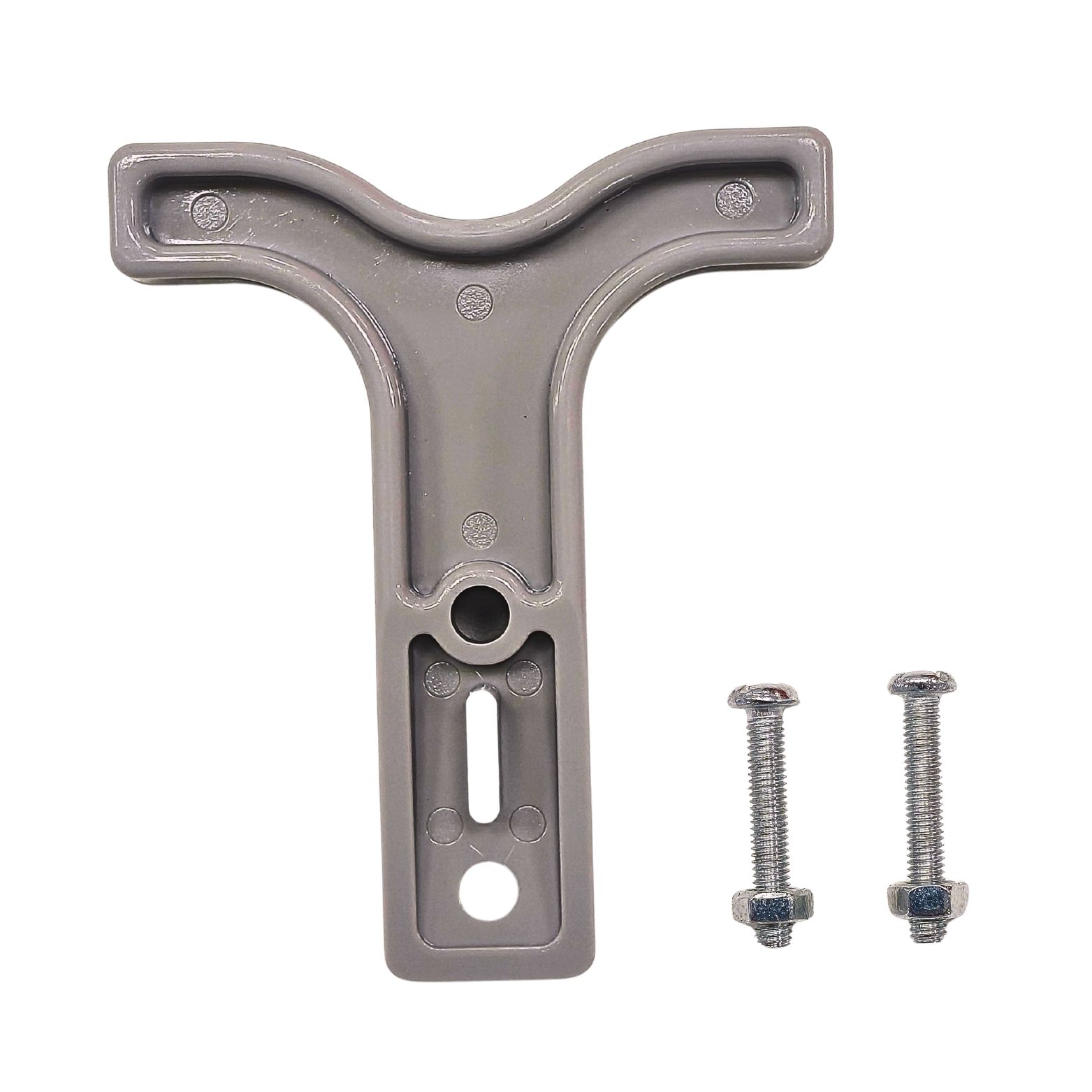

The SB50 T-HANDLE CONNECTOR is an SB50-family T-handle accessory designed to provide a convenient gripping point on a compatible SB50 connector. It is intended for battery, EV, inverter, UPS and industrial DC wiring projects where the matching connector family is already part of the system. Buyers may search for SB50 T-handle, battery connector handle, SB50 connector accessory and EV power connector handle; the most important point is that this part must match the exact mating connector or housing rather than being selected only from a similar appearance.

Connector accessories can be mechanically important even when they are not themselves current-carrying parts. Handles, covers and housings support safer service access, connector protection and repeatable wiring layouts, while male or female connector bodies provide the physical interface between cable assemblies. In battery systems, a small mismatch in keying, contact size, housing geometry or wire exit direction can prevent proper mating or place stress on the cable, so physical compatibility should be checked before production use.

Technical Details

Electrical performance in a connector system depends on the complete current path: the contact pair, conductor cross-section, crimp quality, housing fit, terminal retention and the condition of the mating surfaces. A connector accessory should not be assigned a current or voltage capability simply from its family name unless the exact contact and housing configuration is verified. Likewise, a protective cover or handle does not increase the electrical rating of the connector; its role is mechanical protection, handling or organization.

For battery and EV service work, repeated plug/unplug cycles, vibration, cable weight and enclosure movement can place mechanical load on the connector. The selected part should fit without forcing, should not expose conductive contacts unnecessarily and should allow the cable to leave the connector without a sharp bend. If the system is used in a dusty, wet or high-vibration environment, confirm the exact environmental rating of the complete connector assembly because a generic cover or housing should not be assumed to provide a sealed interface.

Match this SB50 connector accessory by connector family, mating orientation, contact arrangement, cable size, mounting clearance and the exact male/female interface. For replacement work, compare the original part side-by-side with the new item and verify keying, latch position, wire exit direction and contact retention before connecting it to a live battery. When the part is used with a high-current DC connector, also verify the contact size and cable termination separately from the plastic housing or accessory.

Applications

• SB50 battery and DC power connector assemblies.

• EV, e-rickshaw and material-handling battery harnesses using SB50 hardware.

• UPS, inverter and backup-power quick-disconnect connections.

• Battery workshop service leads and test cables.

• Replacement connector hardware where the exact SB50 housing matches.

Installation Guide

Disconnect the battery or power source before fitting or replacing the connector part. Inspect the mating contacts and housing for heat damage, corrosion, deformation or loose terminals. Fit the accessory without forcing it and confirm that latches, covers or handles move freely without pressing on the cable insulation. Where wires are terminated, use the correct crimping method and provide strain relief so cable movement does not pull directly on the contacts. After assembly, verify polarity and mechanical engagement before applying load, then inspect the connection during initial operation for abnormal heating or looseness.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-battery, EV, energy-storage and battery-pack assembly components. The catalog brings together BMS boards, connectors, insulation materials, battery wiring, terminals, fuses, enclosures, testing equipment and assembly tools. For battery builders, repair workshops and OEM buyers, sourcing related components from one specialist catalog can make specification matching and procurement easier. Final suitability should still be checked against the exact battery design, equipment model and electrical requirements before installation.
