SB 50 WITH 12AWG WIRE-150MM

SB 50 WITH 12AWG WIRE-150MM

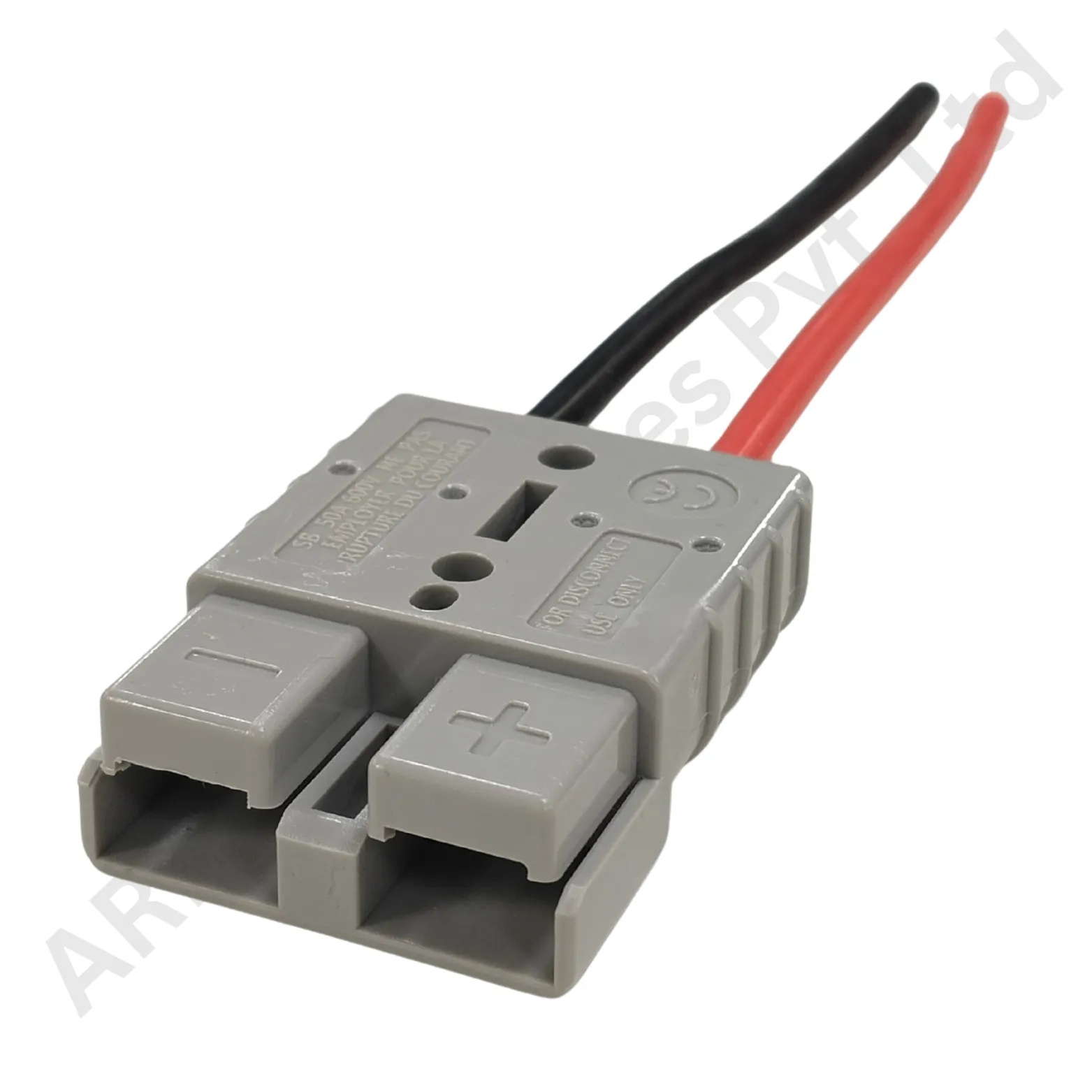

The SB 50 WITH 12AWG WIRE-150MM is a compact pre-wired power-connector assembly that combines an SB50-style two-pole quick-disconnect connector with 12AWG leads approximately 150mm long. Compared with an unwired connector set, this format saves assembly time because the short wire tails are already prepared as part of the connector assembly. It is useful where a battery, charger, controller, test fixture or DC subsystem needs a short removable power link rather than a permanently bolted connection.

Use this assembly where 150mm lead length is sufficient and the 12AWG cable is appropriate for the actual current and voltage-drop requirement. If the application needs a longer cable, repeated high current, tight bundling or high ambient temperature, recalculate conductor size rather than extending this harness blindly. Verify mating connector color/keying and polarity. For battery charging or removable-pack use, ensure both halves of the system use compatible SB50-style housings and contacts.

Applications

1. Battery pack quick-disconnect leads

2. Charger-to-battery connections

3. EV and mobility DC wiring

4. Solar and backup-power interconnects

5. Battery test benches

6. Portable DC equipment and power supplies

Installation Guide

Inspect the pre-installed wire-to-contact termination before use. If the opposite end requires a lug, ferrule or another connector, use tooling sized for 12AWG wire and avoid nicking conductor strands during stripping. Provide strain relief so pulling the cable does not stress the connector contact. Verify polarity with a multimeter before mating to a battery. Keep the connector free of debris and replace contacts that show pitting, discoloration or loss of spring pressure. Do not connect or disconnect under load unless the exact connector/application is designed for live interruption.
