PLASTIC GLAND PG-11 GREY

PLASTIC GLAND PG-11 GREY

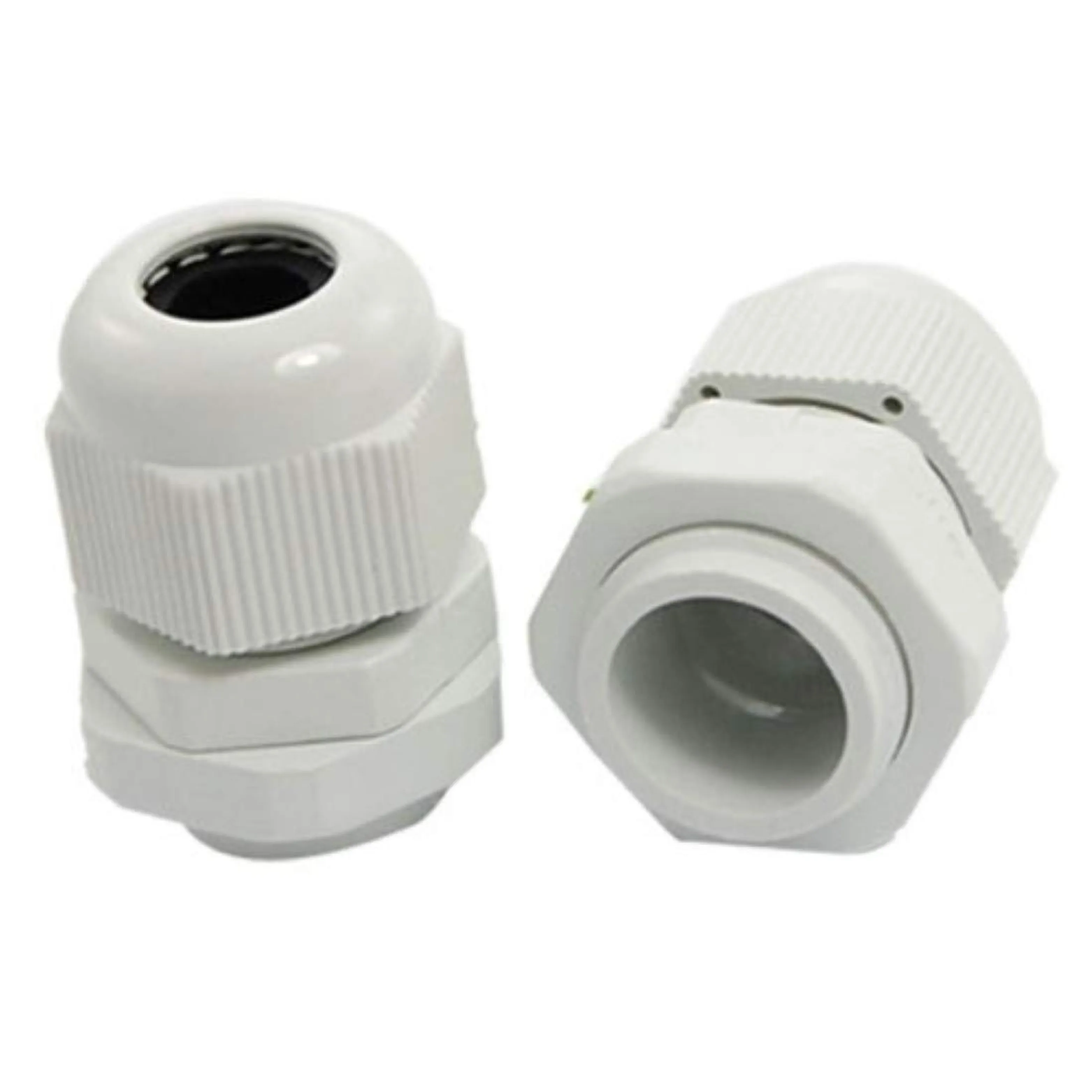

The PLASTIC GLAND PG-11 GREY is a PG11-thread cable gland for routing a cable through a battery box, electrical panel or equipment enclosure while providing cable retention and a finished entry point. The highlighted item specifies a grey plastic body and PG11 thread size. Buyers may search for PG11 cable gland, plastic cable gland grey, battery box cable entry gland or nylon PG gland.

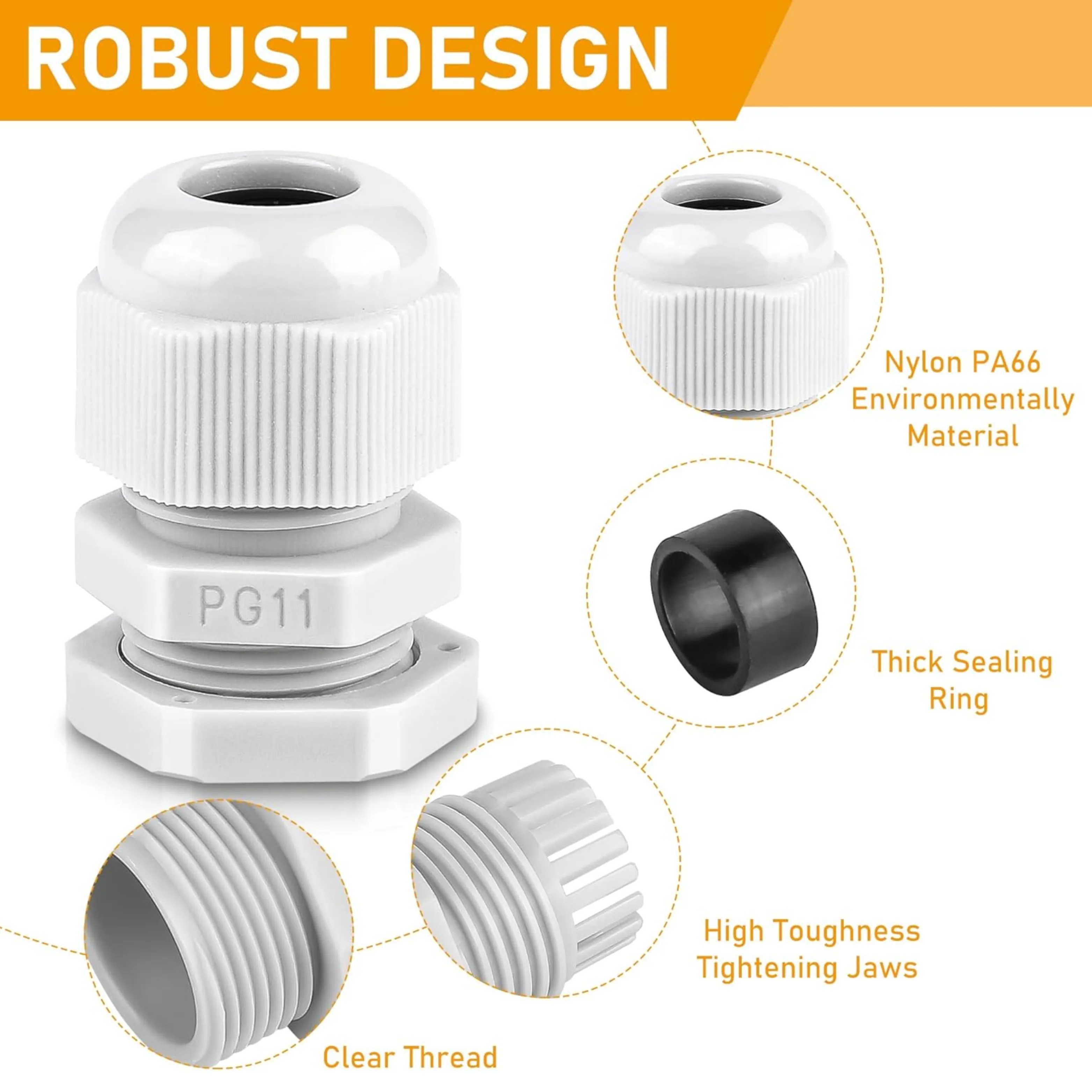

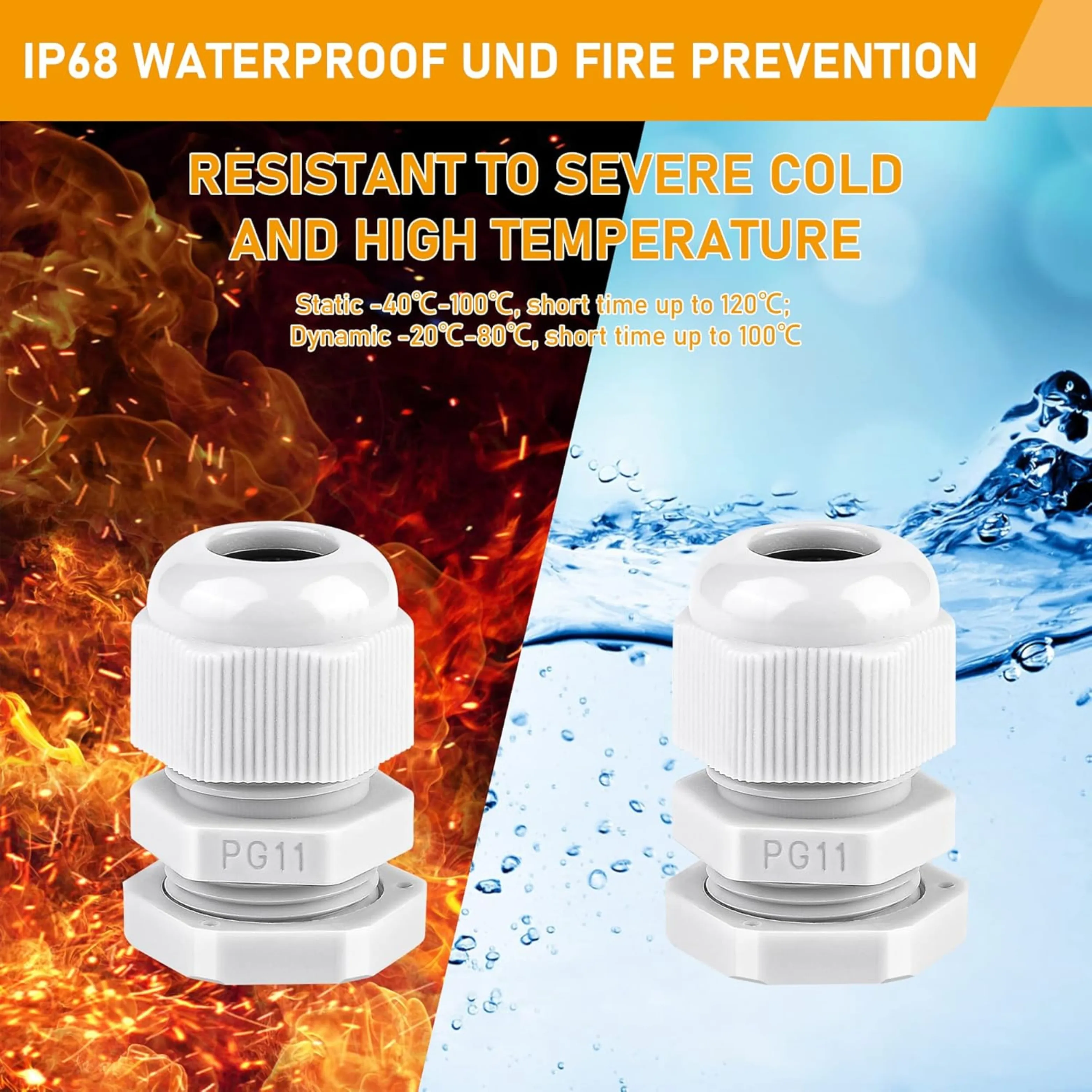

Cable glands perform both mechanical and environmental functions, but the exact protection level depends on the complete gland design, sealing insert, locknut, cable diameter and installation. Industrial PG11 plastic glands are commonly made from polyamide and many certified products are available with IP68 protection, yet those ratings should not be transferred automatically to an unidentified stock gland. The cable must fall within the gland's actual clamping range; a cable that is too small may not seal or grip, while an oversized cable can damage the sealing insert. The panel hole/thread and gland thread must match so the body can tighten without cross-threading.

Select this PG11 gland by panel thread/hole, cable outer diameter, required strain relief, enclosure material and any environmental rating required by the project. Measure the cable outside diameter rather than choosing only from conductor cross-section. If a locknut is used inside a thin-walled enclosure, leave enough internal clearance from cells, busbars and BMS components. For outdoor or wash-down systems, obtain the exact gland datasheet and verify IP rating before relying on the entry for sealing.

For procurement and production use, compare the physical item with the approved sample before standardising the bill of materials. Check dimensions, connector or mounting geometry, supplied accessories and any markings that identify the exact variant. Where the application has a safety-critical electrical, thermal or mechanical requirement, use the manufacturer datasheet for the stocked part rather than a visually similar market product. Recording the approved item code and revision helps prevent a replacement part with the same generic name but different construction from entering the assembly process.

Applications

• Battery boxes and lithium battery enclosures.

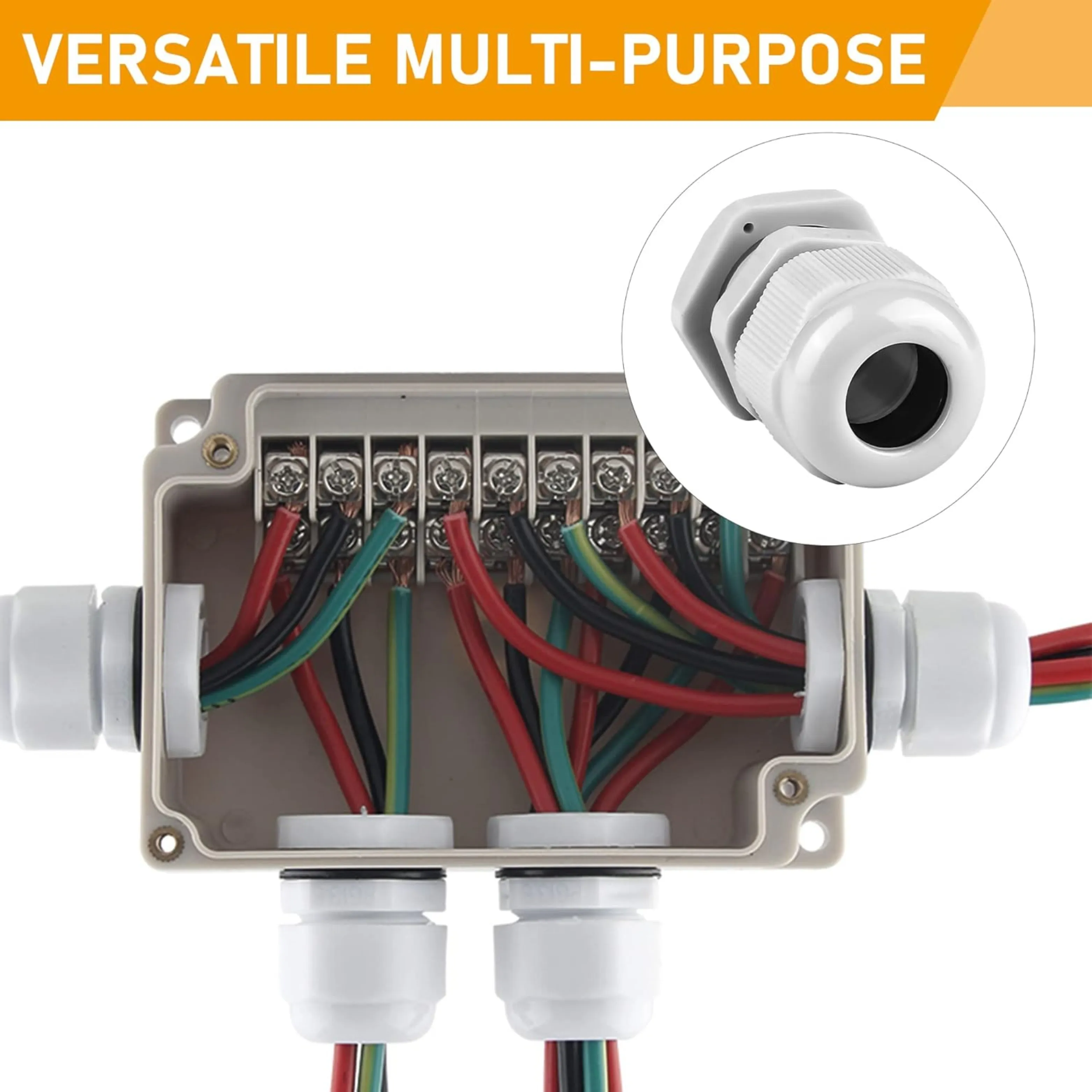

• Electrical control panels and junction boxes.

• Cable entry for chargers, inverters and DC equipment.

• Sensor, communication and auxiliary wiring pass-throughs.

• Industrial enclosures requiring a neat PG11 cable entry.

Installation Guide

De-energise the enclosure before drilling or fitting the gland. Remove all swarf, deburr the hole, fit the gland and locknut squarely, then tighten only enough to compress the sealing insert around the cable. Do not twist the cable while tightening. Provide internal routing and strain relief so cable movement is not transferred directly to terminals or PCBs. Inspect the gland after installation to confirm the cable is centred, secure and not cut by the entry edge.
