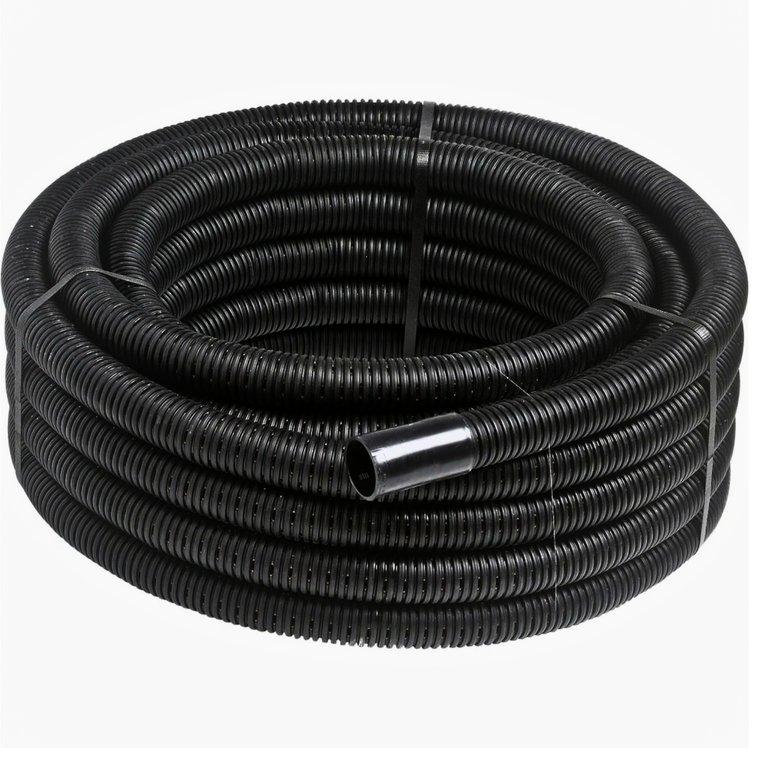

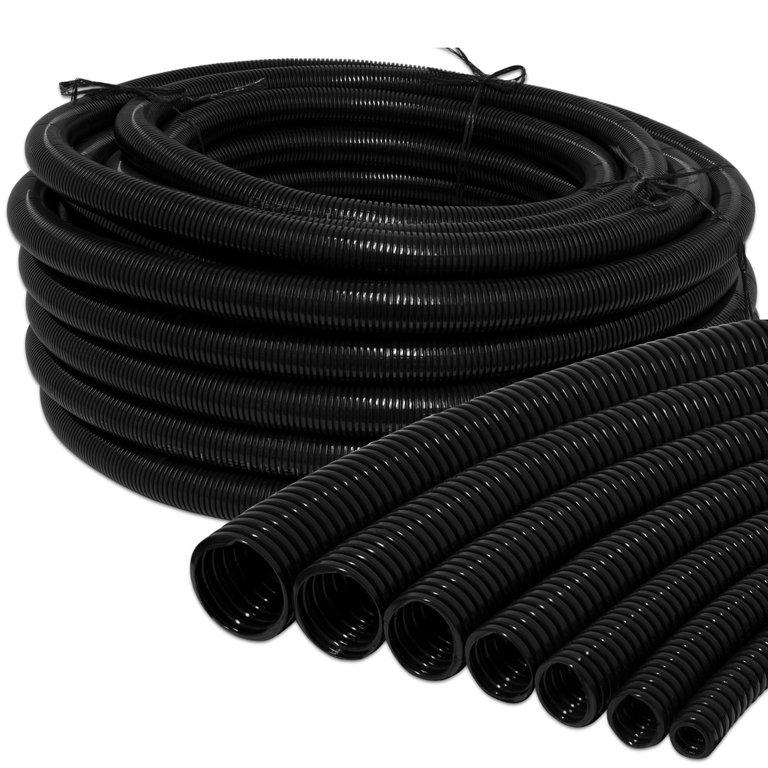

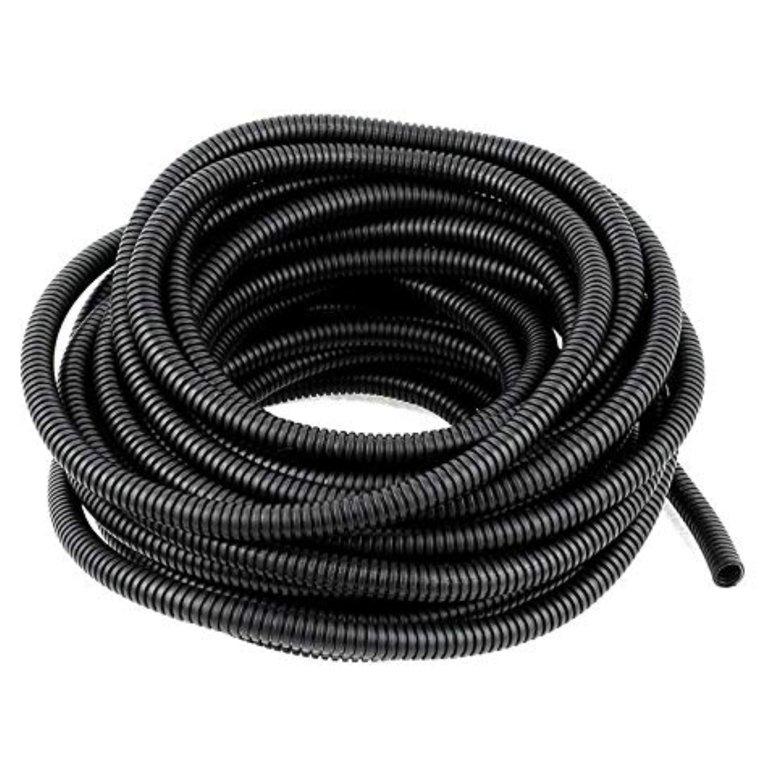

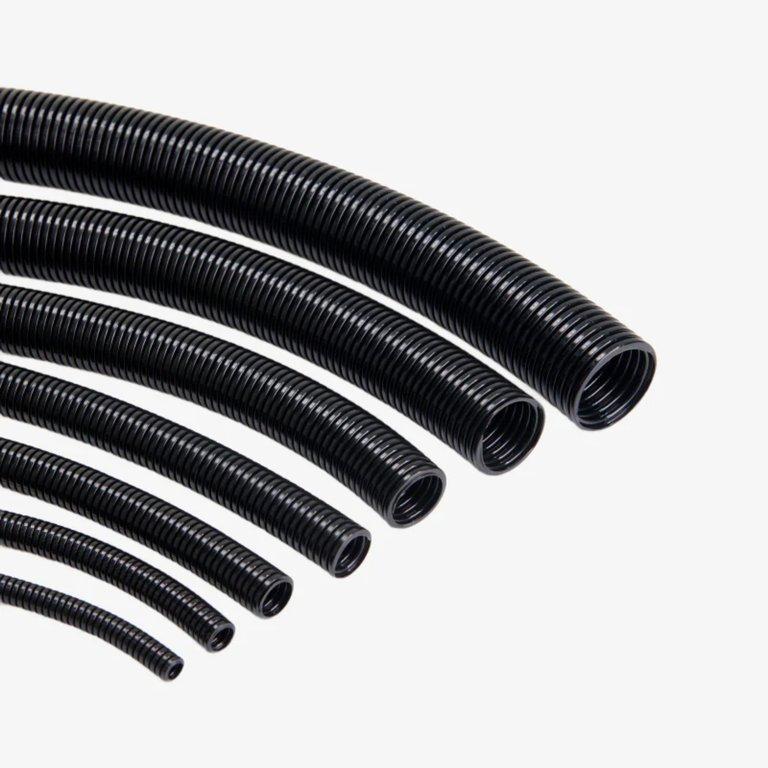

PG7 NYLONE FLEXIBLE PIPE

PG7 Nylon Flexible Pipe for Cable & Harness Protection

The PG7 Nylon Flexible Pipe is a compact cable-protection conduit used to route, organize and mechanically protect electrical wires and harnesses. In lithium-battery, EV, ESS and industrial assemblies, flexible conduit helps keep loose wiring grouped into a defined path while reducing direct contact with enclosure edges, moving components and other potential abrasion points. The PG7 trade-size designation places it among the smaller flexible-conduit options used for compact cable bundles and auxiliary harnesses.

Its flexible form is useful where the cable route must bend around enclosure geometry or equipment structure without the rigid alignment required by metal conduit. Nylon or polyamide-style flexible conduit is commonly paired with compatible glands, clips and fittings to create an organized harness entry and routing system. For battery applications, it can be used around BMS leads, sensor wiring, low-voltage auxiliary cables and other compatible wire groups when the selected conduit size provides enough internal space for installation and service.

PG7 is a trade-size designation rather than a universal guarantee of one exact inner or outer diameter across every manufacturer. Cable protection therefore starts with correct dimensional matching: the wire bundle should fit through the conduit without excessive compression, while the outside diameter must suit the gland, adapter, clip or mounting hardware used in the assembly.

The conduit should also be selected for the actual environment. Bend radius, mechanical abrasion, ambient temperature, contact with oils or chemicals, UV exposure and any flame or ingress-protection requirement can influence material choice. Where the equipment specification requires a defined temperature class, flame rating or IP performance, the conduit and its associated fitting system should be selected as a matched, documented combination. Properly supported flexible conduit protects wiring without transferring excessive pull or side load to electrical terminals.

Match the PG7 conduit to the actual cable-bundle diameter and the fittings used at each end. A PG7 flexible pipe is not the same component as a PG7 cable gland, although both may use the same trade-size label. Check the conduit-to-fitting interface, available bend space and cable-entry geometry before production installation. Leave enough internal clearance for the wires to move through the conduit during assembly without damaging insulation.

Applications

• Lithium battery-pack harness protection and wire organization.

• BMS, sensor and auxiliary cable routing inside battery enclosures.

• EV and automotive auxiliary harnesses requiring flexible cable protection.

• Industrial control panels, machinery and automation equipment.

• Solar, inverter and ESS wiring organization and enclosure routing.

Installation Guide

Cut the conduit squarely with a suitable tool so the end does not crush or deform. Route it away from moving mechanisms and hot surfaces unless the exact material rating allows those conditions. Use compatible glands, clips or conduit fittings to provide support and strain relief. Where the conduit passes through sheet metal, ensure the entry point cannot abrade the wire bundle.
