PG16 NYLON FLEXIBLE PIPE

PG16 NYLONE FLEXIBLE PIPE

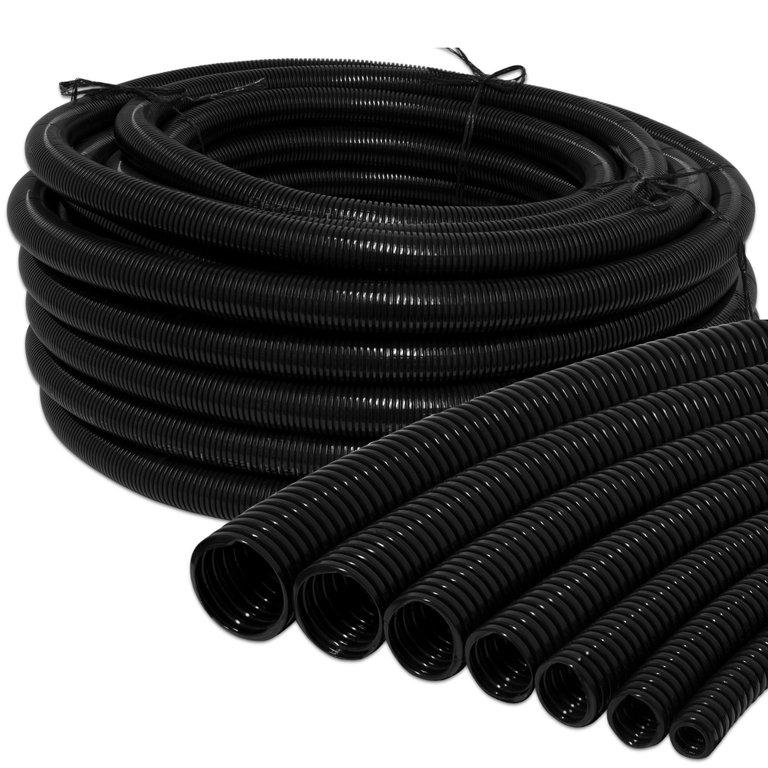

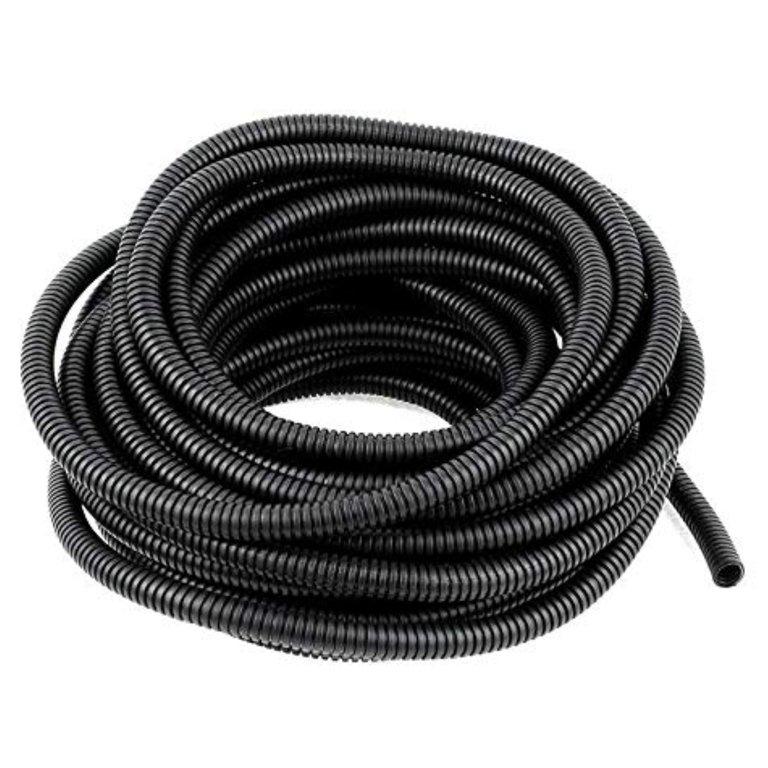

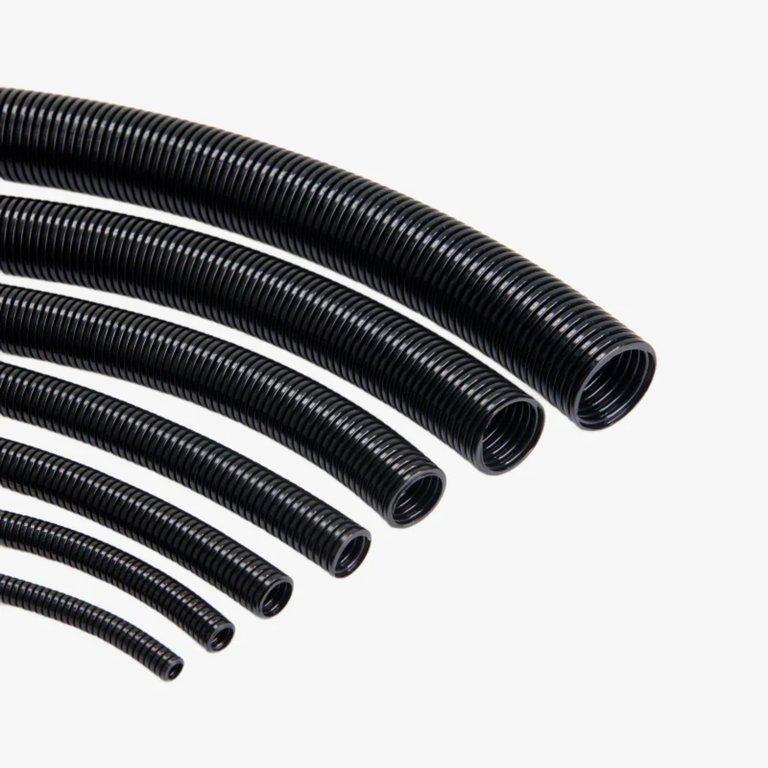

The PG16 NYLONE FLEXIBLE PIPE is a PG16-size flexible nylon cable-protection pipe intended for routing and organizing wires in battery packs, electrical equipment and control assemblies. It is a mechanical wire-management accessory rather than an electrical conductor, and it can help protect cable bundles from abrasion, rubbing and direct contact with enclosure edges. Relevant search terms include PG16 flexible conduit, nylon flexible pipe, cable protection tube, battery wire conduit and flexible wire sleeve.

In lithium battery and EV assemblies, balance leads, sensor wires, communication cables and auxiliary wiring often pass through crowded spaces around cells, busbars and enclosure hardware. A flexible protective pipe can keep these conductors grouped and reduce direct mechanical wear, especially where wiring changes direction or runs near metal edges. It does not replace electrical insulation on the individual wires and should not be relied on as the only barrier against live high-voltage or high-current conductors.

The PG16 designation is a size reference used for compatible conduit and cable-management hardware. Before installation, the builder should check the actual internal and external dimensions of the supplied pipe and confirm compatibility with any gland, fitting or enclosure entry. Cable fill should leave enough free space for the wires to move without being crushed, and the bend radius should be gentle enough to avoid stressing insulation or connectors.

Mechanical protection is most effective when the conduit is secured at transitions and cannot saw back and forth across a sharp edge. In battery environments, it should be routed away from hot busbars, moving parts and points where a cover or battery module could pinch the tube. The exact nylon grade, flame rating, temperature range and chemical resistance are material-specific properties and should be verified from the supplier specification if those ratings are required for the final product.

Choose this PG16 flexible pipe by matching the cable bundle diameter, connector size, gland or fitting interface, required routing path and enclosure space. If cables already have large terminals or plugs fitted, confirm that they can pass through the pipe or that the conduit can be installed before termination. For replacement work, compare the existing conduit diameter and fitting interface rather than selecting by appearance alone.

Applications

• Battery-pack balance lead and sensor-wire routing.

• BMS communication, display and auxiliary cable protection.

• EV, inverter, UPS and energy-storage cabinet wire management.

• Electrical control panels, test benches and battery-assembly fixtures.

• General low-voltage cable organization where a flexible protective sleeve is suitable.

Installation Guide

Inspect the conduit for cuts or crushing before use. Route wires with adequate slack, avoid sharp bends and support the pipe so it cannot rub continuously on metal edges. Use compatible glands, clips or fittings where the conduit enters an enclosure. Do not overfill the pipe, and keep high-current power cables separated where the equipment design requires spacing. After assembly, confirm that covers and moving parts do not pinch the conduit or the wires inside it.
