Nickel Strip Pure 0.12x5mm

Nickel Strip Pure 0.12x5mm

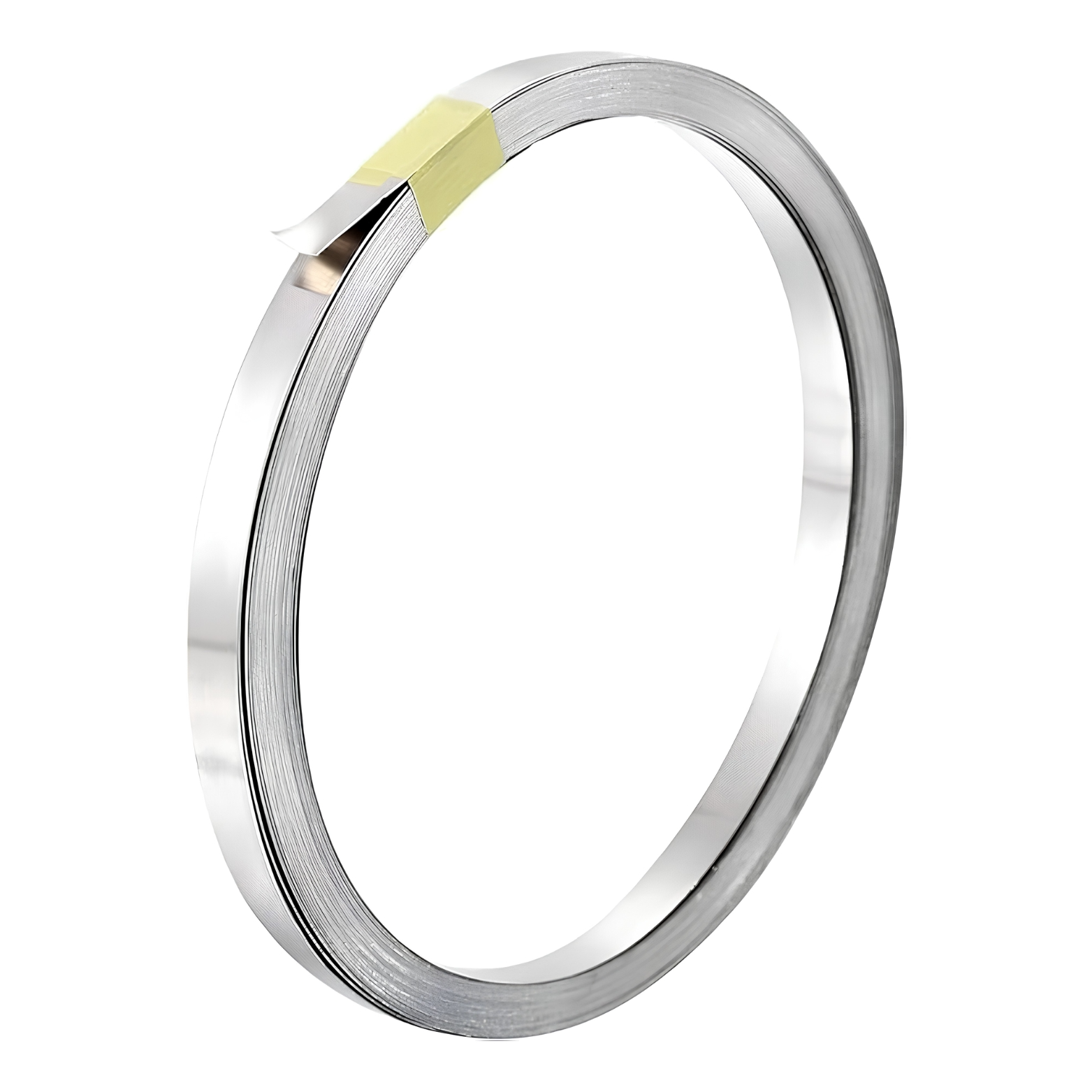

The Nickel Strip Pure 0.12x5mm is a narrow pure-nickel battery interconnect strip specified at 0.12 mm thickness and 5 mm width for spot-welded cell connections. Buyers commonly search for 0.12x5 mm pure nickel strip, battery nickel strip, 18650 nickel strip, lithium battery welding strip, cell tab strip and spot welding nickel for cylindrical battery-pack assembly.

Nickel strip is used to create series and parallel electrical connections between cells in lithium battery modules. A 5 mm strip width is common in compact cylindrical-cell layouts because it can be routed over cell terminals and welded with battery spot-welding equipment. The strip geometry does not by itself define a universal ampacity: allowable current depends on material purity, strip length, number of parallel paths, weld quality, thermal environment and duty cycle. For high-current packs, builders may need multiple layers, wider strip, thicker material or copper/nickel composite interconnects based on engineering calculations.

Pure nickel and nickel-plated steel are different materials even when their surface appearance is similar. Conductivity, resistance, corrosion behavior and welding response can differ, so material verification matters when the pack design depends on a specific interconnect resistance. The 0.12 mm x 5 mm size is well suited to buyer searches around battery spot welding and small-format pack assembly, but weld parameters should be tuned to the actual strip and cell can rather than copied blindly from another material.

Good interconnect design spreads current through the pack while keeping welds mechanically secure. Weld energy that is too low can create weak joints; excessive weld energy can damage the cell terminal or insulation. The strip should lie flat against the terminal, and sharp bends or stressed welds should be avoided.

Choose nickel strip by verified material, thickness, width, required current path, cell format and spot-welder capability. Also match the strip layout to the pack’s series-parallel design and the number of weld points per cell. When replacing an existing bus strip, compare its material and cross-section rather than matching only its width.

Applications

• 18650, 21700, 26650 and compatible cylindrical-cell battery packs.

• E-bike, e-scooter and light-EV battery assembly.

• Solar, inverter and UPS lithium battery modules.

• Power-tool, robotics and portable battery packs.

• Battery repair, prototyping and spot-welding practice.

Installation Guide

Work on cells in an insulated area with exposed terminals protected from loose metal. Confirm cell polarity before laying out the strip and never bridge unintended positive and negative points. Use spot-welding settings appropriate to the strip and cell can, and test weld quality on a controlled sample before production. Keep the strip free from oil, rust and contamination at the weld point. After welding, inspect every joint for secure attachment without puncturing or overheating the cell terminal.
