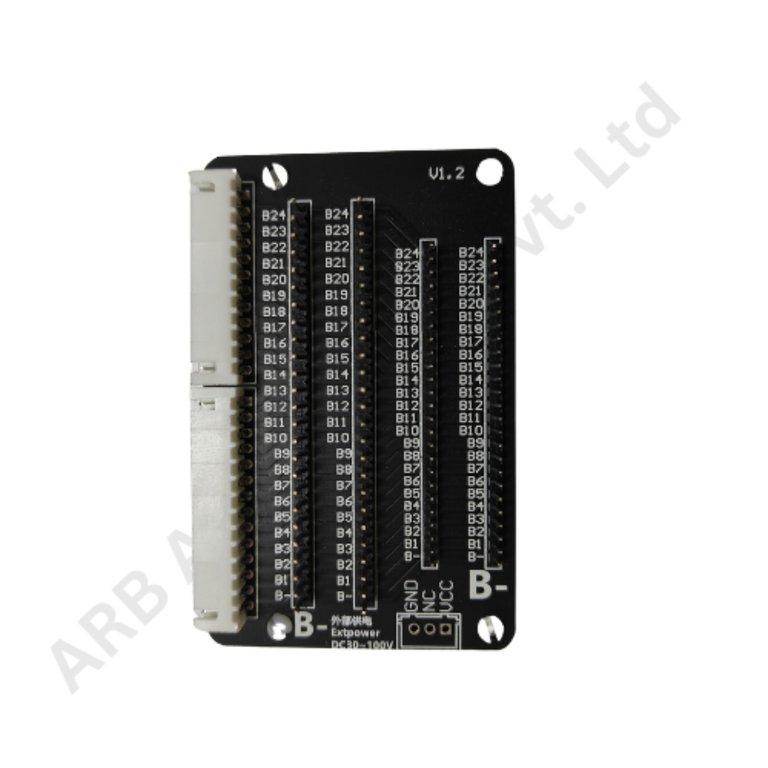

NEEY BALANCER CONNECT BOARD 24S 5AMP

NEEY BALANCER CONNECT BOARD 24S 5AMP

The NEEY 24S 5A Balancer Connect Board is a connection accessory for the matching NEEY balancer installation. It provides an interface within the cell-to-balancer wiring arrangement of a compatible battery assembly.

A balancer connection board helps organize the wiring between series cell groups and the associated balancing equipment. For battery builders, selecting the correct board keeps the cell connections aligned with the balancer harness and makes later inspection more straightforward. This item is the NEEY version identified for the 24S 5A arrangement.

The 24S designation refers to the series-cell arrangement identified for this accessory. The 5A designation identifies the associated balancer variant, so it should not be treated as the battery's charge or discharge current rating. Balancing performance is determined by the connected balancing equipment and the complete wiring system. Secure contacts, the correct cell sequence and suitable insulation are essential to that installation.

Select the board using the balancer model, board revision, cell wiring diagram and connector layout together. Match every cell position to the manufacturer's connection sequence. Boards from another brand or a different current variant may use a different harness arrangement even when their titles contain the same series count. Confirm the mounting space and connection method before assembling the pack.

Applications

• Matching NEEY 24S 5A balancer installations

• Cell-harness organization in compatible battery builds

• Replacement connection boards for matched assemblies

Installation Guide

Follow the wiring diagram supplied for the exact board and balancer. Keep the balancer connector disconnected while arranging the cell leads, verify each cell position with the appropriate test procedure, and inspect for crossed or exposed conductors before connection. Secure the board and wiring to prevent movement or contact with live busbars. Carry out an initial monitored check of the completed installation.
