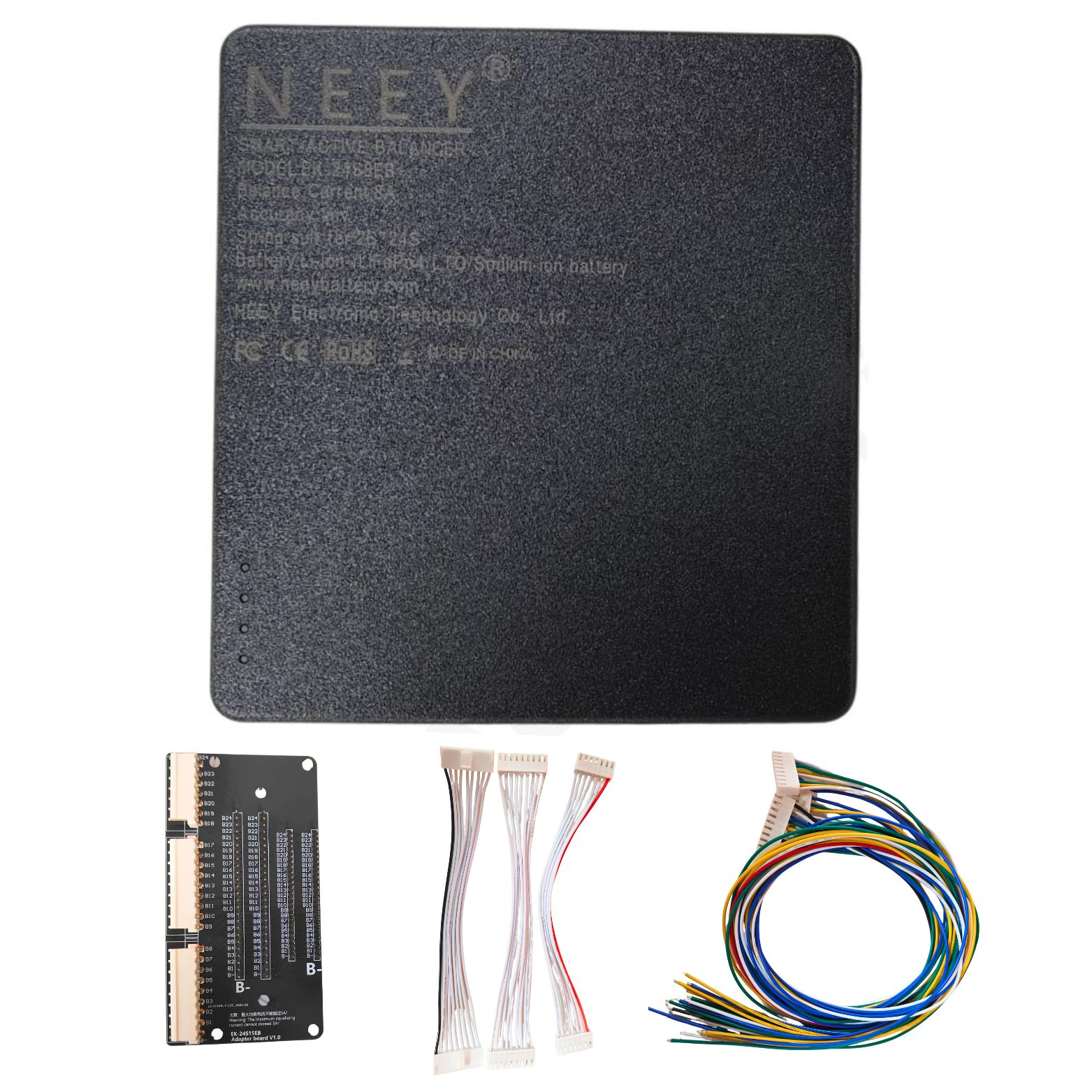

Neey Active Balancer 24S 8A Without Adapter

Neey Active Balancer 24S 8A Without Adapter

Neey Active Balancer 24S 8A Without Adapter is a NEEY smart active balancer for multi-series lithium battery packs. The NEEY-24S8A platform transfers energy between cells using supercapacitor-based active balancing, helping maintain cell-voltage consistency without relying solely on passive energy dissipation. Its 8A model class gives battery builders a defined current tier for compact traction, home storage, solar backup and other multi-series battery applications. NEEY's smart-balancer family combines app-based configuration with live battery information, giving users visibility into cell voltage and balancing activity during service.

The NEEY smart active balancer uses a supercapacitor energy-transfer method: energy from a higher-voltage cell is stored and then delivered to a lower-voltage cell, repeating the cycle to reduce cell-to-cell differences. Unlike a passive bleeder that burns excess energy as heat, active transfer redistributes energy within the pack. The NEEY-24S8A provides an app-adjustable balancing current from 1A to 8A, allowing the balancing setting to be tailored to the battery system and service task.

NEEY publishes chemistry-specific series ranges for this model family. The platform supports Li-ion 3S–24S, LiFePO₄ 4S–24S and LTO 7S–24S; minimum series count depends on the battery chemistry and power configuration. Bluetooth app monitoring provides visibility into cell voltages, balancing current and temperature. The 8A, 10A and 15A models also include a TTL interface for compatible controller, charger or inverter integration, while the 4A version omits the TTL bus. The 10A and 15A classes extend the current range for larger battery packs, and the family supports documented cascading arrangements for packs requiring more series groups than one unit handles.

Choose the NEEY-24S 8A model based on balancing current, pack series count, chemistry and desired integration features. NEEY lists chemistry-dependent ranges up to 24S, including Li-ion 3S–24S, LiFePO₄ 4S–24S and LTO 7S–24S. A pack's chemistry and series count must fall inside its supported range, and power-input requirements depend on the current tier and installation. The 4A model's input range differs from the higher-current 8A, 10A and 15A versions, so use the matching power arrangement and wiring instructions.

The 8A, 10A and 15A platforms provide TTL communication for compatible external controllers, chargers and inverters; cascading enables multi-unit arrangements when planned according to the manufacturer's wiring diagrams. Bluetooth app access gives technicians a convenient view of cell voltage and balancing state. These features complement battery management and protection hardware; an active balancer does not replace a BMS, charger or fusing.

Applications

• Li-ion and LiFePO₄ energy-storage packs using a series count supported by the NEEY 24S8A platform.

• Home solar, inverter and backup battery banks that benefit from app-configurable active balancing.

• Traction and mobility battery systems where current adjustment supports pack-maintenance requirements.

• Battery controllers, chargers or inverters that can use the balancer's TTL communication interface.

• Multi-series battery builds that can use cascading as part of a documented system design.

Installation Guide

Mount the NEEY NEEY-24S8A securely and keep the board and balance wires protected from vibration, moisture and conductive debris. Confirm chemistry and series count against the manufacturer's range, then connect cell-sampling leads in the specified order and verify each tap voltage before plugging in the harness. Use the supported battery-powered or external power input arrangement. Configure balancing settings in the official application and monitor cell voltages and current during the first operating cycle. For TTL or cascading installations, follow the model-specific communications and wiring diagram. The ARB listing is supplied without an external adapter, so plan the supported power arrangement separately.

Why Choose ARB Accessories?

ARB Accessories lists NEEY balancers across several current tiers, making it easier to choose a platform based on pack size and balancing requirements. The NEEY-24S8A gives users a distinct 8A-class active-balancing option with app-based monitoring and the integration features documented for this version. Supercapacitor energy transfer and clear cell-voltage feedback support battery assembly, maintenance and storage-system commissioning. Its current tier and 24S-class design make it a practical choice for compatible multi-series packs.
