Product Overview

Kapton Tape 12MM is a narrow polyimide-based electrical insulation tape used across battery-pack assembly, electronics work, PCB processing and other applications where a thin insulating layer must fit into limited space. The 12mm width is particularly useful for targeted insulation around cell groups, small busbar areas, wiring joints and electronic components where wider tape would create unnecessary overlap. Indian EV and battery-component sellers commonly list 12mm polyimide tape for lithium battery assembly, while electronics suppliers also use the same width for masking and heat-exposed electrical work.

Technical Performance & Engineering Details

Polyimide film is widely selected in electronics because it combines electrical insulation with dimensional stability at elevated temperature. However, the actual performance of a finished adhesive tape also depends on film thickness, adhesive chemistry, adhesive thickness, peel strength, temperature rating and manufacturing quality. Those values vary between products even when all are sold as 12mm Kapton tape. For that reason, this listing should not publish a specific temperature limit, dielectric strength, thickness or residue claim until the ARB roll label or supplier datasheet confirms it. The 12mm dimension refers only to tape width and does not establish roll length or total thickness.

Compatibility & Selection Guide

Use the tape where a 12mm strip width suits the insulation geometry. For cell-level battery work, check whether the tape must cover sharp nickel edges, isolate a busbar, secure sensor wiring or provide a secondary barrier over another insulating material. Kapton tape should not be treated as a structural restraint, flame barrier or replacement for cell holders, fish paper, sleeves or enclosure insulation unless the pack design specifically validates that use. If the application is exposed to continuous high temperature, chemicals or high voltage, confirm the exact tape grade first.

Target Applications

1. Lithium-ion and LiFePO4 battery-pack insulation

2. Cell-group and busbar insulation support

3. BMS and sensor-wire securing

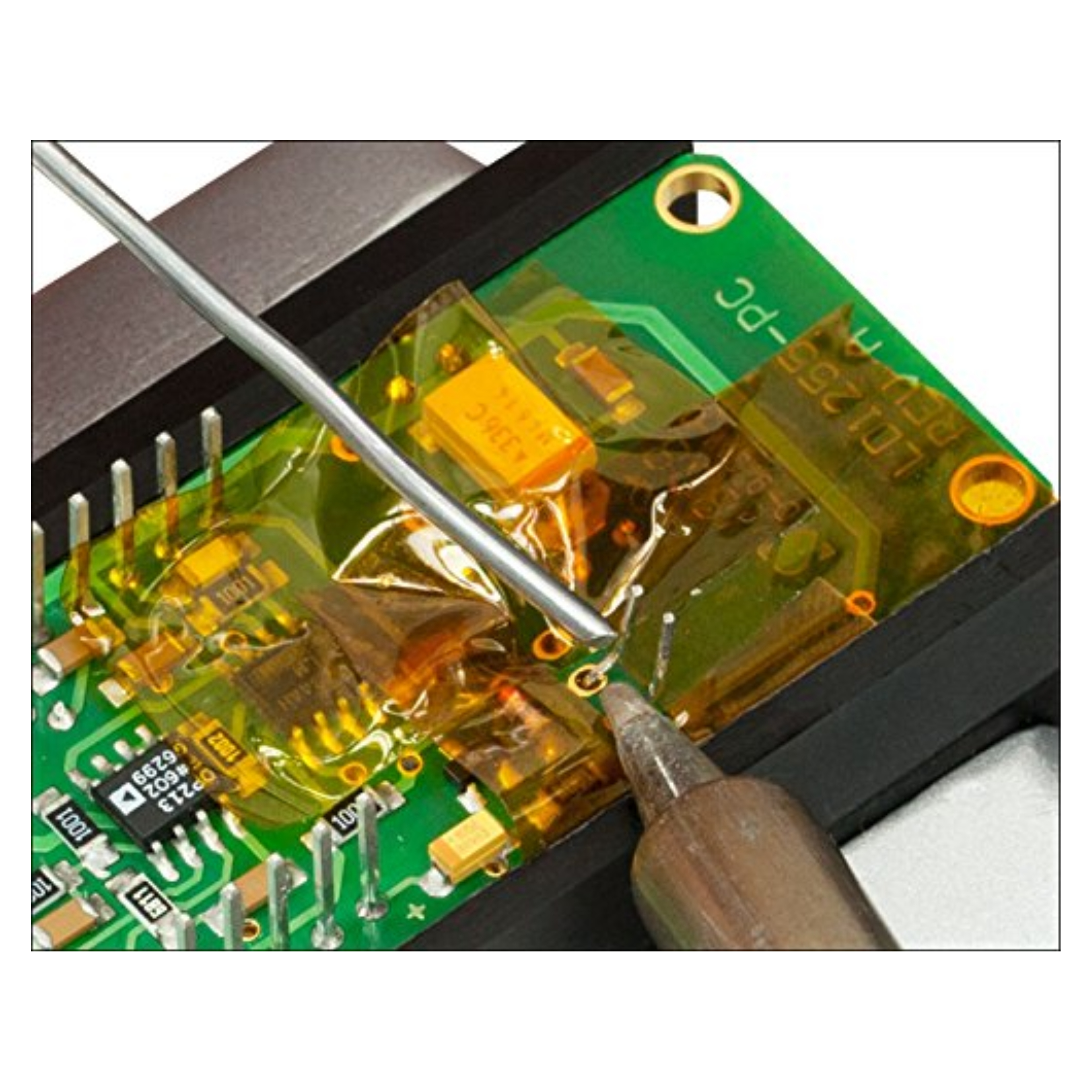

4. PCB masking and electronics assembly

5. Transformer, motor and coil insulation work

6. Workshop prototyping and repair

Installation & Best Practices

Apply to a clean, dry and oil-free surface for the best adhesion. Avoid stretching the tape excessively because tension can cause edge lift after installation. Round or deburr sharp metal edges before using tape as an insulation layer. Where the tape passes over conductive nickel or busbar surfaces, inspect for wrinkles, punctures and exposed edges. In battery packs, use the tape as part of a layered insulation strategy and keep it away from surfaces that exceed the verified temperature rating of the exact roll.

What to Verify Before Purchase

Before ordering, verify: 12mm width; roll length; total thickness; film thickness; adhesive type; adhesive temperature rating; dielectric requirement; color; whether residue-free removal is required; and whether the application needs additional fish paper, foam or heat-shrink protection.
