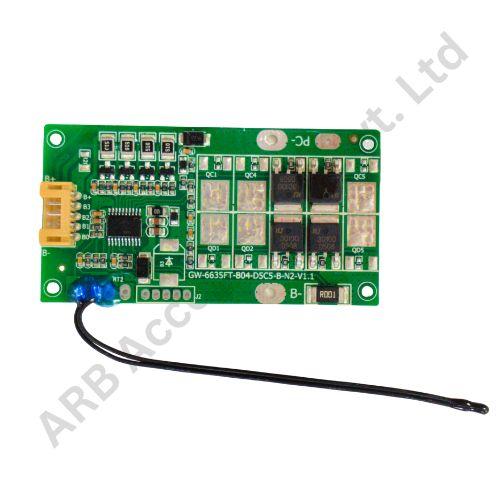

JLGW BMS NMC 4S 10A WITH BAL

JLGW BMS NMC 4S 10A WITH BAL

The JLGW BMS NMC 4S 10A WITH BAL is a battery management system intended for 4S NMC lithium-battery packs with a listed 10A current class. Its core role is to supervise the series-connected cell groups and provide a controlled protection layer between the battery pack, charger and load. For battery builders, the most important selection points are chemistry, exact series count, current requirement, charge/discharge port architecture, balance wiring and the electrical interface used by the specific board revision.

A BMS is not a substitute for correctly matched cells, a suitable charger, properly sized conductors, fusing and sound mechanical construction. The current value in the product name should be treated as the board's selection class; actual continuous pack current must also respect thermal conditions, cable size, connector limits, cell capability and the installation method.

This listing identifies JLGW, 4S, NMC and 10A. Those attributes are the primary compatibility anchors. The BMS monitors individual cell-group voltage through the balance/sense harness and uses its power path to control abnormal charge or discharge conditions. Depending on the hardware family, protection functions commonly include cell over-voltage, cell under-voltage, charge/discharge over-current, short-circuit and temperature supervision. Exact threshold values should be set or verified against the cell manufacturer's limits rather than copied from a different BMS revision.

Where balancing is present, it is intended to reduce cell-group voltage spread during normal battery operation; it does not repair weak, damaged or badly mismatched cells. Smart variants may add app or PC monitoring and parameter configuration. Communication connectors, display compatibility and protocol support can differ between versions, therefore the exact stock board, harness and accessories should be checked before integration.

Confirm the battery chemistry first: NMC and LiFePO4 use different voltage limits and must not be interchanged by name alone. Next confirm the real series count against 4S, then calculate the expected continuous and peak current of the load. Compare that requirement with the listed 10A class while allowing engineering margin. Check whether the application needs a common/same port or separate charge and discharge ports, and verify the connector/harness pinout before wiring. If replacing an existing BMS, compare the original model number, board dimensions, current path, balance connector sequence and communication accessories.

Applications

• Custom lithium battery packs built around a compatible 4S NMC architecture.

• Electric two-wheelers, light EVs and traction batteries where voltage and current ratings match.

• Inverter, UPS and backup-power battery packs using the same chemistry and series count.

• Battery repair, refurbishment and prototype work requiring a correctly matched protection board.

• OEM and workshop battery assembly where monitoring and protection are integrated into the pack.

Installation Guide

Build and verify the cell pack before connecting the BMS. Measure each cell group, confirm correct series order and inspect the balance harness carefully. Connect sense wires in the sequence specified for the board and never assume the color order of a different model is identical. Use appropriately sized power cables and secure low-resistance joints. Before first full-load use, confirm charger voltage, BMS readings, cell-voltage tracking and temperature behavior under a controlled current. Stop commissioning if any cell-group reading is missing, reversed or materially different from the measured pack voltage.

Why Choose ARB Accessories?

ARB Accessories supplies BMS boards, balancers, wiring, connectors, insulation, cells, battery enclosures, test equipment and assembly machinery for lithium-battery, EV and energy-storage projects. This makes it easier to source related pack-building components from one specialist catalog while keeping model selection focused on real electrical compatibility. Final installation should always follow the exact board documentation and the battery-system design requirements.
