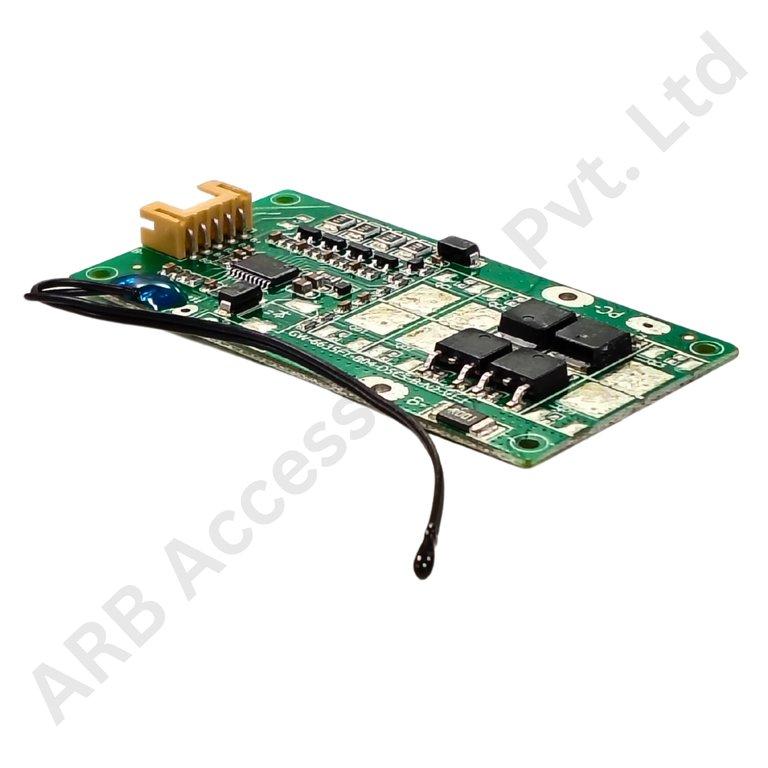

JLGW BMS LFP 4S 15A WITH BAL WITH CON

JLGW BMS LFP 4S 15A WITH BAL WITH CON

The JLGW BMS LFP 4S 15A WITH BAL WITH CON is a JLGW smart or hardware battery management system intended for LiFePO4 lithium battery packs using a 4S series configuration and the stated 15A current class. It is relevant to battery-pack assembly, EV and equipment repair, inverter or energy-storage integration and replacement work where the battery chemistry, series count, current path and communication requirements all match the board. Buyers may search for JLGW 4S 15A BMS, 4S 15A BMS, lithium battery management system, EV battery BMS and smart battery protection board.

A BMS supervises the series-connected cell groups and controls charge and discharge protection based on measured pack conditions. Selection should begin with chemistry and series count, then move to continuous current, port architecture, balance behavior, temperature sensing and communication. A BMS should not be selected only because the current number or connector shape appears similar to another board.

Technical Details

Current ARB and Glannu product data identify this JLGW board as a 4S LiFePO4 BMS for a nominal 12.8V pack, with a 14.6V charging reference, 15A continuous-discharge specification and 15A maximum charging-current specification. The listing identifies passive balancing, a balance-activation reference around 3.5V per cell, overcharge, over-discharge, short-circuit and temperature protection, and a pre-soldered JST-style connector. These values should be checked against the physical board revision before production release.

The 15A current rating should be matched to the real continuous load, charging current, startup or surge behavior and thermal conditions of the battery system. Cable cross-section, nickel or busbar sizing, connector resistance, terminal quality and enclosure airflow all influence heating. A correctly selected BMS cannot compensate for undersized conductors or weak interconnects, so the complete current path should be engineered as one system.

Sense or balance leads must follow the cell-group sequence in the correct order so the BMS reads each series group accurately. Before full-power commissioning, measure the individual group voltages and total pack voltage with a suitable meter, then confirm polarity, harness order and main-current wiring. Communication accessories, mobile-app functions, CAN/RS485 support and firmware options can vary by board version or package, so those interfaces should be verified on the exact stocked unit before they are promised to the customer.

Choose this JLGW BMS by matching battery chemistry, exact supported series range, current requirement, charge/discharge port architecture, connector layout, mounting space and any required communication interface. Also check the intended charger, motor controller or inverter because startup current, regenerative charging and system communication can affect selection. For replacement work, compare the model code, harness sequence and terminal arrangement with the original unit rather than selecting by current rating alone.

Applications

• 4S / 12.8V LiFePO4 battery pack assembly and service.

• Small inverter, backup-power and portable LFP battery packs.

• Solar, lighting, robotics and industrial battery projects when current needs match.

• Battery workshop repair and replacement requiring balance support.

• OEM or prototype packs where the connector layout and protection values are verified.

Installation Guide

Isolate the battery pack from the charger and load before installing or replacing the BMS. Verify every cell-group voltage and polarity before attaching the sense harness, and never allow adjacent balance wires or main terminals to short together. Use properly sized insulated conductors, secure power connections and strain relief so vibration cannot pull on terminals or wiring. Mount the BMS where it is protected from conductive debris, mechanical pressure and excessive heat. After wiring, commission the pack with a controlled load first and monitor cell voltages, current behavior and temperature before applying the full operating load.
