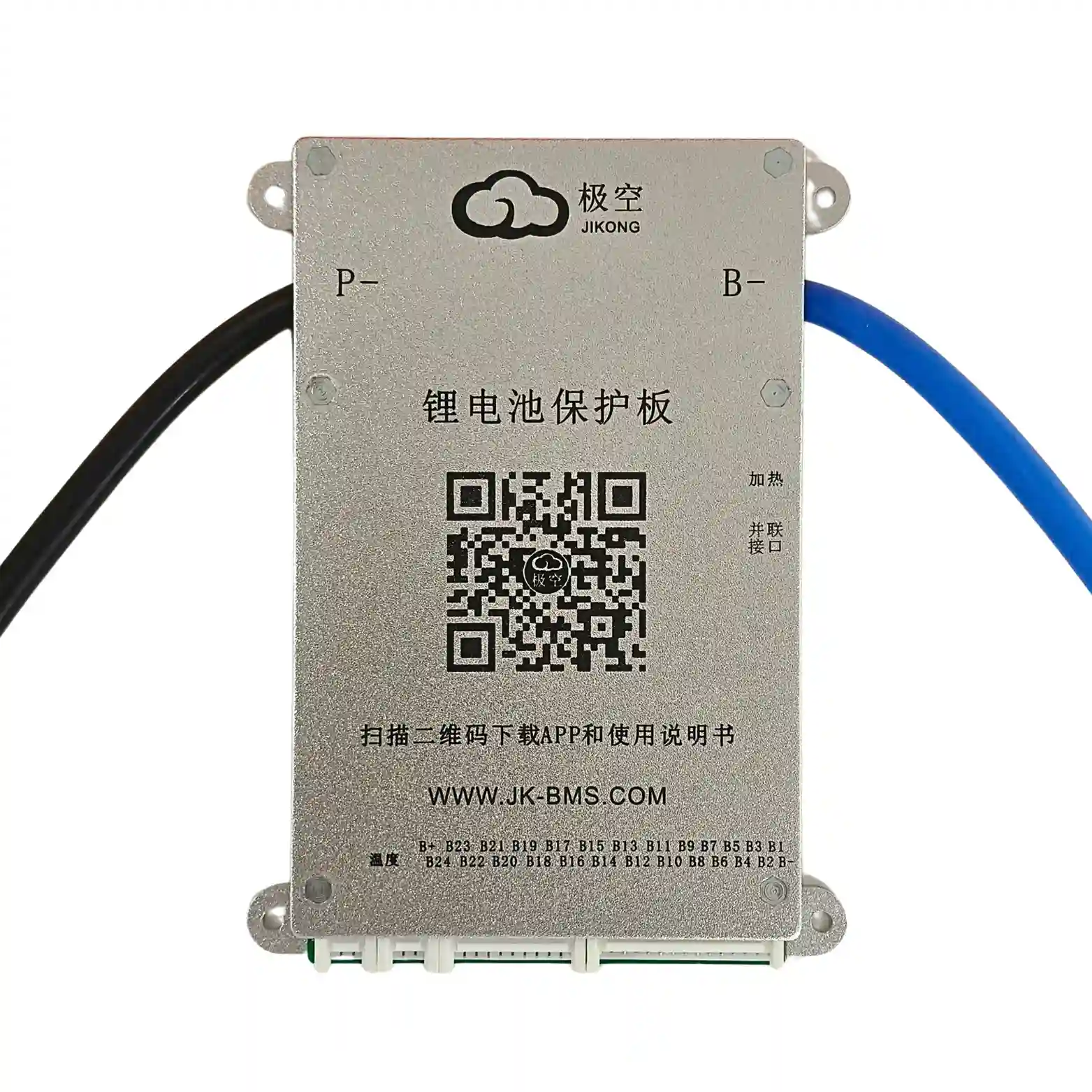

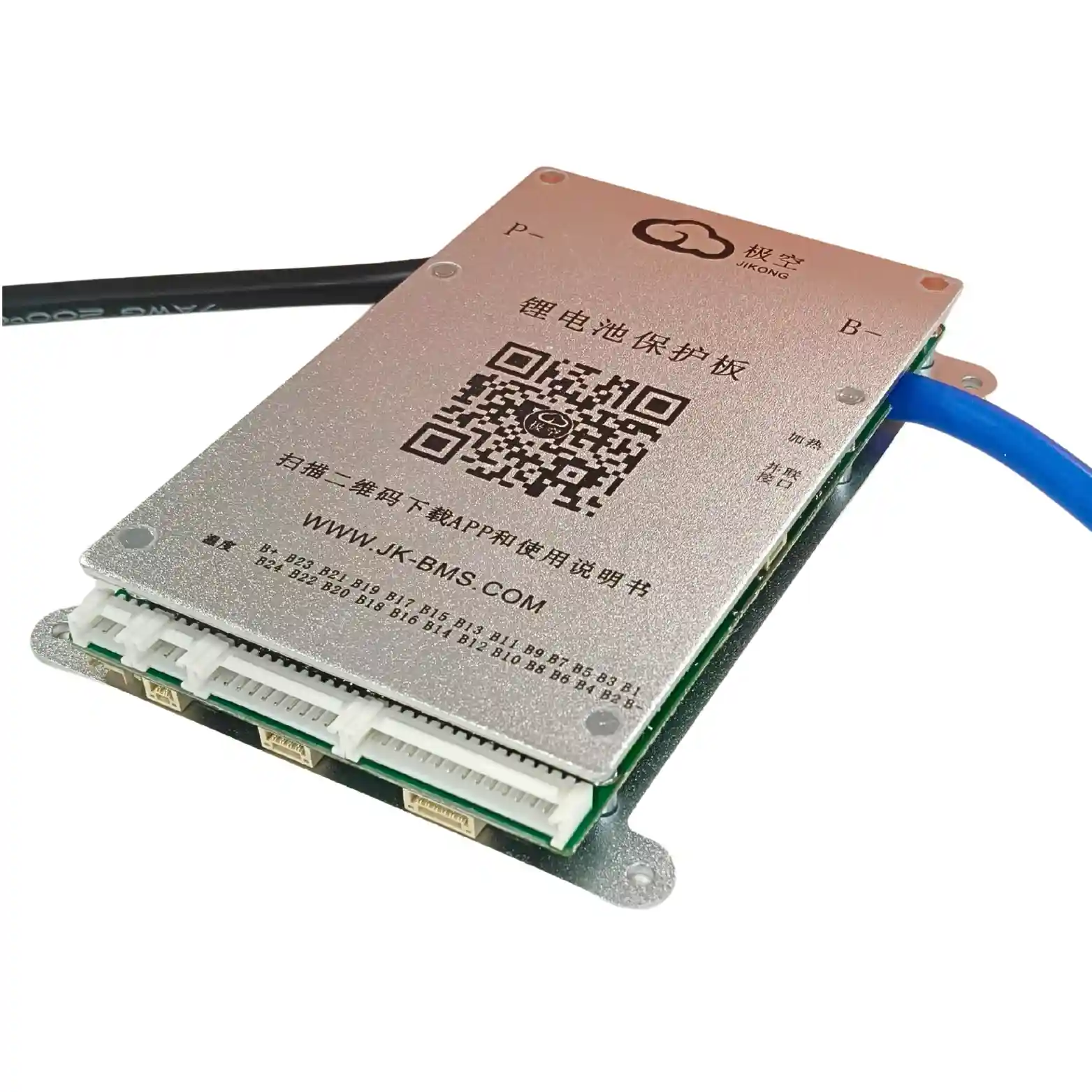

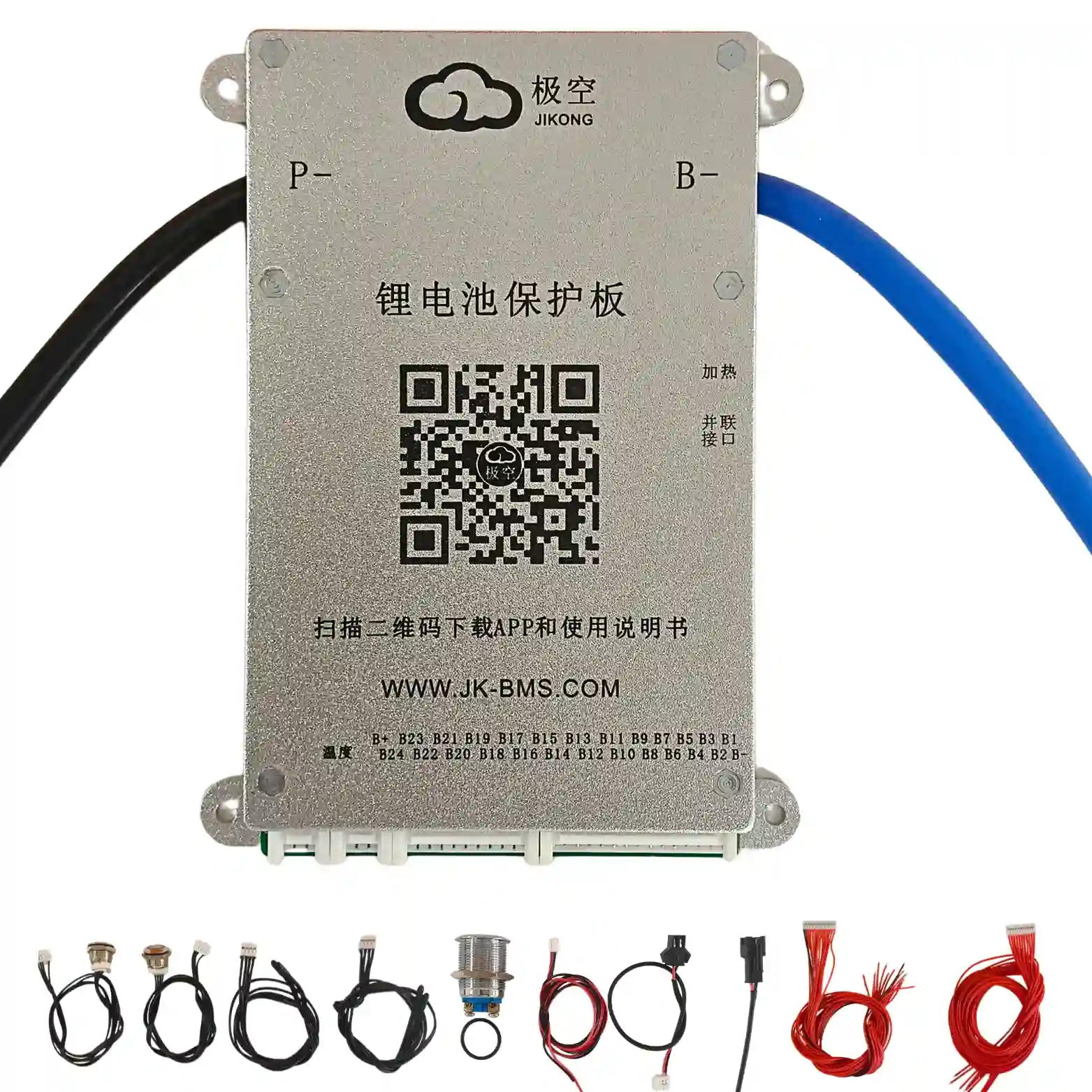

JK SMART BMS 8-24S 80A BD6A24S8P PTMC

JK Smart BMS 8-24S 80A BD6A24S8P

The JK BD6A24S8P is a smart active-balance BMS for multi-series lithium battery packs in the 8S to 24S catalog class. It combines an 80A continuous-discharge rating with 0.6A active balancing and Bluetooth monitoring, making it suitable for battery systems that need a stronger power path than smaller 40A or 60A boards while still benefiting from per-cell visibility and active voltage management. The model is used across Li-ion, LiFePO4 and LTO battery architectures when configured for the appropriate chemistry and series count.

The BMS monitors individual series-group voltages, pack current and temperature while controlling charge and discharge according to configured limits. Smart monitoring is especially useful during commissioning because installers can see whether one cell group is approaching a protection threshold or whether the pack remains reasonably balanced under load.

The BD6A24S8P platform is specified for 80A continuous discharge and 0.6A active balancing. In active balancing, energy is transferred from higher-voltage cells toward lower-voltage cells instead of simply burning excess energy through resistors. That approach can reduce cell-voltage spread with less wasted energy and is well suited to large packs where balance correction may otherwise take a long time.

Electrical design must still consider the full 80A path. Cable size, busbars, fuse or breaker, connector contacts, crimp quality and enclosure cooling all affect reliability. A BMS rating does not make undersized wiring safe. Temperature rise at a loose terminal can occur even when the board itself is operating within specification. The common-port architecture also means charge and discharge share the main controlled path, simplifying external wiring while placing importance on correct terminal layout.

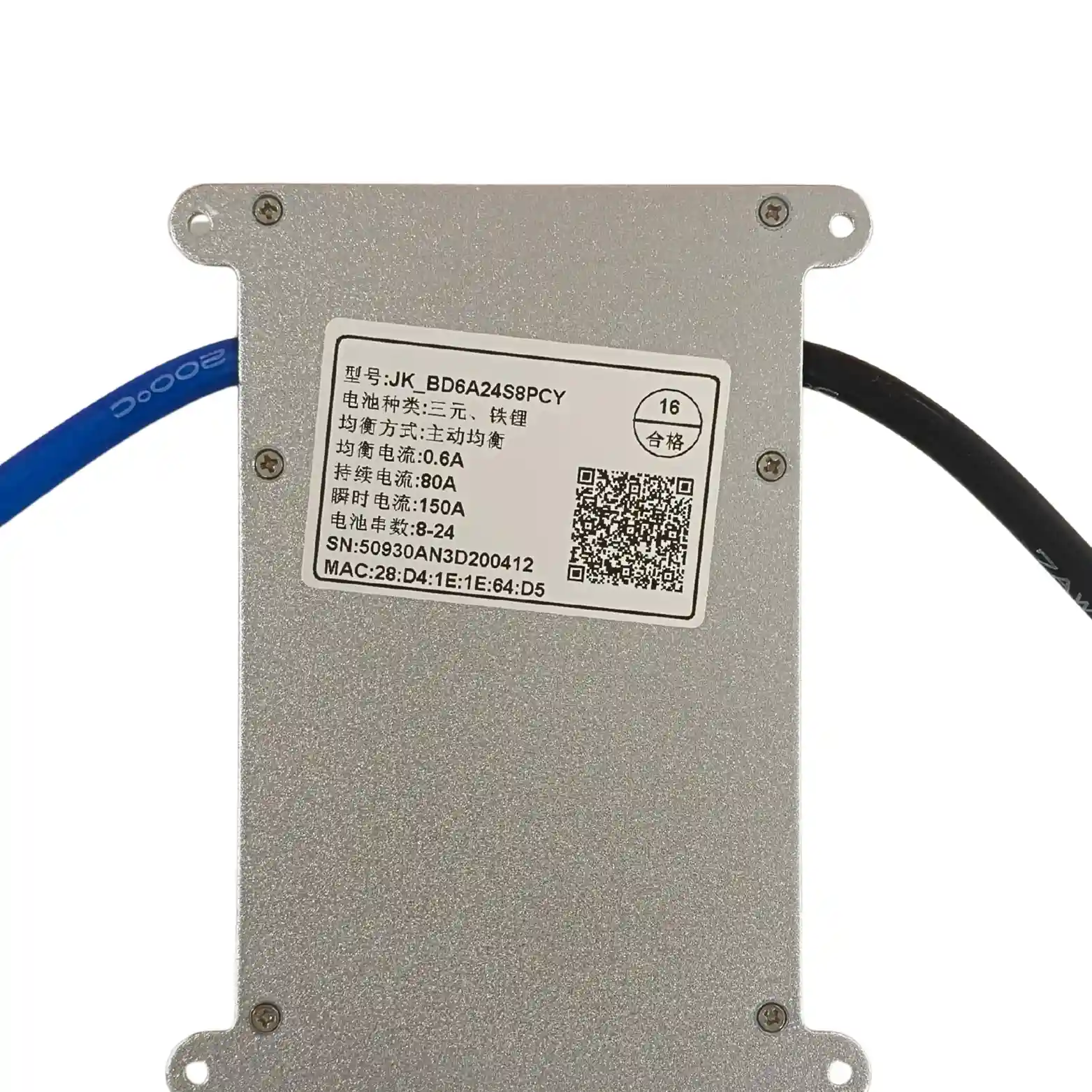

Choose the BD6A24S8P PTMC according to chemistry, series count, continuous load and required monitoring features. Current JK information lists 80A continuous discharge and 0.6A balancing, with Bluetooth support and display/interface options in the family. Minimum series support can vary by chemistry, so the configured chemistry should be confirmed before wiring the pack.

For replacement work, match the full model code and harness layout rather than relying on an 80A label alone. The `PTMC` suffix in the supplied catalog name should be treated as a specific inventory/configuration identifier unless technical documentation defines it further. Where inverter or external-controller communication is required, confirm the exact port and protocol on the supplied hardware revision.

Applications

• LiFePO4 and lithium-ion energy-storage battery packs.

• Electric scooters, light EVs and custom traction batteries.

• Solar inverter and UPS battery systems.

• High-capacity custom batteries requiring active balancing.

• Battery service projects using the JK BD6A24S8P platform.

Installation Guide

Verify the cell stack and series order before connecting the balance harness. Measure adjacent cell-group voltages and total pack voltage, then connect the harness in the specified sequence for the exact JK model. Use appropriately sized cables and protective devices for the 80A-class power path, secure all lugs and provide strain relief. Mount the BMS where it is protected from conductive debris and can reject heat. Configure chemistry and series count through the supported interface, then commission at reduced current while monitoring cell voltages, temperature and current before full-load operation.
