JK Smart Active Balancer 24S 2A B2A24S

JK SMART ACTIVE BALANCER 24S 2A B2A24S

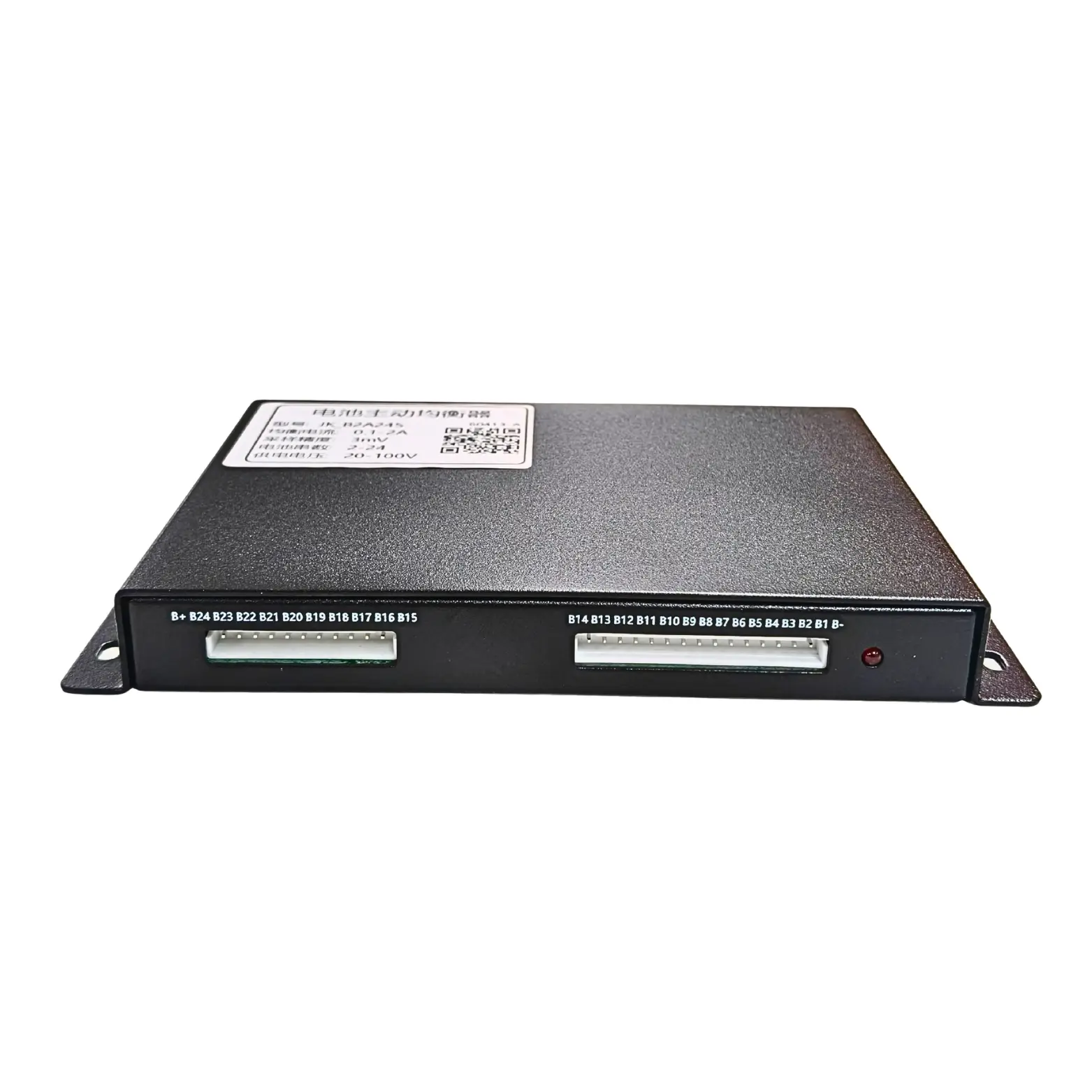

JK SMART ACTIVE BALANCER 24S 2A B2A24S is a JK/Jikong smart active balancer for lithium battery packs containing multiple series-connected cell groups. The B2A24S is designed for 2S–24S configurations and provides a 2A balancing-current class, placing it in a clearly defined part of the JK active-balancer range. The unit Uses active energy transfer to move charge from higher-voltage cell groups to lower-voltage groups. This approach helps reduce cell-voltage spread while retaining energy within the battery instead of relying only on passive discharge.

JK active balancers use energy-transfer balancing to redistribute energy between cells or series groups with different voltage levels. The B2A24S platform provides an adjustable 0.1A–2A balancing-current range, enabling the balancing effort to suit the pack and service task. With support for up to 24 series groups, the 24S variants are relevant to home energy storage, inverter banks, electric mobility and commercial battery systems built from lithium cells.

The B2A24S and DZ08B2A24S are related 2A models, but the model code identifies the interface variant: the DZ08 model is documented with CAN-bus communication, while the standard B2A24S should not be assigned a DZ08 communications feature. The B5A24S and B15A24S provide higher-current options for larger packs, with Bluetooth app monitoring on the B5A24S and B15A24S versions. This model separation is important when selecting a balancer, integrating it with existing JK hardware or replacing an installed unit.

An active balancer complements the battery-management system rather than replacing it. The pack still requires correct cell protection, overcurrent protection, safe charging and appropriate system monitoring. The balancing module focuses on keeping cell groups closer in voltage, supporting usable pack capacity and reducing imbalance-related maintenance needs.

Select the B2A24S based on the pack's series count, balancing current, battery chemistry and interface requirements. The 2S–24S rating defines the series-connected cell group range, while the 2A class sets the product's balancing-current tier. Li-ion and LiFePO₄ are supported in this product family; follow the matching model manual for chemistry-specific limits when using other chemistries or unusual cell configurations.

The B2A24S, DZ08B2A24S, B5A24S and B15A24S are not interchangeable by name alone. The DZ08 variant adds CAN communication, while current class and app/communication capabilities vary between versions. Match the model code and balance-harness connector to the actual system so voltage taps and communications align with the battery design.

Applications

• Li-ion and LiFePO₄ packs with 2–24 series-connected groups and a compatible JK balancing setup.

• Home energy-storage and inverter battery banks that benefit from active energy transfer between cells.

• EV, e-bike and mobility packs that use the model's documented series range and current rating.

• Battery-pack assembly and commissioning where cell-group voltage consistency is checked before use.

• Maintenance and refurbishment of compatible packs managed by trained battery technicians.

Installation Guide

Disconnect the battery from charger and load before installation. Match the B2A24S label to its wiring diagram, identify the cell chemistry and series count, then connect the balance harness in the specified order. Check each tap voltage and connector polarity before energizing the device. For the DZ08 variant, connect CAN wiring only according to the designated interface pinout; for app-enabled variants, configure the supported application after the pack wiring is verified. Secure leads away from sharp edges and high-current conductors, insulate exposed terminals and monitor initial operation for unusual readings or heat. Use a trained battery technician and the correct model manual.
