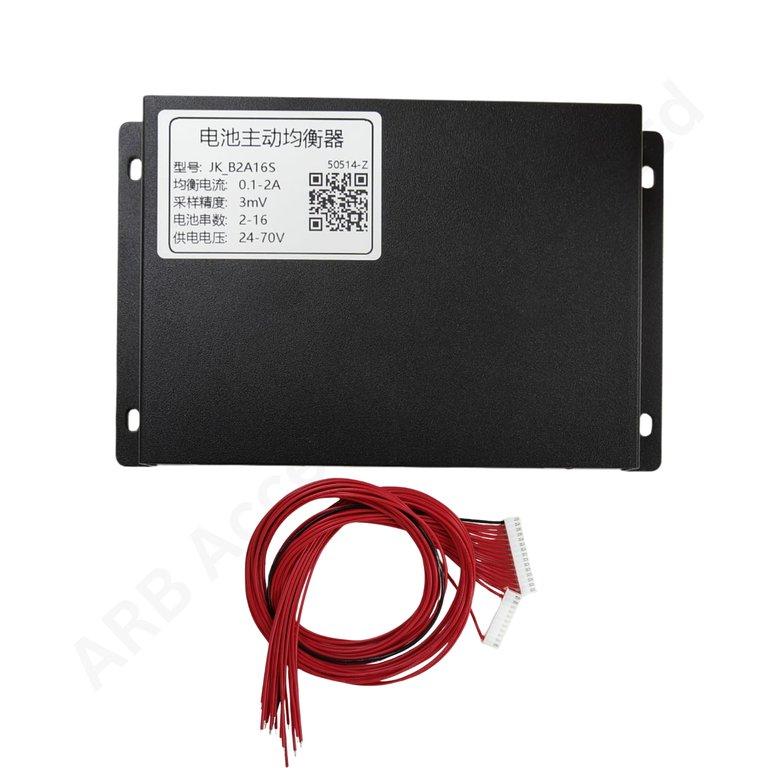

JK SMART ACTIVE BALANCER 16S 2A B2A16S

JK SMART ACTIVE BALANCER 16S 2A B2A16S

The JK 16S 2A smart active balancer B2A16S combines active cell equalization with Bluetooth-based monitoring for compatible lithium battery packs. It helps reduce voltage differences across the 16S configuration while giving the installer a way to inspect individual cell-group readings. The B2A16S code distinguishes this standalone balancer from JK protection BMS boards with similar names.

The 2A balancing-current class provides energy transfer within the battery string. Cell readings and balancing controls support commissioning and help track whether a voltage difference is decreasing over time. The balancing-current figure is separate from the pack's main charge and discharge ratings. Equalization can improve the use of available capacity where uneven charge levels are the limiting factor; it does not repair weak cells or replace sound connections.

In a 16S pack, the balancer connects across 16 successive cell groups. Each group may contain parallel cells, but the series count stays 16. Choose the balancer by this series layout, not by the total number of individual cells. Match the complete model and hardware revision to the battery chemistry, supply arrangement and operating voltage. Use the supported JK app for the supplied unit. Keep a separate, correctly rated protection BMS in the system to manage pack-level charge, discharge and fault protection.

Applications

• 16S lithium battery pack commissioning

• Compatible solar and inverter storage batteries

• Bluetooth cell-voltage monitoring during servicing

• Replacement of a matching JK B2A16S equalizer

Installation Guide

Follow the model-specific JK wiring diagram. With the module disconnected, attach the sampling leads and verify their sequence using a meter. Secure the board and insulate it from terminals and enclosure metal. On first start, compare app readings with meter readings, set balancing parameters for the pack and inspect the assembly during a controlled operating cycle.
