Key Feature
Comprehensive Battery Protection: Advanced safety system with protection against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations ensures safe and stable battery operation.
0.6A Active Cell Balancing: High-efficiency active equalization technology improves cell consistency, boosts performance, and extends overall battery life.
Smart Bluetooth Monitoring: Built-in Bluetooth allows real-time monitoring and control via the JK BMS mobile app (Android & iOS). Easily track battery status, configure parameters, and manage charging/discharging.
Wide Voltage Range (8S–24S): Compatible with Li-ion, LiFePO4, and LTO battery packs, ideal for Electric Sightseeing Cars, Micro EVs, Electric Cargo Tricycles, solar storage systems, and more.
₹1,715.00

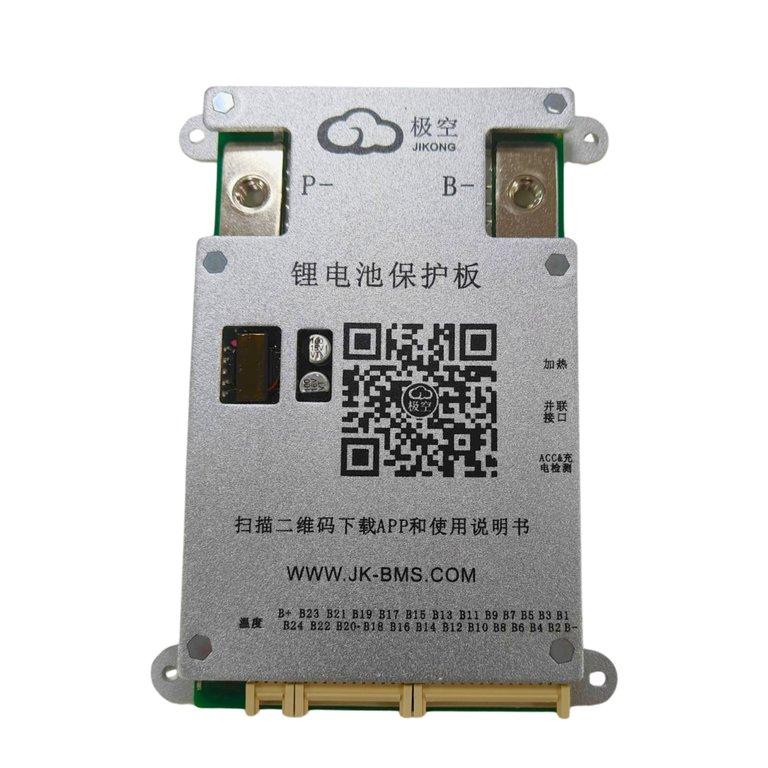

The JKBMS Semi Smart BMS 8S–24S 60A Active Balance is an advanced battery management system designed for medium-voltage lithium battery packs (24V–84VV). It features 0.6A active balancing technology, which actively transfers energy between cells to maintain uniform voltage and significantly improve battery life.
This BMS supports Li-ion, LiFePO4, and LTO batteries, making it a versatile solution for electric mobility and energy storage applications. Its compact PCB design and intelligent protection system make it ideal for OEM manufacturers and professional battery builders.
Key Features
- 8S–24S Wide Compatibility – Supports 24V, 36V, 48V, 60V and 84V battery packs
- 60A Continuous Current – Stable performance for moderate load systems
- 0.6A Active Balancing – Improves battery efficiency and lifespan
- Bluetooth Smart Monitoring – Real-time data via mobile app
- Multi-Chemistry Support – Li-ion / LiFePO4 / LTO compatible
- Full Protection System – Overcharge, over-discharge, overcurrent, short circuit, temperature protection
- Low Heat & High Efficiency Design – Optimized for long-term use
Applications
- Electric bikes (36V / 60V systems)
- Electric scooters (48V / 84V)
- Solar energy storage systems (48V battery banks)
- Portable power stations
- RV & backup power systems
- OEM lithium battery pack manufacturing
Why Choose JKBMS 8S–24S BMS?
Active Balancing Advantage
Unlike passive BMS, it redistributes energy between cells instead of wasting it as heat—resulting in better efficiency and longer cycle life.
Smart App Monitoring
Track SOC, voltage, current, and temperature in real time using Bluetooth connectivity.
Industrial Communication Ready
Wide Voltage Flexibility
Supports multiple system voltages (24V–84V), reducing the need for multiple BMS models.
Reliable Safety Protection
Advanced protection ensures safe operation and prevents battery damage under all conditions.
Product overview
The JKBMS Semi Smart BMS 8S–24S 60A Active Balance is an advanced battery management system designed for medium-voltage lithium battery packs (24V–84VV) .
- SKU
- 26000524
- Category
- Smart BMS
- Brand
- JKBMS
- Unit
- PCS
- Minimum order
- 1 PCS
- Availability
- In Stock
Review key features and technical specifications before ordering. Contact ARB Accessories if you need compatibility or bulk-order guidance.
