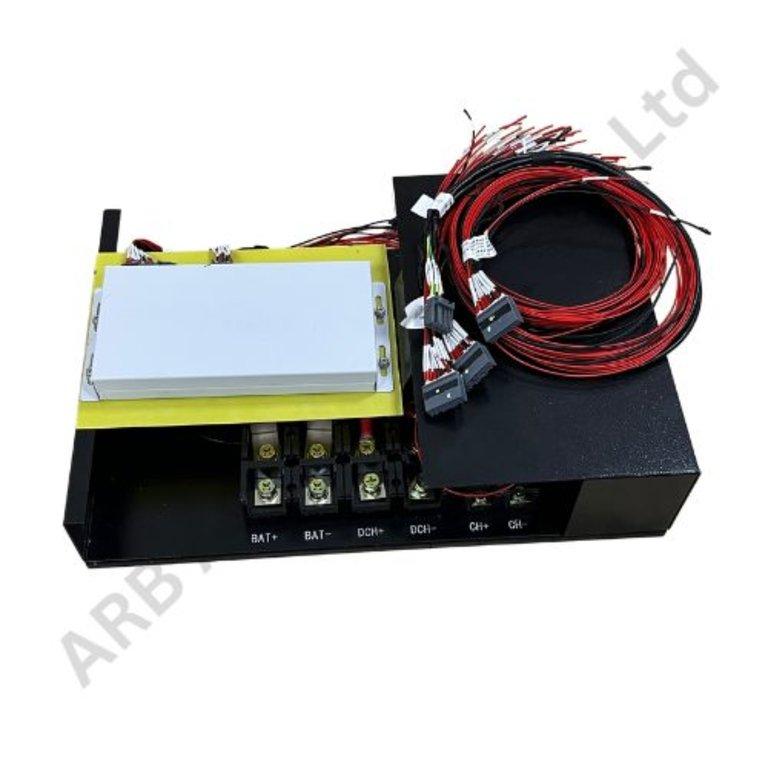

The JK RELAY BMS 32S 96V 100A BIU-E2-36 is a JK relay-controlled battery management system identified by model BIU-E2-36 for a 32S, 96V, 100A-class battery application. The product naming indicates a higher-voltage architecture than small MOSFET BMS boards and a relay/contactor approach to charge and discharge control. It is relevant to large lithium battery packs where protection decisions are used to control external switching devices rather than carrying the entire pack current through compact board-mounted MOSFETs.

A relay BMS supervises cell-group voltage and system conditions and uses its control outputs to open or close contactors when protection limits are reached. The exact chemistry, number of active series groups, current-sensor type, communication ports and relay-coil requirements must be taken from the BIU-E2-36 system documentation. The highlighted description confirms the 32S, 96V and 100A product designation, but a complete installation requires the exact JK wiring diagram and compatible accessories.

The ARB product listing identifies the unit as JK RELAY BMS 32S 96V 100A (BIU-E2-36). In a relay-based high-current battery system, the BMS typically measures pack current through an external sensor and commands contactors to connect or isolate the battery. Pre-charge may be required when the connected inverter or controller has large input capacitors; closing a main contactor directly into an uncharged DC bus can create a damaging inrush current. For this reason, contactor selection, coil voltage, pre-charge resistance and sequencing are system-level engineering decisions.

Sampling harness order remains critical. Each cell-group tap must progress in the correct sequence, and the total measured voltage must agree with the expected pack voltage before the harness is inserted. Temperature sensors and communication links should also be routed according to the manual and away from strong EMI sources. The BMS cannot compensate for incorrect cell interconnections, insufficient insulation or an undersized main fuse.

Match this product to the exact BIU-E2-36 architecture, 32S configuration, nominal 96V-class battery system and current requirement. Confirm supported chemistry, contactor interface, current sensor, display or communication accessories, balance function and firmware. For replacement work, compare every connector and system component with the original installation rather than selecting by 32S/100A wording alone.

Applications

• 32S high-voltage lithium battery pack management where the BIU-E2-36 architecture is specified.

• Industrial energy-storage, UPS and inverter battery systems.

• Large mobility or traction battery platforms using external contactors.

• Battery test rigs and OEM systems requiring relay-controlled isolation.

• High-current battery projects where system-level pre-charge and contactor control are required.

Installation Guide

Only qualified technicians should install or service a 96V-class battery system. Isolate the pack, verify voltage with an appropriate meter and follow lockout procedures. Wire cell-sense leads in sequence, then connect sensors, relays/contactors and communications exactly as shown in the JK documentation. Verify pre-charge and contactor behavior before applying a high-power load. Keep communication cables away from HV conductors where practical and never bypass interlocks or protection outputs during commissioning.
