JK PCBA FOR LITHIUM ION 16S BATTERY PACK

JK PCBA FOR LITHIUM ION 16S BATTERY PACK

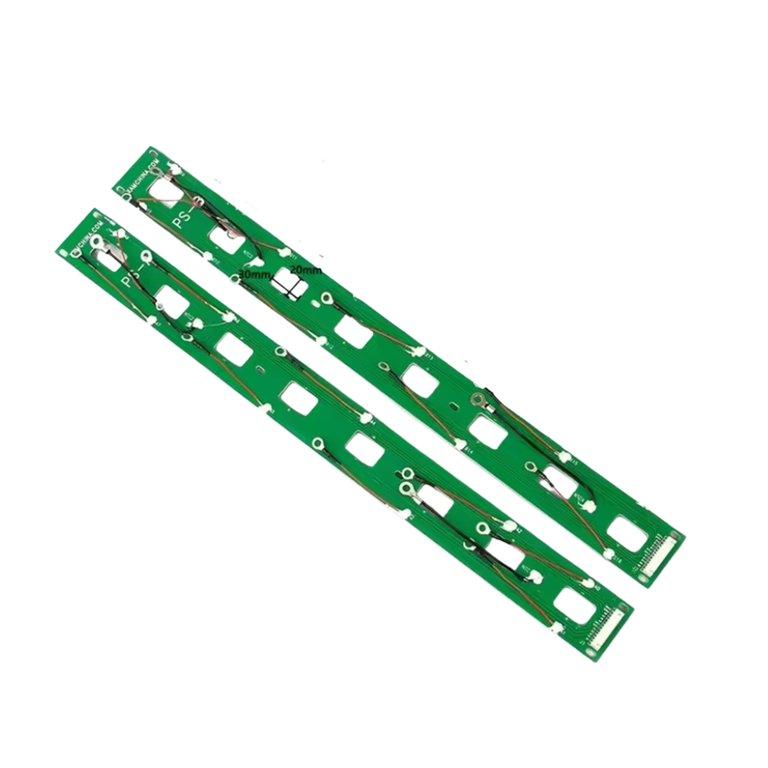

The JK PCBA for Lithium Ion 16S Battery Pack is a printed circuit board assembly identified for a matching 16-series lithium-ion battery build. It is supplied as a board-level accessory for integration into the specified pack design.

A board-level part should be selected against the battery assembly drawing and the actual circuit revision. This item is useful for pack builders and service teams who already have a defined JK-compatible assembly and need the corresponding PCBA. The 16S description identifies the intended series arrangement, while the board markings establish the exact replacement or integration part.

Sixteen series-connected cell groups make up a 16S arrangement. The PCBA designation means a populated circuit-board assembly, but it does not by itself specify the board’s current capacity, protection thresholds or communication functions. Those functions belong to the particular circuit design. Pack voltage limits and current ratings must be taken from the cell, BMS and board documentation used for the complete assembly.

Match the circuit-board part number, revision, mounting dimensions and connector layout to the intended 16S lithium-ion pack. Compare the connection map with the existing board or approved assembly drawing before installation. The series count alone is insufficient to select a replacement PCBA. Use the defined pack bill of materials to establish the required external BMS and related components.

Applications

• Specified 16S lithium-ion battery assemblies

• Board replacement in a matched JK pack design

• OEM battery assembly and repair projects

Installation Guide

Handle the board using appropriate electrostatic precautions and keep the battery assembly isolated during work. Follow the approved wiring diagram, support the board at its intended mounting points and provide the required insulation. Inspect connector orientation and continuity before energizing the completed assembly. Validate the installed board through the pack’s defined commissioning procedure.

Why Choose ARB Accessories?

ARB Accessories supplies BMS accessories, balancers, connectors and battery assembly components for Indian pack builders and service teams. Use the item code when ordering this accessory alongside the related parts for your project. Matching the exact accessory to the installed equipment helps keep replacement and assembly work consistent.
