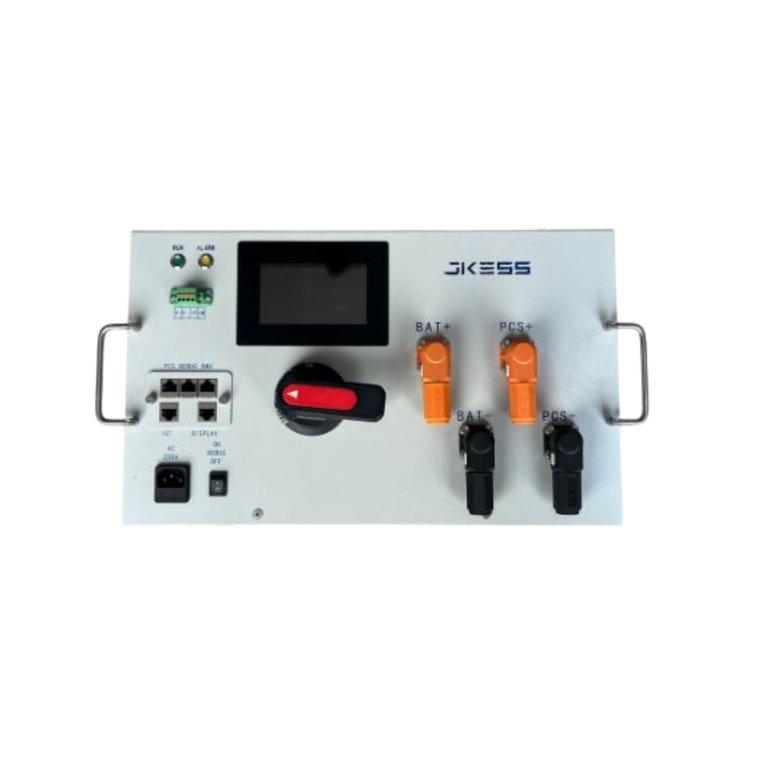

The JK MASTER BMS BCU 200A 1000V HIGH VOLTAGE is a JK high-voltage master Battery Control Unit (BCU) for large lithium battery systems. Current market documentation identifies this high-voltage JK family as supporting battery systems up to 1000V and using a master-slave architecture in which the BCU coordinates battery-module information and system-level switching. The 200A designation is the highlighted variant reference and should be matched to the exact contactor, current-sensor and high-voltage system design rather than interpreted as a simple low-voltage MOSFET BMS current path.

High-voltage battery systems require a different integration approach from small e-bike or inverter packs. The master BCU receives information from subordinate battery-monitoring units, evaluates pack-level state and controls external devices such as contactors, pre-charge circuits and safety interlocks. This architecture is commonly used in commercial energy-storage systems, PCS battery banks, industrial DC systems and high-voltage EV or stationary battery platforms.

Published seller documentation for the JK 1000V BCU family identifies centralized management for multiple battery modules and describes control of external high-voltage relays/contactors and pre-charge functions. The BCU is therefore part of a larger system that may also include slave BMUs, current sensing, insulation monitoring, contactors, fuses, pre-charge resistors, emergency disconnects and communication with a PCS, inverter or vehicle controller. The exact module count, supported chemistry, communication protocol, sensor type and contactor drive arrangement should be verified from the system manual before wiring.

Because the DC bus may reach hazardous high voltage, conductor spacing, creepage and clearance, insulation class, enclosure interlocks and service procedures are critical. The BCU should only be installed by technicians qualified for high-voltage battery systems. A low-voltage continuity check is not sufficient to prove that the final system is safe at operating voltage. Insulation resistance, pre-charge behavior and contactor sequencing should be validated according to the equipment design and applicable safety procedures.

Choose this JK master BCU only when the full battery architecture matches the 1000V high-voltage family. Confirm the exact 200A variant, slave/BMU compatibility, current-sensor interface, contactor coil requirements, pre-charge circuit, number of battery modules, CAN or other communication requirements and software/firmware version. Replacement work should match the original model and system topology; do not substitute a BCU solely because the voltage and current labels appear similar.

Applications

• High-voltage commercial and industrial energy-storage systems.

• PCS-connected battery banks and large solar-storage installations.

• High-voltage EV, industrial mobility and traction battery platforms where the system architecture matches.

• Battery R&D benches and system integrators using JK master-slave BMS architecture.

• OEM high-voltage lithium battery projects requiring centralized pack-level control.

Installation Guide

De-energize, isolate and verify the absence of hazardous voltage before service. Follow the complete JK system wiring diagram for the master BCU, slave modules, current sensor, contactors, pre-charge circuit and communication wiring. Use appropriate high-voltage PPE, insulated tools and lockout procedures. Keep low-voltage communication wiring separated from HV conductors and verify polarity before powering control electronics. Commission the system at controlled voltage where possible and confirm module communication, sensor readings, pre-charge timing and contactor sequence before enabling the full DC bus.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-battery, EV, energy-storage and battery-pack assembly components. The catalog brings together BMS boards, connectors, insulation materials, battery wiring, terminals, fuses, enclosures, testing equipment and assembly tools. For battery builders, repair workshops and OEM buyers, sourcing related components from one specialist catalog can make specification matching and procurement easier. Final suitability should still be checked against the exact battery design, equipment model and electrical requirements before installation.
