JK BMS 8-24S 120AMP SEMI SMART(BD6A24S12PD)

JK BMS 8-24S 120A BD6A24S12PD

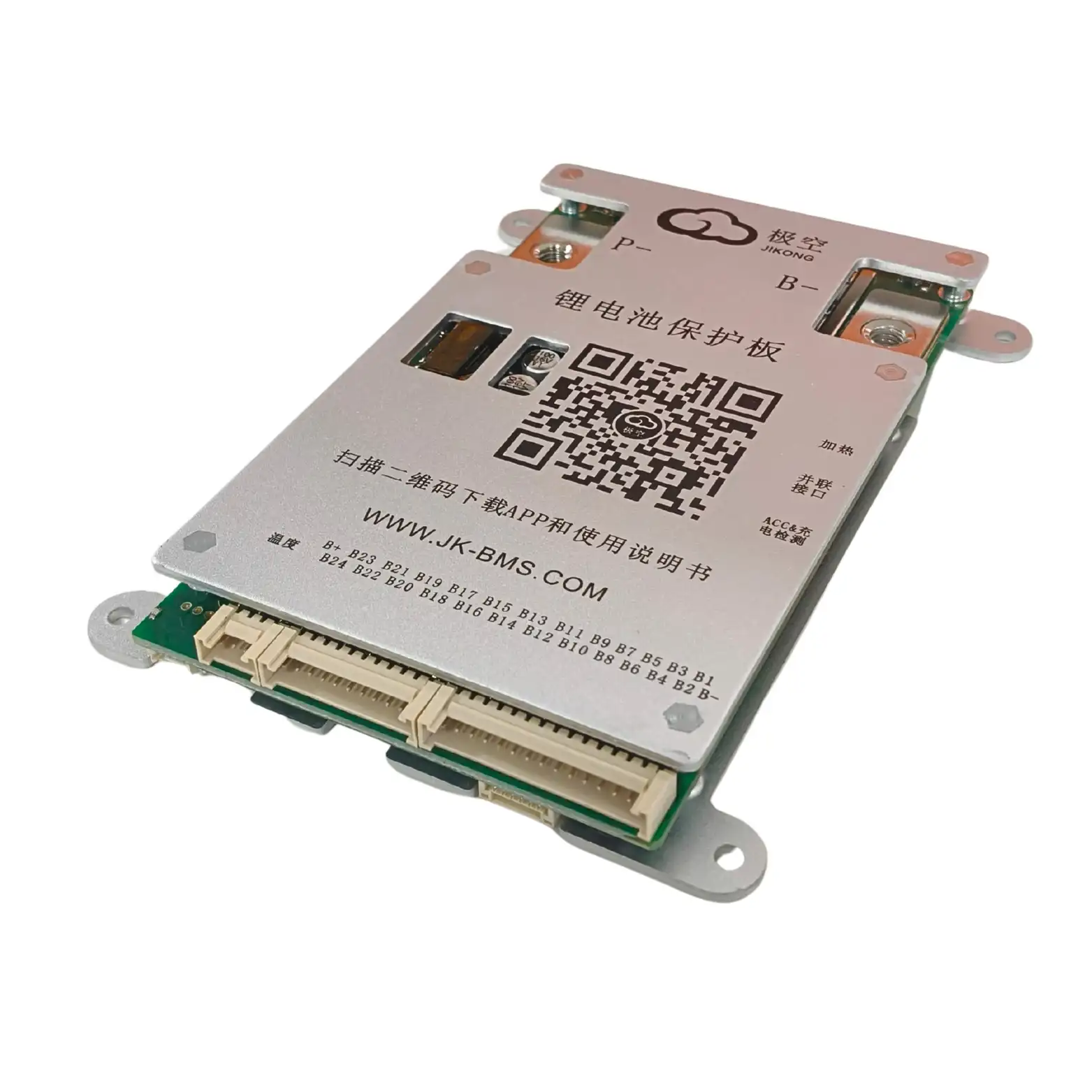

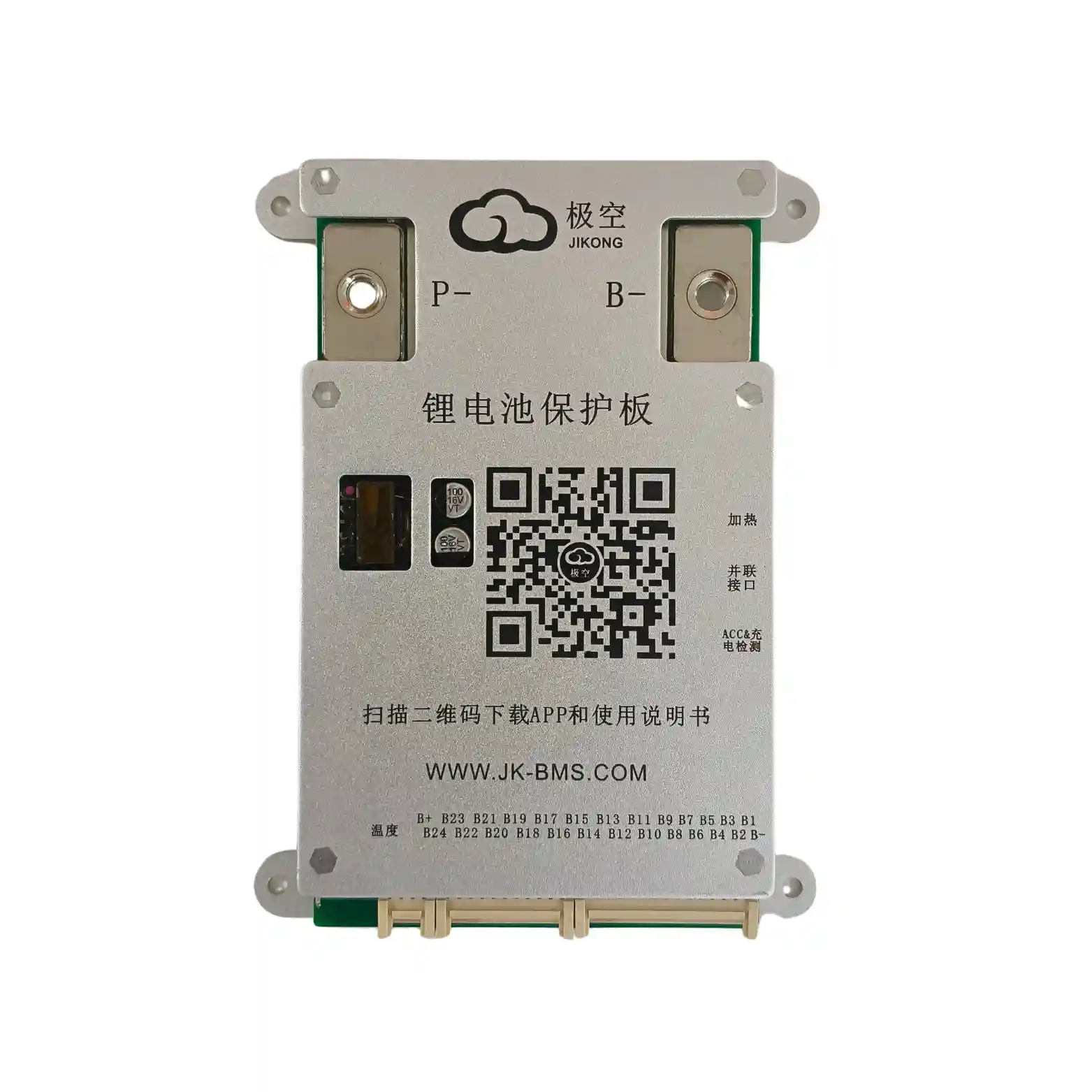

The JK BD6A24S12PD is a high-current battery management system for multi-series lithium battery packs covering the 8S to 24S class. Its 120A continuous-current class and 0.6A active-balancing system make it suitable for larger battery builds where both power handling and cell-to-cell voltage management are important. The model belongs to JK's BD active-balance BMS family and is used across Li-ion, LiFePO4 and LTO battery projects when configured for the correct chemistry and series count.

A BMS in this class serves several functions at once: it monitors individual series-group voltages, protects the pack from abnormal electrical conditions, tracks battery status and actively moves energy between cells to reduce imbalance. That combination makes the unit relevant to EV, solar, ESS and high-power custom battery systems where the pack may contain many cells and operate at meaningful DC current.

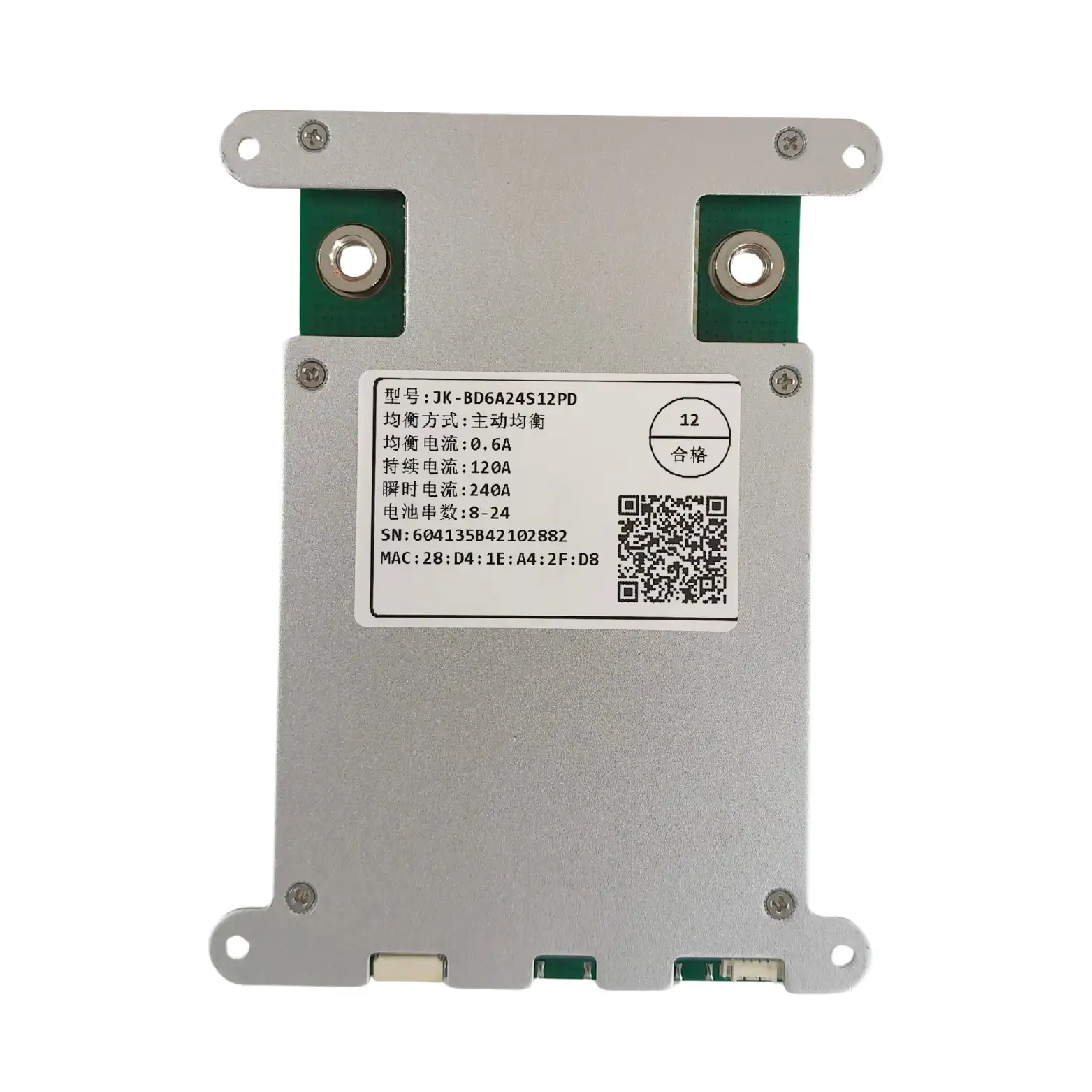

The BD6A24S12PD platform is identified by a 120A current class and 0.6A active balance current. Active balancing differs from simple passive bleed balancing because energy is transferred between cells rather than only dissipated from higher-voltage groups as heat. This can be valuable in large packs where cell drift would otherwise reduce usable capacity or cause one group to reach a voltage limit before the rest of the pack.

The current rating must still be designed alongside the rest of the DC path. Cable cross-section, busbars, terminals, contact resistance, fuse or breaker sizing, cell capability and enclosure cooling all influence usable continuous current. Smart monitoring on this model family allows battery status to be viewed and configured through supported interfaces, but protective settings should be matched carefully to the chosen chemistry instead of changed only to chase higher usable capacity.

Choose the BD6A24S12PD when the battery series count, chemistry and load current fall within the model's supported design range. The 8-24S label should be interpreted together with chemistry because the allowable minimum series count can vary across Li-ion, LiFePO4 and LTO configurations. Confirm the cell count first, then size the BMS current comfortably above the normal continuous load while considering startup or surge demand.

The 0.6A balancing current is a useful engineering parameter for large-capacity packs, but balancing cannot correct a damaged or severely mismatched cell. Cells should still be graded and assembled with similar capacity and state of charge. If the installation requires inverter communication beyond Bluetooth/display monitoring, confirm the exact hardware revision and interface package before wiring external CAN or RS485 equipment.

Applications

• High-capacity LiFePO4 and lithium-ion battery packs.

• Electric mobility and custom EV battery systems.

• Solar and stationary energy-storage batteries.

• High-power UPS and backup battery systems.

• Large custom battery builds requiring active cell balancing and monitoring.

Installation Guide

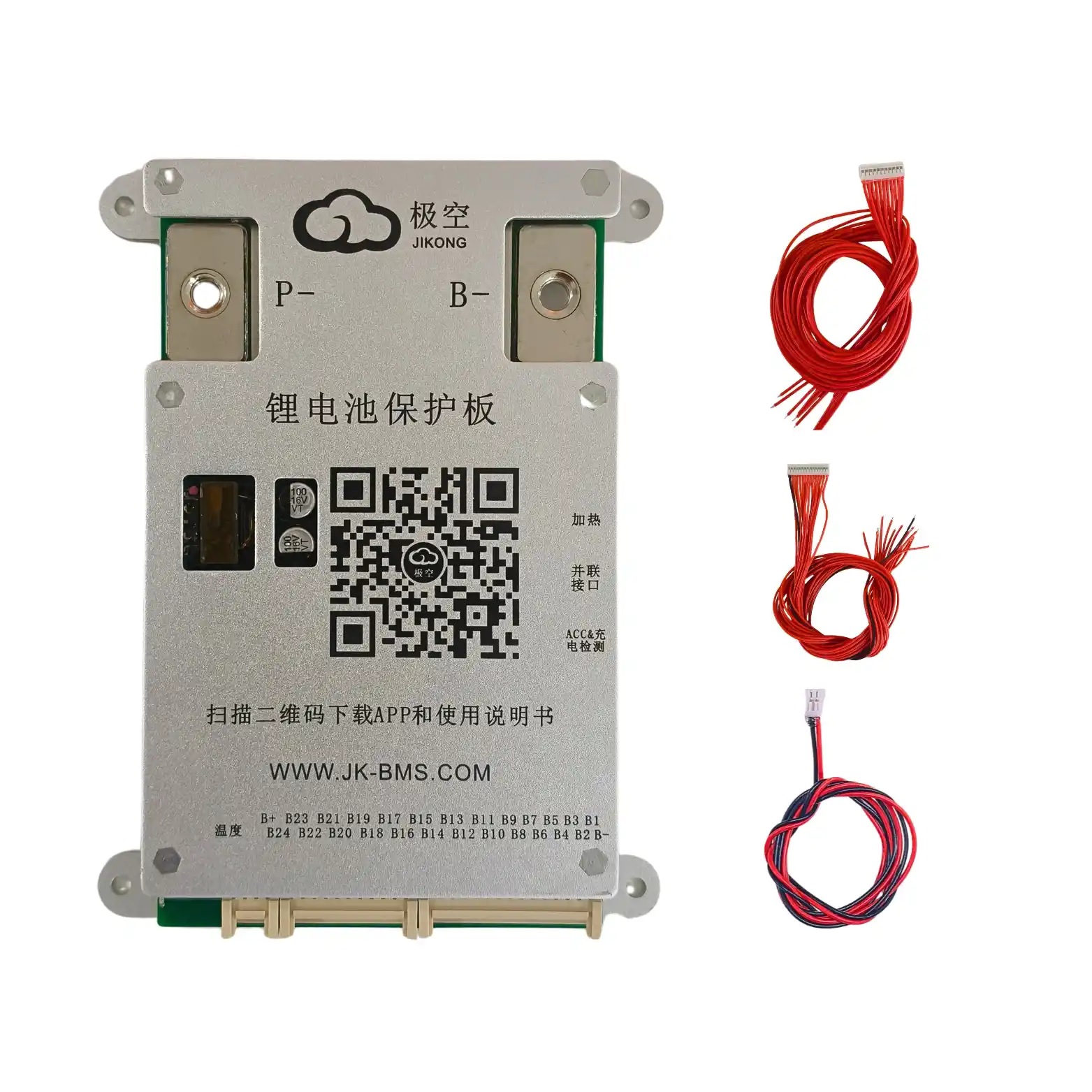

Assemble and verify the complete cell stack before connecting the BMS. Measure every adjacent series-group voltage and confirm correct polarity and cumulative pack voltage. Connect the sense harness in the sequence specified for the exact JK model, then complete the main current path with correctly sized cables and protective hardware. Mount the BMS where heat can dissipate and where conductive objects cannot contact terminals. After power-up, configure the correct chemistry and series count in the supported interface, then commission the battery under a controlled load while monitoring cell voltages, current and temperature.
