JBD USB TO UART TOOLS

JBD USB TO UART TOOLS

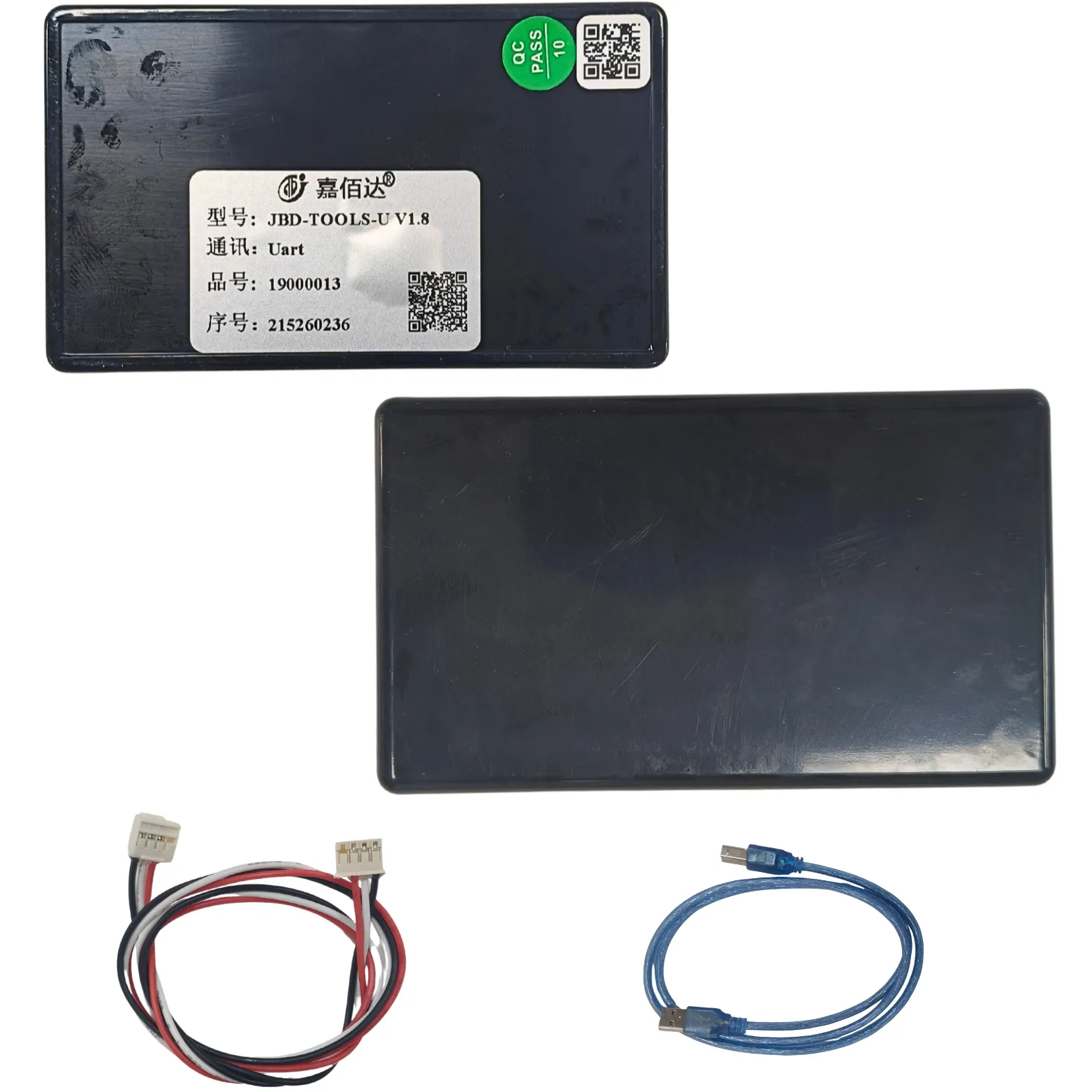

The JBD USB to UART connector cable provides a wired communication connection between a compatible JBD Smart BMS and a computer. It is intended for battery monitoring and supported configuration tasks using the matching BMS software.

A wired service connection gives pack builders a practical way to inspect a battery during assembly, commissioning or repair. This accessory links the BMS communication port to the computer so the technician can work with the information that the installed board makes available. Select this version by the actual BMS connector and communication interface.

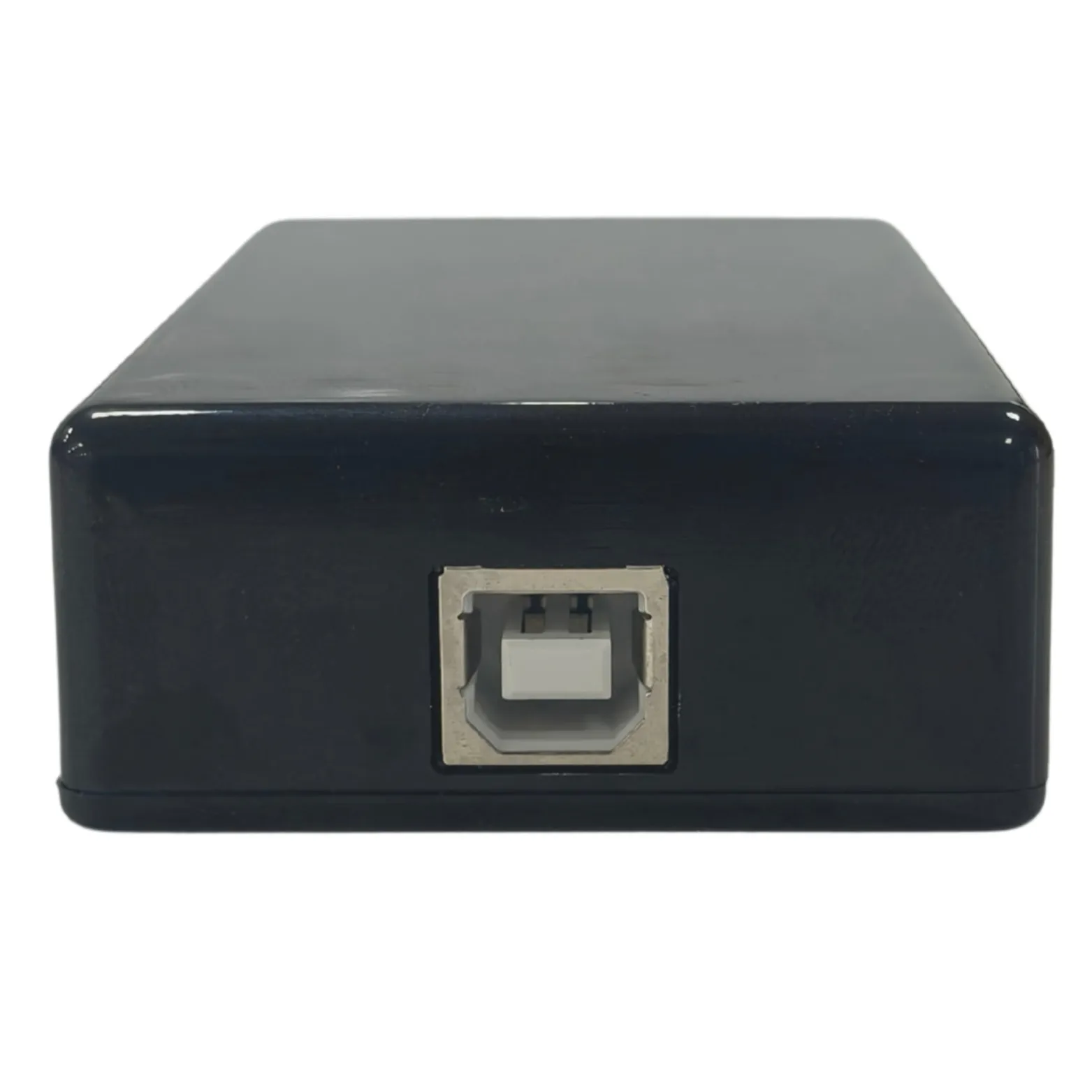

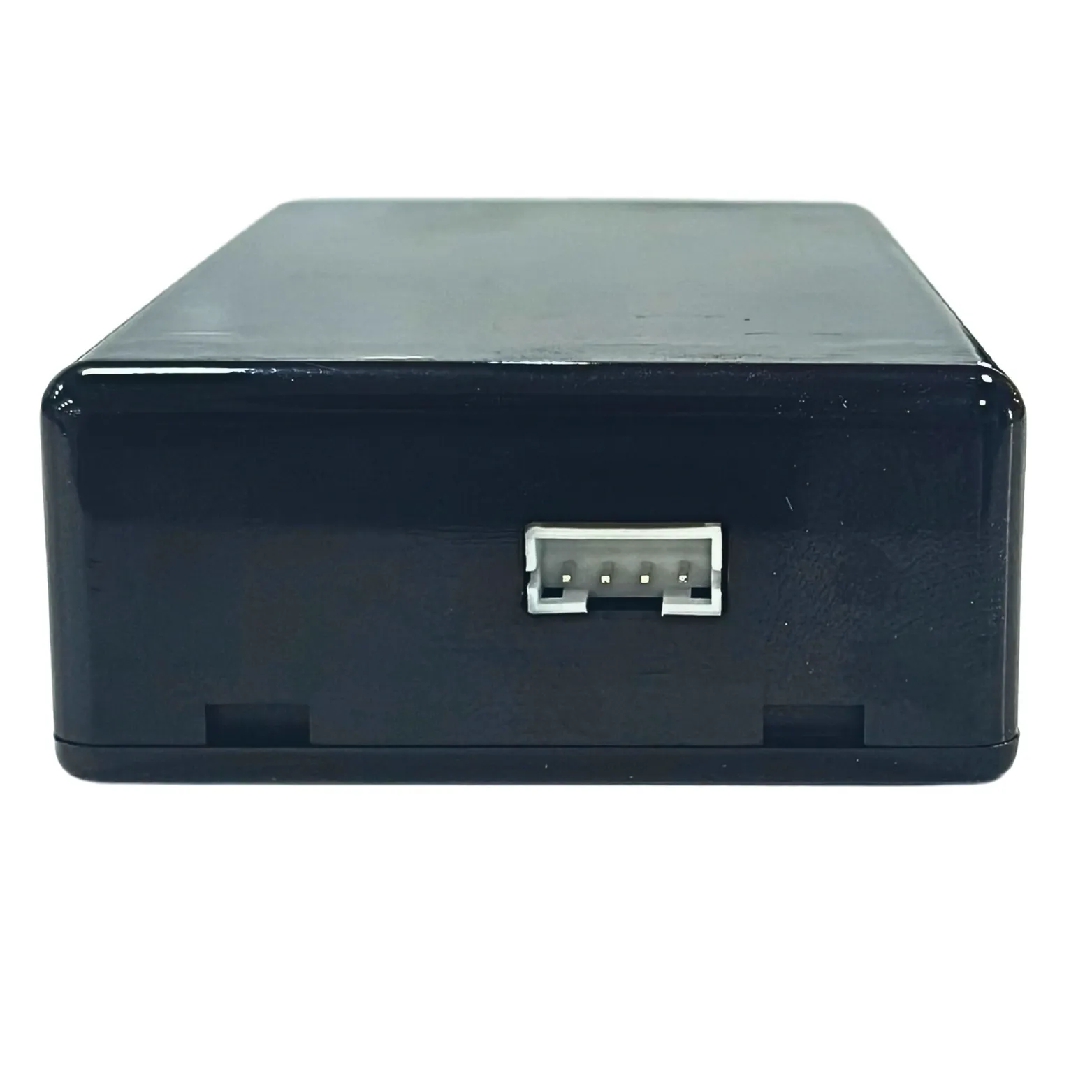

UART carries serial data through the matched BMS service connection. The interface transports information measured by the BMS, such as supported voltage, current, temperature and status values. Available readings and writable settings depend on the BMS hardware and software revision. Communication adapters do not change the pack current rating or add missing measurement functions. The USB end provides the computer connection while the battery-side end must match the specified BMS port.

Match the JBD BMS model, UART port, connector pinout and supported computer software before connection. A connector that fits mechanically is not enough to establish UART compatibility. Install the appropriate adapter driver where required. Keep a record of the original BMS settings before changing any permitted parameters, and use the cell and pack specifications to determine safe values.

Applications

• Battery assembly and commissioning benches

• BMS monitoring during service and fault diagnosis

• Compatible EV and energy-storage battery maintenance

Installation Guide

Follow the supplied JBD connection procedure. Check the port label and pinout, secure the battery-side connector and connect the computer using the required software and driver. Select the correct communication settings, establish a read-only monitoring session first, and verify the displayed pack information before making authorized adjustments. Protect the cable from strain and exposed power terminals.

Why Choose ARB Accessories?

ARB Accessories supplies BMS accessories, balancers, connectors and battery assembly components for Indian pack builders and service teams. Use the item code when ordering this accessory alongside the related parts for your project. Matching the exact accessory to the installed equipment helps keep replacement and assembly work consistent.
