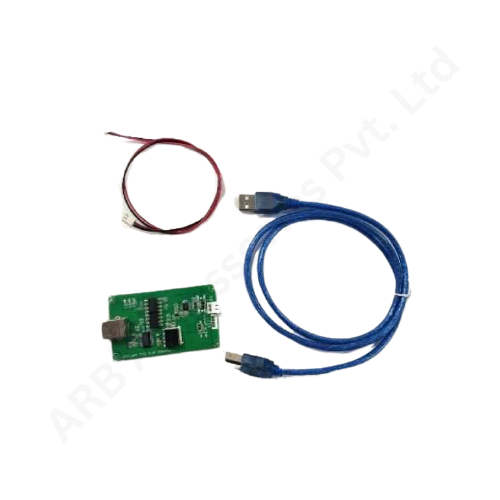

JBD USB TO SMALL SOC UART CABLE

The JBD USB to Small SOC UART Cable is an accessory identified for the matching small JBD state-of-charge display arrangement. It is selected as a replacement or connection component for the corresponding display and BMS installation.

A display cable must match the equipment at both ends. The small SOC display application distinguishes this item from a general computer service cable and from other JBD screen harnesses. Battery builders should use the display model and the original cable identification to select the correct assembly, especially when several similar connectors are used within the same pack.

UART describes the serial communication identified in the product name. The cable provides a connection within the intended system, while the BMS and display determine which battery information can be shown. A USB-shaped connector is not enough to establish computer compatibility or a standard USB electrical interface. The system wiring diagram is the correct reference for signal and power connections.

Match the small SOC display model, BMS port and cable pinout together. Check both connectors, the contact arrangement and the required routing length against the actual equipment. Treat other UART, RS485 and computer-adapter cables as separate accessories. Use the specified harness for the display rather than adapting a visually similar lead without an approved pin map.

Applications

• Matched small JBD SOC display installations

• Display cable replacement during battery service

• Compatible battery-monitoring assembly projects

Installation Guide

Follow the display and BMS connection instructions with the assembly in the specified safe state. Verify connector orientation and pin assignment before connection, protect the cable from sharp edges and keep it away from exposed high-current terminals. After installation, check that the display starts correctly and shows plausible information for the connected battery.

Why Choose ARB Accessories?

ARB Accessories supplies BMS accessories, balancers, connectors and battery assembly components for Indian pack builders and service teams. Use the item code when ordering this accessory alongside the related parts for your project. Matching the exact accessory to the installed equipment helps keep replacement and assembly work consistent.
