JBD SMART ESS BMS 8-16S 150A UP16S019

JBD SMART ESS BMS 8-16S 150A UP16S019

The JBD SMART ESS BMS 8-16S 150A UP16S019 is a JBD smart energy-storage BMS for 8-16S lithium battery packs and a 150A current class. The UP16S019 platform supervises cell groups, pack current and temperature while controlling the battery path during over-voltage, under-voltage, over-current, short-circuit and temperature events. It forms the battery-side protection and communications layer in inverter and solar-storage systems.

JBD energy-storage boards use configurable series counts rather than one rounded system voltage. Within 8-16S, the active cell count sets the battery voltage class and charger window, while the 150A rating defines the BMS current path. The UP16S019 code is therefore central to sourcing and service work. Ampere rating and amp-hour capacity remain separate quantities.

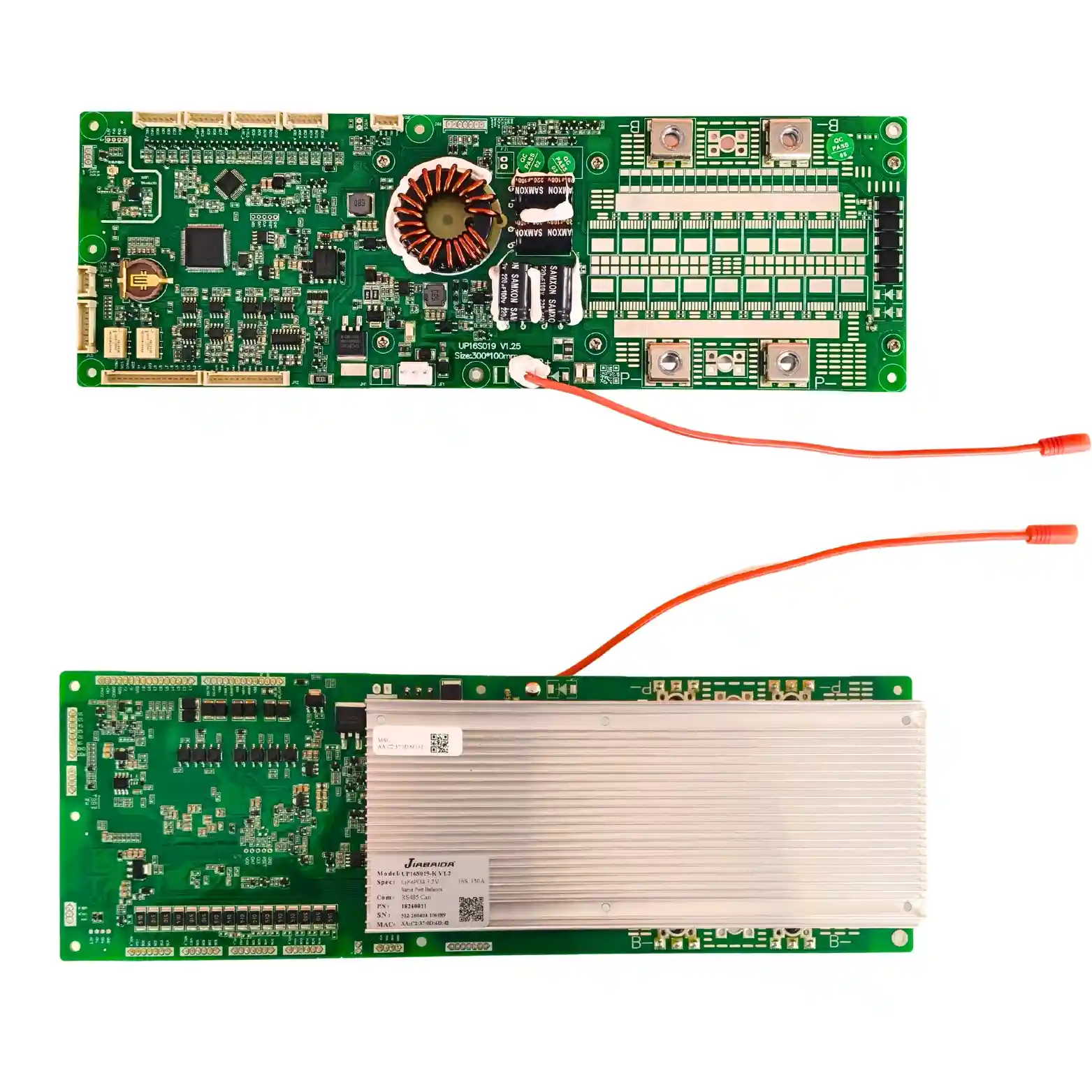

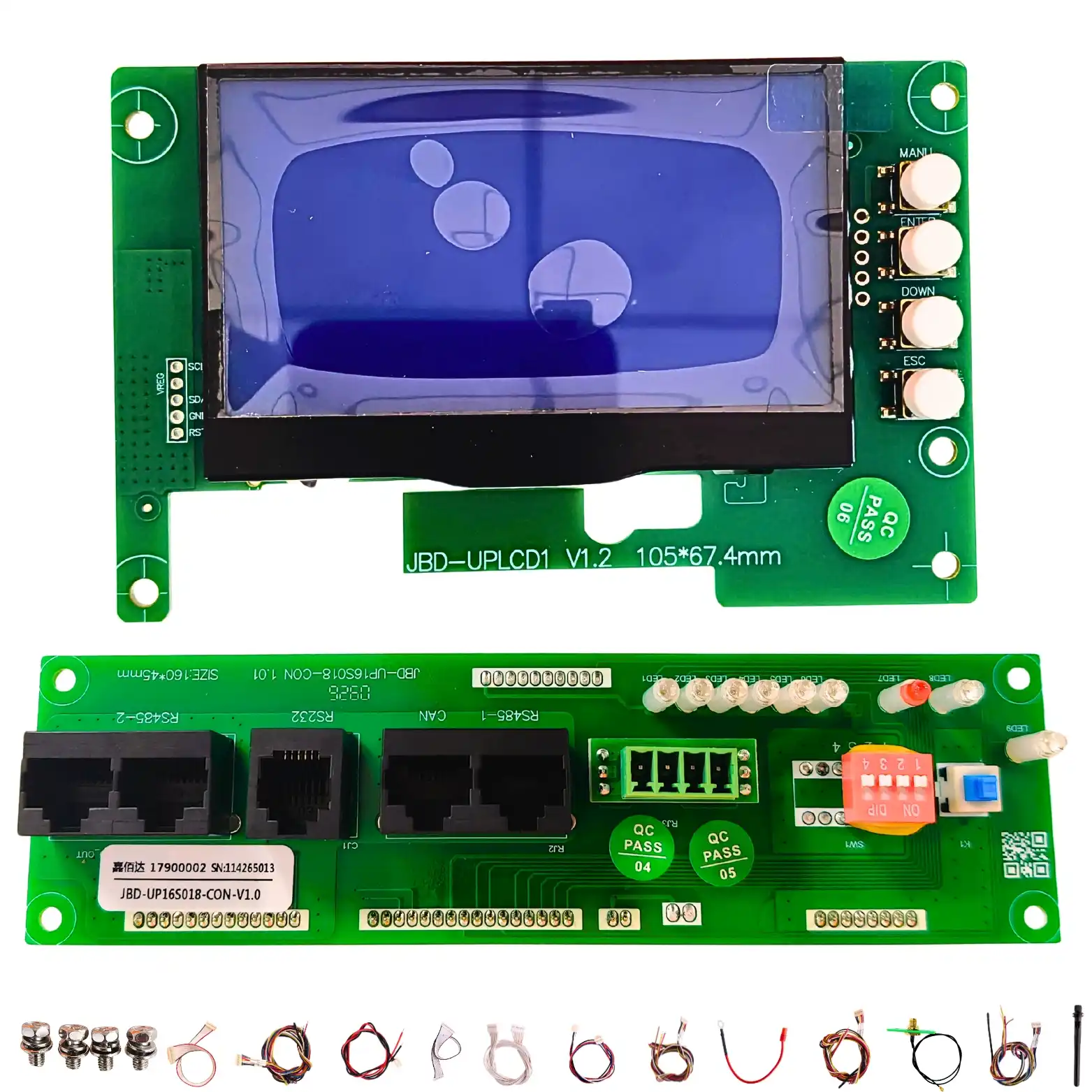

The UP16S019 architecture uses common-port charge and discharge routing with cell-group sensing. It provides CAN, RS485 and RS232 communication for inverter, PC or battery-system integration. Passive balancing up to 80ma manages cell-voltage spread, while parallel battery support with 10A charging current limit supports larger storage banks. Bluetooth/wi-fi monitoring with optional lcd extends local supervision. These functions report pack condition while protection logic isolates the current path when operating limits are exceeded.

Balancing and protection solve different problems. Balancing reduces voltage spread between healthy groups; protection responds to abnormal electrical or thermal conditions. Neither repairs a weak cell or compensates for poor mechanical connections. A group that repeatedly diverges under load needs battery-level investigation, and a hot terminal needs correction at the conductor, lug or fastener. Smart monitoring makes these behaviours visible, but pack quality still depends on matched cells and low-resistance interconnects.

An 8-16S battery can represent several system voltages depending on cell count and chemistry, so the inverter must operate across the completed pack's voltage range. CAN and RS485 carry operating data, but protocol selection and system addressing remain part of the ESS design. The 150A path needs suitable conductors, terminals and DC protection; parallel packs also need current-sharing and pre-charge discipline. State-of-charge reporting in a smart storage pack depends on current measurement, capacity settings and the battery's voltage behaviour over a complete operating cycle. Accurate current direction and sensible capacity configuration help the controller maintain useful energy estimates instead of relying on voltage alone. Communication data is only as reliable as the underlying sensing and wiring, so clean harness routing, solid terminals and repeatable commissioning remain part of the electrical design.

Applications

• Residential solar-storage batteries requiring smart protection and inverter communication.

• Home and commercial ESS cabinets built from configurable 8S–16S lithium modules.

• 150A-class backup systems for UPS, telecom and stationary power applications.

• Off-grid inverter batteries using pack data, alarms and state information.

• Parallel lithium battery banks designed for expandable storage capacity.

• Battery-pack engineering and service projects using JBD smart BMS hardware.

Installation Guide

Build the battery stack and map every cell-group connection before attaching the UP16S019 sensing harness. Disconnect chargers and loads, use insulated tools and keep adjacent sense leads isolated. Connect power conductors and sensing points in the manufacturer's stated sequence, route NTC leads to representative thermal locations and separate signal wiring from high-current conductors.

Commission with a controlled charger and limited load. Check cell voltages, total voltage, current direction, temperature channels, state information and communication traffic before increasing power. Observe normal charge and discharge behaviour without deliberately shorting the pack. At the 150A class, terminal temperature and conductor voltage drop are important commissioning measurements.

Store the model, board revision, chemistry setting, active cell count, communication interface, charger settings, current limits and initial test results with the battery record. Assess temperature rise in the intended enclosure. Changes to chemistry, string count, inverter protocol, parallel topology or cable size require a fresh engineering review.

Why Choose ARB Accessories?

ARB Accessories supplies JBD ESS BMS options with lithium cells, SOC displays, busbars, battery boxes, breakers, fuses, silicone wire, cable terminals and ESS connectors for Indian pack builders. Prepare the enquiry with series count, chemistry, continuous current, communication protocol and parallel-pack requirement so the UP16S019 platform fits the complete storage architecture.
