JBD SMART ACTIVE BALANCER 4S 5A B04S001

JBD SMART ACTIVE BALANCER 4S 5A B04S001

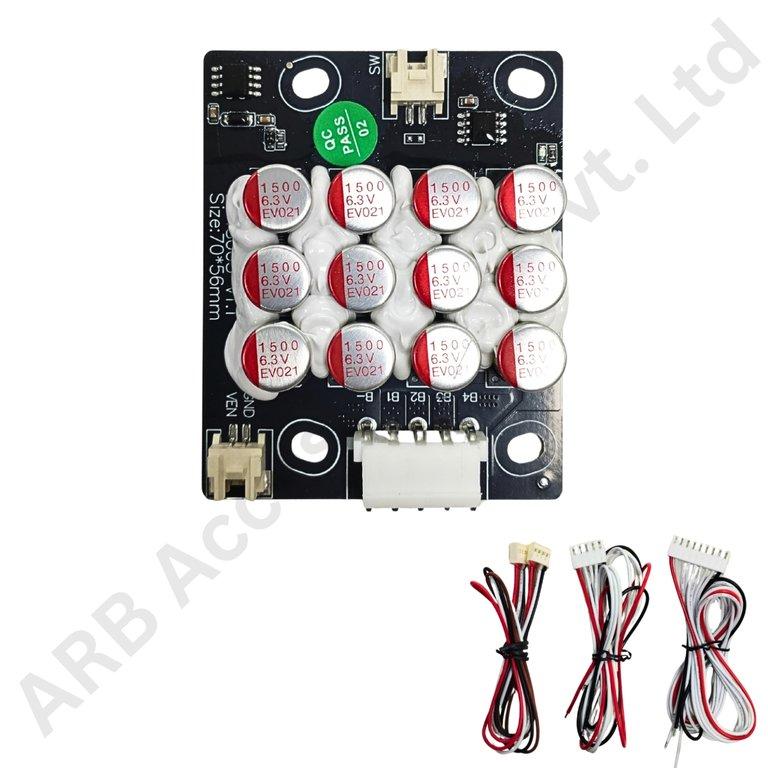

The JBD 4S 5A active balancer B04S001 is a dedicated equalization module for a compatible pack with 4 series-connected cell groups. It transfers energy between cell groups to help reduce voltage spread, making it useful during pack assembly, commissioning and ongoing battery maintenance. The B04S001 model code identifies the required JBD board.

Technical Performance & Engineering Details

The module belongs to the 5A balancing-current class. Equalization moves energy within the battery rather than routing the main load through the balancing leads. The 5A rating therefore must not be used as a charge or discharge rating for the pack. Actual balancing performance depends on the board's operating conditions and the difference between cell groups. Improving charge alignment can reduce early cut-offs caused by imbalance, while a degraded cell still needs separate diagnosis.

Compatibility & Selection Guide

In a 4S pack, the balancer connects across 4 successive cell groups. Each group may contain parallel cells, but the series count stays 4. Choose the balancer by this series layout, not by the total number of individual cells. Select by the exact B04S001 model, battery chemistry, operating voltage and matching harness. Use a suitable protection BMS and charger with the completed assembly. A balancer cannot substitute for the switches and sensing used to disconnect an unsafe charge or discharge condition.

Applications

• 4S battery pack assembly and servicing

• Compatible lithium storage batteries

• Equalization during controlled commissioning

• Replacement of a matching B04S001 module

Installation Guide

Refer to the diagram for the supplied JBD board and attach sampling leads in the specified order with the connector unplugged. Measure each adjacent connection before applying power. Mount the board away from conductive surfaces and protect the leads against strain. During commissioning, compare the measured group voltages and inspect the connections before putting the pack into service.

Why Choose ARB Accessories?

ARB Accessories brings battery cells, BMS boards, active balancers, wiring components and test equipment together for battery builders and service teams. Source this item alongside the parts needed for your assembly, and use the exact product name when discussing a replacement or a new pack design.
