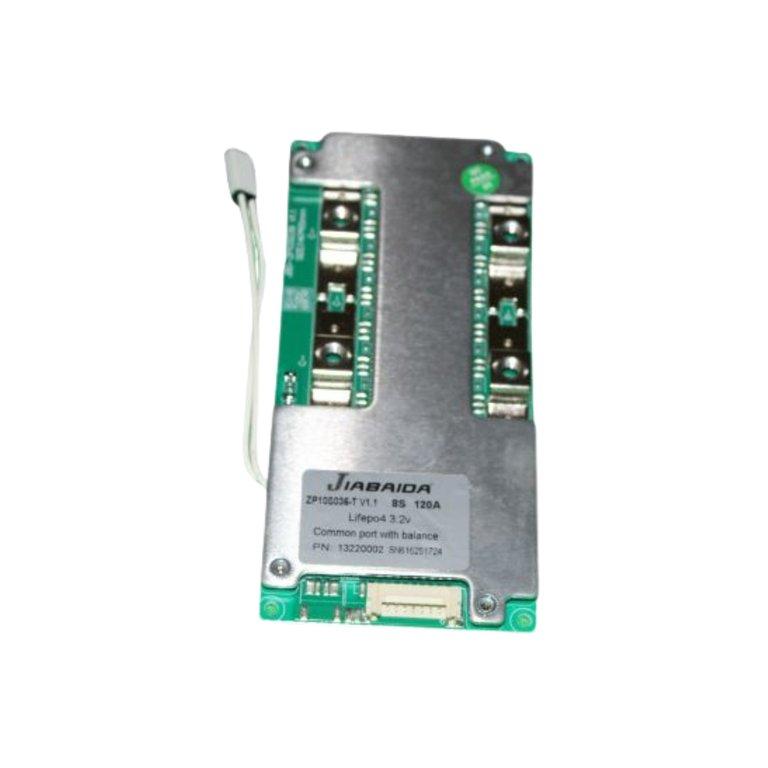

JBD LFP BMS 8S 120A ZP10S036

JBD LFP BMS 8S 120A ZP10S036

The JBD LFP BMS 8S 120A ZP10S036 is a JBD 8S 120A LiFePO4 battery protection BMS Model ZP10S036 intended for lithium battery packs that match the stated chemistry, series count and current class. It is relevant to battery-pack assembly, EV or equipment repair, energy-storage integration and replacement work where a correctly matched BMS is required for controlled charging and discharging.

A battery management system supervises the electrical condition of the series-connected cell groups and provides a controlled interface between the battery and the load/charger path. For buyers searching terms such as JBD 8S 120A LiFePO4 BMS, 8S battery protection board, lithium battery BMS, EV battery BMS and battery management system, the first selection points are chemistry and series count. A BMS should never be chosen only because the current number or physical connector appears similar.

The 120A rating should be matched to the real continuous load, expected startup or surge current, charging current and thermal conditions of the battery system rather than treated as a universal operating target. Cable cross-section, nickel or busbar sizing, connector resistance, terminal quality, enclosure airflow and heat sinking all influence temperature rise in a high-current pack. A correctly selected BMS cannot compensate for undersized conductors, loose connections or weak cell interconnects, so the full current path should be engineered as one system.

For LiFePO4 battery packs, the charger profile must match the cell chemistry and the exact 8S architecture. Sense or balance leads should follow the cell-group sequence in the correct order so the BMS reads each group accurately. Before full-power commissioning, measure the individual group voltages and total pack voltage with a suitable meter, then confirm polarity, harness order and main-current wiring. Protection thresholds, balance behavior and temperature sensing are model-dependent, so technicians should use the exact datasheet or wiring diagram supplied for the board rather than copying settings from a different BMS.

Choose this JBD 8S 120A LiFePO4 BMS by matching battery chemistry, exact series count, continuous current requirement, charge/discharge port architecture, connector layout, mounting space and any communication requirement. Also check the intended charger, motor controller or inverter because startup current, regenerative charging and communication behavior can affect BMS selection. For replacement work, compare the model code, harness sequence and terminal arrangement with the original unit instead of selecting by current rating alone.

Applications

• 8S LiFePO4 lithium battery pack assembly, rebuilding and service.

• Electric scooter, e-bike, light-EV or industrial battery systems when voltage and current requirements match.

• Solar, UPS, inverter and energy-storage battery modules built around the compatible chemistry and series count.

• Custom lithium battery packs for robotics, portable power, telecom or industrial equipment.

• Battery workshops and OEM projects requiring a 120A-class BMS with the stated series architecture.

Installation Guide

Isolate the battery pack from the charger and load before installing or replacing the BMS. Verify every cell-group voltage and polarity before attaching the sense harness, and never allow adjacent balance wires or main terminals to short together. Use properly sized insulated conductors, secure crimped or bolted power connections and strain relief so vibration cannot pull on terminals or wiring. Mount the BMS where it is protected from conductive debris, mechanical pressure and excessive heat. After wiring, commission the pack with a controlled load first and monitor voltage behavior and temperature before applying the full operating current.
