JBD BMS NMC 20S 100A ZP20S006

JBD BMS NMC 20S 100A ZP20S006

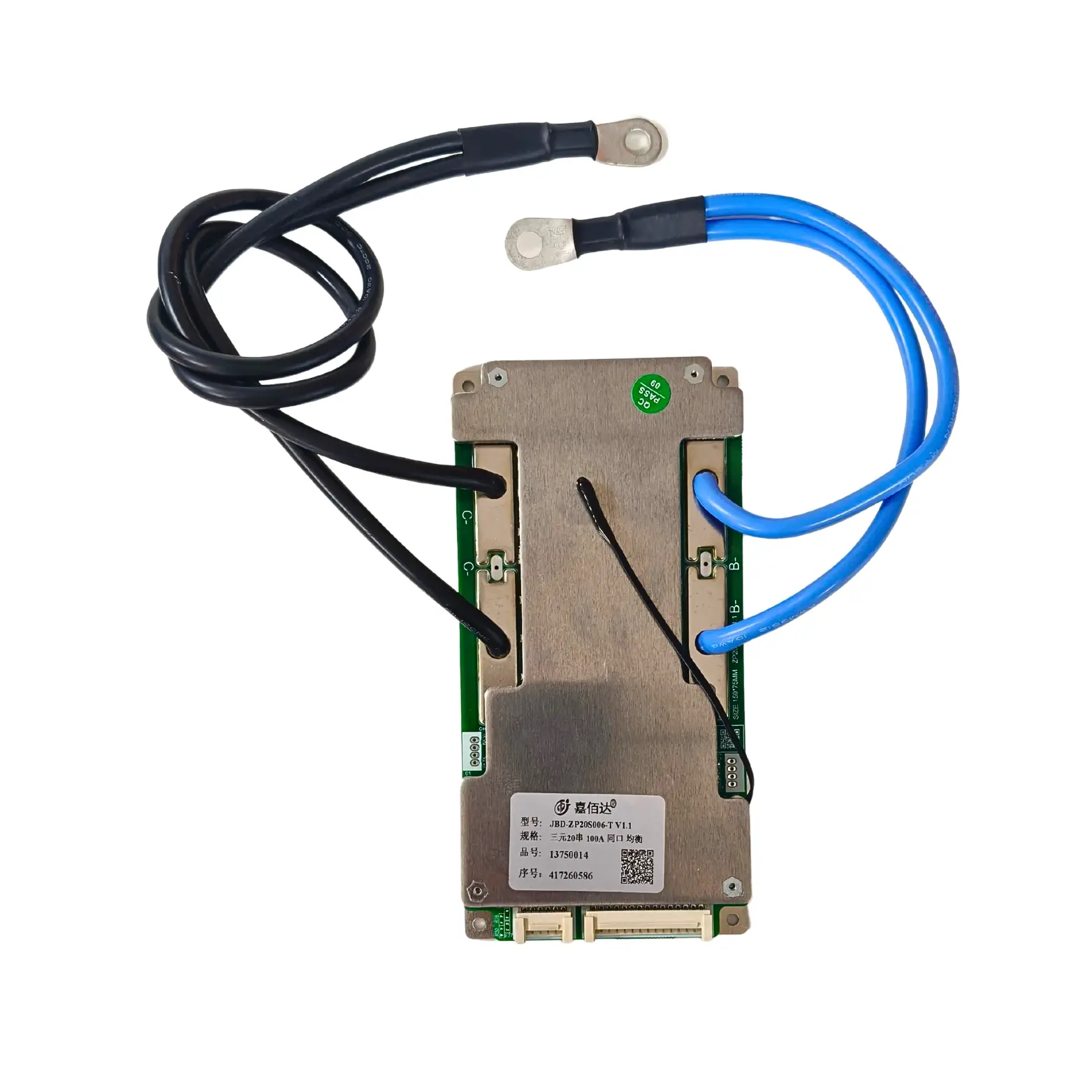

The JBD BMS NMC 20S 100A ZP20S006 is a hardware battery management system for twenty-series NMC lithium-ion battery packs. Published ZP20S006 information covers NMC configurations from 17S to 20S and includes 100A within the model's current range, making the 20S 100A combination consistent with the documented hardware platform. A 20S NMC battery uses twenty nominal 3.7V cell groups in series, creating a pack around 74V nominal.

The ZP20S006 platform uses a common-port charge/discharge architecture and includes balancing and temperature-monitoring functions. Hardware BMS construction makes it appropriate for battery packs where the priority is integrated cell-group protection and a robust high-current power path rather than app-based smart monitoring. Correct installation still requires the exact chemistry, series count and current variant to match the battery.

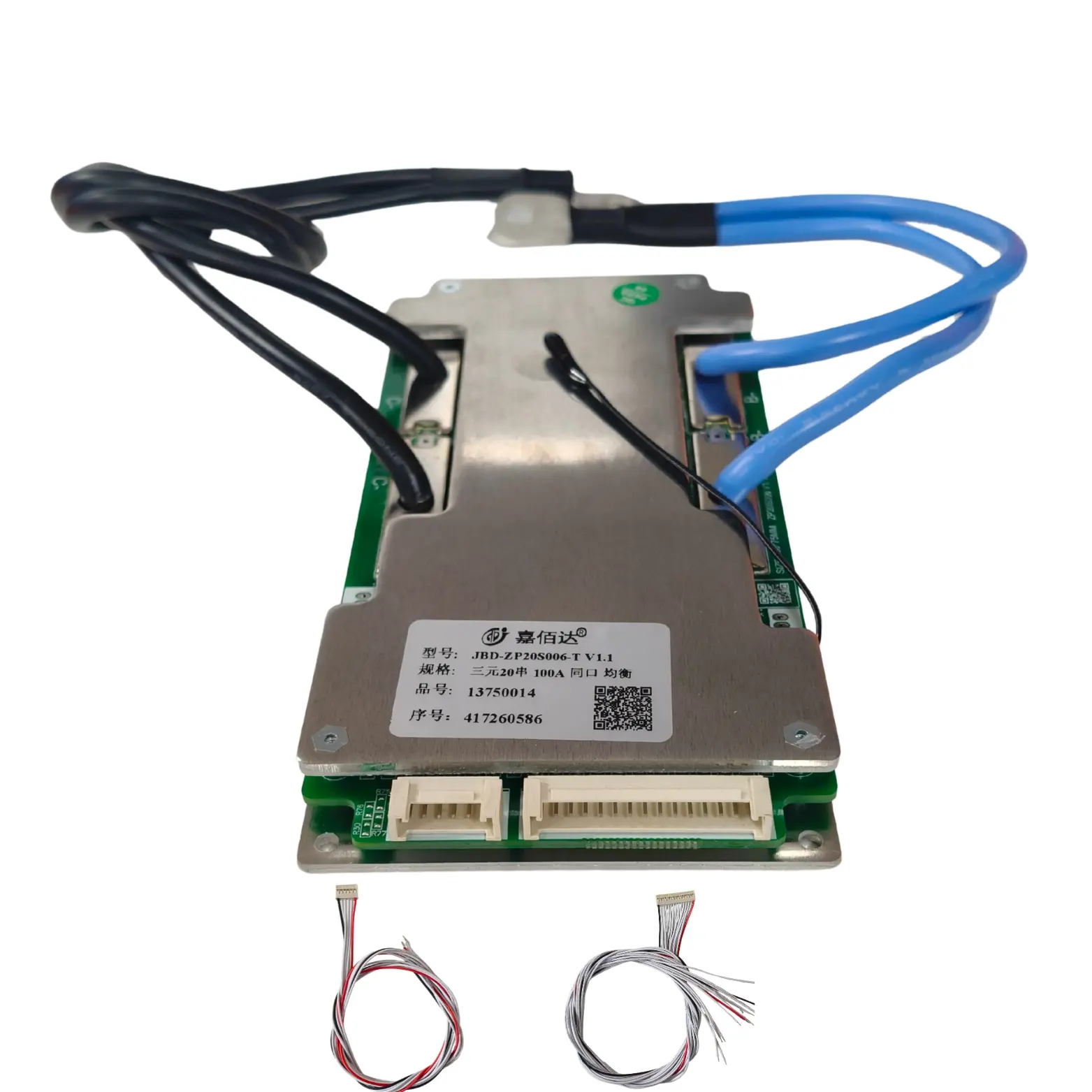

Published model information places ZP20S006 across a broad current family, with 100A falling inside the available range. Common-port wiring means the main charging and discharging current share the same external BMS path. The platform also includes balance functionality and temperature sensing, helping the BMS supervise both cell-group voltage behavior and thermal conditions during operation. Published board dimensions are approximately 150 x 75 x 14mm, useful when planning enclosure space and cable routing.

A 100A battery path must be engineered beyond the BMS itself. Cells, busbars, high-current cable, terminals, connectors and fuse protection all need adequate current capability and low-resistance joints. Contact resistance that appears minor at low load can generate substantial heat at higher current. The enclosure should provide mechanical protection and enough thermal clearance around the BMS and high-current conductors. Continuous current, peak current and charger current are separate design values and should be coordinated with the battery's intended load profile.

Use the ZP20S006 NMC version with a 20S NMC pack and a charger/load designed for the same voltage class. Match the balance harness, common-port wiring and temperature-sensor arrangement to the supplied board. The published hardware platform is not a Bluetooth smart BMS, so system design should not depend on app monitoring unless the physical unit is supplied with a separate compatible communication accessory. Plan mounting space around the board, main cables and connector bend radius.

Applications

• 20S NMC electric-motorcycle and e-scooter battery packs.

• E-rickshaw, AGV and low-speed vehicle battery systems.

• Industrial lithium battery modules using a 74V nominal architecture.

• Battery repair and replacement projects requiring the ZP20S006 platform.

• Custom high-current NMC packs where a 100A hardware BMS matches the design.

Installation Guide

Measure and confirm all twenty cell-group voltages before inserting the balance harness. Follow the ZP20S006 common-port wiring layout for B-, P- and the main battery connection. Use high-current conductors and terminals sized for the finished pack, insulate exposed metal and secure the board against vibration or accidental contact. Commission the battery at controlled current and inspect cable, terminal and BMS temperatures before operating at sustained high load.
