IR MACHINE BATTERY 3.7V

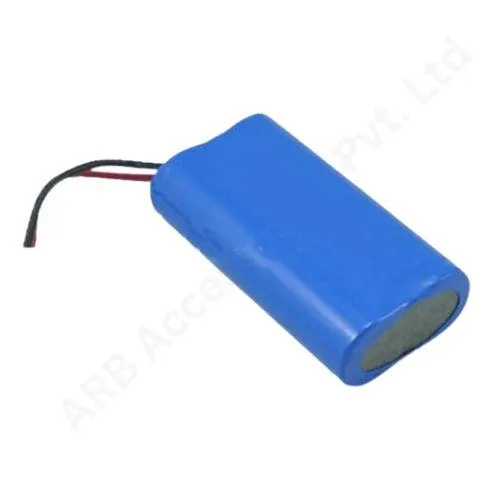

IR Machine Battery 3.7V

The IR Machine Battery 3.7V is a replacement or service battery item listed for use with a compatible IR machine or related battery-testing instrument that requires a 3.7V battery supply. The most important confirmed specification available from the product name and current specialist listings is the 3.7V voltage designation. Capacity, physical dimensions, connector type, polarity, battery chemistry, protection circuit, and exact compatible machine model are not identified in the available listing, so those details should not be guessed in a customer-facing description.

For service parts such as instrument batteries, physical and electrical compatibility are equally important. Two batteries can both be marked 3.7V but still differ in capacity, shape, cell chemistry, connector style, wire length, polarity, built-in protection, and charging requirements. The correct replacement should therefore be selected from the exact machine model or by comparing the original battery and connector with the replacement item.

Technical Details

The 3.7V designation identifies the nominal battery-voltage class used by the compatible instrument. In portable test equipment, replacement batteries must match more than nominal voltage: the charging circuit, connector polarity, physical size and battery protection arrangement all need to correspond with the original design. A correctly matched replacement allows the instrument to retain portable operation without changing its charging or power-management architecture. Battery capacity affects operating time rather than the nominal voltage itself, so capacity should be matched to the available battery compartment and charger design instead of being chosen only for the largest possible number.

Before ordering or installing the IR Machine Battery 3.7V, compare the replacement with the original battery or equipment requirements. Check the nominal voltage, connector housing, number of wires, polarity, connector keying, physical length and width, thickness, battery-compartment clearance, wire length, and any label showing capacity or charge voltage. If the original battery includes a protection PCB or temperature-sense lead, confirm whether the replacement must include the same function.

Do not substitute a battery simply because it fits inside the machine. A reversed connector pinout or incompatible charging requirement can damage the instrument or battery.

Applications

• Compatible IR battery-testing equipment that specifies a 3.7V replacement battery.

• Internal-resistance meters and portable battery diagnostic instruments.

• Handheld testing tools using a matching 3.7V rechargeable battery format.

• Service replacement for compatible workshop and battery-test equipment.

• Portable electronic instruments where voltage, connector, polarity and physical size match.

Installation Guide

Switch off and isolate the equipment before opening the battery compartment. Note the orientation and routing of the original battery leads before disconnection. Do not pull on wires to remove a connector; grip the connector housing where possible. Inspect the replacement for swelling, damage, exposed conductors, or a deformed connector before installation.

After fitting, confirm that the machine powers on normally and, if it includes an internal charging function, monitor the first charging cycle according to the equipment instructions. If the battery becomes unusually hot, swells, or the machine reports a charging fault, disconnect it and recheck compatibility.
