Insulation Paper 32700 Negative 10K

Insulation Paper 32700 Negative 10K

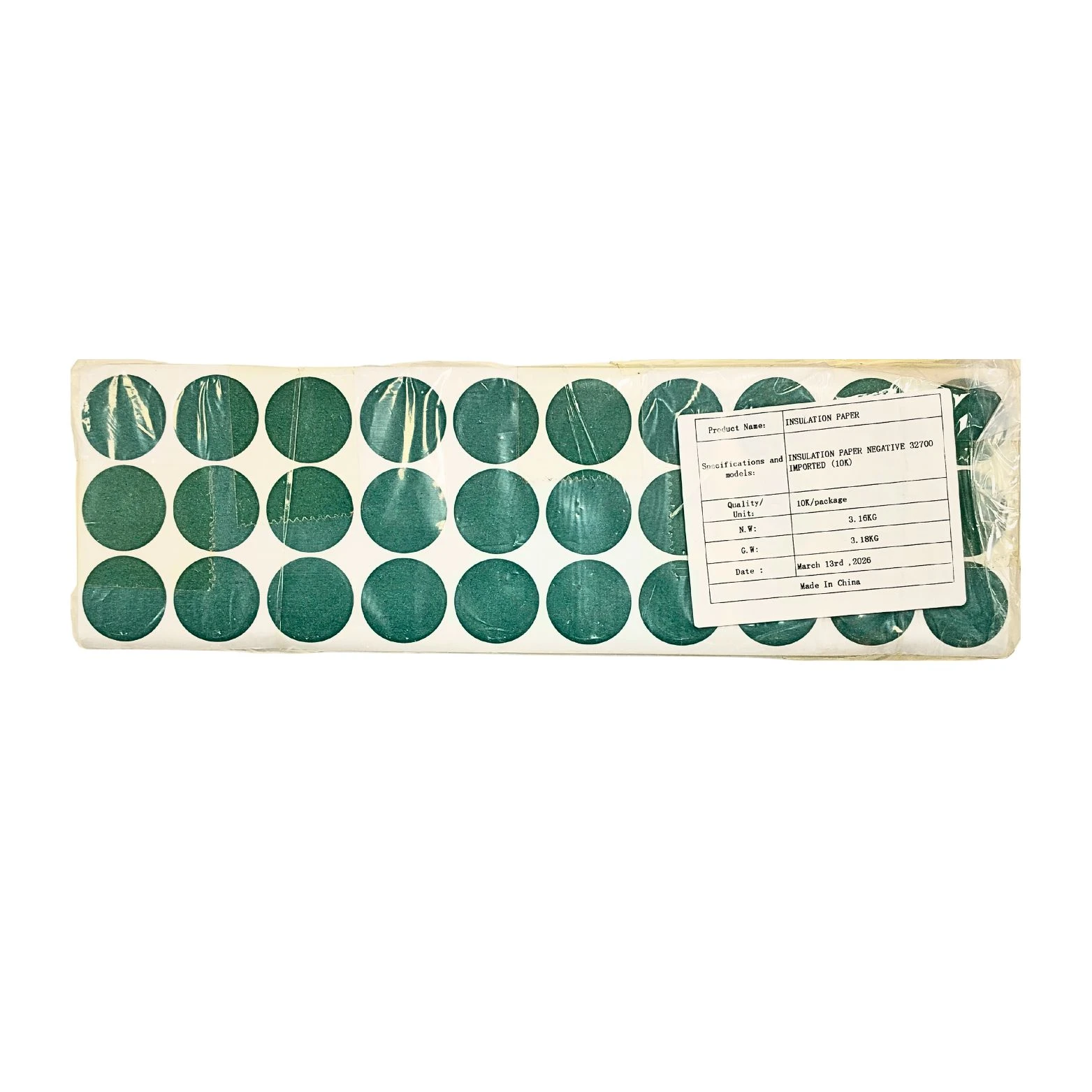

The Insulation Paper 32700 Negative 10K is a pre-cut insulating paper component for the negative end of 32700 cylindrical battery cells. It is used during battery-pack assembly to create a dielectric barrier between the cell terminal area and nearby conductive materials such as nickel strip, busbars, tools or enclosure hardware. The 32700 designation refers to the cylindrical-cell format, while the Negative designation identifies the terminal side for which this piece is intended.

The ""10K"" designation in this product family is best treated as a bulk-pack quantity reference rather than an electrical resistance value. Cross-referenced battery-insulation listings use 10K to mean 10,000 pieces, and similar supplier catalogs sell these items by packet. This distinction matters because insulation paper is specified by material, dielectric behavior, dimensions and heat resistance—not by a 10 kΩ resistance rating. For inventory control, confirm the physical packet quantity received against the purchase unit.

Terminal insulation paper is a simple component with an important safety function. During pack assembly, the negative end of a cylindrical cell may be exposed to conductive strip, tooling and neighboring hardware. A correctly sized insulating disc or ring reduces the chance that an unintended conductive path develops around the terminal area. It also provides a sacrificial layer between the cell wrapper and the interconnect material during handling and welding.

The paper must fit the 32700 cell geometry without covering the intended weld zone or interfering with the cell holder. Material thickness should be sufficient to provide separation while remaining thin enough for normal pack stacking. Because public listings for this exact negative 32700 item do not consistently provide verified thickness, adhesive type, dielectric strength or temperature rating, those values should not be assumed from other cell sizes.

Use the Negative version on the negative end only when it matches the pack design. Positive and negative insulation pieces can have different shapes, openings or coverage areas, so they should not be interchanged simply because both are labeled 32700. Confirm the outer diameter, inner cutout if any, adhesive backing and thickness against the actual cell and welding fixture. For automated assembly, also verify feed-sheet dimensions and release-liner format.

Applications

• 32700 cylindrical-cell battery pack production and repair.

• LiFePO4 and other compatible 32700-format cell assemblies.

• EV, solar, UPS and energy-storage battery modules.

• Spot-welding workflows using nickel or nickel-plated interconnect strip.

• Battery factories and workshops requiring bulk terminal-insulation consumables.

Installation Guide

Work on de-energized or safely isolated cell groups whenever possible. Ensure the cell surface is clean and dry, center the insulation piece on the intended negative terminal area, and press it flat without wrinkles or exposed adhesive. Keep the intended electrical contact or weld area clear. After cell interconnection, inspect for displaced paper, torn edges or conductive debris before applying additional pack insulation and enclosure components.
