GX16-2-PIN MALE PLUG AND FEMALE SOCKET

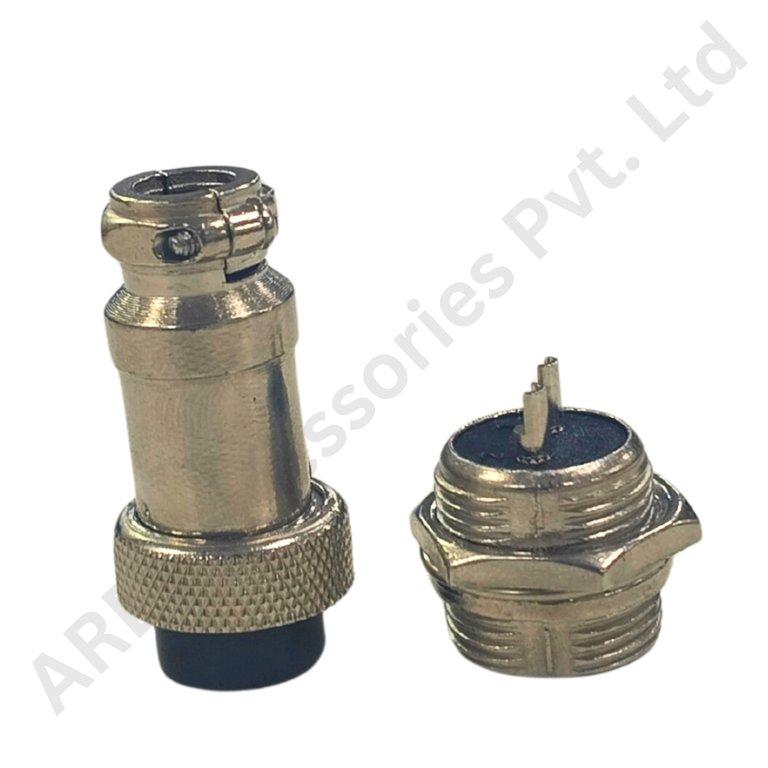

GX16 2-Pin Male Plug & Female Socket Connector Set

The GX16-2-Pin Male Plug and Female Socket is a two-contact circular connector set used to create a detachable electrical connection between equipment and a cable or between two sections of a wiring system. GX16 connectors are widely recognized as circular or aviation-style connectors, and the two-pin format is useful where a simple two-conductor interface is required. Typical uses include low-power DC connections, accessory ports, control wiring, sensors, instruments and custom equipment panels.

The connector family uses a threaded coupling that helps keep the mating halves securely engaged during normal equipment use. A male plug and female socket pair also gives designers a clean disconnect point for service, transport or module replacement. GX16-2 products are commonly available with solder-cup terminals and panel/cable mounting arrangements, making them practical for compact equipment and enclosure wiring when the connector's electrical rating is appropriate for the circuit.

Connector reliability depends on contact rating, conductor size, termination quality, insulation clearance, mounting strength and the mechanical load applied to the cable. Pin count alone is not enough to size a connector. The selected GX16-2 pair should be used within the current and voltage rating assigned to the supplied connector, especially when the circuit carries continuous DC power.

For battery systems, a GX16-2 connector is generally better suited to compatible low-current power, charging, control or signal functions than to a main high-current discharge path. Where the battery output can deliver substantial current, use a connector system and protection device sized specifically for that power level. Good solder joints, clean contact surfaces and proper strain relief reduce contact resistance and help maintain stable electrical performance over repeated service cycles.

Match the connector by GX16 series, 2-pin configuration, mating gender and physical mounting arrangement. When replacing an existing connector, compare the shell, thread, panel cutout and pin numbering so the new pair mates correctly and preserves the intended circuit polarity. Cable diameter and conductor size should also suit the connector body and terminal geometry, and the circuit load must stay within the connector's rated electrical limits.

Applications

• Test instruments and electronic equipment requiring a detachable two-wire connection.

• Industrial control panels, automation equipment and sensor interfaces.

• Low-power DC accessory or charging connections where the connector rating is suitable.

• Battery enclosures for compatible control, signal or auxiliary circuits.

• Custom electronics, service fixtures and panel-mounted wiring assemblies.

Installation Guide

Tin and solder wires carefully without overheating the insulating parts of the connector. Keep exposed conductor length short enough to prevent adjacent pins from shorting. Add heat-shrink or suitable insulation where needed, provide strain relief at the cable exit and confirm pin numbering before energizing the circuit. On panel-mounted applications, tighten the hardware securely without distorting the enclosure or connector body.

Why Choose ARB Accessories?

ARB Accessories supplies battery, EV and energy-storage components for manufacturers, OEMs and technical buyers. Sourcing connectors alongside BMS products, battery wiring, terminals and enclosure accessories can simplify component procurement for battery-pack and industrial wiring projects.
