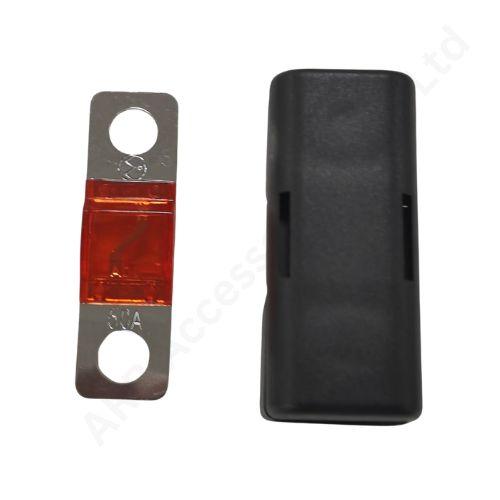

FUSE HOLDER WITH FUSE-32V/50A SMALL

FUSE HOLDER WITH FUSE-32V/50A SMALL

The FUSE HOLDER WITH FUSE-32V/50A SMALL is a compact fuse-holder assembly supplied with a fuse identified by the product name as 32V / 50A. It is intended for compatible low-voltage DC electrical systems where an inline or panel-mounted fuse point is required for serviceable overcurrent protection. Buyers may search for 50A fuse holder, 32V fuse holder, small battery fuse holder, inline DC fuse holder and battery protection fuse assembly.

A fuse holder is part of the protection system, not merely a mechanical clip. It must maintain secure electrical contact with the fuse while keeping live conductors insulated and allowing the fuse to be replaced safely. The 50A and 32V markings should be treated as the supplied fuse/assembly reference; the holder's exact certified current, voltage, temperature and interrupting ratings should be confirmed from the physical stock or supplier documentation before the part is used in a design that depends on those ratings.

Fuse performance depends on the fuse element and the condition of the holder contacts. Loose, oxidized or undersized contacts add resistance that can cause local heating even when the circuit current is below the fuse rating. Cable size, terminal crimp quality, ambient temperature and enclosure ventilation also influence the temperature of the assembly. For battery systems with high available fault current, the complete fuse and holder combination must be suitable for DC interruption at the system voltage.

The stated 50A fuse rating does not mean every 50A load should be operated continuously through the assembly without engineering checks. The protective device should be coordinated with the wire ampacity, expected normal current, startup or surge current and the equipment's fault-protection requirement. If nuisance opening occurs, the cause should be investigated rather than automatically substituting a larger fuse.

Match this small fuse-holder assembly by system voltage, required fuse type and dimensions, cable or terminal interface, expected continuous current and installation space. Verify whether the supplied 50A fuse is the correct protection value for the conductor and equipment. For replacement work, compare the original holder footprint, terminal arrangement and fuse format before installation.

Applications

• Low-voltage lithium battery and battery-box protection circuits.

• Automotive and EV auxiliary DC wiring where the fuse format matches.

• Inverter, UPS, solar and backup-power accessory circuits.

• Battery workshop harnesses and test equipment.

• Replacement fuse-holder service for compatible 32V-class DC systems.

Installation Guide

Disconnect the battery and confirm the circuit is de-energized before installation. Use conductors and terminals appropriate for the actual current, make tight low-resistance connections and mount the holder where the fuse can be serviced without exposing nearby live parts. Keep the holder away from sharp edges, moving components and heat sources. After commissioning, check the holder and adjacent cable under a controlled load for abnormal temperature rise, discoloration or looseness.
