FUSE HOLDER WITH 8AWG WIRE

Fuse Holder with 8 AWG Wire

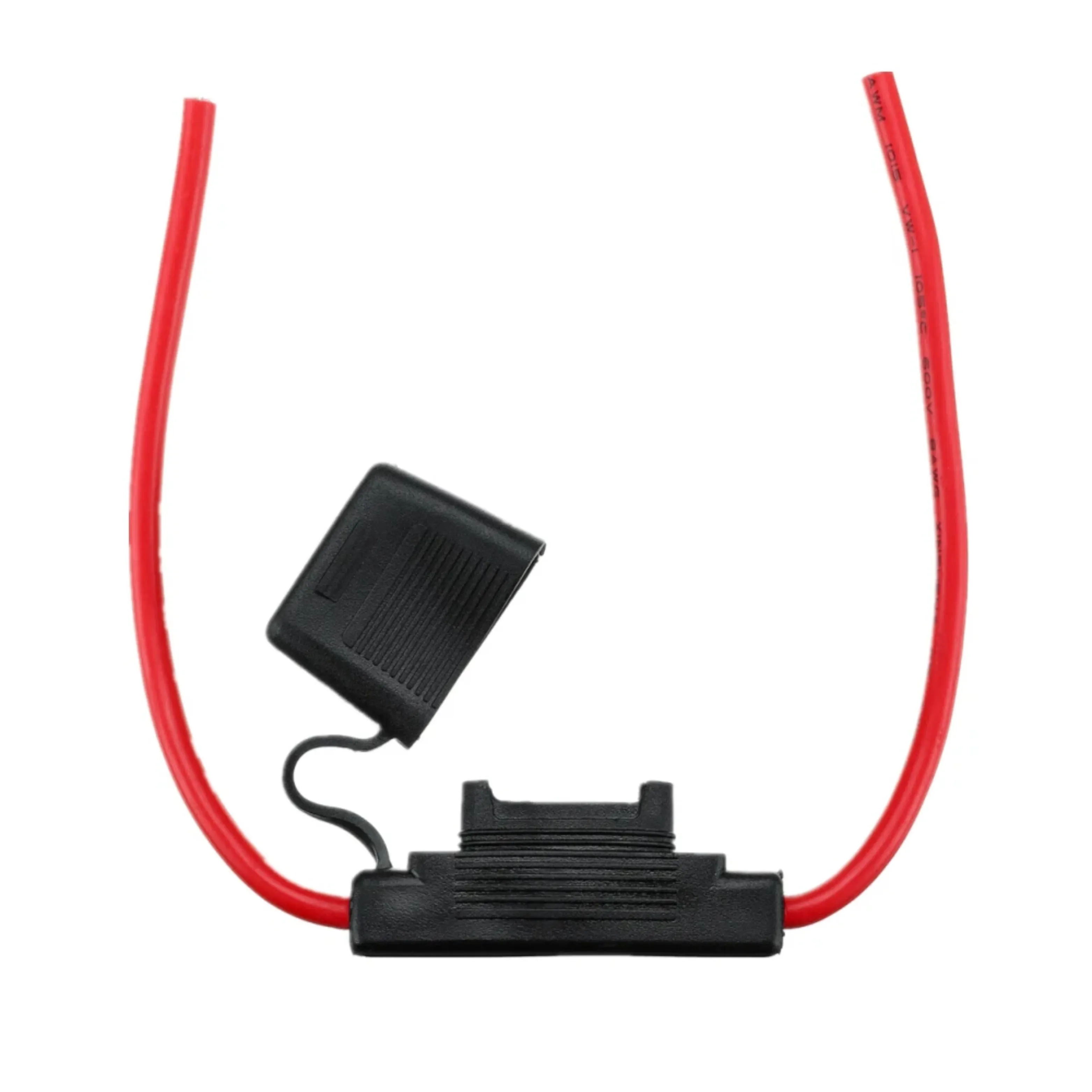

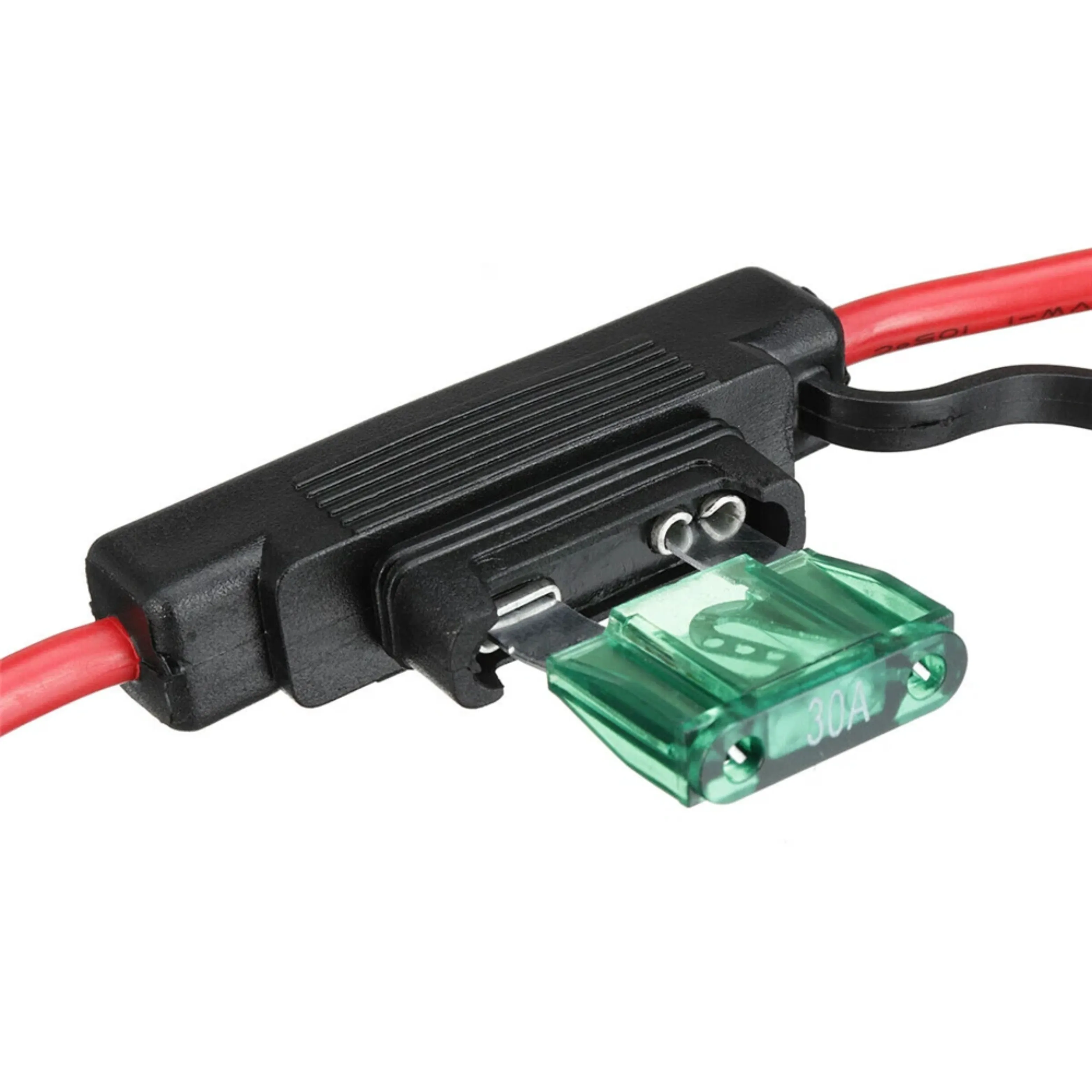

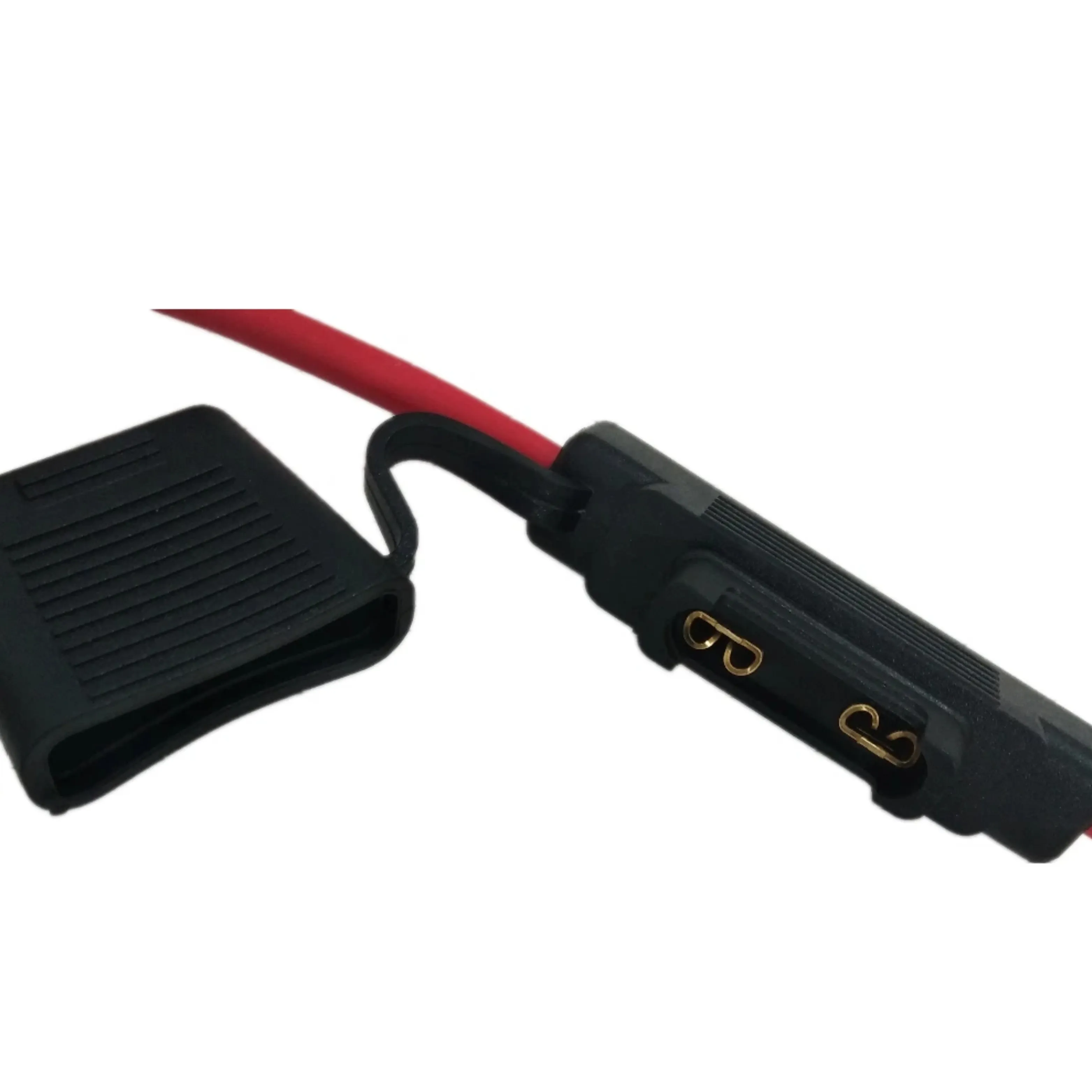

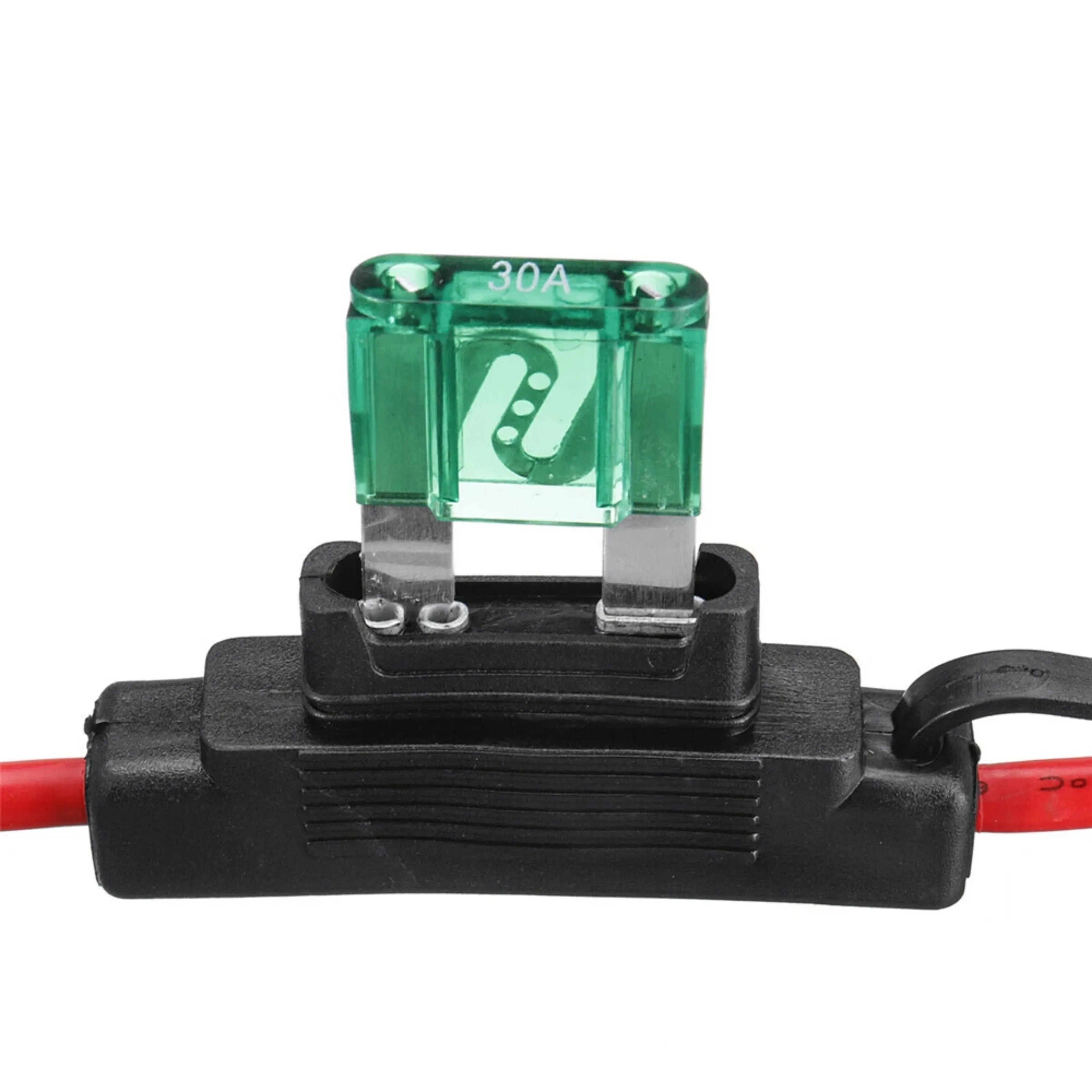

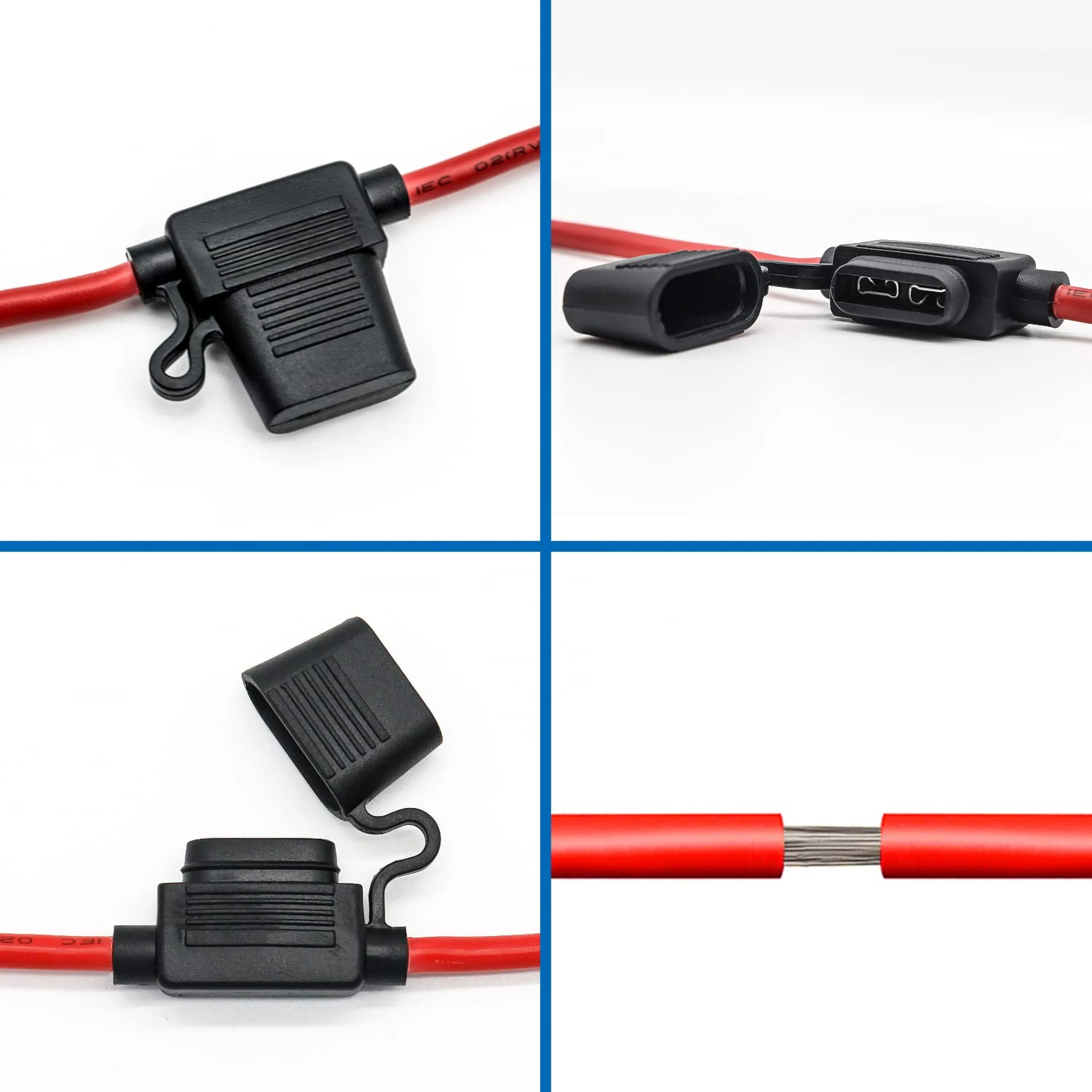

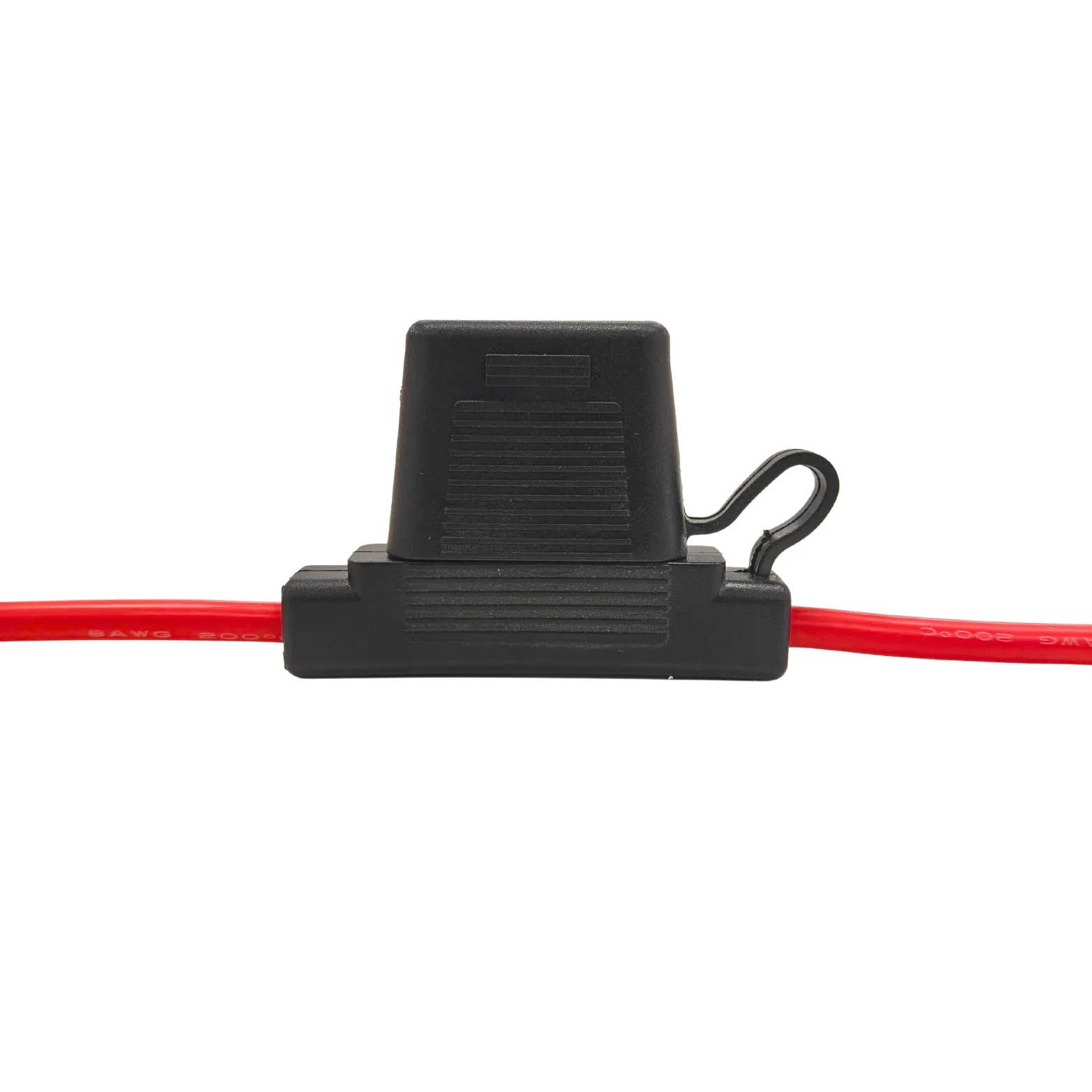

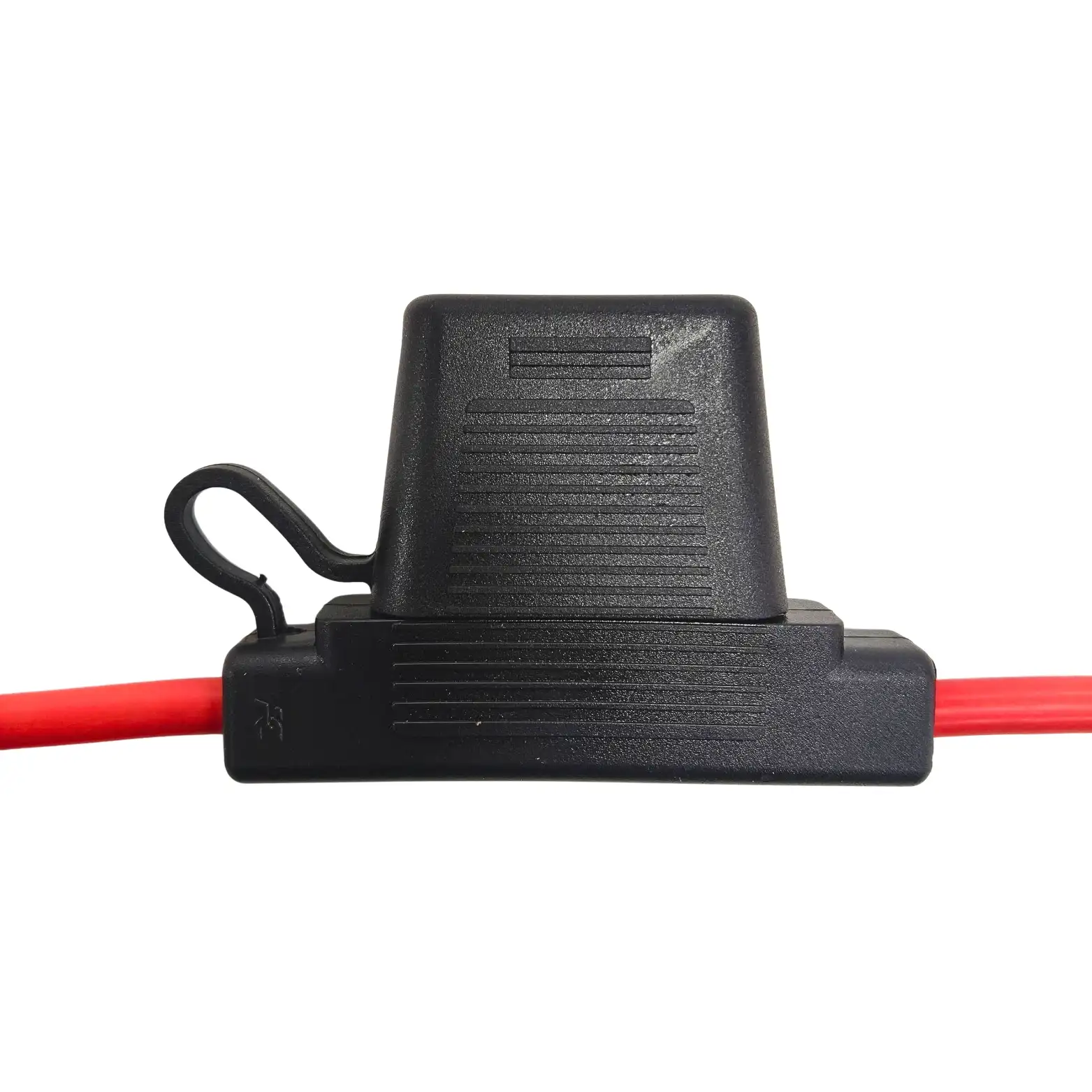

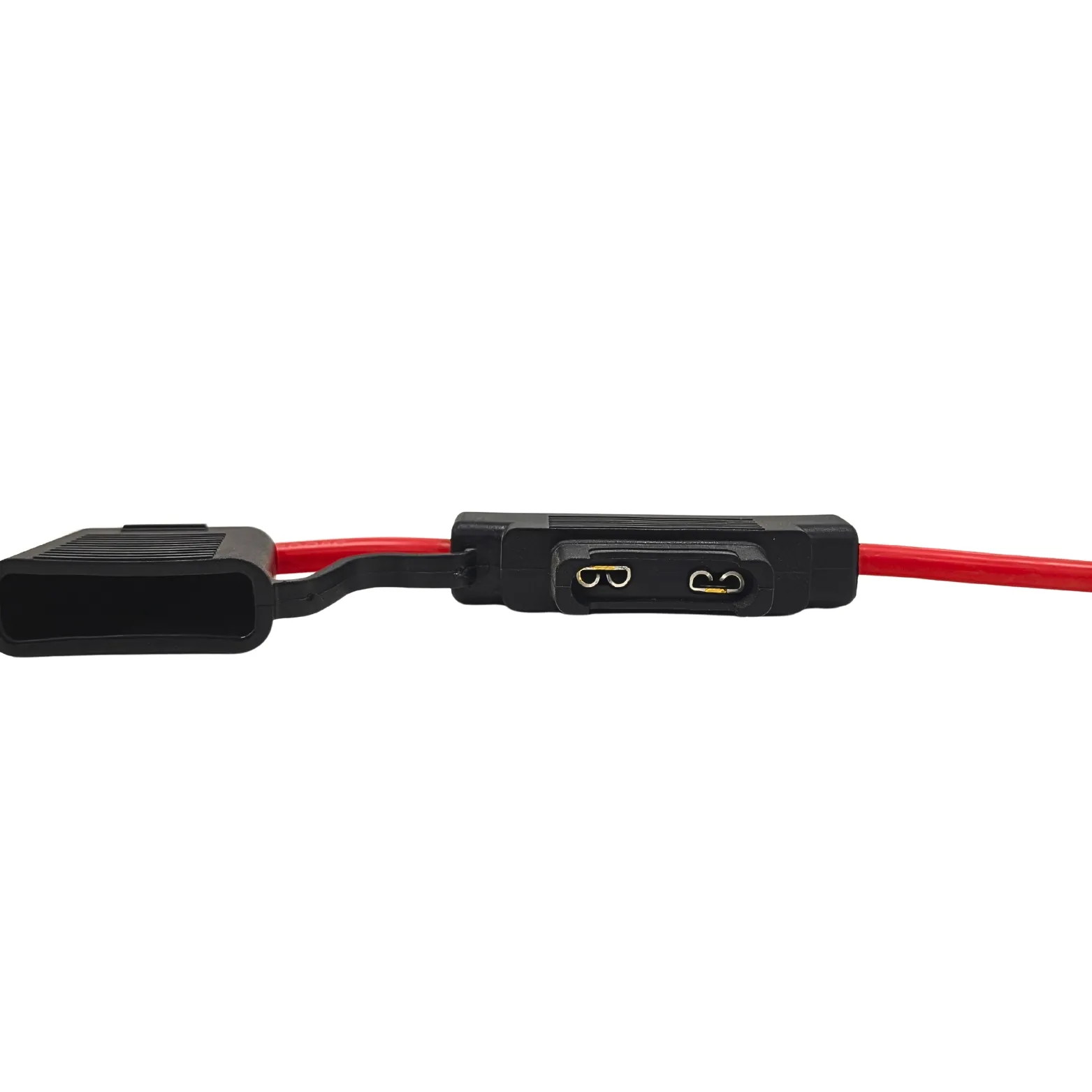

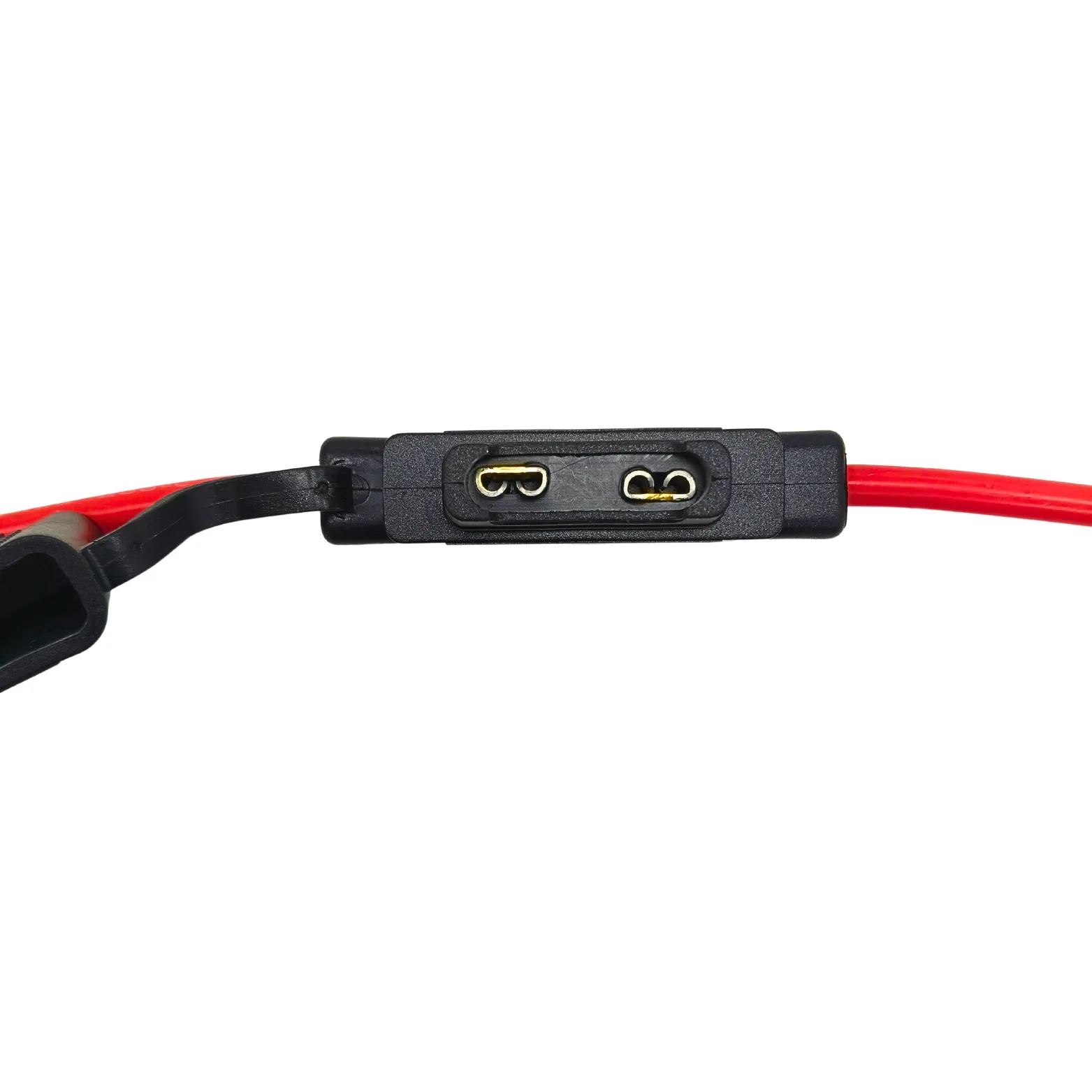

The Fuse Holder with 8 AWG Wire is a pre-wired inline fuse holder supplied with 8 AWG lead conductors for low-voltage battery and DC electrical circuits. It creates an accessible fuse position inside the wiring harness so a replaceable overcurrent device can protect the downstream conductor and connected equipment.

The 8 AWG wire size is a physical conductor designation, not a complete current rating for the assembly. Safe current depends on conductor material, insulation temperature, ambient conditions, installation method, fuse family and connection quality. The holder belongs in a circuit where the wire gauge and fuse rating have been engineered together rather than selected independently.

Inline fuse holders are most effective when installed near the battery or source side of the protected conductor. Their purpose is to contain the fuse interface and create firm electrical contact while keeping the fuse replaceable for service. The holder is not a switch, BMS or current regulator. Its electrical performance depends on terminal grip, crimp or splice quality and the condition of the fuse contacts.

A common misunderstanding is to size a fuse only from the expected load current. The fuse also protects the wire against fault current, so its rating must remain compatible with the conductor and source. Motor starting, capacitor inrush and other short-duration loads can influence fuse selection because fuse elements respond to both current magnitude and time. Oversizing the fuse to avoid nuisance opening can leave the wire insufficiently protected.

Mechanical installation affects thermal behaviour. Poor splices, unsupported cable and moisture or contamination around the fuse interface can add resistance and create heat without a true overload. Route the holder where the lead is not pulled tight, keep it accessible for service and protect it from sharp edges. A pre-wired holder simplifies integration, but the complete circuit still needs coordinated cable, fuse and source protection.

Applications

• Inline battery accessory circuits using the stated wire gauge in the protected power path.

• DC control and auxiliary wiring in lithium battery, inverter and solar-storage assemblies.

• Vehicle and equipment harnesses that need a serviceable inline fuse position.

• Workshop prototypes and test harnesses requiring a pre-wired protection point.

• UPS and backup-power control circuits with compact fuse-holder integration.

• Custom low-voltage DC systems where the fuse holder is installed close to the protected conductor.

Installation Guide

Disconnect the battery or DC source before cutting or terminating the protected conductor. Mount or route the holder so cable movement does not pull on the fuse contacts, keep the assembly away from sharp edges and heat sources, and place the fuse point close to the source side of the circuit. Use secure splices, crimps or bolted connections suited to the conductor and holder construction.

During commissioning, establish polarity and system voltage before energising the circuit. Apply the normal load progressively and observe the holder, conductor and fuse interface for abnormal temperature rise or voltage drop. The fuse should remain mechanically secure and the holder should not soften, discolour or loosen. An operated fuse or hot connection requires investigation of the circuit rather than a higher fuse rating.

Record holder type, fuse family, fuse rating and conductor size with the wiring documentation. Inspect the protection point during scheduled service, especially after fault events or modifications to the connected load. Changes to cable gauge, source voltage, inverter power or equipment inrush require renewed fuse coordination so the holder and conductor continue to operate within the intended protection design.

Why Choose ARB Accessories?

ARB Accessories supplies fuse holders and circuit-protection parts alongside battery cells, BMS boards, cable, terminals, busbars, breakers and enclosures for Indian pack builders and service teams. Prepare your enquiry with the 8 AWG wire size, fuse family, fuse current class, system voltage and installation environment so the fuse-holder assembly integrates cleanly into the intended battery, inverter, vehicle or DC wiring system. Fuse protection is most effective when the protective device is positioned close to the energy source, because a long unfused conductor can still release battery energy into a fault before the fuse point.
