FUSE BLADE 80A BIG

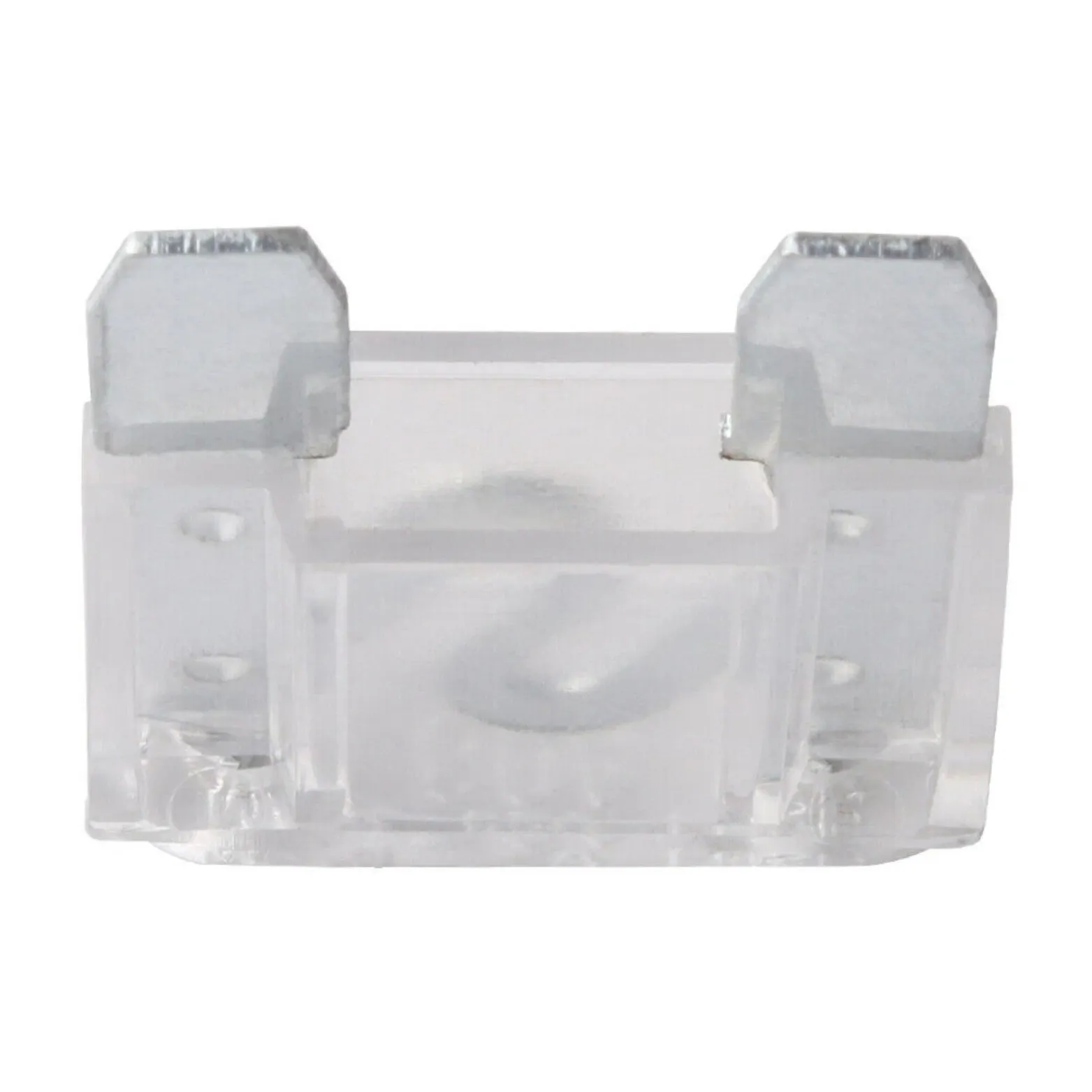

Fuse Blade 80A – Big

The Fuse Blade 80A Big is a large-format blade fuse designed to provide overcurrent protection for compatible 80A-class DC circuits. ARB’s marketplace data identifies the product at 80A and references the execution standards SAE J2077, JASO D612, and QC/T 420-2004. It is intended for use with a matching large blade-fuse holder in battery, vehicle, charger, energy-storage, and other DC power systems where an 80A fuse is specified by the electrical design.

The fuse is a sacrificial safety component. During normal operation it carries the circuit current through a calibrated conductive element. If an overload or fault drives the current beyond the fuse’s time-current capability, the element heats and opens the circuit. This helps protect the wiring and connected equipment from sustained overcurrent, provided the fuse has been selected correctly for the conductor, voltage, holder, and load.

Technical Details

The fuse element is designed to tolerate the circuit’s intended operating current while responding to excessive current according to its characteristic curve. When enough heat builds in the element, it melts or separates and interrupts the current path.

An 80A fuse does not necessarily open immediately when the current rises slightly above 80A. Fuse behavior depends on both current magnitude and time. This allows designers to coordinate the fuse with loads that may have temporary starting or surge currents while still providing protection against damaging overloads or faults.

The correct fuse rating must be coordinated with the wire ampacity, normal load current, expected surge current, connector ratings, BMS design, and downstream equipment. Installing an 80A fuse on wiring that cannot safely carry the required current defeats the purpose of the protection device.

Voltage rating is also critical. A fuse must be capable of safely interrupting the circuit voltage after it opens. The current ARB search data confirms the 80A rating and referenced standards, but the exact fuse voltage rating should be verified from the physical fuse or supplier datasheet before use in higher-voltage lithium battery packs.

Select an 80A fuse by matching it to the conductor ampacity, expected continuous current, permitted short-duration surge, holder design and circuit voltage. The fuse should open under abnormal overcurrent conditions before the wiring reaches an unsafe thermal condition. Use a holder intended for the same large blade format and current class, and ensure the contacts remain clean and tight. Never increase the fuse rating to stop repeated fuse operation without first locating the cause of the overload or fault.

Applications

When the holder and voltage rating are suitable, an 80A large blade fuse may be used in:

• Lithium-ion and LiFePO4 battery systems

• EV and e-mobility battery wiring

• DC chargers

• Solar energy-storage systems

• UPS and backup power

• Inverter or converter circuits

• Automotive auxiliary power

• Industrial DC equipment

• Battery distribution and accessory circuits

Installation Guide

Fit the fuse only into a holder designed for the same large blade format and appropriate current. Both blades should seat fully and firmly. Poor contact pressure, contamination, oxidation, or an undersized holder can create additional resistance and heat.

If the fuse opens, isolate the battery or power source according to the system procedure and investigate the cause. Check for short circuits, damaged insulation, overloaded equipment, wiring errors, or failed components before fitting a replacement. Replace the fuse with the same required current class and an appropriate voltage rating rather than installing a larger fuse simply to prevent repeat operation.
