FUSE BLADE 60A BIG

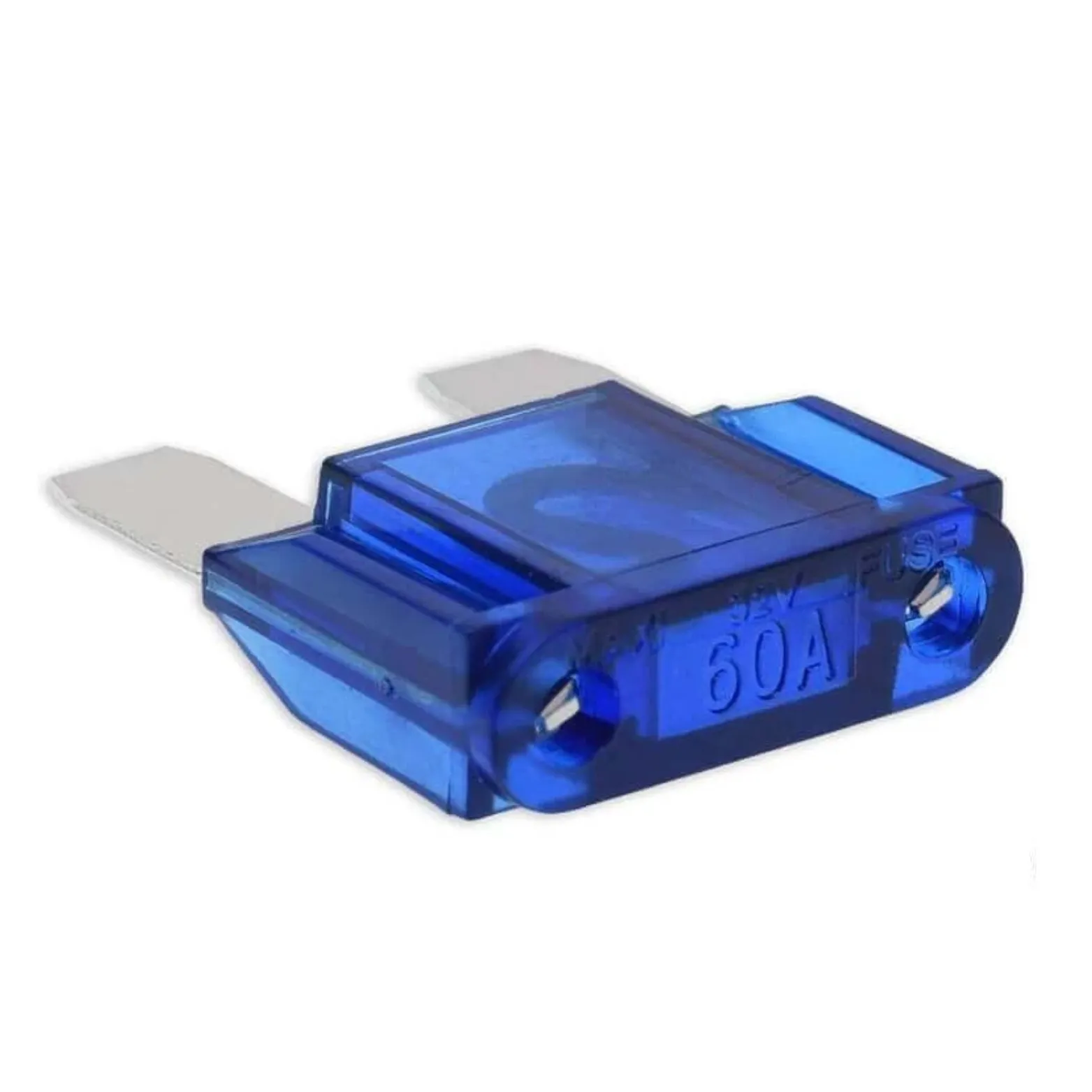

Fuse Blade 60A – Big

The Fuse Blade 60A Big is a large-format blade fuse intended for overcurrent protection in compatible 60A-class DC electrical circuits. The fuse is installed in a matching holder and is designed to open the circuit when an overcurrent condition exceeds its time-current characteristics.

For battery and EV systems, a fuse is an important part of the protection architecture because wiring can carry very high fault current from a battery. The fuse’s purpose is to interrupt the circuit under specified overcurrent conditions before the protected conductor or equipment is exposed to unacceptable thermal stress. It does not replace the BMS or other electronic protection systems; instead, it provides a separate sacrificial current-protection function.

Technical Details

Inside the fuse body is a conductive element sized to carry normal circuit current while responding to excessive current. When the current is high enough for long enough, the element heats until it opens. This disconnects the protected circuit and stops current flow through that path.

A 60A marking does not mean the fuse opens the instant current reaches 60.1A. Fuse operation follows a time-current relationship. Short-duration motor or controller peaks may be treated differently from a sustained overload depending on the fuse design. Circuit designers should therefore consider both normal operating current and expected transient current when selecting the fuse.

Fuse selection must coordinate with the conductor and the load. The fuse rating should not exceed what the protected wire, connector, holder, and downstream equipment can safely handle. At the same time, it must allow the normal operating and permitted short-duration current of the load.

Circuit voltage is equally important. The fuse must have an interrupting voltage rating suitable for the battery system. If the exact voltage rating is not printed in ARB’s current listing, confirm the marking on the physical fuse or the supplier datasheet before installation.

Select a 60A fuse by coordinating it with conductor size, normal load current, expected temporary surges, fuse holder and circuit voltage. The fuse should be rated to protect the wiring and connected equipment while allowing the normal operating current of the circuit. Use only a compatible large blade holder with clean, tight contacts. Repeated fuse operation indicates an overload, short circuit or installation problem that should be corrected before the circuit is returned to service.

Applications

When properly matched to voltage and holder requirements, a 60A large blade fuse may be used in:

• Lithium battery packs

• E-bike, scooter, and EV auxiliary circuits

• Battery chargers

• DC power distribution

• Solar battery systems

• UPS and backup batteries

• Inverter accessory circuits

• Automotive and marine-style DC systems

• Industrial battery equipment

Installation Guide

Use only a holder that matches the large blade form factor and is suitable for the intended current. Push the fuse fully into the holder so both blades have secure contact pressure. Loose, oxidized, or undersized contacts can heat and may damage the holder.

Mount the holder where it can be inspected and replaced without exposing the technician to accidental short circuits. In a battery system, locate the fuse according to the pack’s protection design and follow appropriate isolation procedures before service.
