FUSE BLADE 50A SMALL

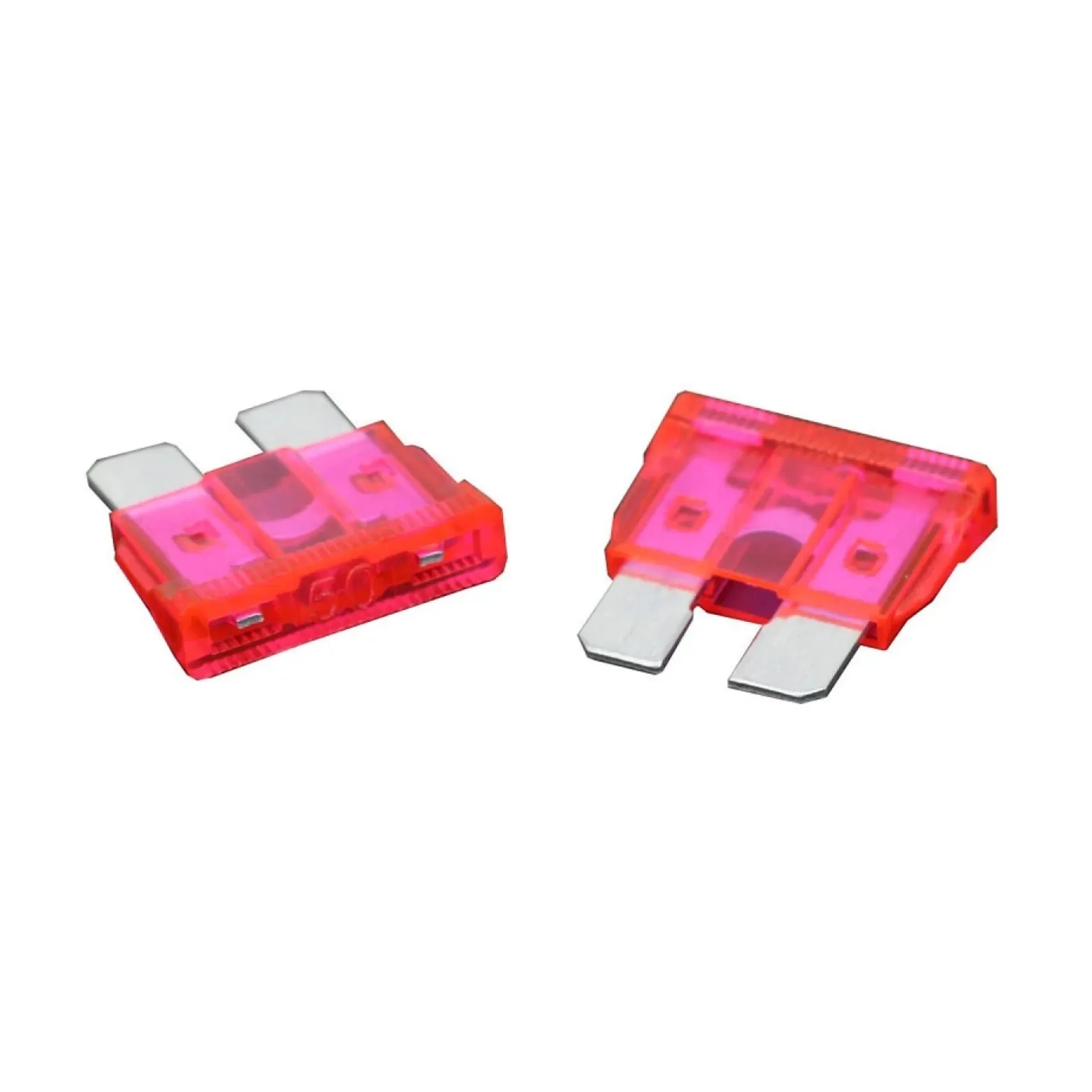

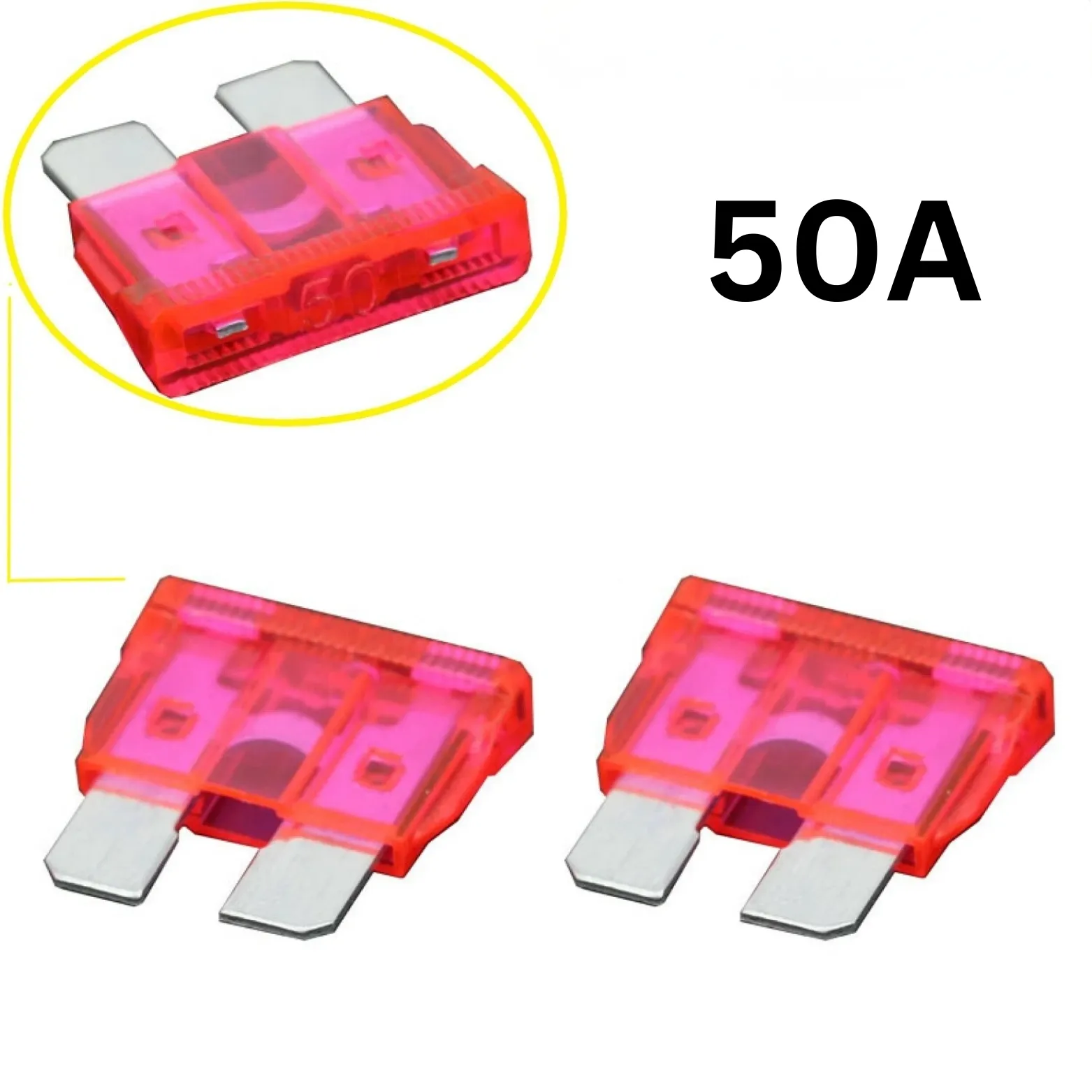

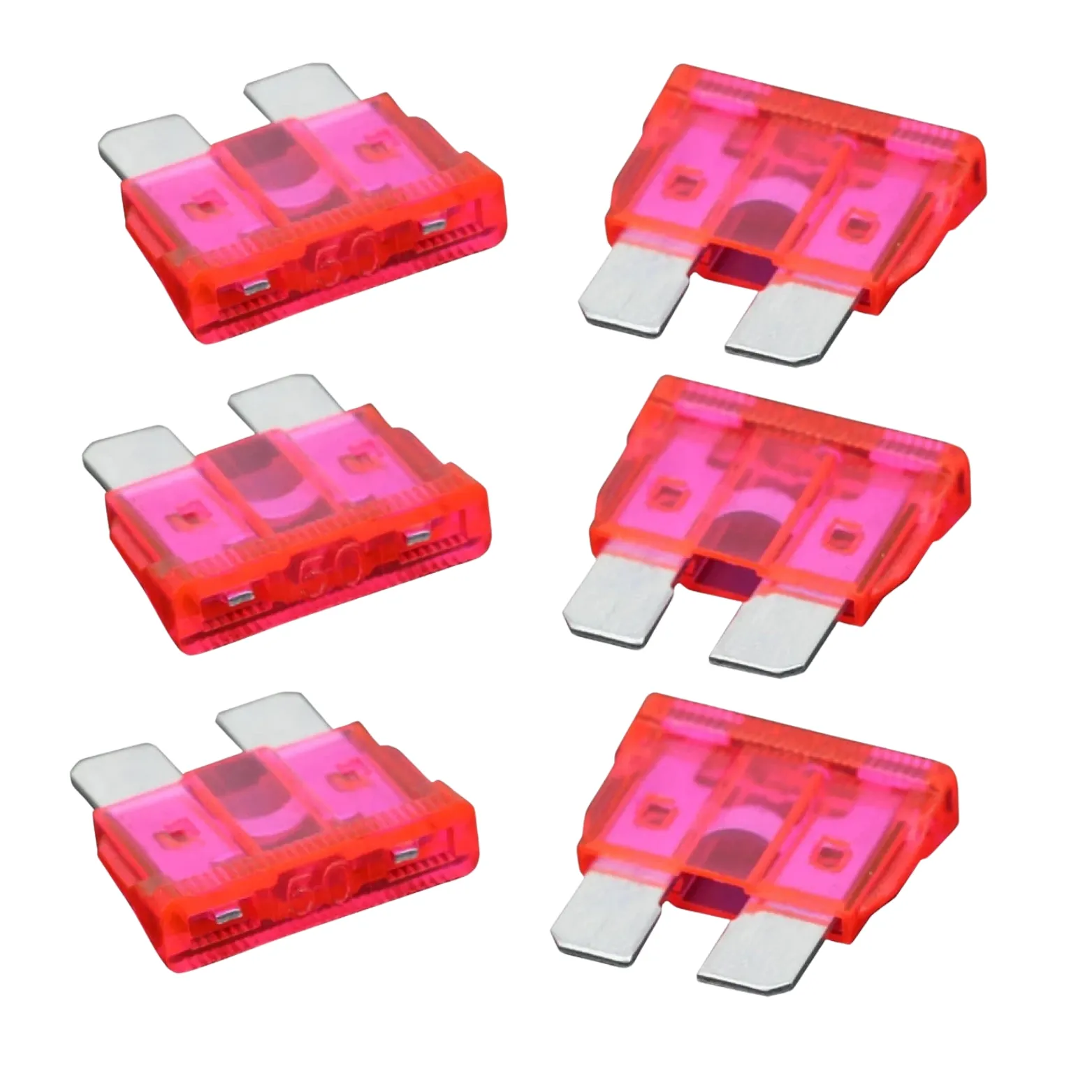

Blade Fuse 50A Small

The Blade Fuse 50A Small is a 50A blade-format fuse for low-voltage battery and DC electrical systems. Its small catalogue size identifies the physical variant within this product range, while the 50A marking defines the nominal current class used when engineering the protected circuit.

A blade fuse is a sacrificial overcurrent device. Under a sufficiently high fault or overload condition, the calibrated fuse element opens the circuit and stops current flow through the protected branch. It is not a current regulator and it does not replace correct cable sizing, a BMS, a breaker used for switching, or suitable insulation. The fuse rating and the physical blade format both need to match the holder and circuit design.

The 50A value is not the same as a normal continuous load target. Fuse operation depends on current magnitude and time, and different blade families can have different time-current behaviour even when they carry the same ampere marking. For this small variant, the practical design task is to protect the conductor and downstream equipment while allowing expected operating and short-duration load current to pass without nuisance opening.

Contact quality at the fuse blades matters because heat can be produced at the holder interface as well as inside the fuse element. Loose or oxidised female terminals increase resistance and can soften the holder before the fuse itself reaches its intended operating condition. A correctly fitted blade fuse seats fully, has firm terminal contact and is installed in a holder designed for the same physical footprint.

A fuse clears one fault event and is replaced after operation; it should not be repeatedly bridged, oversized or bypassed to keep equipment running. If a replacement fuse opens again, the underlying current path needs investigation. In battery systems, fault energy can be high, so the fuse, holder, conductor and source voltage must be considered together as one protection system rather than as independent parts.

Applications

• Battery-pack main and branch circuits requiring sacrificial overcurrent protection.

• Inverter and UPS DC wiring where a replaceable fuse protects the downstream cable path.

• Solar-storage battery assemblies with a dedicated fuse positioned close to the power source.

• Electric-vehicle auxiliary or power circuits using a compatible holder and the same fuse family.

• Workshop test rigs and service harnesses that need visible, replaceable circuit protection.

• Custom lithium battery and DC distribution systems designed around the stated current class.

Installation Guide

Isolate the battery source and remove charging and load connections before working on the fuse circuit. Install the fuse in a holder made for the same physical fuse format, keep contact surfaces clean and use conductors sized for the protected circuit. Position the fuse close to the source side of the conductor so the length of unfused wiring is kept short, and protect the assembly from tools, loose hardware and enclosure edges.

Commission the protected circuit with a controlled load. Establish correct polarity and source voltage, then energise progressively while observing the fuse holder, cable and terminals. A correctly assembled circuit should not develop abnormal temperature rise at the fuse contacts during normal operation. Repeated fuse opening, visible heat damage or unusual voltage drop indicates a fault, undersized conductor, poor connection or unsuitable fuse coordination that requires corrective work.

Record the fuse format, current class, holder type and protected conductor size with the battery or equipment documentation. Replace an operated fuse with the same engineered family and rating unless the electrical design itself has been revised. During maintenance, inspect terminal grip, bolted joints, holder condition and signs of thermal stress. Changes to inverter power, motor load, battery voltage or cable size require a fresh review of fuse coordination.

Why Choose ARB Accessories?

ARB Accessories supplies fuses and fuse holders alongside battery cells, BMS boards, cable, terminals, busbars, breakers and battery-pack hardware for Indian builders and service teams. Prepare your enquiry with the required fuse family, 50A current class, system voltage, conductor size and holder format so the protection device fits the intended battery, inverter or DC circuit.
