FUSE BLADE 30A SMALL

FUSE BLADE 30A SMALL

The FUSE BLADE 30A SMALL is a small blade fuse with a stated current rating of 30A, intended for overcurrent protection in compatible DC electrical systems. It is relevant to lithium battery packs, EV auxiliary circuits, inverters, UPS systems, automotive wiring and other installations where a correctly selected fuse is used to interrupt excessive current before conductors or equipment are damaged. Common search terms include 30A fuse, battery fuse, DC overcurrent fuse, EV fuse and replacement small blade fuse.

A fuse is a sacrificial protection device. It should be selected as part of the complete circuit rather than by matching only the current printed on the fuse body. The cable ampacity, expected continuous load, startup or surge current, fault-current capability, holder type and equipment manufacturer requirements all affect correct fuse selection. A higher fuse rating is not automatically safer because it may allow wiring to overheat before the element opens.

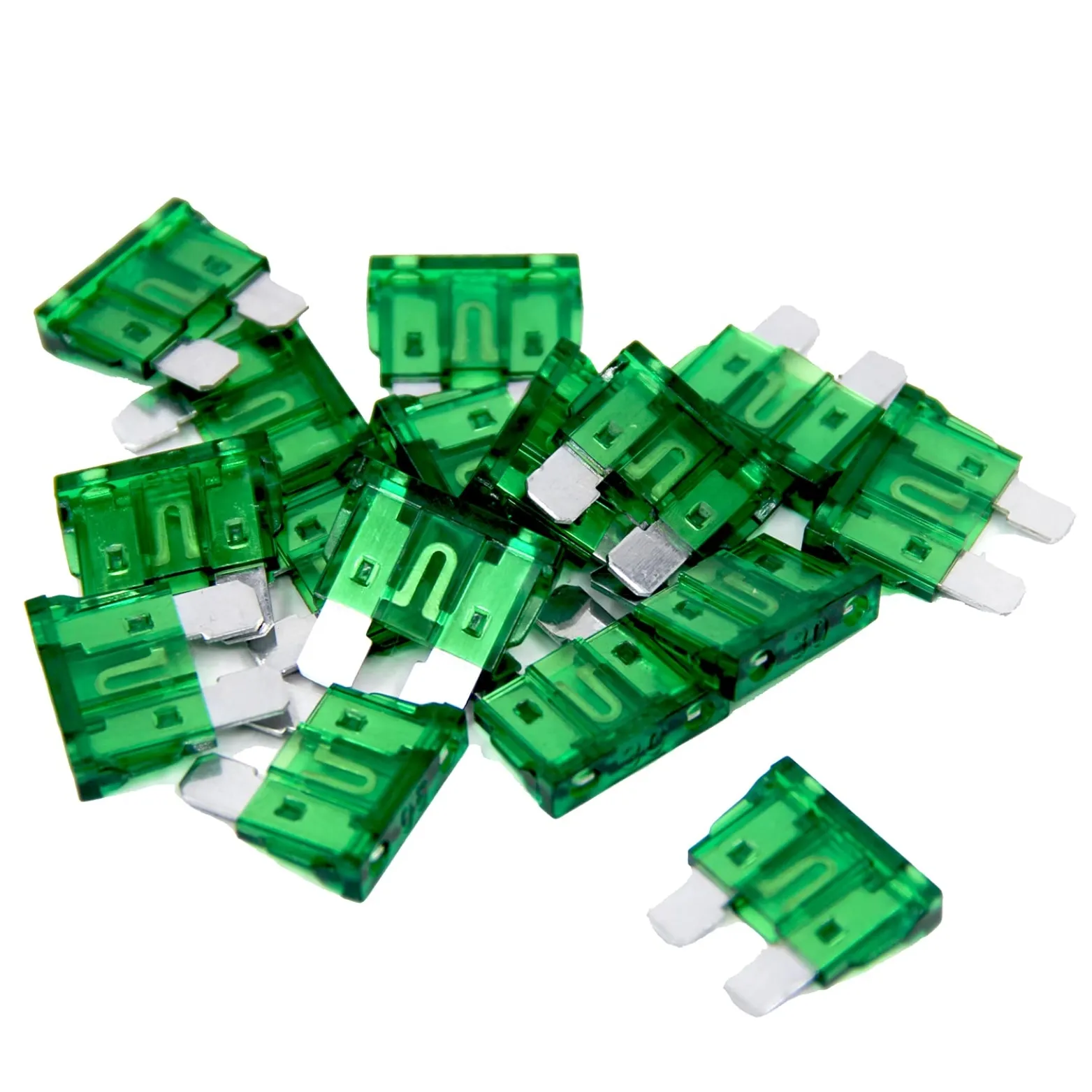

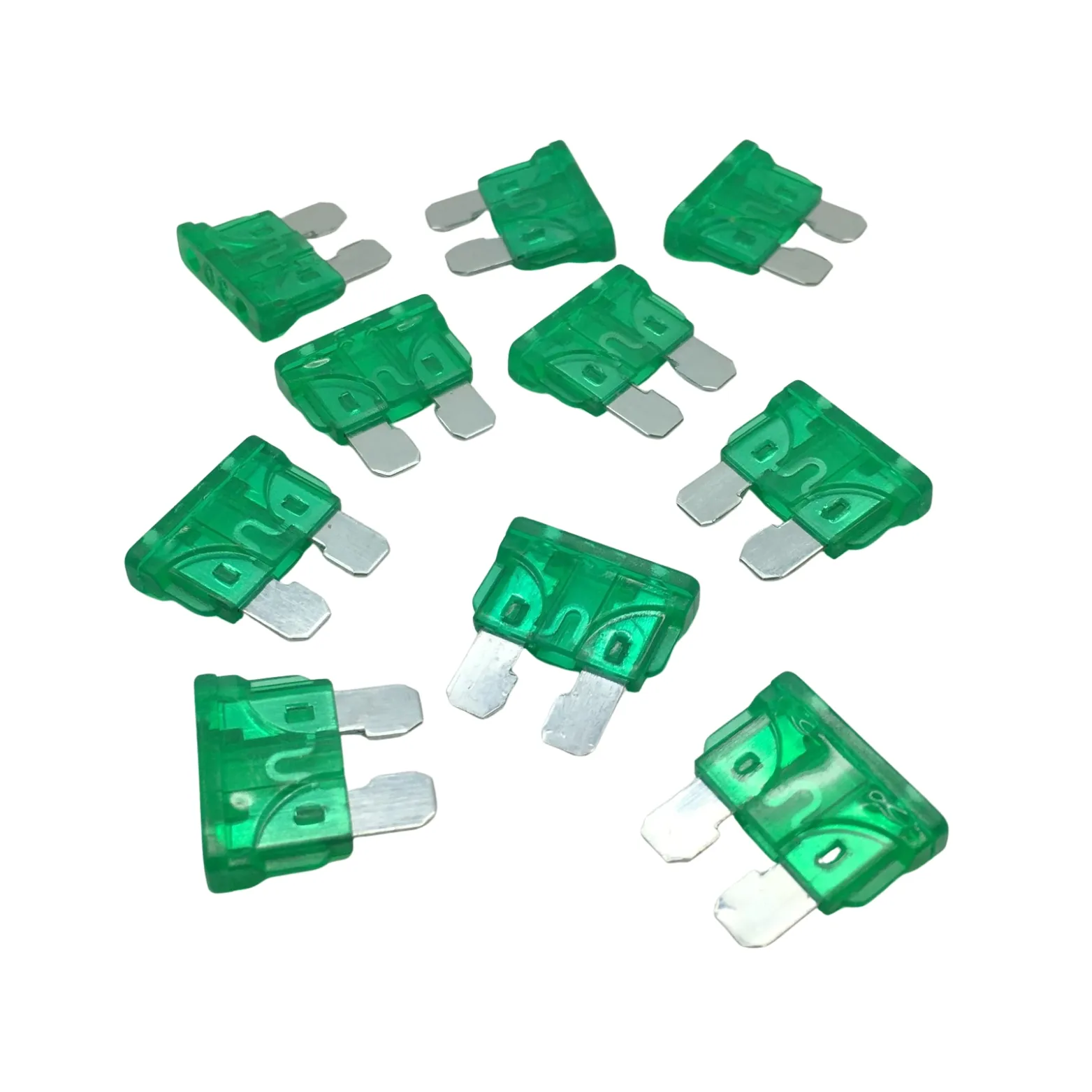

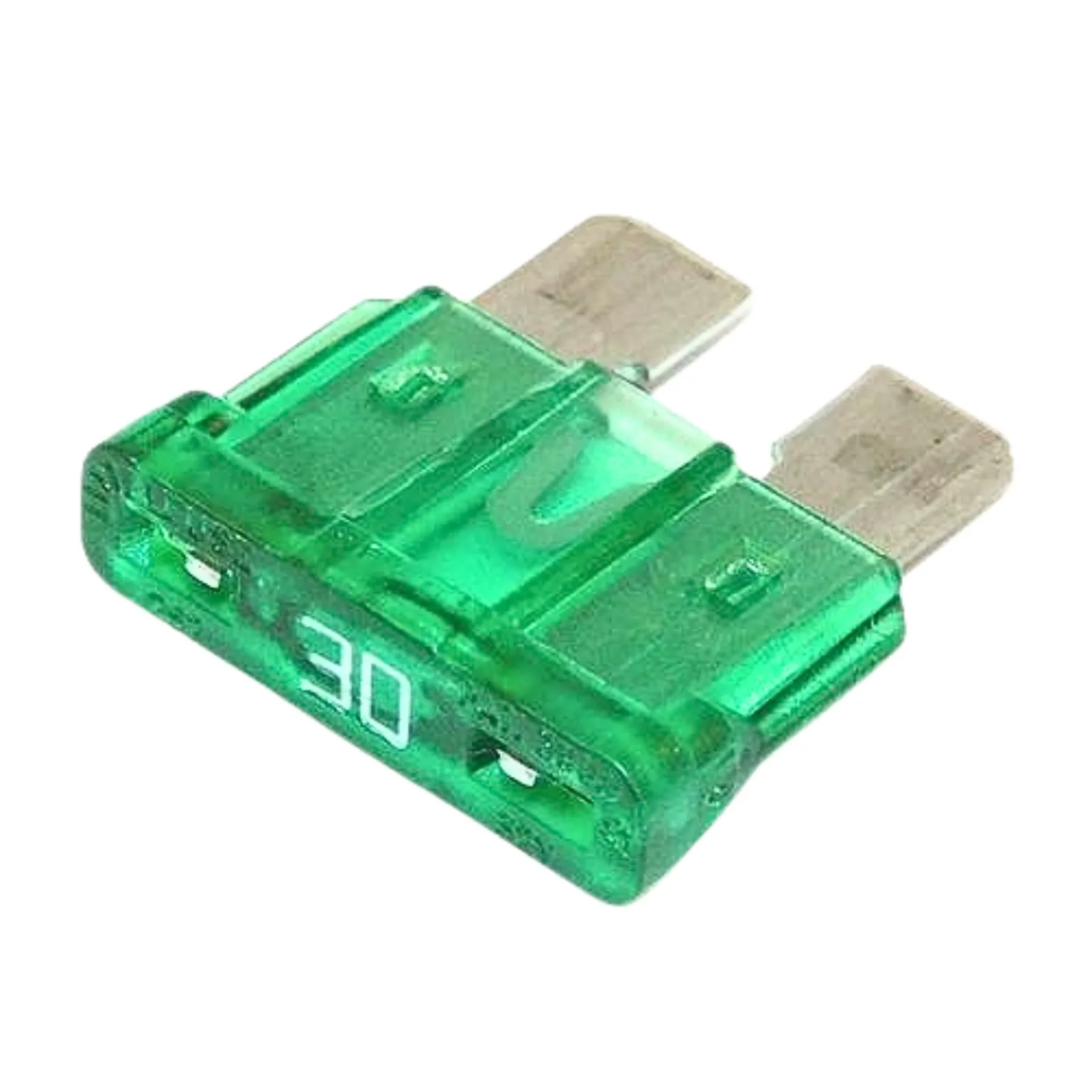

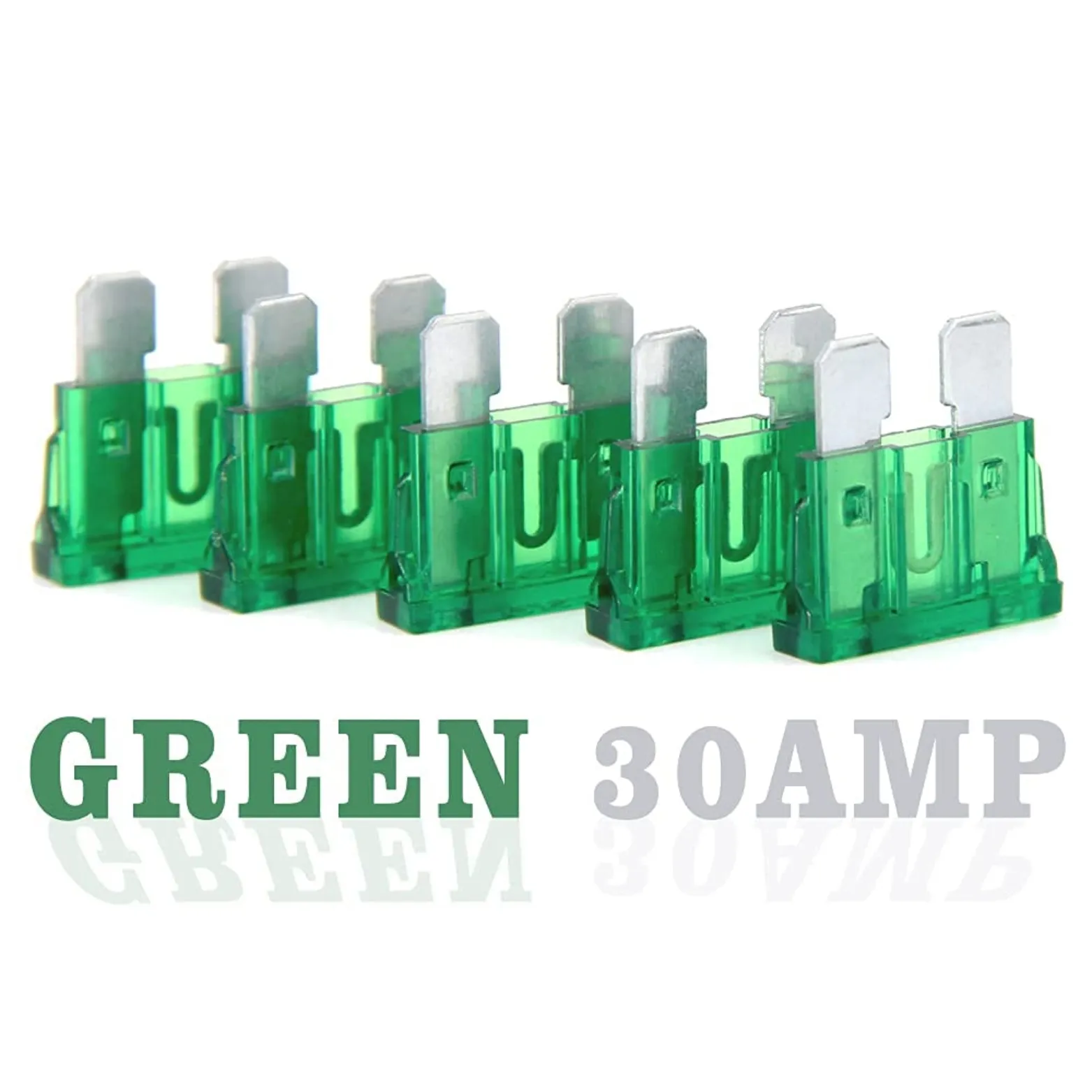

ARB's current product page identifies the item as an automotive 30A-green small blade fuse and lists SAE J2077, JASO D612 and QC/T420-2004 references, with zinc-alloy and PC-plastic construction. The exact voltage and interrupting ratings should still be confirmed for the intended circuit. The stated 30A rating identifies the fuse's nominal current class, but actual opening time depends on the fuse's time-current characteristic and the magnitude of the overcurrent. For battery systems capable of very high short-circuit current, the fuse and holder must also have an adequate DC voltage and interrupting capability for the application. These values should be confirmed from the exact fuse specification rather than inferred from a similar-looking part.

Connection quality around the fuse is as important as the fuse element itself. Loose bolts, oxidized contacts, undersized terminals or a damaged holder can create resistance and heat during normal operation. A fuse should be mounted in the correct holder, with clean contact surfaces and properly secured hardware. The protected conductor should be sized for the actual current path, and the fuse should normally be positioned so the unfused section of cable is kept as short as practical.

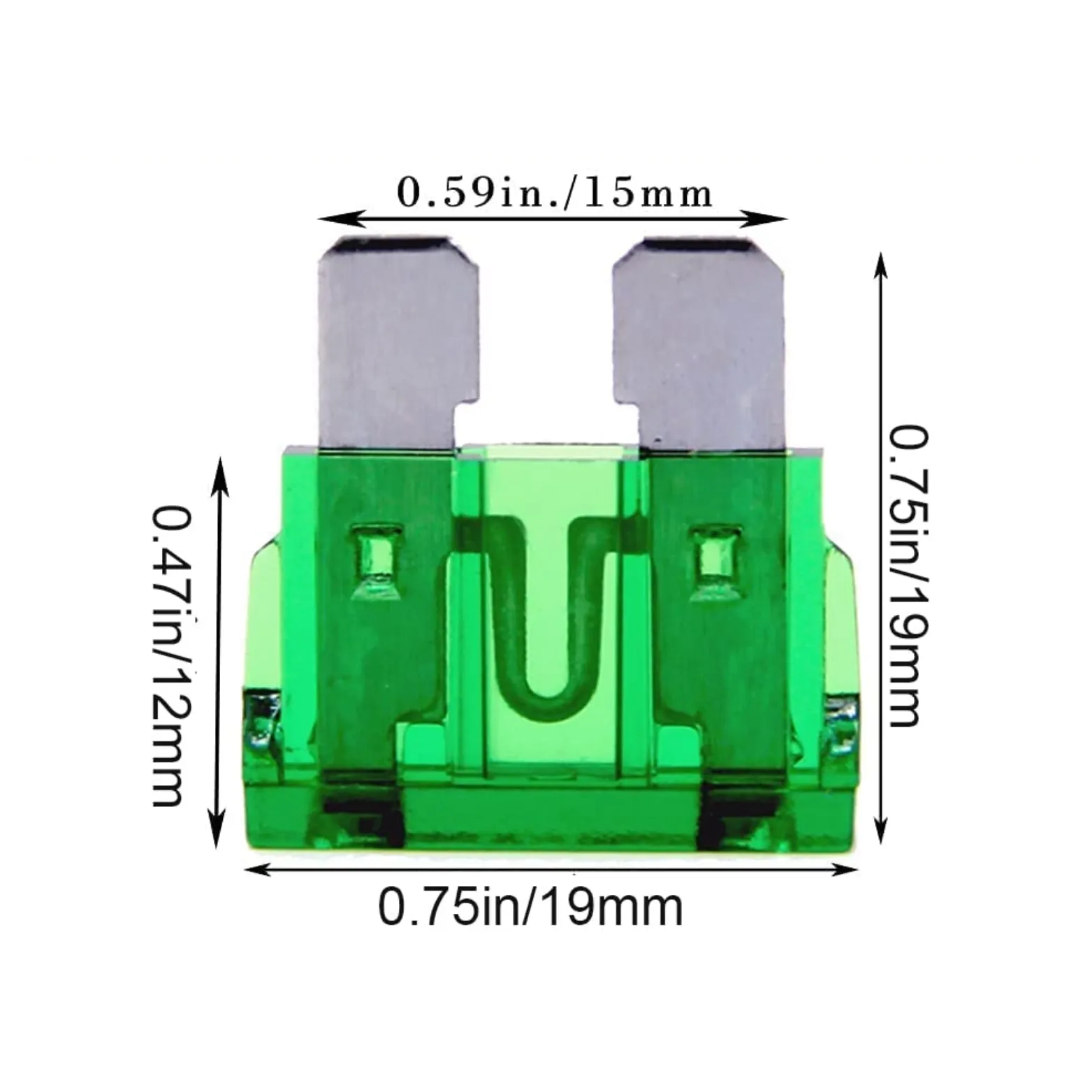

Match this 30A small blade fuse to the system voltage, fuse-holder format, conductor size, expected continuous current, surge profile and required fault protection. Do not replace a lower-rated fuse with this item merely to stop nuisance opening without first identifying the cause. For replacement work, compare the original fuse type, dimensions, mounting pattern and electrical ratings, and follow the battery, inverter, charger or vehicle manufacturer's protection requirements.

Applications

• Lithium battery pack and battery-cabinet overcurrent protection.

• EV, automotive and utility DC power circuits where the fuse type is specified.

• Inverter, UPS and solar battery interconnections.

• Battery workshop test rigs and prototype DC power assemblies.

• Replacement fuse service for compatible holders and equipment.

Installation Guide

Isolate the battery and verify the circuit is de-energized before replacing the fuse. Inspect the holder and terminals for discoloration, melted plastic, looseness or corrosion, because fitting a new fuse into a damaged holder can reproduce the same failure. Install the fuse in the correct orientation for the holder, tighten hardware to the equipment requirement and keep conductive tools away from exposed battery terminals. After commissioning, monitor the fuse holder under load for abnormal heating and investigate any repeated fuse opening instead of repeatedly increasing the fuse rating.
