ESS CON ORANGE+BLACK WITH 4AWG-125AMP/450MM

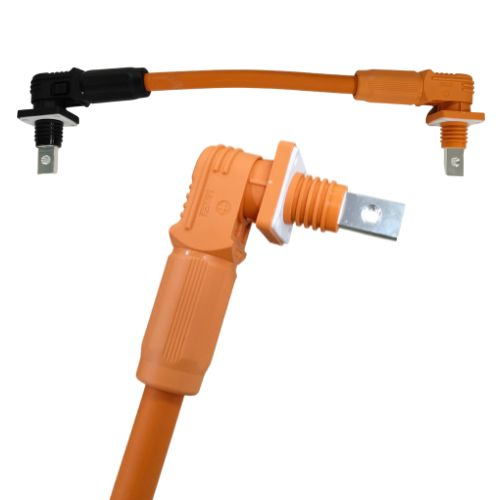

ESS Connector Orange + Black with 4AWG Cable 125A / 450mm

The ESS Connector Orange + Black with 4AWG Cable 125A / 450mm is a pre-assembled high-current DC connection set for energy-storage and battery-power systems. The assembly combines orange and black connector ends with 4AWG cable and a 450mm cable length, giving installers a short heavy-gauge interconnect for compatible battery, inverter and power-distribution equipment. The 125A designation identifies the connector current class used for this SKU.

In an ESS installation, a connector assembly is part of the complete power path between the battery and the equipment that uses or converts the stored energy. The cable gauge, contact system, termination quality, connector engagement, fuse or breaker and system voltage all influence the electrical performance of that path. Color coding helps with polarity organization, but correct polarity must always be confirmed electrically before the connection is energized.

At high DC current, even small amounts of contact resistance can create noticeable voltage drop and heat. The 4AWG conductor size provides a larger cross-sectional area than lighter battery wiring and is commonly used where lower resistance is required over short battery interconnects. The 450mm length keeps the run compact, which can help reduce unnecessary cable resistance and make routing easier inside an ESS cabinet or between adjacent battery and inverter terminals.

The connector interface must be fully seated and mechanically secure. Poor crimping, damaged contacts, contamination or partial engagement can concentrate heat at the connection point even when the cable itself is adequately sized. The complete installation should therefore be evaluated by actual operating current, acceptable temperature rise, system voltage, duty cycle and the electrical rating of the mating connector. Cable support and bend radius also matter because repeated mechanical stress can loosen terminations over time.

Match this assembly to the exact mating ESS connector family used on the battery, inverter or distribution hardware. Confirm the required polarity orientation, 4AWG cable suitability, 450mm routing length and the electrical protection used in the system. Do not select by housing color alone because different connector families can use similar colors while having different contact geometry, keying and voltage/current limits. Keep the cable length short enough for efficient routing but long enough to avoid tension on the connector body.

Applications

• LiFePO4 and lithium-ion energy-storage battery systems.

• Solar and hybrid inverter battery interconnections.

• UPS and backup-power battery cabinets.

• Battery-to-power-distribution or service-disconnect links.

• Industrial DC systems using compatible 125A-class ESS connectors and 4AWG cable.

Installation Guide

De-energize the battery circuit before installation. Confirm connector polarity and mating-key orientation, then route the cable without sharp bends or continuous tension. Support the cable so its weight does not pull directly on the connector housing. Inspect the crimped termination and contact engagement before energizing. Coordinate the fuse or breaker with the battery, cable and equipment design, and check connector and cable temperature during initial operation under a controlled load.
