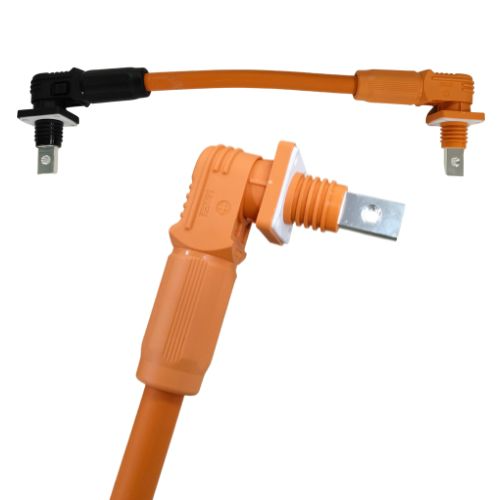

ESS CON ORANGE+BLACK WITH 4AWG-125AMP/280MM

ESS Connector Cable 125A 4 AWG 280 mm Orange + Black

The ESS Connector Cable 125A 4 AWG 280 mm Orange + Black is a cable assembly built around a 125A connector class, 4 AWG conductor designation and 280 mm lead length. The orange + black identification provides a ready power link for battery, inverter and energy-storage wiring where conductor size, connector family and harness routing are already defined in the cabinet layout.

Pre-terminated ESS leads reduce field assembly steps because cable size, terminal geometry and routing length are established as one part. The conductor designation describes cable size, while a connector current figure describes the connector class; neither number alone defines the safe current of the complete installed circuit. Cable routing, insulation temperature, ambient conditions and termination quality remain part of the electrical design.

Every high-current cable assembly has several resistance points: the conductor, each crimped contact, the connector interface and any bolted lug at the far end. Good performance comes from controlling all of them. A short, correctly supported harness reduces unnecessary cable length and mechanical movement, while the connector housing keeps the mating contact aligned. Bending should occur in the flexible cable rather than directly at the termination.

The orange + black arrangement is useful for circuit identification in multi-battery racks, but the wiring diagram remains the authority for polarity. Connector colour, cable gauge and length should be recorded together because replacement leads that look similar can have different conductor size or routing geometry. In parallel battery systems, cable length and connection resistance also influence current sharing between modules.

Temperature rise is the practical indicator of whether the cable and connector are working comfortably in the application. High ambient temperature, bundled cables, repeated peak currents and poor airflow can raise conductor and contact temperature. A correctly engineered harness uses suitable overcurrent protection upstream and keeps the connector accessible for inspection. The cable assembly is a power path, not a substitute for a fuse, breaker, contactor or BMS.

Applications

• Battery-to-inverter DC links inside stationary energy-storage cabinets.

• Inter-module power leads for lithium battery and ESS assemblies.

• Solar-storage battery wiring between pack terminals and power distribution points.

• UPS and backup-power battery harnesses requiring compact pre-terminated cable runs.

• Service replacement of matched high-current leads in battery racks and inverter systems.

• Custom ESS cabinet builds using the stated conductor size, lead length and terminal geometry.

Installation Guide

Isolate the battery and inverter before installing the harness. Route the lead without sharp bends or abrasion points, keep connector and lug faces clean, and support the cable so the termination is not carrying mechanical load. Maintain clear polarity control throughout the cabinet and keep tools away from exposed opposite-polarity conductors.

Commission the lead with controlled energisation. Establish pack polarity and voltage before mating the connector, then apply load gradually while monitoring the connector body, cable and any bolted termination. Abnormal heating, visible movement or excessive voltage drop indicates a connection or sizing problem requiring corrective work before full-power operation.

Record conductor size, connector or lug reference, lead length, colour arrangement and installed route with the battery documentation. Re-inspect the harness after initial thermal cycling and during scheduled service. If inverter power, battery parallel count or cable route changes, review the entire current path and protection coordination again.

Why Choose ARB Accessories?

ARB Accessories supplies ESS cable assemblies together with battery cells, BMS boards, connector terminals, cable lugs, busbars, fuses, breakers and enclosures for Indian battery builders. Prepare your enquiry with the 4 AWG conductor size, 125A connector class and published length designation, colour arrangement and mating interface so the harness fits the planned ESS or inverter cabinet. A well-designed power path also keeps high-current joints accessible for inspection, because early signs of heating or loosening are easier to correct before they affect the enclosure. Cable support, enclosure layout and service access matter alongside electrical rating, since repeated movement can increase mechanical stress at an otherwise sound connection.
